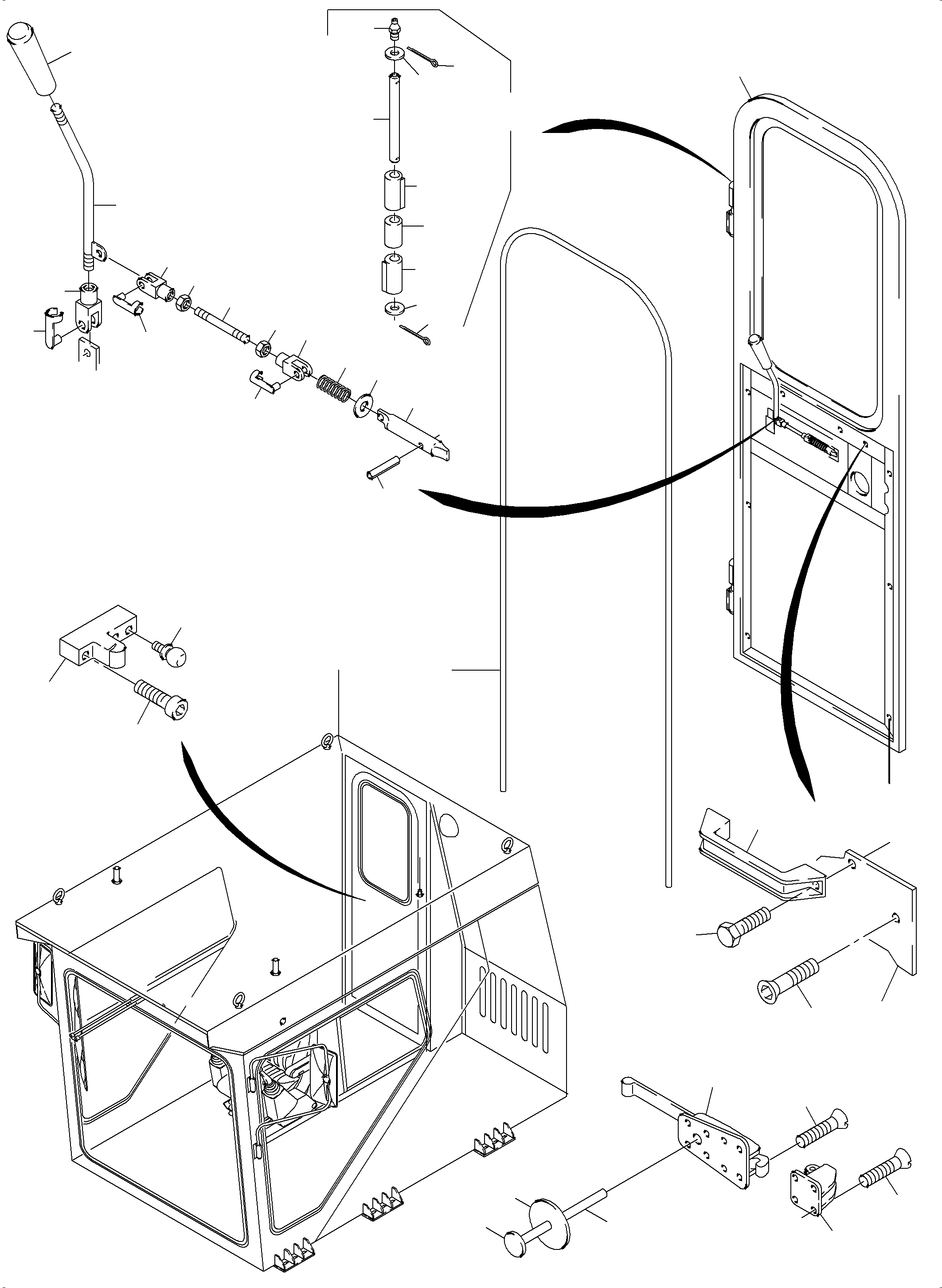

Diagram image 1 of 5

PC4000-6E S/N 08202

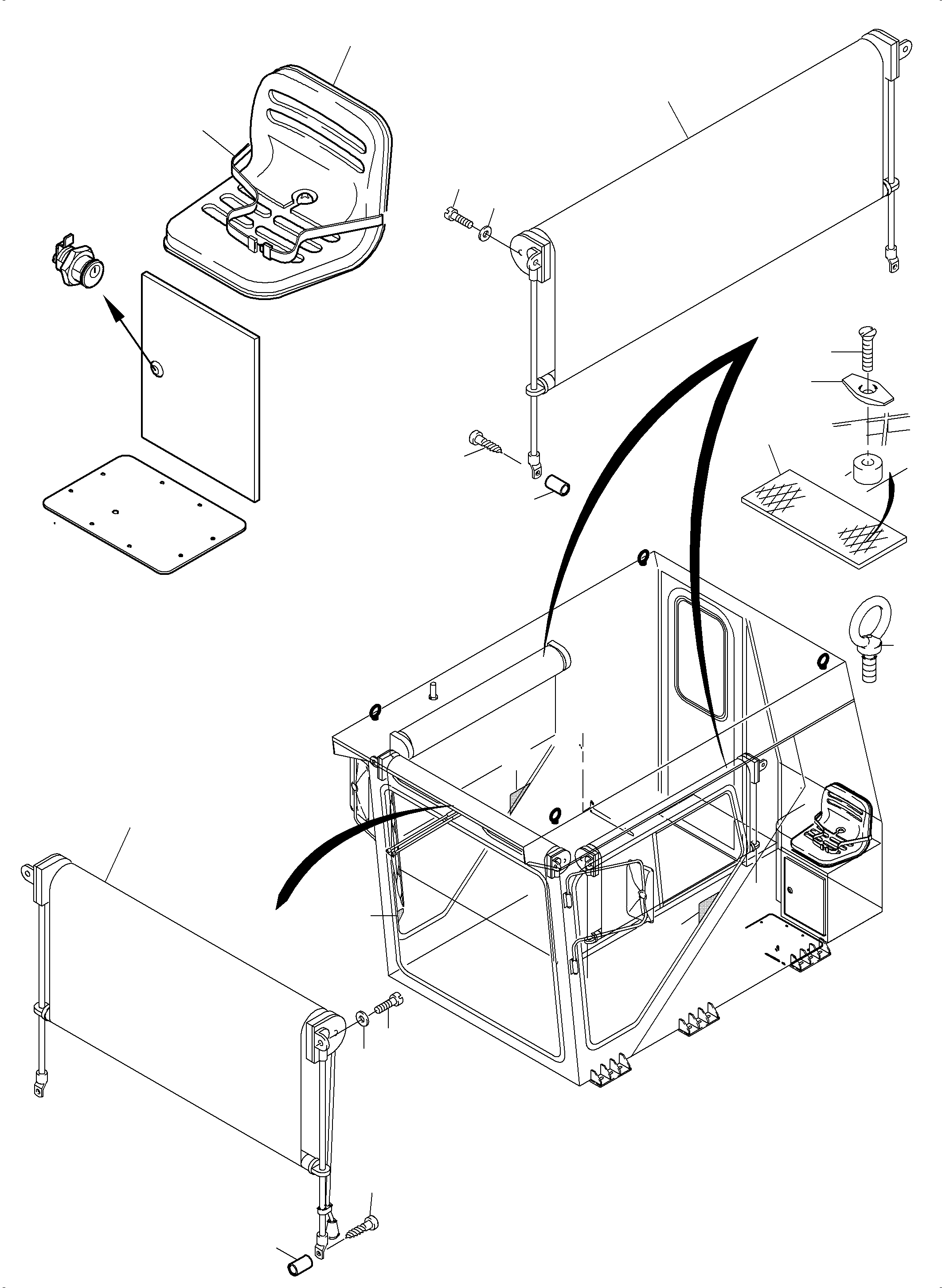

01 02 03 04 05 06 07 08 09 10 11 11 12 12 13 14 15 15 16 17 18 19 20 21 22 23 24 25 29 30 31 32 46 47 49 77 78 79 79 80 81 81 82 82

PC4000-6E S/N 08202

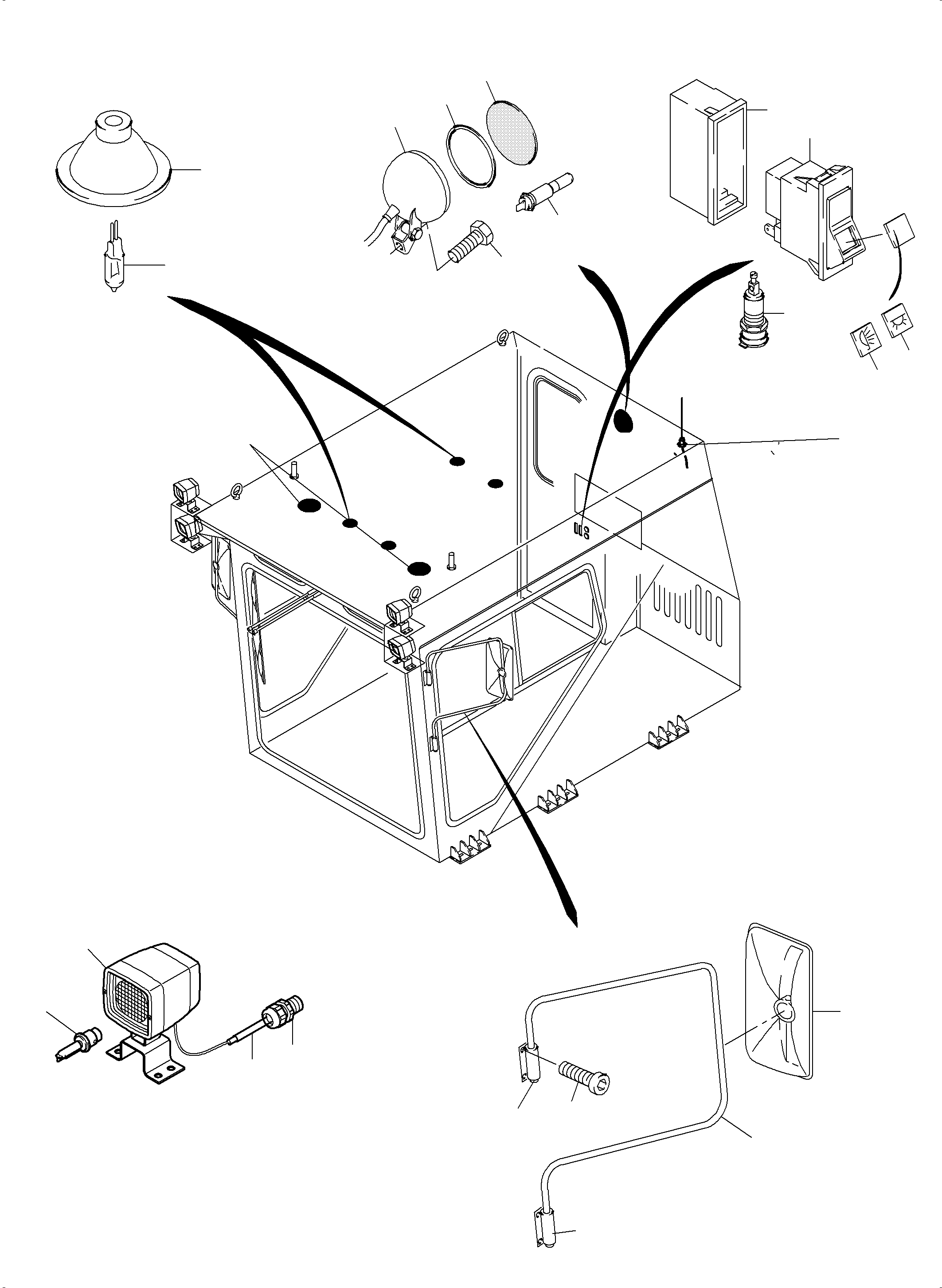

120 121 34 35 36 37 38 39 40 41 42 43 44 45 50 52 53 54 55 58 59 60 61 62

PC4000-6E S/N 08202

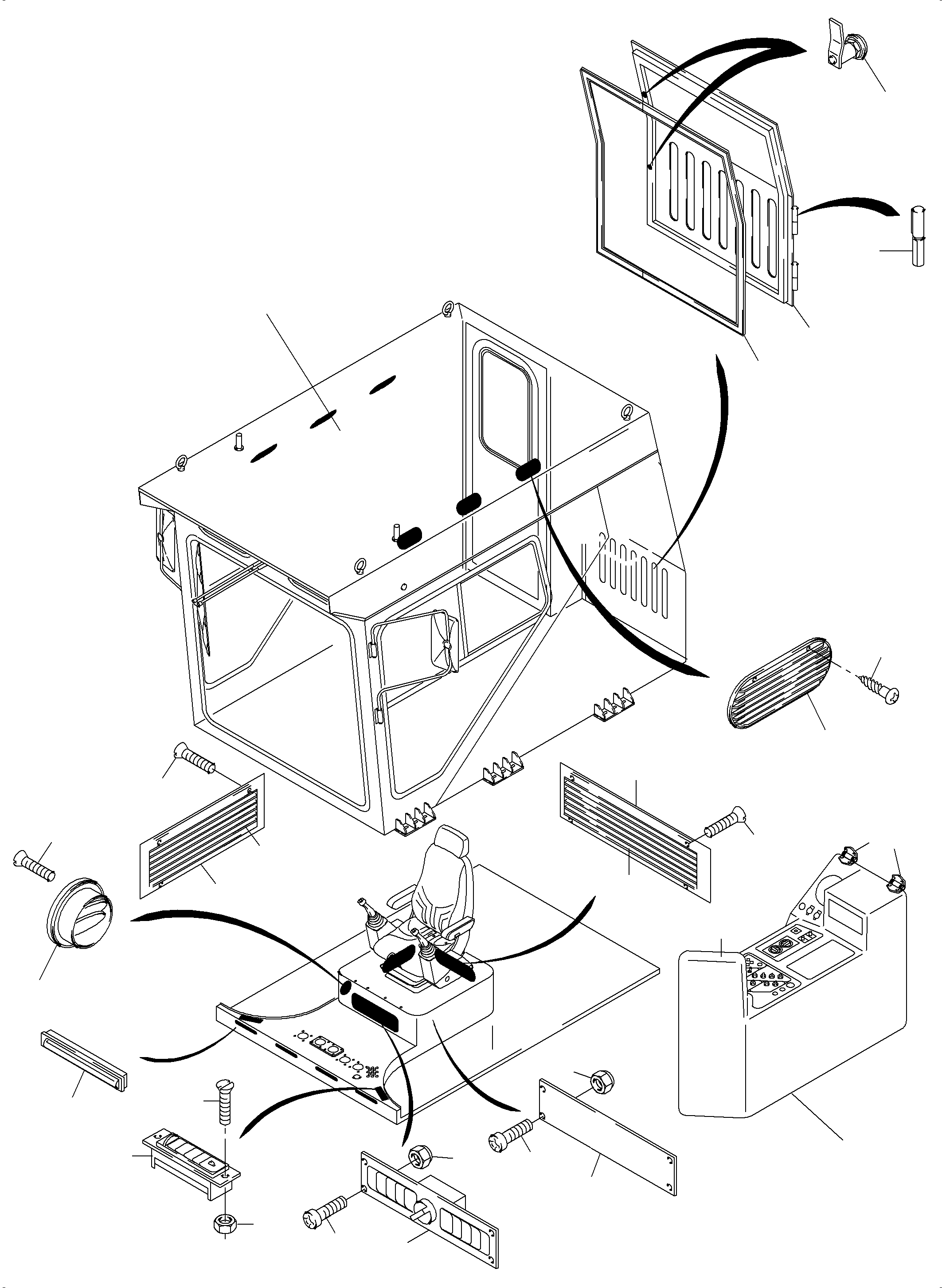

126 126 127 127 128 128 129 130 131 132 133 63 64 70 71 72 74 75 76 83

PC4000-6E S/N 08202

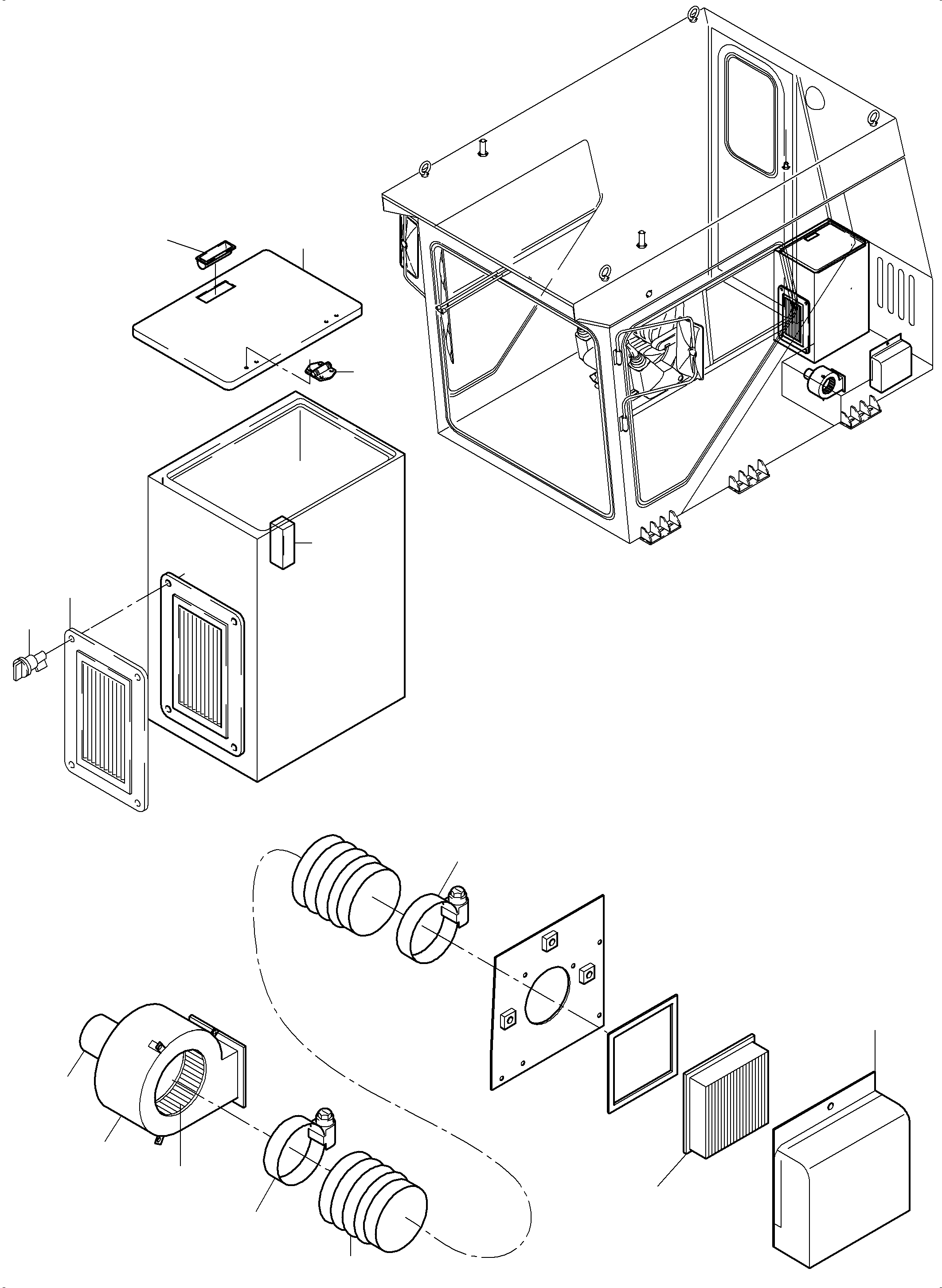

100 101 102 105 106 106 107 116 117 118 119 134 135 136 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 98 99 99

PC4000-6E S/N 08202

109 110 111 112 113 122 123 124 125 65 66 67 67 68 69

#	Part Number	Partname	Quantity	Options	Reference
01	942 085 40	Operator's cab assy. Electro	1	InternBDB: Fa. Matec 510 000 000 /TL
02	796 431 73	Door assy.	1	InternBDB: Fa. Matec 509 400 000
03	390 199 40	Hinge	2
04	356 533 40	Catch	1	InternKon: 503 400 000 / 14
05	374 222 40	Detent	1
06	368 431 40	Pane	1	InternKon: 503 400 000 / 17
07	356 535 40	Compression spring	1	InternKon: 503 400 000 / 16
08	356 536 40	Threaded rod	1	InternKon: 503 400 000 / 18
09	796 430 73	Lever	1	InternBDB: 503 400 100 \| InternKon: 503 400 000 / 12
10	345 178 99	Dowel pin	1	InternBDB: 6x30 /1481 \| InternKon: 503 400 000 / 15
11	332 110 99	Nut	2	InternBDB: M 6 /934 \| InternKon: 503 400 000 / 19
12	350 748 99	Fork end	2	InternBDB: G 6x12 /71752 \| InternKon: 503 400 000 / 20
13	350 742 99	Fork end	1	InternBDB: G 10x20 /71752 \| InternKon: 503 400 000 / 21
14	002 827 98	Pin	1	InternBDB: 10x20 ESN 01 WN 010 869 99
15	002 823 98	Pin	2	InternBDB: 6x12 ESN 01 WN 010 869 99
16	769 602 73	Handle	1	InternBDB: GHE 581 0062 \| InternKon: 503 400 000 / 22
17	516 643 98	Bolt	2	InternBDB: M6x16 /965 \| InternKon: 503 400 000 / 23
18	769 603 73	Cylinder button	1	InternBDB: Matec 114 010 607 /6 N 519.1-23-B10 \| InternKon: 503 400 000 / 13
19	769 652 73	Profiled joint ca. 4300 1,5-2	-2	InternBDB: Matec 111 000 385 TEP A 3043
20	319 238 99	Screw	2	InternBDB: M8x70 /912 10.9
21	356 130 40	Silent bloc	2	InternBDB: 781 053
22	635 262 40	Stop	1	InternBDB: Kason 0056 005 002
23	318 297 99	Bolt	4	InternBDB: M6x25 /963
24	635 261 40	Handle with lock	1	InternBDB: Kason 0056 CH 5020 \| InternKon: 503 400 000 / 6
25	318 308 99	Bolt	4	InternBDB: M6x16 /963 \| InternKon: 503 400 000 / 7
29	796 429 73	Handle	1	InternBDB: Matec 509 400 012 \| InternKon: 503 400 000 / 11
30	796 428 73	Tappet	1	InternBDB: Matec 509 400 013 \| InternKon: 503 400 000 / 10
31	769 607 73	Door moulding	1	InternBDB: 503500012 \| InternKon: 503 400 000 / 30
32	321 187 99	Fillister-head screw	11	InternBDB: M6x20 /7991 \| InternKon: 503 400 000 / 31
34	769 609 73	Rod for mirror	2	InternBDB: Fa. Mekra 58.2484.528 Matek 114010276 \| InternKon: 503 018 000 / 2
35	769 610 73	Mirror	2	InternBDB: Fa. Mekra 51.3300.147 24V elektr. verstellbar \| InternKon: 503 018 000 / 4
36	516 246 98	Screw	16	InternBDB: M8x12 /7984 \| InternKon: 503 018 000 / 3
37	769 611 73	Push-toggle switch	2	InternBDB: SWF 511.021 \| InternKon: 503 600 003 / 1.1
38	769 612 73	Graphical symbol - spotlight	1	InternBDB: SWF 596 472 \| InternKon: 503 600 003 / 1.2
39	769 613 73	Graphical symbol - indoor lighting	1	InternBDB: SWF 596 640 \| InternKon: 503 600 003 / 2.2
40	769 614 73	Tail piece	2	InternBDB: SWF 594 802 \| InternKon: 503 600 003 / 3
41	769 615 73	Antenna	1	InternBDB: 16.17 Uni-Gummistab mit Kabel Matek-Nr. 117210009 \| InternKon: 503 600 200 / 1
42	461 562 40	Extension cable	1	InternBDB: Bosch 8 694 413 774 \| InternKon: 503 600 200 / 2
43	896 705 40	Pair of speakers	1	InternBDB: Blue Magic 7606100001 AL 100 \| InternKon: 503 600 200 / 3
44	769 188 73	Dome lamp	4	InternBDB: Hella 2 JA 998 508-001 /11700032 \| InternKon: 503 600 025 / 1
45	769 189 73	Bulb 28V 20W	4	InternBDB: Hella 8 GH 005 758-271 /117000008 \| InternKon: 503 600 025 / 2
46	770 079 73	Door, steel construction	1	InternBDB: 503 410 000 \| InternKon: 503 400 000 / 1
47	770 080 73	Washer	1	InternBDB: 503 400 040 \| InternKon: 503 400 000 / 40
49	770 081 73	Blind rivet-nut	15	InternBDB: 113 430 044 \| InternKon: 503 400 000 / 32
50	769 617 73	Socket installation	3	InternBDB: Juro 114320 Matec-Nr. 117200294
52	795 989 73	Harness-Spread beam headlamp	1	InternBDB: 509600010 \| InternKon: 509 600 040 / 10
53	795 990 73	Cable Union	4	InternBDB: 117 500 594 M16x1,5 Schlemmer 5308941 \| InternKon: 509 600 040 / 6
54	941 143 40	Head light assy. with lamp	4	InternBDB: Nordic light 992-508 \| InternKon: 509 600 040 / 1
55	797 352 73	Lamp	4	InternBDB: Osram D1 HID Nordic 80037
58	634 009 40	Spotlight	1	InternBDB: AB-05-03 \| InternKon: 503 600 063 / 1
59	507 383 99	Halogen lamp	1	InternBDB: H 1 /24V /70W
60	769 155 73	Seal	1	InternBDB: ABL 18-11401
61	769 156 73	Pane, white	1	InternBDB: ABL 18-10201
62	307 752 99	Bolt	1	InternBDB: M8x20 /933 \| InternKon: 503 600 063 / 2
63	797 510 73	Co-Driver's seat	1	InternBDB: Grammer 1139004 GS15 Matec 114410340 \| InternKon: 510 049 000 / 1	991-0907
64	797 511 73	Safety belt - seat shell	1	InternBDB: Grammer 902 131 Matec 114410341 \| InternKon: 510 049 000 / 2
65	324 391 40	Blower	1	InternBDB: 33-0158/24V \| InternKon: 510 050 000 / 3
66	269 055 40	Air filter	1	InternBDB: 30.000.218 \| InternKon: 510 050 000 / 2
67		Clamp	2	InternBDB: Matec 113880133 100-120/12-C7 W1 \| InternKon: 510 050 000 / 5
68		Hose	-2	InternBDB: Matec 111 000 771 \| InternKon: 510 050 000 / 4
69		Hood	1	InternBDB: Matec 510 050 010 \| InternKon: 510 050 000 / 1
70	793 798 73	Window shade, front window standard	1	InternBDB: F104 A=1600 B=1035 C=1110 Stoff S4 \| InternKon: 510 008 000 / 1
71	793 799 73	Window shade, front window standard	1	InternBDB: F104 A=1500 B=725 C=800 Stoff S4 \| InternKon: 510 008 000 / 2
72	793 799 73	Window shade	2	InternBDB: F104 A=1500 B=725 C=800 Stoff S4
74	414 327 40	Grating	1	InternKon: 503 000 000 / 8
75	317 318 40	Wing nut, plastic	4	InternKon: 503 000 000 / 9
76	318 391 99	Bolt	4	InternBDB: M8x50 /963 \| InternKon: 503 000 000 / 13
77	350 562 99	Grease nipple	1	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
78	621 108 40	Pin	1	InternKon: 390 199 40 / 1
79	390 600 40	Bushing	2	InternKon: 390 199 40 / 2
80	390 601 40	Bushing	1	InternKon: 390 199 40 / 3
81	340 612 99	Washer	2	InternKon: 390 199 40 / 4
82	342 061 99	Cotter pin	2	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
83	906 783 40	Eyebolt	4	InternBDB: VRS-M24 D5556 V024 \| InternKon: 509 000 000 / 60
84	795 996 73	Door	1	InternBDB: Matec 503 021 000 \| InternKon: 503 021 000 / 1
85	769 631 73	Band roller	2	InternBDB: Matec 114 011 254 KAL 733 1010
86	769 632 73	Sash lock	2	InternBDB: Matec 114 300 308 \| InternKon: 503 021 000 / 2
87	769 651 73	Profiled joint	-2	InternBDB: Matec 111 000 334 Tep A1 102 S PVC /Moosgummi schwarz \| InternKon: 503 021 000 / 4
88	769 633 73	Air intake	6	InternBDB: Aurora 431-410-0012 Matec-Nr. 117 200 142 \| InternKon: 509 013 000 / 1
89	793 800 73	Filter box	1	InternBDB: Matec 509 013 200 \| InternKon: 509 013 000 / 200
90	769 635 73	Hot air jet	4	InternBDB: Hoko 13-455 Matec-Nr. 117 200 436 \| InternKon: 509 013 000 / 5
91	769 636 73	Adjustment	1	InternBDB: Aurora 334-311-0003 TWIN-SET Matec-Nr. 117 200 202 \| InternKon: 509 013 000 / 4
92	769 637 73	Hot air jet, long	4	InternBDB: Aurora 334-314-0002 Matec-Nr. 117 200 199 \| InternKon: 509 013 000 / 6
93	793 801 73	Filter box	1	InternBDB: Matec 509 013 100 \| InternKon: 509 013 000 / 100
94	516 247 98	Tapping screw	24	InternBDB: 3,5x19 /7983 \| InternKon: 509 013 000 / 2
95	516 243 98	Bolt	8	InternBDB: M3x12 /963 \| InternKon: 509 013 000 / 7
96	332 201 99	Nut	4	InternBDB: M 3 /934 \| InternKon: 509 013 000 / 8
97	318 293 99	Bolt	4	InternBDB: M4x20 /963 \| InternKon: 509 013 000 / 9
98	516 244 98	Screw	6	InternBDB: M4x30 /964 \| InternKon: 509 013 000 / 10
99	334 649 99	Nut	10	InternBDB: M 4 /985 \| InternKon: 509 013 000 / 11
100	770 070 73	Cap	4	InternKon: 509 013 000 / 13
101	770 071 73	Hinge for Panel	2	InternBDB: Matec 503 500 006/2
102	793 806 73	Filter mat	1	InternBDB: Matec 509 013 203 \| InternKon: 509 013 200 / 3
105	793 802 73	Round nozzle	1	InternBDB: Aurora 334-220-0016 \| InternKon: 509 013 000 / 3
106	508 900 98	Bolt	8	InternBDB: M6x35/963 \| InternKon: 509 013 100 / 2
107	793 803 73	Filter mat	1	InternBDB: Matec 509 013 103 \| InternKon: 509 013 100 / 3
109	769 645 73	Ventilation	1	InternBDB: Matec 503 500 011
110	770 074 73	Spagnolet for ventilation	4	InternBDB: Matec 503 500 011/4
111	769 646 73	Ice box door	1	InternBDB: Matec 503 500 004 \| InternKon: 509 013 100 / 4
112	770 075 73	Handle - ice-box door	1	InternBDB: Matec 503 500 004/1
113	770 071 73	Hinge - ice-box door	2	InternBDB: Matec 503 500 004/2
116		Operation panel - base	1	InternBDB: Matec 510 500 013
117		Operation panel - upper	1	InternBDB: Matec 510 800 310
118	796 831 73	Cover plate, if only one heater is mounted	1	InternBDB: 509 800 578
119	797 419 73	Key to fig.-no.86	1	InternBDB: Emka 1004-20 Form C4kt6 Matec 114300312
120	770 378 73	Retainer top with cable	2	InternBDB: Mekra 20.2480.217
121	770 377 73	Retainer lower	2	InternBDB: Mekra 20.2480.210
122	770 089 73	Thermostat	1	InternBDB: PMC 0.090.009.000 077 B 0028 \| InternKon: 114 450 060 / 1
123	698 375 73	Electric motor	1	InternBDB: 70-201
124	698 376 73	Impeller	1	InternBDB: 74-035
125	698 377 73	Resistor	1	InternBDB: 69-000.602
126	307 693 99	Bolt	6	InternBDB: M5x20 /933 \| InternKon: 509 019 000 / 3
127	340 500 99	Washer	6	InternBDB: 5,3 /125 \| InternKon: 509 019 000 / 4
128	318 574 99	Screw	6	InternBDB: M4x12 /964 \| InternKon: 509 019 000 / 5
129	796 988 73	Distance bushing	4	InternBDB: 503 019 006 \| InternKon: 509 019 000 / 6
130	796 989 73	Distance bushing	2	InternBDB: 503 019 007 \| InternKon: 509 019 000 / 7
131	796 353 73	Shade retainer, in front on sides	2	InternBDB: 503 100 003 \| InternKon: 509 100 000 / 3
132	796 354 73	Shade retainer, in rear, l.h. side	1	InternBDB: 503 100 004 \| InternKon: 509 100 000 / 4
133	796 355 73	Shade retainer, in rear, r.h. side	1	InternBDB: 503 100 005 \| InternKon: 509 100 000 / 5
134	797 588 73	Hammer	1	InternBDB: GEHE 274 0037 Matec 114010513 \| InternKon: 510 051 000 / 1
135	797 589 73	Retainer	1	InternBDB: GEHE 274 0038 Matec 114010515 \| InternKon: 510 051 000 / 2
136	504 784 98	Screw	2	InternBDB: AM4x20galzn 4.8-H DIN07985 ISO07045 Matec 113270042 \| InternKon: 510 051 000 / 3

Komatsu PC4000-6E S/N 08202 parts catalog PDF

OPERATOR'S CAB (991-0901) in PC4000-6E S/N 08202. Diagram image and parts list.
