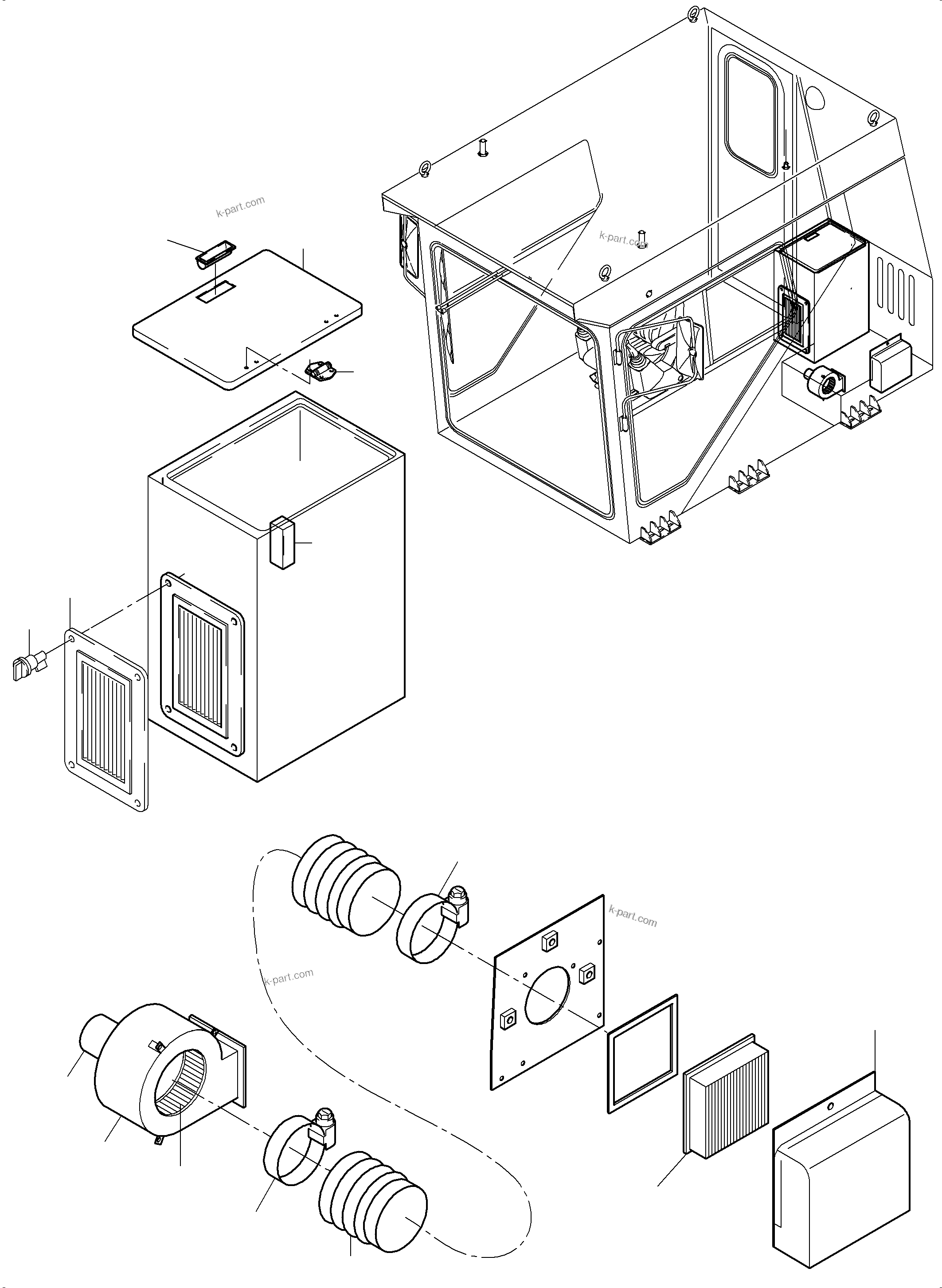

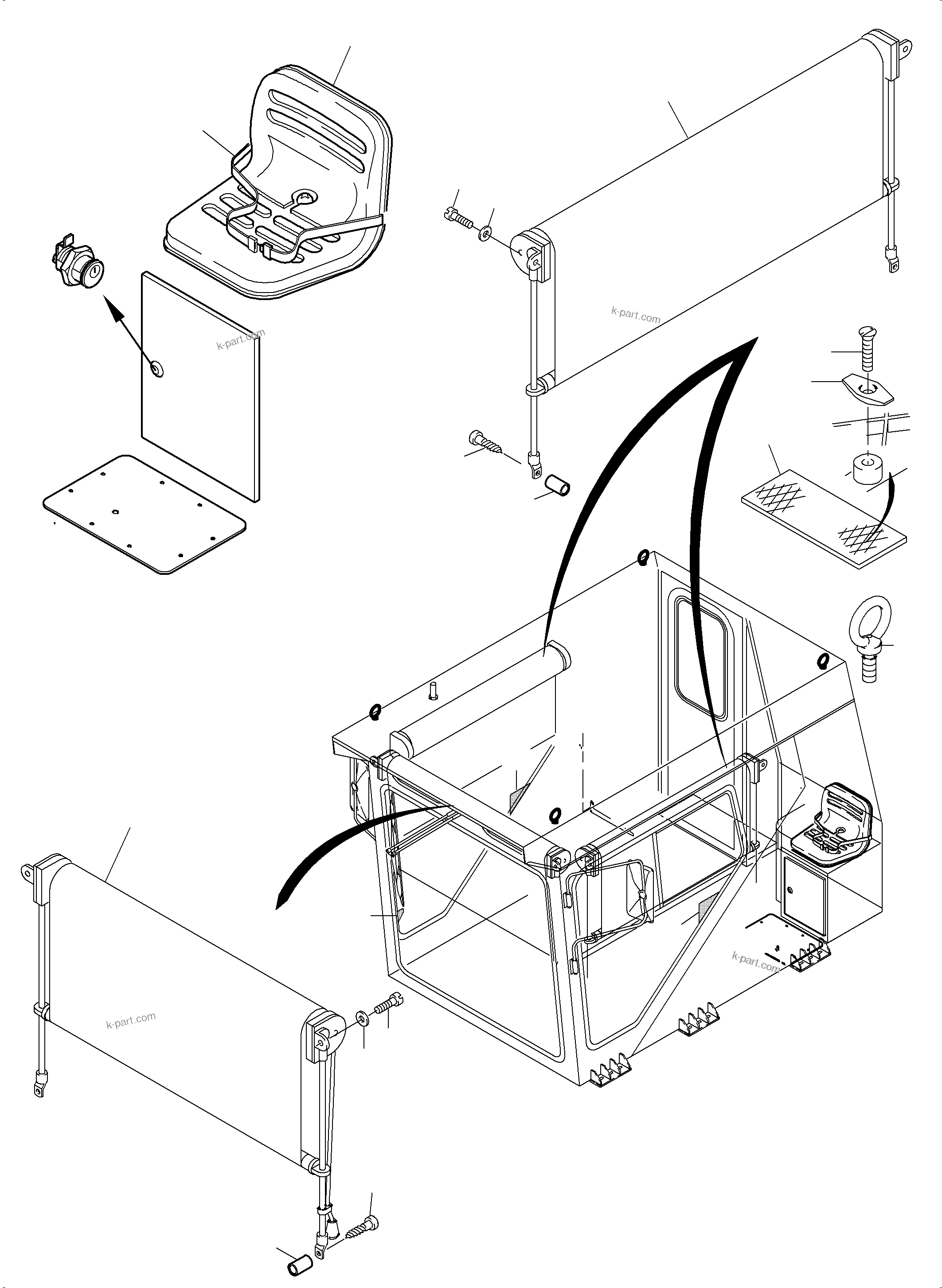

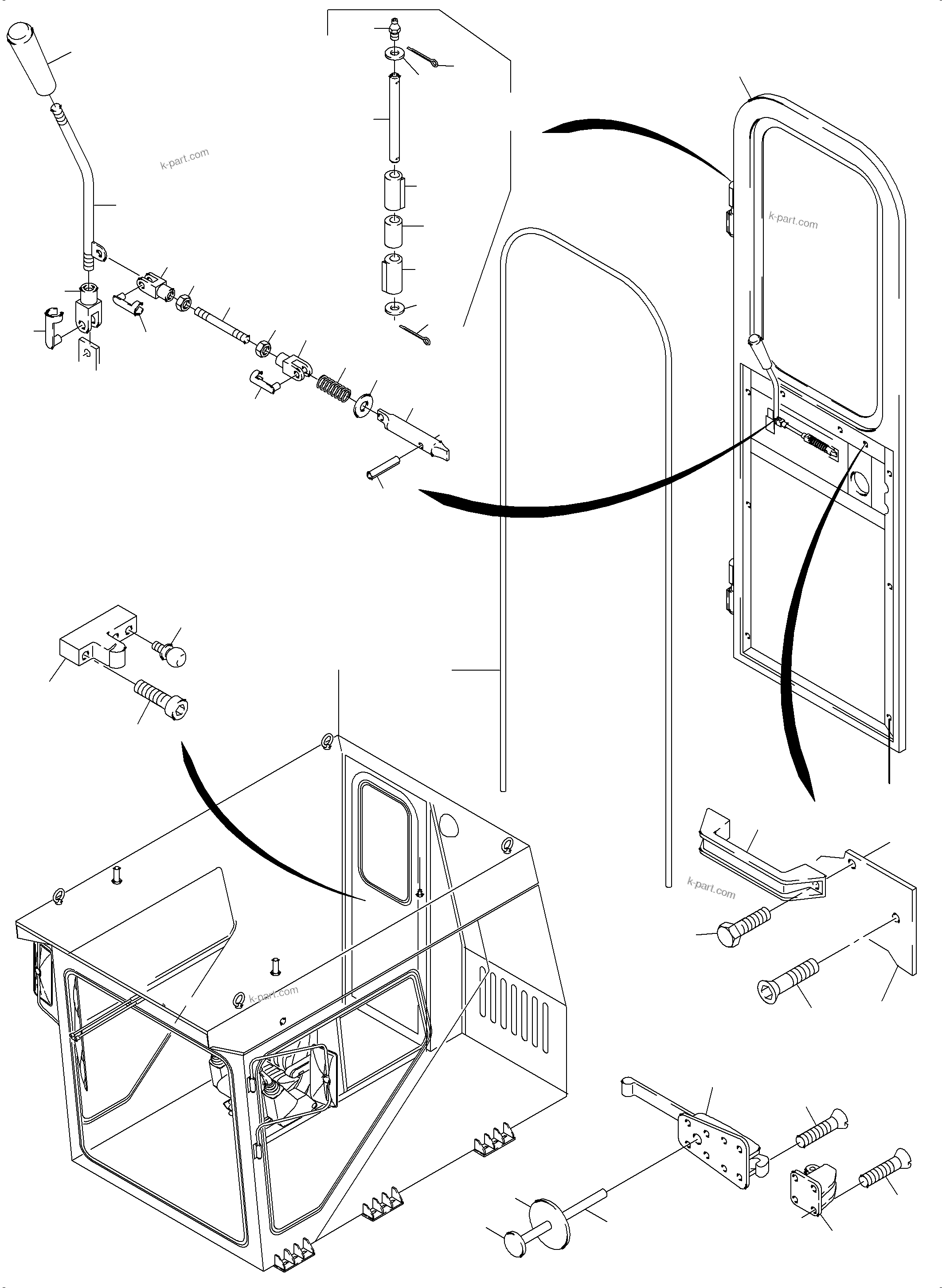

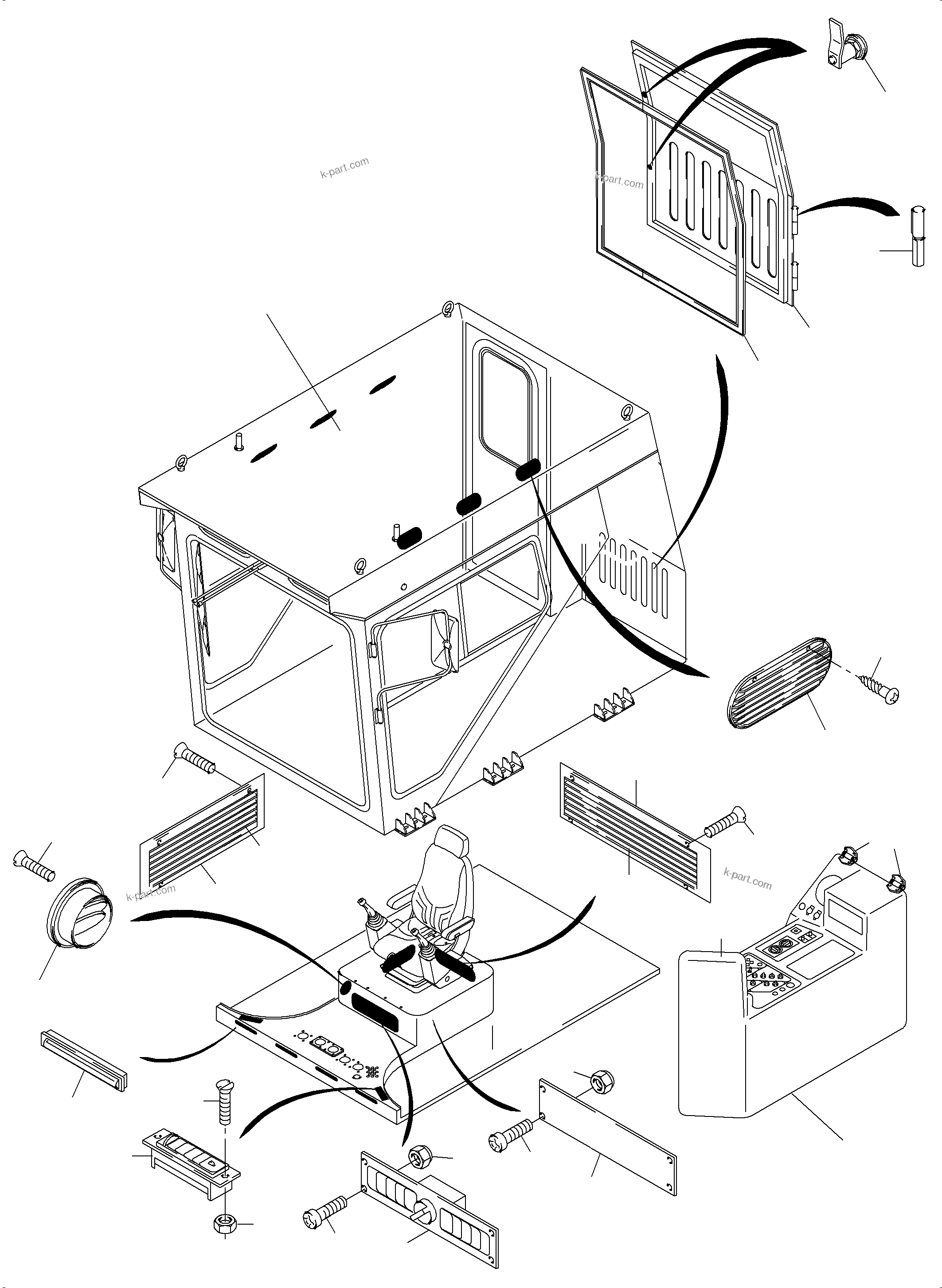

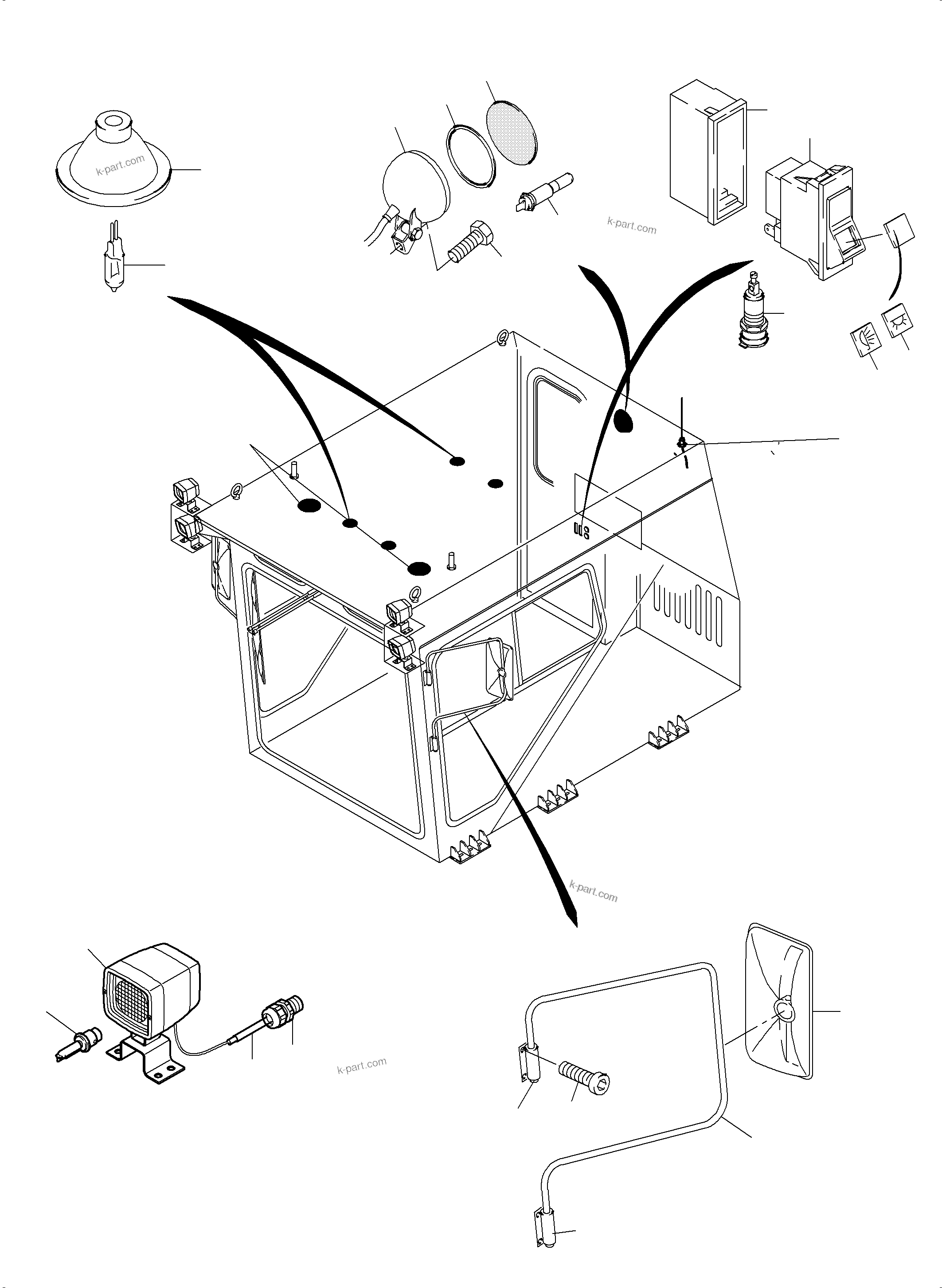

Diagram image 1 of 5

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	942 085 40	Operator's cab assy. Electro	1	InternBDB: Fa. Matec 510 000 000 /TL
?	796 431 73	Door assy.	1	InternBDB: Fa. Matec 509 400 000
?	390 199 40	Hinge	2
?	356 533 40	Catch	1	InternKon: 503 400 000 / 14
?	374 222 40	Detent	1
?	368 431 40	Pane	1	InternKon: 503 400 000 / 17
?	356 535 40	Compression spring	1	InternKon: 503 400 000 / 16
?	356 536 40	Threaded rod	1	InternKon: 503 400 000 / 18
?	796 430 73	Lever	1	InternBDB: 503 400 100 \| InternKon: 503 400 000 / 12
?	345 178 99	Dowel pin	1	InternBDB: 6x30 /1481 \| InternKon: 503 400 000 / 15
?	332 110 99	Nut	2	InternBDB: M 6 /934 \| InternKon: 503 400 000 / 19
?	350 748 99	Fork end	2	InternBDB: G 6x12 /71752 \| InternKon: 503 400 000 / 20
?	350 742 99	Fork end	1	InternBDB: G 10x20 /71752 \| InternKon: 503 400 000 / 21
?	002 827 98	Pin	1	InternBDB: 10x20 ESN 01 WN 010 869 99
?	002 823 98	Pin	2	InternBDB: 6x12 ESN 01 WN 010 869 99
?	769 602 73	Handle	1	InternBDB: GHE 581 0062 \| InternKon: 503 400 000 / 22
?	516 643 98	Bolt	2	InternBDB: M6x16 /965 \| InternKon: 503 400 000 / 23
?	769 603 73	Cylinder button	1	InternBDB: Matec 114 010 607 /6 N 519.1-23-B10 \| InternKon: 503 400 000 / 13
?	769 652 73	Profiled joint ca. 4300 1,5-2	-2	InternBDB: Matec 111 000 385 TEP A 3043
?	319 238 99	Screw	2	InternBDB: M8x70 /912 10.9
?	356 130 40	Silent bloc	2	InternBDB: 781 053
?	635 262 40	Stop	1	InternBDB: Kason 0056 005 002
?	318 297 99	Bolt	4	InternBDB: M6x25 /963
?	635 261 40	Handle with lock	1	InternBDB: Kason 0056 CH 5020 \| InternKon: 503 400 000 / 6
?	318 308 99	Bolt	4	InternBDB: M6x16 /963 \| InternKon: 503 400 000 / 7
?	796 429 73	Handle	1	InternBDB: Matec 509 400 012 \| InternKon: 503 400 000 / 11
?	796 428 73	Tappet	1	InternBDB: Matec 509 400 013 \| InternKon: 503 400 000 / 10
?	769 607 73	Door moulding	1	InternBDB: 503500012 \| InternKon: 503 400 000 / 30
?	321 187 99	Fillister-head screw	11	InternBDB: M6x20 /7991 \| InternKon: 503 400 000 / 31
?	769 609 73	Rod for mirror	2	InternBDB: Fa. Mekra 58.2484.528 Matek 114010276 \| InternKon: 503 018 000 / 2
?	769 610 73	Mirror	2	InternBDB: Fa. Mekra 51.3300.147 24V elektr. verstellbar \| InternKon: 503 018 000 / 4
?	516 246 98	Screw	16	InternBDB: M8x12 /7984 \| InternKon: 503 018 000 / 3
?	769 611 73	Push-toggle switch	2	InternBDB: SWF 511.021 \| InternKon: 503 600 003 / 1.1
?	769 612 73	Graphical symbol - spotlight	1	InternBDB: SWF 596 472 \| InternKon: 503 600 003 / 1.2
?	769 613 73	Graphical symbol - indoor lighting	1	InternBDB: SWF 596 640 \| InternKon: 503 600 003 / 2.2
?	769 614 73	Tail piece	2	InternBDB: SWF 594 802 \| InternKon: 503 600 003 / 3
?	769 615 73	Antenna	1	InternBDB: 16.17 Uni-Gummistab mit Kabel Matek-Nr. 117210009 \| InternKon: 503 600 200 / 1
?	461 562 40	Extension cable	1	InternBDB: Bosch 8 694 413 774 \| InternKon: 503 600 200 / 2
?	896 705 40	Pair of speakers	1	InternBDB: Blue Magic 7606100001 AL 100 \| InternKon: 503 600 200 / 3
?	769 188 73	Dome lamp	4	InternBDB: Hella 2 JA 998 508-001 /11700032 \| InternKon: 503 600 025 / 1
?	769 189 73	Bulb 28V 20W	4	InternBDB: Hella 8 GH 005 758-271 /117000008 \| InternKon: 503 600 025 / 2
?	770 079 73	Door, steel construction	1	InternBDB: 503 410 000 \| InternKon: 503 400 000 / 1
?	770 080 73	Washer	1	InternBDB: 503 400 040 \| InternKon: 503 400 000 / 40
?	770 081 73	Blind rivet-nut	15	InternBDB: 113 430 044 \| InternKon: 503 400 000 / 32
?	769 617 73	Socket installation	3	InternBDB: Juro 114320 Matec-Nr. 117200294
?	795 989 73	Harness-Spread beam headlamp	1	InternBDB: 509600010 \| InternKon: 509 600 040 / 10
?	795 990 73	Cable Union	4	InternBDB: 117 500 594 M16x1,5 Schlemmer 5308941 \| InternKon: 509 600 040 / 6
?	941 143 40	Head light assy. with lamp	4	InternBDB: Nordic light 992-508 \| InternKon: 509 600 040 / 1
?	797 352 73	Lamp	4	InternBDB: Osram D1 HID Nordic 80037
?	634 009 40	Spotlight	1	InternBDB: AB-05-03 \| InternKon: 503 600 063 / 1
?	507 383 99	Halogen lamp	1	InternBDB: H 1 /24V /70W
?	769 155 73	Seal	1	InternBDB: ABL 18-11401
?	769 156 73	Pane, white	1	InternBDB: ABL 18-10201
?	307 752 99	Bolt	1	InternBDB: M8x20 /933 \| InternKon: 503 600 063 / 2
?	797 510 73	Co-Driver's seat	1	InternBDB: Grammer 1139004 GS15 Matec 114410340 \| InternKon: 510 049 000 / 1	991-0907
?	797 511 73	Safety belt - seat shell	1	InternBDB: Grammer 902 131 Matec 114410341 \| InternKon: 510 049 000 / 2
?	324 391 40	Blower	1	InternBDB: 33-0158/24V \| InternKon: 510 050 000 / 3
?	269 055 40	Air filter	1	InternBDB: 30.000.218 \| InternKon: 510 050 000 / 2
?		Clamp	2	InternBDB: Matec 113880133 100-120/12-C7 W1 \| InternKon: 510 050 000 / 5
?		Hose	-2	InternBDB: Matec 111 000 771 \| InternKon: 510 050 000 / 4
?		Hood	1	InternBDB: Matec 510 050 010 \| InternKon: 510 050 000 / 1
?	793 798 73	Window shade, front window standard	1	InternBDB: F104 A=1600 B=1035 C=1110 Stoff S4 \| InternKon: 510 008 000 / 1
?	793 799 73	Window shade, front window standard	1	InternBDB: F104 A=1500 B=725 C=800 Stoff S4 \| InternKon: 510 008 000 / 2
?	793 799 73	Window shade	2	InternBDB: F104 A=1500 B=725 C=800 Stoff S4
?	414 327 40	Grating	1	InternKon: 503 000 000 / 8
?	317 318 40	Wing nut, plastic	4	InternKon: 503 000 000 / 9
?	318 391 99	Bolt	4	InternBDB: M8x50 /963 \| InternKon: 503 000 000 / 13
?	350 562 99	Grease nipple	1	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
?	621 108 40	Pin	1	InternKon: 390 199 40 / 1
?	390 600 40	Bushing	2	InternKon: 390 199 40 / 2
?	390 601 40	Bushing	1	InternKon: 390 199 40 / 3
?	340 612 99	Washer	2	InternKon: 390 199 40 / 4
?	342 061 99	Cotter pin	2	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
?	906 783 40	Eyebolt	4	InternBDB: VRS-M24 D5556 V024 \| InternKon: 509 000 000 / 60
?	795 996 73	Door	1	InternBDB: Matec 503 021 000 \| InternKon: 503 021 000 / 1
?	769 631 73	Band roller	2	InternBDB: Matec 114 011 254 KAL 733 1010
?	769 632 73	Sash lock	2	InternBDB: Matec 114 300 308 \| InternKon: 503 021 000 / 2
?	769 651 73	Profiled joint	-2	InternBDB: Matec 111 000 334 Tep A1 102 S PVC /Moosgummi schwarz \| InternKon: 503 021 000 / 4
?	769 633 73	Air intake	6	InternBDB: Aurora 431-410-0012 Matec-Nr. 117 200 142 \| InternKon: 509 013 000 / 1
?	793 800 73	Filter box	1	InternBDB: Matec 509 013 200 \| InternKon: 509 013 000 / 200
?	769 635 73	Hot air jet	4	InternBDB: Hoko 13-455 Matec-Nr. 117 200 436 \| InternKon: 509 013 000 / 5
?	769 636 73	Adjustment	1	InternBDB: Aurora 334-311-0003 TWIN-SET Matec-Nr. 117 200 202 \| InternKon: 509 013 000 / 4
?	769 637 73	Hot air jet, long	4	InternBDB: Aurora 334-314-0002 Matec-Nr. 117 200 199 \| InternKon: 509 013 000 / 6
?	793 801 73	Filter box	1	InternBDB: Matec 509 013 100 \| InternKon: 509 013 000 / 100
?	516 247 98	Tapping screw	24	InternBDB: 3,5x19 /7983 \| InternKon: 509 013 000 / 2
?	516 243 98	Bolt	8	InternBDB: M3x12 /963 \| InternKon: 509 013 000 / 7
?	332 201 99	Nut	4	InternBDB: M 3 /934 \| InternKon: 509 013 000 / 8
?	318 293 99	Bolt	4	InternBDB: M4x20 /963 \| InternKon: 509 013 000 / 9
?	516 244 98	Screw	6	InternBDB: M4x30 /964 \| InternKon: 509 013 000 / 10
?	334 649 99	Nut	10	InternBDB: M 4 /985 \| InternKon: 509 013 000 / 11
?	770 070 73	Cap	4	InternKon: 509 013 000 / 13
?	770 071 73	Hinge for Panel	2	InternBDB: Matec 503 500 006/2
?	793 806 73	Filter mat	1	InternBDB: Matec 509 013 203 \| InternKon: 509 013 200 / 3
?	793 802 73	Round nozzle	1	InternBDB: Aurora 334-220-0016 \| InternKon: 509 013 000 / 3
?	508 900 98	Bolt	8	InternBDB: M6x35/963 \| InternKon: 509 013 100 / 2
?	793 803 73	Filter mat	1	InternBDB: Matec 509 013 103 \| InternKon: 509 013 100 / 3
?	769 645 73	Ventilation	1	InternBDB: Matec 503 500 011
?	770 074 73	Spagnolet for ventilation	4	InternBDB: Matec 503 500 011/4
?	769 646 73	Ice box door	1	InternBDB: Matec 503 500 004 \| InternKon: 509 013 100 / 4
?	770 075 73	Handle - ice-box door	1	InternBDB: Matec 503 500 004/1
?	770 071 73	Hinge - ice-box door	2	InternBDB: Matec 503 500 004/2
?		Operation panel - base	1	InternBDB: Matec 510 500 013
?		Operation panel - upper	1	InternBDB: Matec 510 800 310
?	796 831 73	Cover plate, if only one heater is mounted	1	InternBDB: 509 800 578
?	797 419 73	Key to fig.-no.86	1	InternBDB: Emka 1004-20 Form C4kt6 Matec 114300312
?	770 378 73	Retainer top with cable	2	InternBDB: Mekra 20.2480.217
?	770 377 73	Retainer lower	2	InternBDB: Mekra 20.2480.210
?	770 089 73	Thermostat	1	InternBDB: PMC 0.090.009.000 077 B 0028 \| InternKon: 114 450 060 / 1
?	698 375 73	Electric motor	1	InternBDB: 70-201
?	698 376 73	Impeller	1	InternBDB: 74-035
?	698 377 73	Resistor	1	InternBDB: 69-000.602
?	307 693 99	Bolt	6	InternBDB: M5x20 /933 \| InternKon: 509 019 000 / 3
?	340 500 99	Washer	6	InternBDB: 5,3 /125 \| InternKon: 509 019 000 / 4
?	318 574 99	Screw	6	InternBDB: M4x12 /964 \| InternKon: 509 019 000 / 5
?	796 988 73	Distance bushing	4	InternBDB: 503 019 006 \| InternKon: 509 019 000 / 6
?	796 989 73	Distance bushing	2	InternBDB: 503 019 007 \| InternKon: 509 019 000 / 7
?	796 353 73	Shade retainer, in front on sides	2	InternBDB: 503 100 003 \| InternKon: 509 100 000 / 3
?	796 354 73	Shade retainer, in rear, l.h. side	1	InternBDB: 503 100 004 \| InternKon: 509 100 000 / 4
?	796 355 73	Shade retainer, in rear, r.h. side	1	InternBDB: 503 100 005 \| InternKon: 509 100 000 / 5
?	797 588 73	Hammer	1	InternBDB: GEHE 274 0037 Matec 114010513 \| InternKon: 510 051 000 / 1
?	797 589 73	Retainer	1	InternBDB: GEHE 274 0038 Matec 114010515 \| InternKon: 510 051 000 / 2
?	504 784 98	Screw	2	InternBDB: AM4x20galzn 4.8-H DIN07985 ISO07045 Matec 113270042 \| InternKon: 510 051 000 / 3

Komatsu PC4000-6E S/N 08202 parts catalog PDF

OPERATOR'S CAB (991-0901) in PC4000-6E S/N 08202. Diagram image and parts list.
