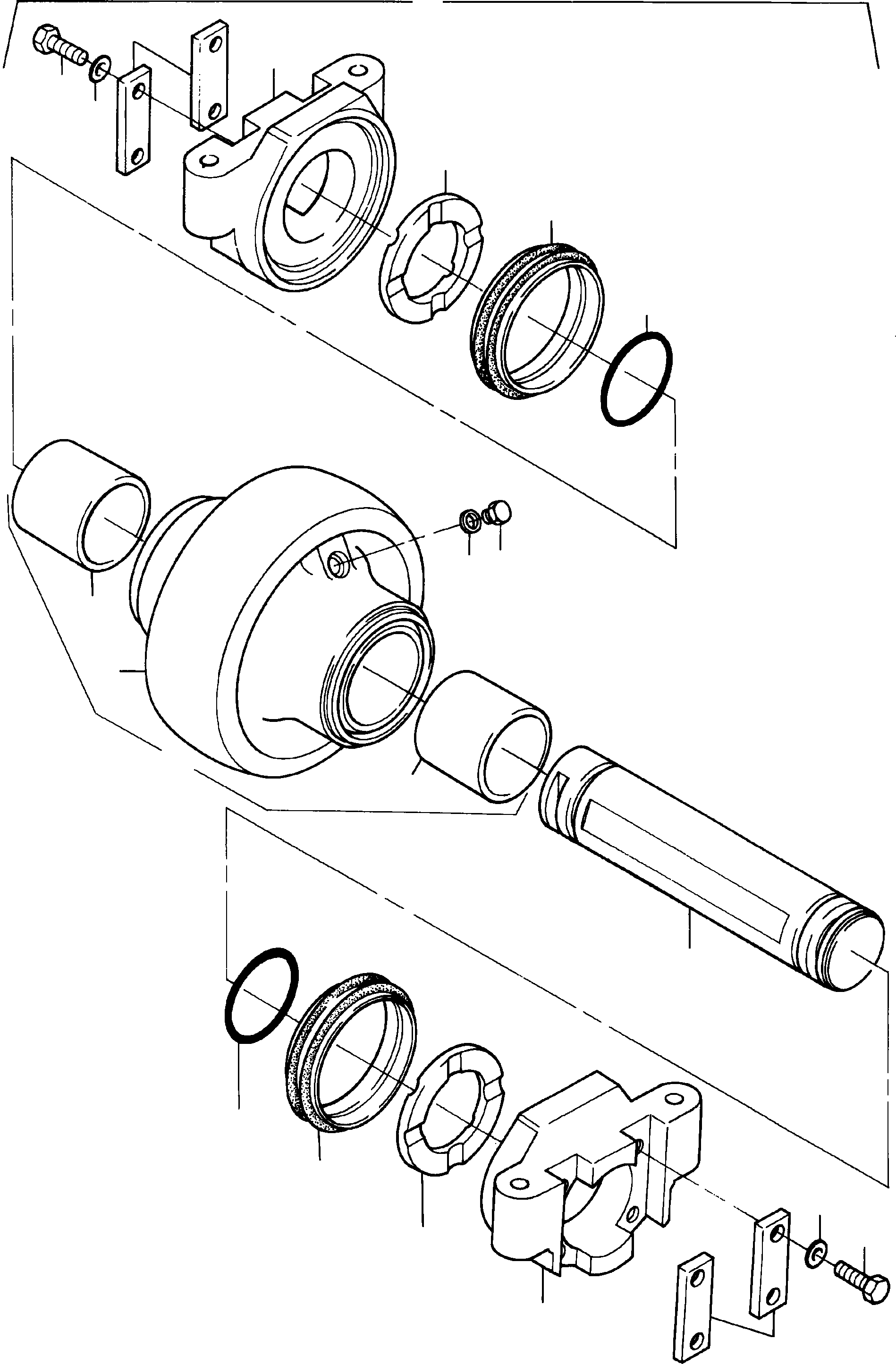

Komatsu parts book diagram for PC4000-6E S/N 08202: BOTTOM ROLLER

01 02 02 03 03 04 04 05 05 06 06 07 07 08 08 09 10 11 12 13 14 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	895 904 40	Bottom roller, assy.	1
	02	307 612 99	Bolt	8	InternBDB: M16x40 /933 10.9 \| InternKon: 895 904 40 / 8
	03	316 211 99	Washer	8	InternBDB: 17 /6916 \| InternKon: 895 904 40 / 9
	04	361 027 40	Axle stirrup	4	InternKon: 895 904 40 / 5
	05	922 536 40	Roller bearing	2	InternKon: 895 904 40 / 3
	06	361 026 40	Stop washer	2	InternKon: 895 904 40 / 4
	07	269 454 40	Lifetime seal	2	InternBDB: Goetze 76.90 H24 A3 \| InternKon: 895 904 40 / 6
	08	504 351 98	O-ring	2	InternBDB: 132x8 /70 3770 \| InternKon: 895 904 40 / 7
	09	339 918 99	Seal ring	1	InternBDB: A26x32x2 / 7603 \| InternKon: 895 904 40 / 11
	10	349 989 99	Plug	1	InternBDB: M26x1,5 /7604 \| InternKon: 895 904 40 / 10
	11	361 024 40	Axle	1	InternKon: 895 904 40 / 3
	12	895 903 40	Bottom roller body with bush	1	InternKon: 895 904 40 / 1
	13	895 902 40	Bottom roller body	1	InternKon: 895 903 40 / 1
	14	361 025 40	Freeze-in bush	2	InternBDB: 175/150x130 keine Nacharbeit erforderlich \| InternKon: 895 903 40 / 2
	\|$$15	694 566	Seal kit fig-nos: 07,08,12 and 13	-2	InternBDB: E-ST
	\|$$16		Bottom roller is filled with oil	-2	InternBDB: 2,4 l OMALA HD220 906 299 40
