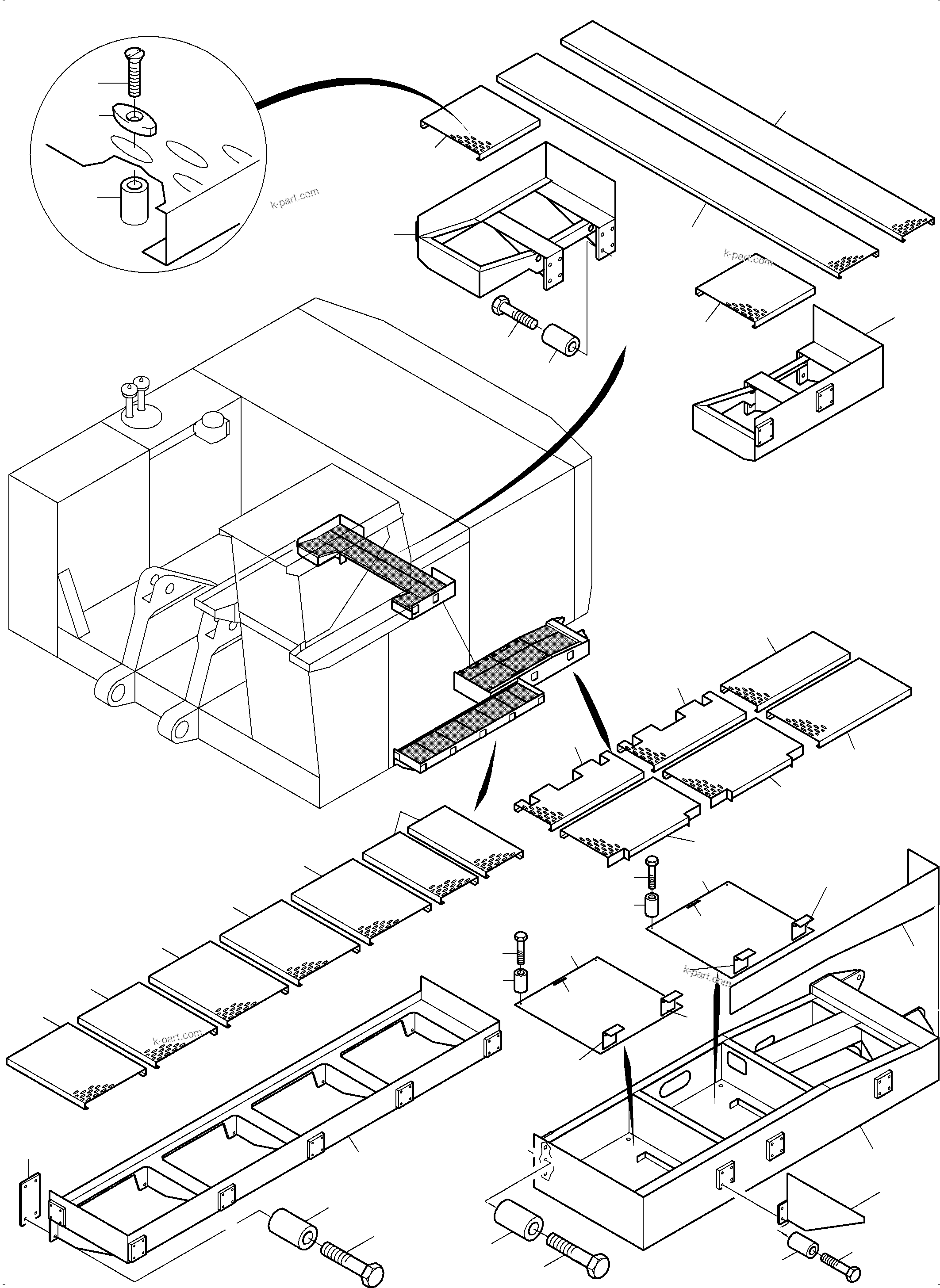

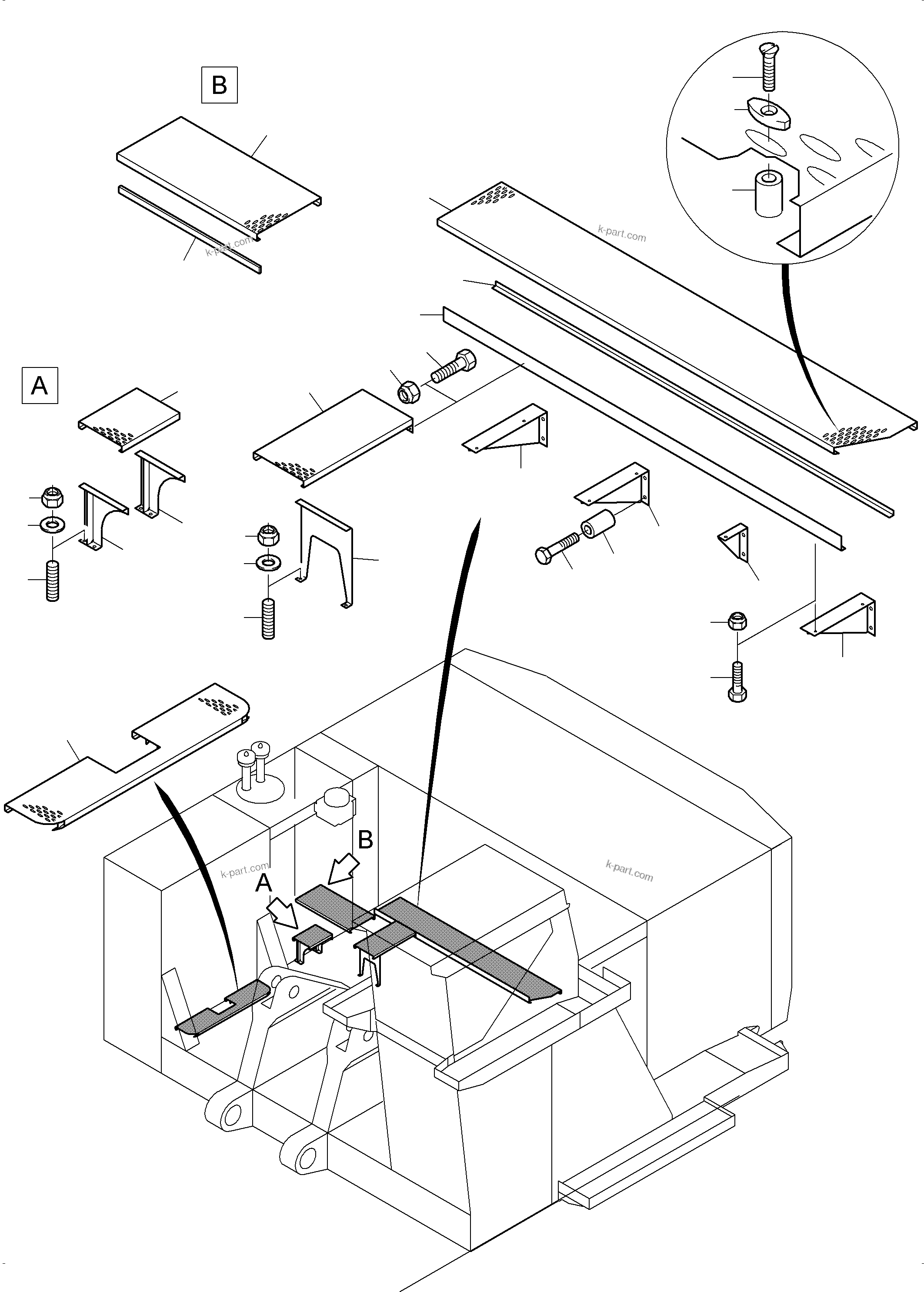

Diagram image 1 of 2

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	461 755 40	Grating	1	InternBDB: 40x300x2790 \| InternKon: 930 204 40 / 35
?	906 866 40	Grating	1	InternBDB: 40x240x2790 \| InternKon: 930 204 40 / 36
?	931 186 40	Platform	1	InternKon: 930 204 40 / 4
?	915 146 40	Grating	2	InternKon: 930 204 40 / 15
?	931 185 40	Platform	1	InternKon: 930 204 40 / 5
?	308 637 99	Bolt	16	InternBDB: M16x90 DIN00931 \| InternKon: 930 204 40 / 20
?	510 733 98	Resilient sleeve	32	InternBDB: 7 / 30x50 \| InternKon: 930 204 40 / 21
?	317 313 40	Grating	2	InternBDB: 40x300x630 \| InternKon: 930 204 40 / 78
?	440 998 40	Grating	5	InternBDB: 40x480x630 \| InternKon: 930 204 40 / 77
?	270 192 40	Grating	1	InternBDB: 40x300x720 \| InternKon: 930 204 40 / 83
?	930 236 40	Grating	2	InternKon: 930 204 40 / 81
?	323 315 40	Grating	1	InternBDB: 40x480x720 \| InternKon: 930 204 40 / 82
?	930 237 40	Grating	1	InternKon: 930 204 40 / 29
?	945 970 40	Sheet	1	InternKon: 930 204 40 / 85
?	930 218 40	Threaded plate	4	InternBDB: 20x200x100 \| InternKon: 930 204 40 / 101
?	930 213 40	Platform	1	InternKon: 930 204 40 / 17
?	510 728 98	Resilient sleeve	6	InternBDB: 25 / 45x80 \| InternKon: 930 204 40 / 30
?	308 404 99	Bolt	6	InternBDB: M24X140 \| InternKon: 930 204 40 / 31
?	931 191 40	Retainer	1	InternKon: 930 204 40 / 80
?	510 744 98	Resilient sleeve	20	InternBDB: 13 / 25x32 \| InternKon: 930 204 40 / 26
?	308 605 99	Bolt	20	InternBDB: M12x55 DIN00931 \| InternKon: 930 204 40 / 25
?	502 354 98	Counter sunk screws	105	InternBDB: M8x40 DIN00963 \| InternKon: 930 204 40 / 34
?	317 318 40	Plastic wing nut	105	InternKon: 930 204 40 / 33
?	317 319 40	Threaded block	105	InternKon: 930 204 40 / 32
?	324 395 40	Grating	1	InternBDB: 40x480x675 \| InternKon: 930 204 40 / 107
?	931 486 40	Strip	1	InternKon: 930 204 40 / 116
?	904 310 40	Grating	4	InternKon: 930 204 40 / 18
?	904 308 40	Angle	1	InternKon: 930 204 40 / 40
?	954 102 40	Sheet metal	1	InternKon: 930 204 40 / 39
?	912 731 40	Grating	1	InternKon: 930 204 40 / 51
?	905 087 40	Grating	1	InternKon: 930 204 40 / 46
?	334 600 99	Nut	148	InternBDB: M12 DIN00985 \| InternKon: 930 204 40 / 49
?	307 804 99	Bolt	2	InternBDB: M12x30 DIN00933 \| InternKon: 930 204 40 / 48
?	901 007 40	Console	1	InternKon: 930 204 40 / 2
?	901 004 40	Console	2	InternKon: 930 204 40 / 3
?	334 599 99	Nut	8	InternBDB: M8 DIN00985 \| InternKon: 930 204 40 / 42
?	307 754 99	Bolt	8	InternBDB: M8x25 DIN00933 \| InternKon: 930 204 40 / 41
?	904 313 40	Console	2	InternKon: 930 204 40 / 38
?	939 450 40	Sheet metal	1	InternKon: 930 204 40 / 47
?	340 467 99	Washer	186	InternBDB: B13 DIN00125 \| InternKon: 930 204 40 / 58
?	507 121 98	Bolt	6	InternBDB: PM12x25 \| InternKon: 930 204 40 / 52
?	937 598 40	Platform	1	InternKon: 930 204 40 / 50
?	904 307 40	Grating	1	InternKon: 930 204 40 / 43
?	945 946 40	Platform	1	InternKon: 945 969 40 / 1
?	930 235 40	Battery cover	1	InternKon: 945 969 40 / 2
?	945 756 40	Battery cover	1	InternKon: 945 969 40 / 3
?	943 809 40	Hinge ri.	2	InternKon: 945 969 40 / 4
?	943 808 40	Hinge le.	2	InternKon: 945 969 40 / 5
?	511 744 98	Handle	2	InternKon: 945 969 40 / 6
?	308 608 99	Bolt	4	InternBDB: M12x70 8.8 DIN00931 \| InternKon: 945 969 40 / 7
?	510 741 98	Resilient sleeve	4	InternBDB: 13/25x50 WN 34194840 \| InternKon: 945 969 40 / 8
