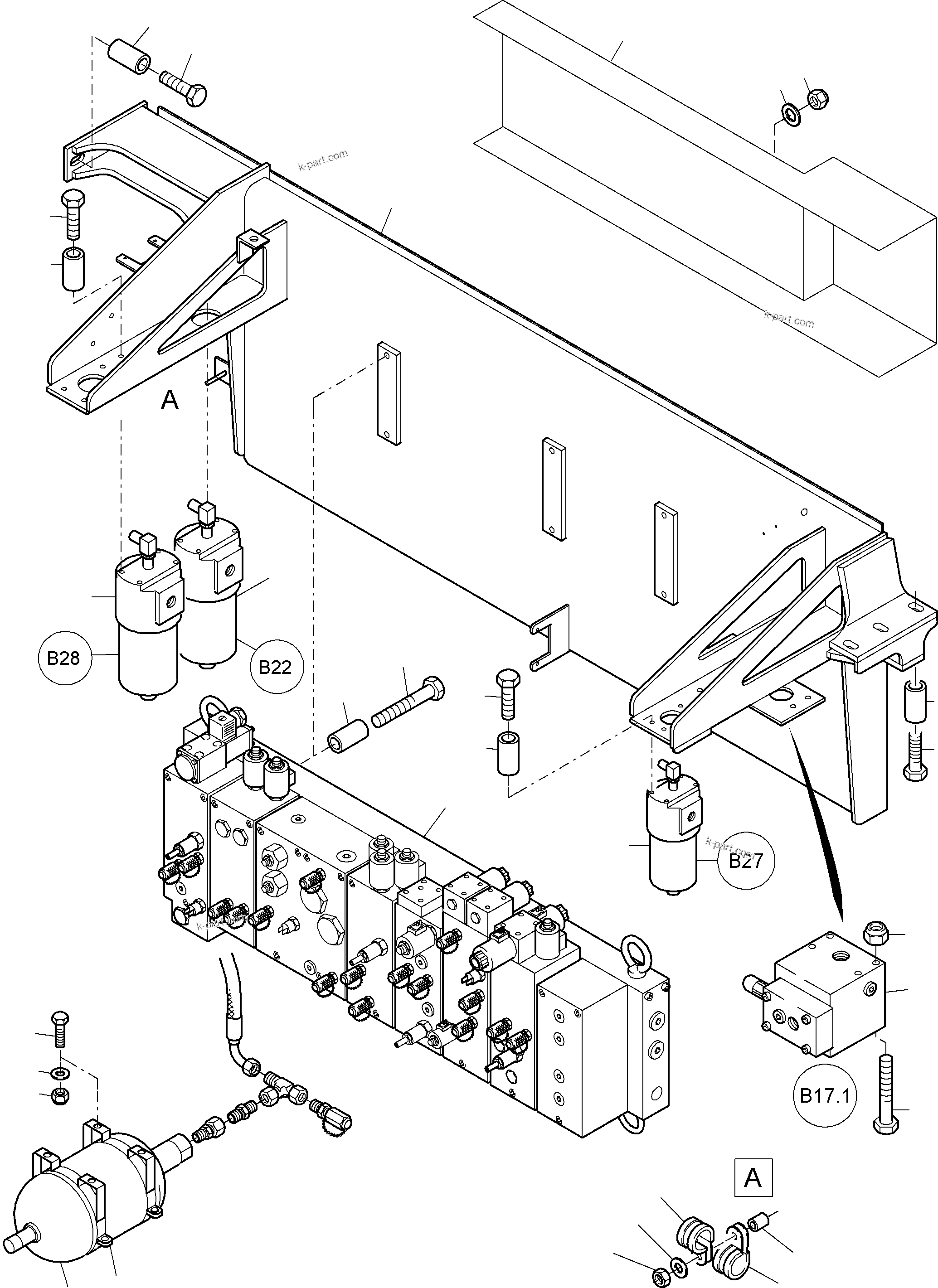

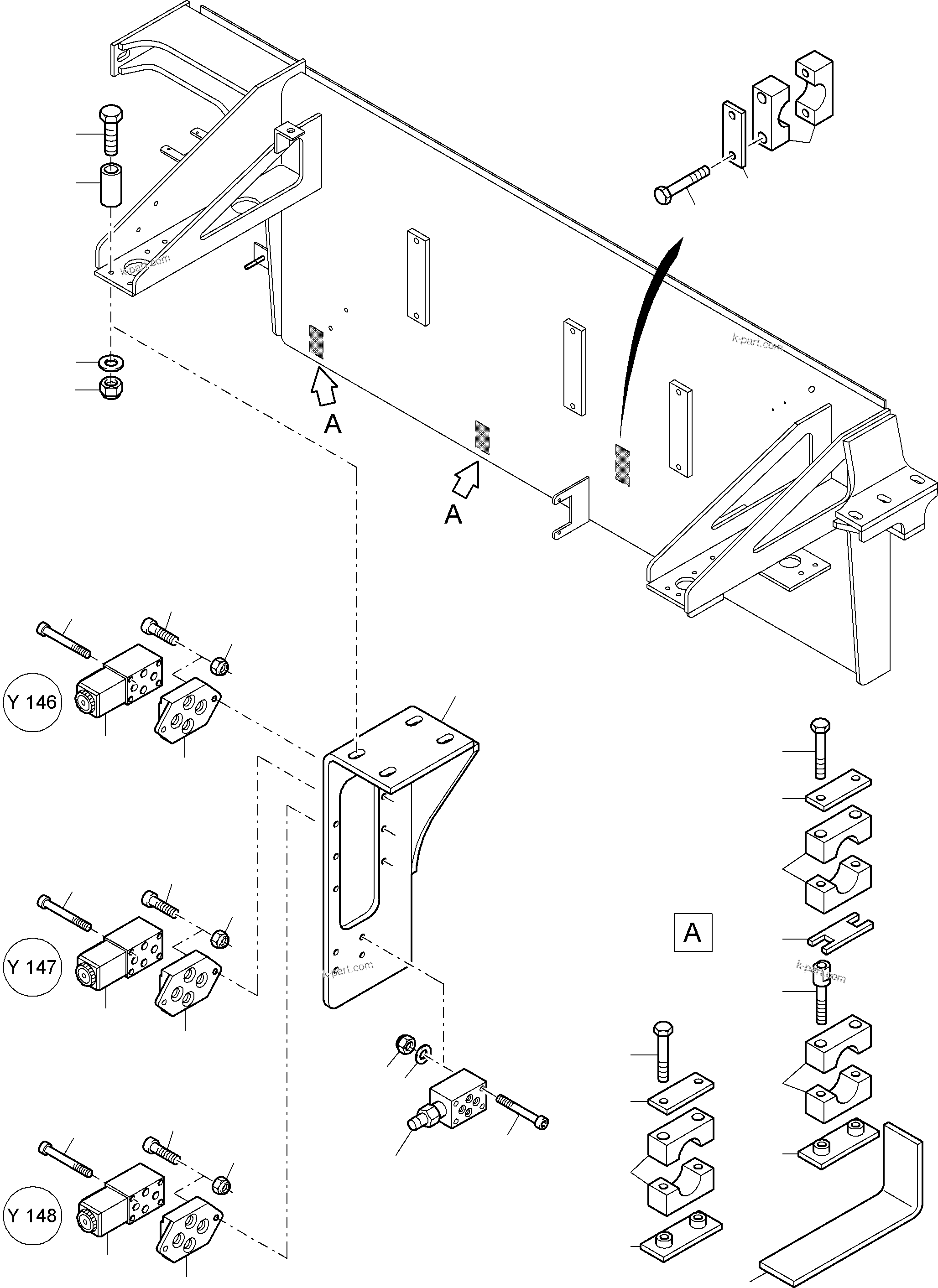

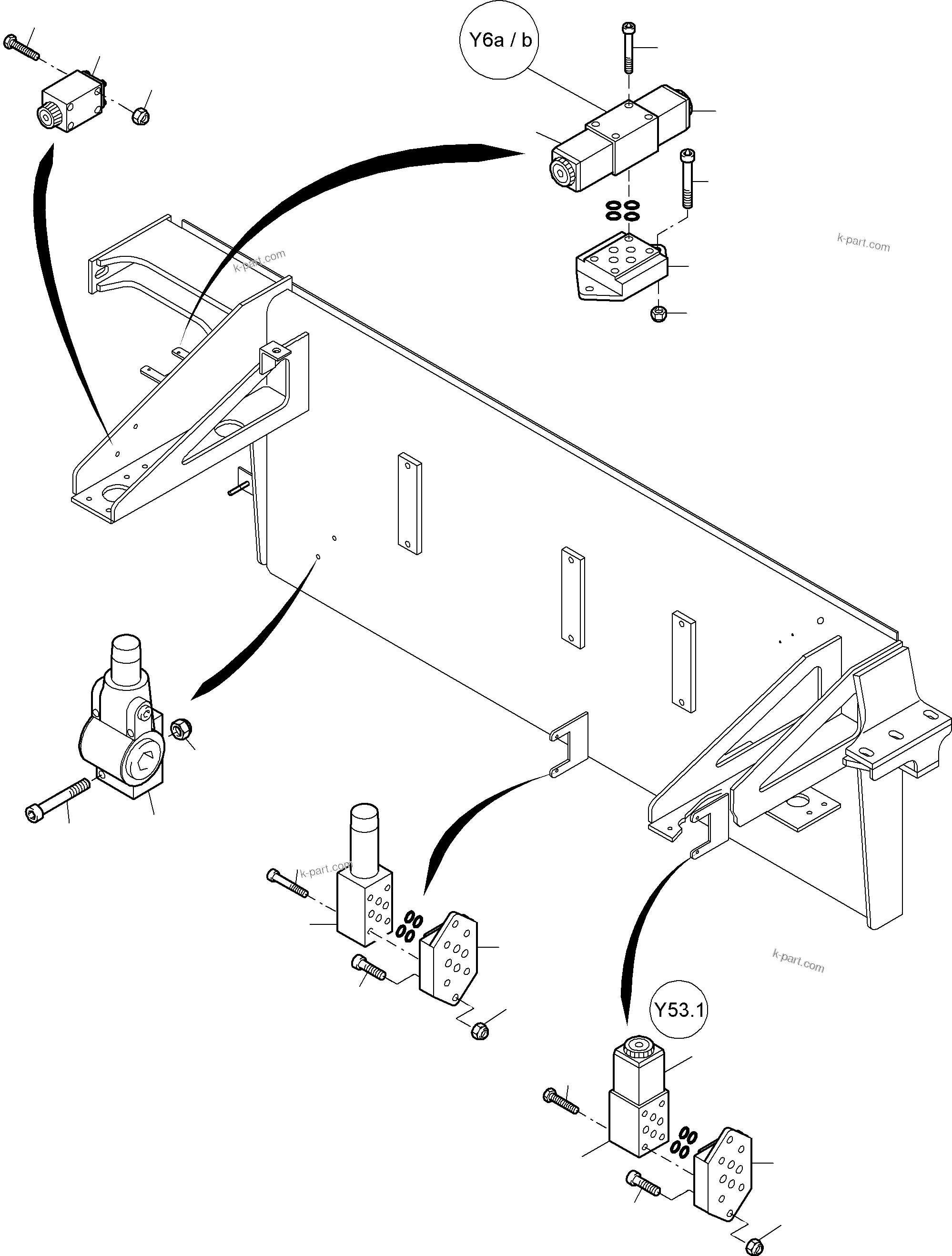

Diagram image 1 of 3

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	938 205 40	Control- and filter plate	1	InternKon: 945 700 40 / 1
?		Inline filter	1	InternBDB: 940 102 40 \| InternKon: 945 700 40 / 2	991-0739
?		Pressure filter	2	InternBDB: 940 093 40 \| InternKon: 945 700 40 / 3	991-0738
?		Inline filter	1	InternBDB: 906 852 40 \| InternKon: 945 700 40 / 4	991-0424
?	440 083 40	Pressure relief valve	2	InternBDB: DB20G2-4X/315XY \| InternKon: 945 700 40 / 5
?	918 375 40	Valve block	1	InternBDB: PC 8000-6E \| InternKon: 945 700 40 / 6
?		Cadridge block assy.	1	InternBDB: 926 554 40 \| InternKon: 945 700 40 / 7	991-0603b
?	180 325 40	Base plate	6	InternBDB: G 342/1 3/8" \| InternKon: 945 700 40 / 11
?	940 730 40	4/2 Directional spool valve	4	InternBDB: Vickers 02-411976 DG4V-3M-0A-M-KUP5D2-H7-60 \| InternKon: 945 700 40 / 12
?	940 732 40	4/3 Directional spool valve	1	InternBDB: Vickers 02-411978DG4V-3M-2C-M-KUP5D2-H7-60 \| InternKon: 945 700 40 / 13
?	461 653 40	Pressure reducing valve	1	InternBDB: DR 6 DP2-5X/75Y / R900413241 \| InternKon: 945 700 40 / 10
?	500 814 98	Bolt	16	InternBDB: M12x60 /931 8.8 \| InternKon: 945 700 40 / 16
?	510 744 98	Resilient sleeve	16	InternBDB: 13/25x32 \| InternKon: 945 700 40 / 17
?	308 578 99	Bolt	4	InternBDB: M10x55 /931 8.8 \| InternKon: 945 700 40 / 18
?	510 746 98	Resilient sleeve	4	InternBDB: 10,5/25x35 \| InternKon: 945 700 40 / 19
?	308 638 99	Bolt	6	InternBDB: M16x100 /931 8.8 \| InternKon: 945 700 40 / 14
?	510 730 98	Resilient sleeve	6	InternBDB: 17 / 30x55 WN 34194840 \| InternKon: 945 700 40 / 15
?	319 426 99	Screw	4	InternBDB: M8x70 /912 8.8 \| InternKon: 945 700 40 / 26
?	334 599 99	Nut	4	InternBDB: M 8 /985 \| InternKon: 945 700 40 / 27
?	319 133 99	Screw	12	InternBDB: M6x30 /912 8.8 \| InternKon: 945 700 40 / 28
?	507 025 98	Nut	16	InternBDB: M 6 /985 \| InternKon: 945 700 40 / 29
?	304 322 99	Bolt	4	InternBDB: M12x160 /931 10.9 \| InternKon: 945 700 40 / 24
?	334 682 99	Nut	8	InternBDB: M 12 /985 \| InternKon: 945 700 40 / 25
?	514 340 98	Screw	20	InternBDB: M5x30 /912 10.9 \| InternKon: 945 700 40 / 33
?	356 140 40	Pressure relief valve	1	InternBDB: DBDS 6G X/200SO 74 \| InternKon: 945 700 40 / 9
?	307 740 99	Bolt	4	InternBDB: M6x60 /933 8.8 \| InternKon: 945 700 40 / 30
?	796 626 73	Solenoid for fig-no.11 and 12	6	InternBDB: Eaton 02-365945
?	796 627 73	Seal kit	-2	InternBDB: Eaton 858995
?	517 254 98	Resilient sleeve	6	InternBDB: 19/40x52 \| InternKon: 931 061 40 / 9
?	501 594 98	Bolt	6	InternBDB: M18x90 /931 10.9 \| InternKon: 931 061 40 / 10
?		Accumulator	1	InternBDB: 239 441 40 SB330-10A1/112A-210A \| InternKon: 931 061 40 / 11	090-0270
?	256 132 40	Clamp	2	InternBDB: HSS 222 / 229 \| InternKon: 931 061 40 / 12
?	308 439 99	Bolt	4	InternBDB: M12x45 / 931 10.9 \| InternKon: 931 061 40 / 13
?	334 682 99	Nut	4	InternBDB: M 12 / 985 10 \| InternKon: 931 061 40 / 14
?	340 467 99	Washer	4	InternBDB: B 13,0 /125 140HV \| InternKon: 931 061 40 / 15
?	924 896 40	Cover	1	InternKon: 931 061 40 / 17
?	502 687 98	Washer	4	InternBDB: 13 / 7349 \| InternKon: 931 061 40 / 18
?	334 600 99	Nut	4	InternBDB: M 12 / 985 \| InternKon: 931 061 40 / 19
?	510 744 98	Resilient sleeve	1	InternBDB: 13/25x32 \| InternKon: 945 700 40 / 111
?	507 037 98	Nut	1	InternBDB: M10 \| InternKon: 945 700 40 / 112
?	340 465 99	Washer	1	InternBDB: B 10,5 / DIN 125 \| InternKon: 945 700 40 / 113
?	443451510	Clip	1	InternBDB: KES 04434 \| InternKon: 945 700 40 / 114
?	443 451 410	Clip	1	InternBDB: KES 04434 \| InternKon: 945 700 40 / 115
?	319 174 99	Screw	1	InternBDB: M5 x 50 / DIN 912 / 10.9 \| InternKon: 945 700 40 / 116
?	938 557 40	Plate 10x280x545	1	InternBDB: St52-3N / Montagewinkel fьr 4/2-Wegeventil und Druckreduziervent \| InternKon: 945 700 40 / 117
?	308 539 99	Bolt	2	InternBDB: M6x55 / 8.8 / DIN 931 \| InternKon: 945 700 40 / 118
?	340 463 99	Washer	2	InternBDB: B6,4 / 140HV / DIN 125 \| InternKon: 945 700 40 / 119
?	507 025 98	Nut	2	InternBDB: M6 / 8 / DIN 985 \| InternKon: 945 700 40 / 120
?	940 545 40	Pressure reduction valve	1	InternBDB: R901109740* \| InternKon: 945 700 40 / 121
?	940 546 40	Housing	1	InternBDB: R901102336 / 03.30.05.20.40.00.000 \| InternKon: 945 700 40 / 122
?	308 608 99	Bolt	4	InternBDB: M12x70 / 8.8 / DIN 931 \| InternKon: 945 700 40 / 137
?	340 467 99	Washer	4	InternBDB: B 13,0 / DIN 125 / 140HV \| InternKon: 945 700 40 / 138
?	516 162 98	Union	1	InternBDB: SWE-L 35 ST-NBR ISO08434-4 \| InternKon: 945 700 40 / 39
?	906 930 40	Union	1	InternBDB: 28 LM/OMD ST ZN WN65593440 \| InternKon: 945 700 40 / 40
?	938 571 40	Retainer	2	InternKon: 945 700 40 / 129
?	533 989 99	Weld-on Plate	1	InternBDB: L-AP-K-2 W1 DIN03015 \| InternKon: 945 700 40 / 130
?	534 089 99	Clamp Set	3	InternBDB: L-2-R-16 PP DIN03015 \| InternKon: 945 700 40 / 131
?	511 855 98	Cover Plate	5	InternBDB: L-2 W1 DIN03015 \| InternKon: 945 700 40 / 132
?	307 735 99	Bolt	10	InternBDB: M6x35 8.8 DIN00933 \| InternKon: 945 700 40 / 133
?	506 215 98	Clamp Set	4	InternBDB: L-2-G-14 PP DIN03015 \| InternKon: 945 700 40 / 134
?	505 012 98	Bolt	4	InternBDB: L-2 W1 DIN03015 \| InternKon: 945 700 40 / 135
?	505 011 98	Anti-Twist Protection	2	InternBDB: L-2 W1 DIN03015 \| InternKon: 945 700 40 / 136

Komatsu PC4000-6E S/N 08202 parts catalog PDF

CONTROL- AND FILTER PLATE (356-1840c) in PC4000-6E S/N 08202. Diagram image and parts list.
