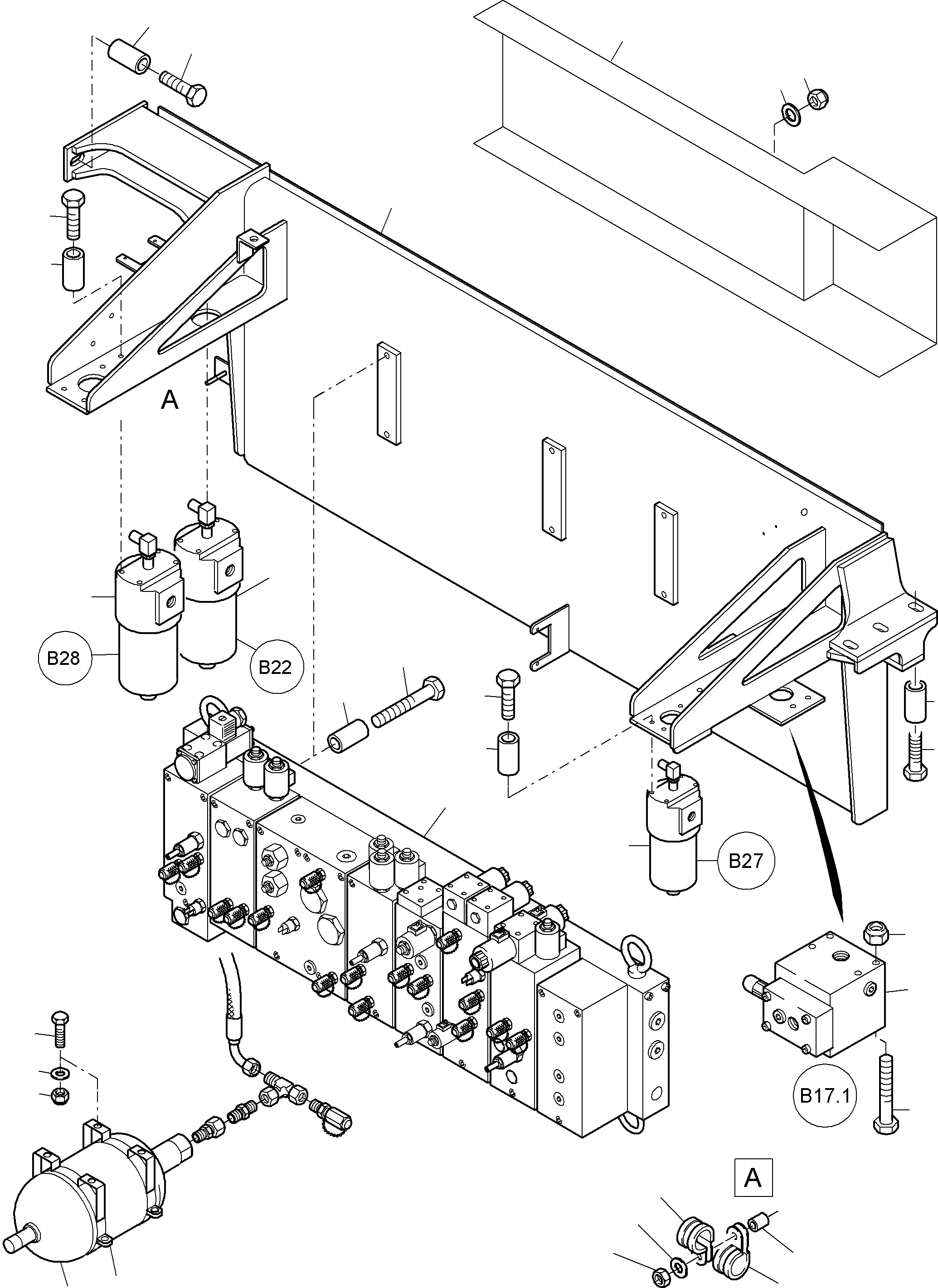

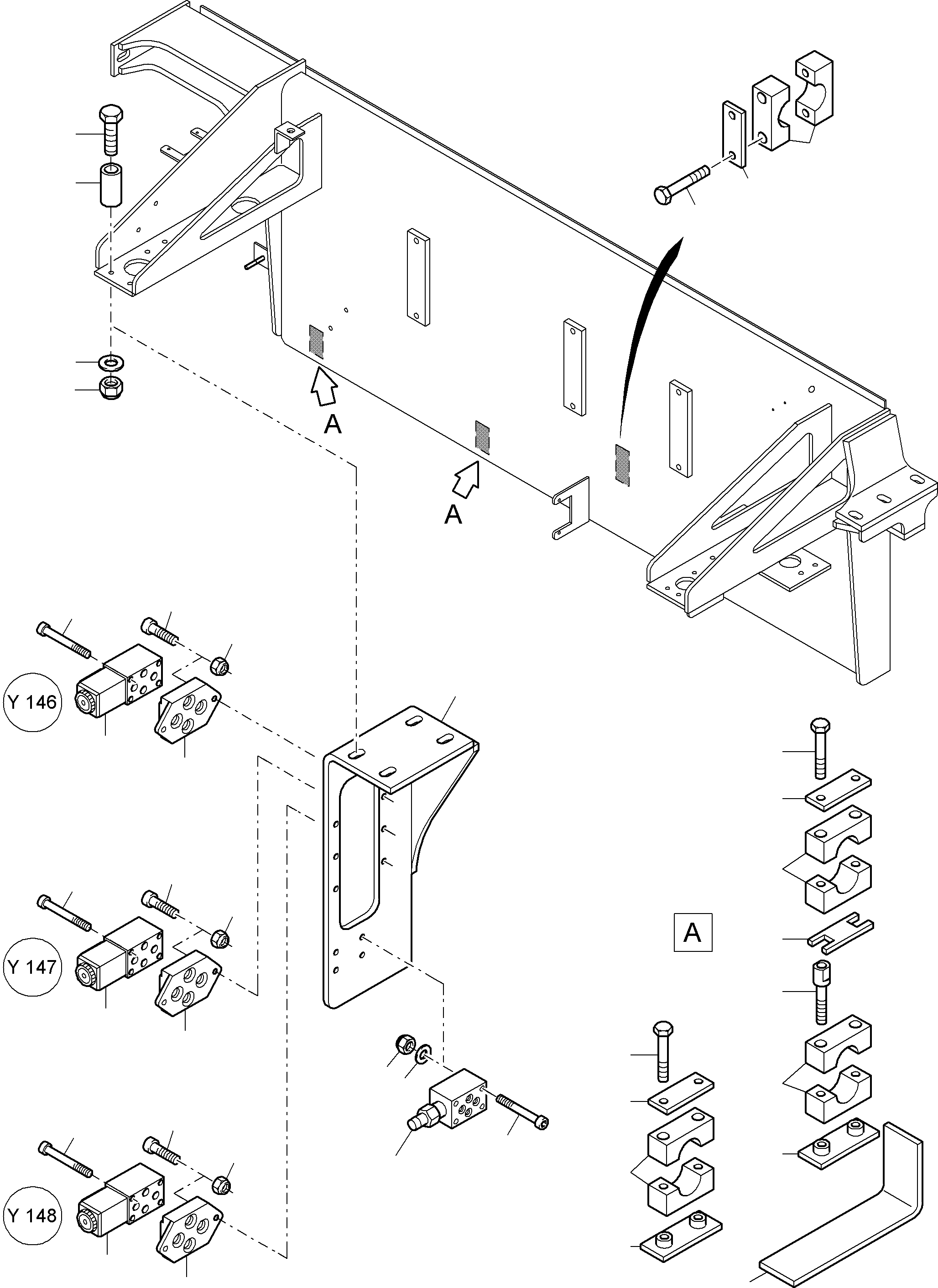

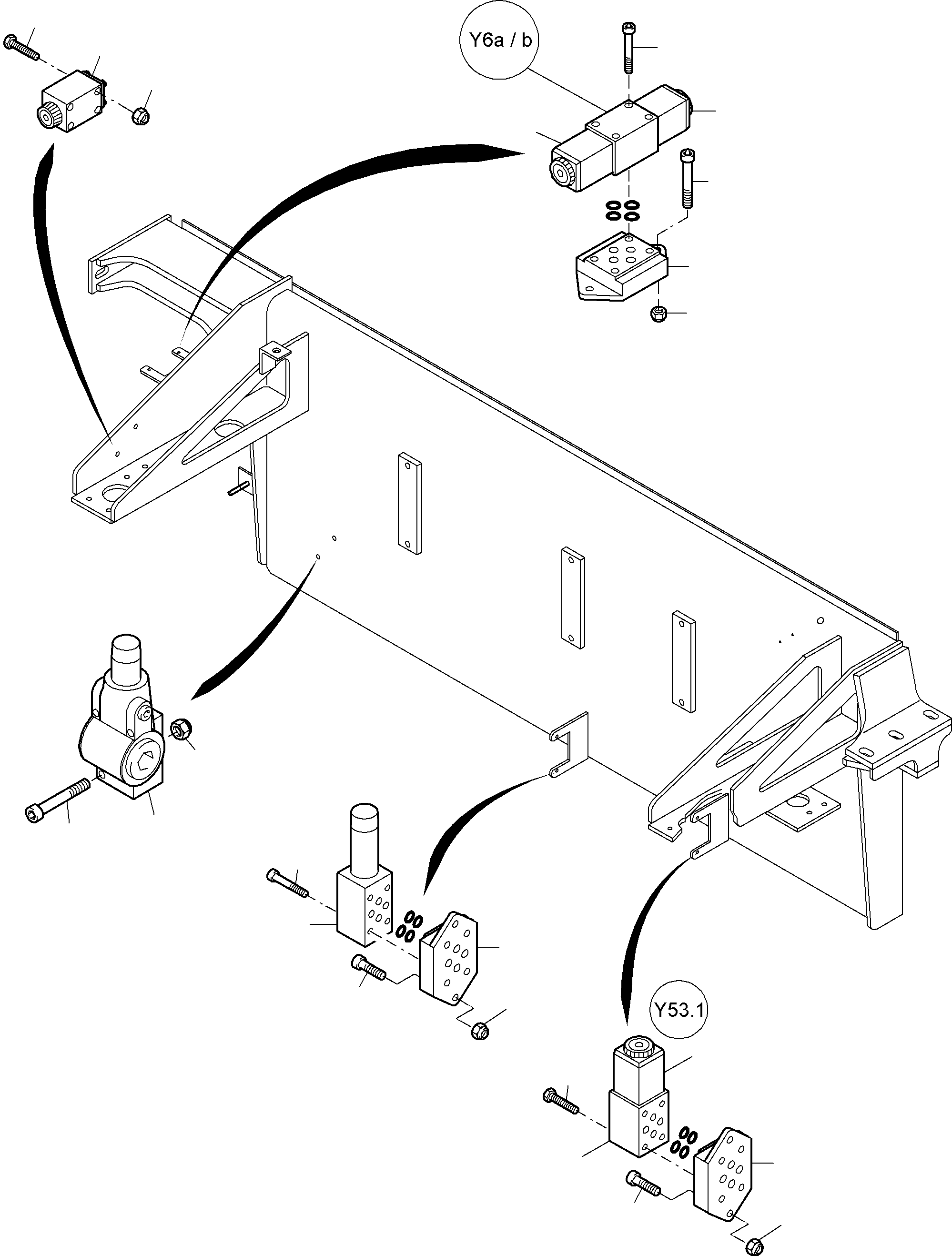

Diagram image 1 of 3

PC4000-6E S/N 08202

01 02 03 04 06 07 15 16 17 18 19 20 25 26 50 50 51 51 52 53 54 55 56 57 58 59 60 61 62 63 64

PC4000-6E S/N 08202

05 10 10 10 11 12 14 21 22 24 24 24 25 25 25 25 30 35 36 36 65 75 75 76 76

PC4000-6E S/N 08202

10 10 10 11 11 11 16 24 24 24 25 25 25 27 30 30 30 66 67 68 69 70 71 73 74 75 75 75 76 76 76 77 78 78 79 79 80 80 80 81 81 81 82 82 83 84

#	Part Number	Partname	Quantity	Options	Reference
01	938 205 40	Control- and filter plate	1	InternKon: 945 700 40 / 1
02		Inline filter	1	InternBDB: 940 102 40 \| InternKon: 945 700 40 / 2	991-0739
03		Pressure filter	2	InternBDB: 940 093 40 \| InternKon: 945 700 40 / 3	991-0738
04		Inline filter	1	InternBDB: 906 852 40 \| InternKon: 945 700 40 / 4	991-0424
05	440 083 40	Pressure relief valve	2	InternBDB: DB20G2-4X/315XY \| InternKon: 945 700 40 / 5
06	918 375 40	Valve block	1	InternBDB: PC 8000-6E \| InternKon: 945 700 40 / 6
07		Cadridge block assy.	1	InternBDB: 926 554 40 \| InternKon: 945 700 40 / 7	991-0603b
10	180 325 40	Base plate	6	InternBDB: G 342/1 3/8" \| InternKon: 945 700 40 / 11
11	940 730 40	4/2 Directional spool valve	4	InternBDB: Vickers 02-411976 DG4V-3M-0A-M-KUP5D2-H7-60 \| InternKon: 945 700 40 / 12
12	940 732 40	4/3 Directional spool valve	1	InternBDB: Vickers 02-411978DG4V-3M-2C-M-KUP5D2-H7-60 \| InternKon: 945 700 40 / 13
14	461 653 40	Pressure reducing valve	1	InternBDB: DR 6 DP2-5X/75Y / R900413241 \| InternKon: 945 700 40 / 10
15	500 814 98	Bolt	16	InternBDB: M12x60 /931 8.8 \| InternKon: 945 700 40 / 16
16	510 744 98	Resilient sleeve	16	InternBDB: 13/25x32 \| InternKon: 945 700 40 / 17
17	308 578 99	Bolt	4	InternBDB: M10x55 /931 8.8 \| InternKon: 945 700 40 / 18
18	510 746 98	Resilient sleeve	4	InternBDB: 10,5/25x35 \| InternKon: 945 700 40 / 19
19	308 638 99	Bolt	6	InternBDB: M16x100 /931 8.8 \| InternKon: 945 700 40 / 14
20	510 730 98	Resilient sleeve	6	InternBDB: 17 / 30x55 WN 34194840 \| InternKon: 945 700 40 / 15
21	319 426 99	Screw	4	InternBDB: M8x70 /912 8.8 \| InternKon: 945 700 40 / 26
22	334 599 99	Nut	4	InternBDB: M 8 /985 \| InternKon: 945 700 40 / 27
24	319 133 99	Screw	12	InternBDB: M6x30 /912 8.8 \| InternKon: 945 700 40 / 28
25	507 025 98	Nut	16	InternBDB: M 6 /985 \| InternKon: 945 700 40 / 29
26	304 322 99	Bolt	4	InternBDB: M12x160 /931 10.9 \| InternKon: 945 700 40 / 24
27	334 682 99	Nut	8	InternBDB: M 12 /985 \| InternKon: 945 700 40 / 25
30	514 340 98	Screw	20	InternBDB: M5x30 /912 10.9 \| InternKon: 945 700 40 / 33
35	356 140 40	Pressure relief valve	1	InternBDB: DBDS 6G X/200SO 74 \| InternKon: 945 700 40 / 9
36	307 740 99	Bolt	4	InternBDB: M6x60 /933 8.8 \| InternKon: 945 700 40 / 30
\|$$27	796 626 73	Solenoid for fig-no.11 and 12	6	InternBDB: Eaton 02-365945
\|$$28	796 627 73	Seal kit	-2	InternBDB: Eaton 858995
50	517 254 98	Resilient sleeve	6	InternBDB: 19/40x52 \| InternKon: 931 061 40 / 9
51	501 594 98	Bolt	6	InternBDB: M18x90 /931 10.9 \| InternKon: 931 061 40 / 10
52		Accumulator	1	InternBDB: 239 441 40 SB330-10A1/112A-210A \| InternKon: 931 061 40 / 11	090-0270
53	256 132 40	Clamp	2	InternBDB: HSS 222 / 229 \| InternKon: 931 061 40 / 12
54	308 439 99	Bolt	4	InternBDB: M12x45 / 931 10.9 \| InternKon: 931 061 40 / 13
55	334 682 99	Nut	4	InternBDB: M 12 / 985 10 \| InternKon: 931 061 40 / 14
56	340 467 99	Washer	4	InternBDB: B 13,0 /125 140HV \| InternKon: 931 061 40 / 15
57	924 896 40	Cover	1	InternKon: 931 061 40 / 17
58	502 687 98	Washer	4	InternBDB: 13 / 7349 \| InternKon: 931 061 40 / 18
59	334 600 99	Nut	4	InternBDB: M 12 / 985 \| InternKon: 931 061 40 / 19
60	510 744 98	Resilient sleeve	1	InternBDB: 13/25x32 \| InternKon: 945 700 40 / 111
61	507 037 98	Nut	1	InternBDB: M10 \| InternKon: 945 700 40 / 112
62	340 465 99	Washer	1	InternBDB: B 10,5 / DIN 125 \| InternKon: 945 700 40 / 113
63	443451510	Clip	1	InternBDB: KES 04434 \| InternKon: 945 700 40 / 114
64	443 451 410	Clip	1	InternBDB: KES 04434 \| InternKon: 945 700 40 / 115
65	319 174 99	Screw	1	InternBDB: M5 x 50 / DIN 912 / 10.9 \| InternKon: 945 700 40 / 116
66	938 557 40	Plate 10x280x545	1	InternBDB: St52-3N / Montagewinkel fьr 4/2-Wegeventil und Druckreduziervent \| InternKon: 945 700 40 / 117
67	308 539 99	Bolt	2	InternBDB: M6x55 / 8.8 / DIN 931 \| InternKon: 945 700 40 / 118
68	340 463 99	Washer	2	InternBDB: B6,4 / 140HV / DIN 125 \| InternKon: 945 700 40 / 119
69	507 025 98	Nut	2	InternBDB: M6 / 8 / DIN 985 \| InternKon: 945 700 40 / 120
70	940 545 40	Pressure reduction valve	1	InternBDB: R901109740* \| InternKon: 945 700 40 / 121
71	940 546 40	Housing	1	InternBDB: R901102336 / 03.30.05.20.40.00.000 \| InternKon: 945 700 40 / 122
73	308 608 99	Bolt	4	InternBDB: M12x70 / 8.8 / DIN 931 \| InternKon: 945 700 40 / 137
74	340 467 99	Washer	4	InternBDB: B 13,0 / DIN 125 / 140HV \| InternKon: 945 700 40 / 138
75	516 162 98	Union	1	InternBDB: SWE-L 35 ST-NBR ISO08434-4 \| InternKon: 945 700 40 / 39
76	906 930 40	Union	1	InternBDB: 28 LM/OMD ST ZN WN65593440 \| InternKon: 945 700 40 / 40
77	938 571 40	Retainer	2	InternKon: 945 700 40 / 129
78	533 989 99	Weld-on Plate	1	InternBDB: L-AP-K-2 W1 DIN03015 \| InternKon: 945 700 40 / 130
79	534 089 99	Clamp Set	3	InternBDB: L-2-R-16 PP DIN03015 \| InternKon: 945 700 40 / 131
80	511 855 98	Cover Plate	5	InternBDB: L-2 W1 DIN03015 \| InternKon: 945 700 40 / 132
81	307 735 99	Bolt	10	InternBDB: M6x35 8.8 DIN00933 \| InternKon: 945 700 40 / 133
82	506 215 98	Clamp Set	4	InternBDB: L-2-G-14 PP DIN03015 \| InternKon: 945 700 40 / 134
83	505 012 98	Bolt	4	InternBDB: L-2 W1 DIN03015 \| InternKon: 945 700 40 / 135
84	505 011 98	Anti-Twist Protection	2	InternBDB: L-2 W1 DIN03015 \| InternKon: 945 700 40 / 136

Komatsu PC4000-6E S/N 08202 parts catalog PDF

CONTROL- AND FILTER PLATE (356-1840c) in PC4000-6E S/N 08202. Diagram image and parts list.
