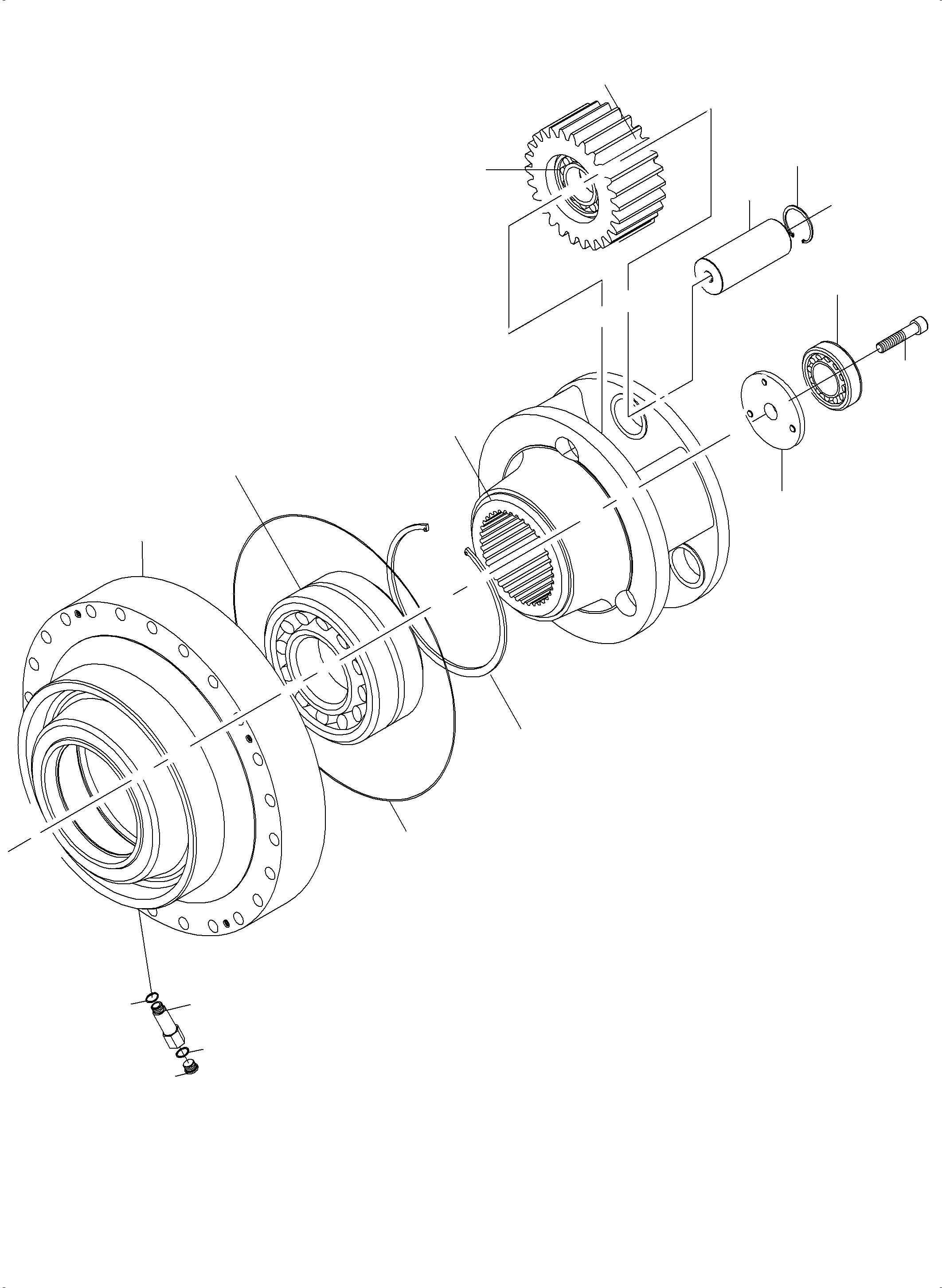

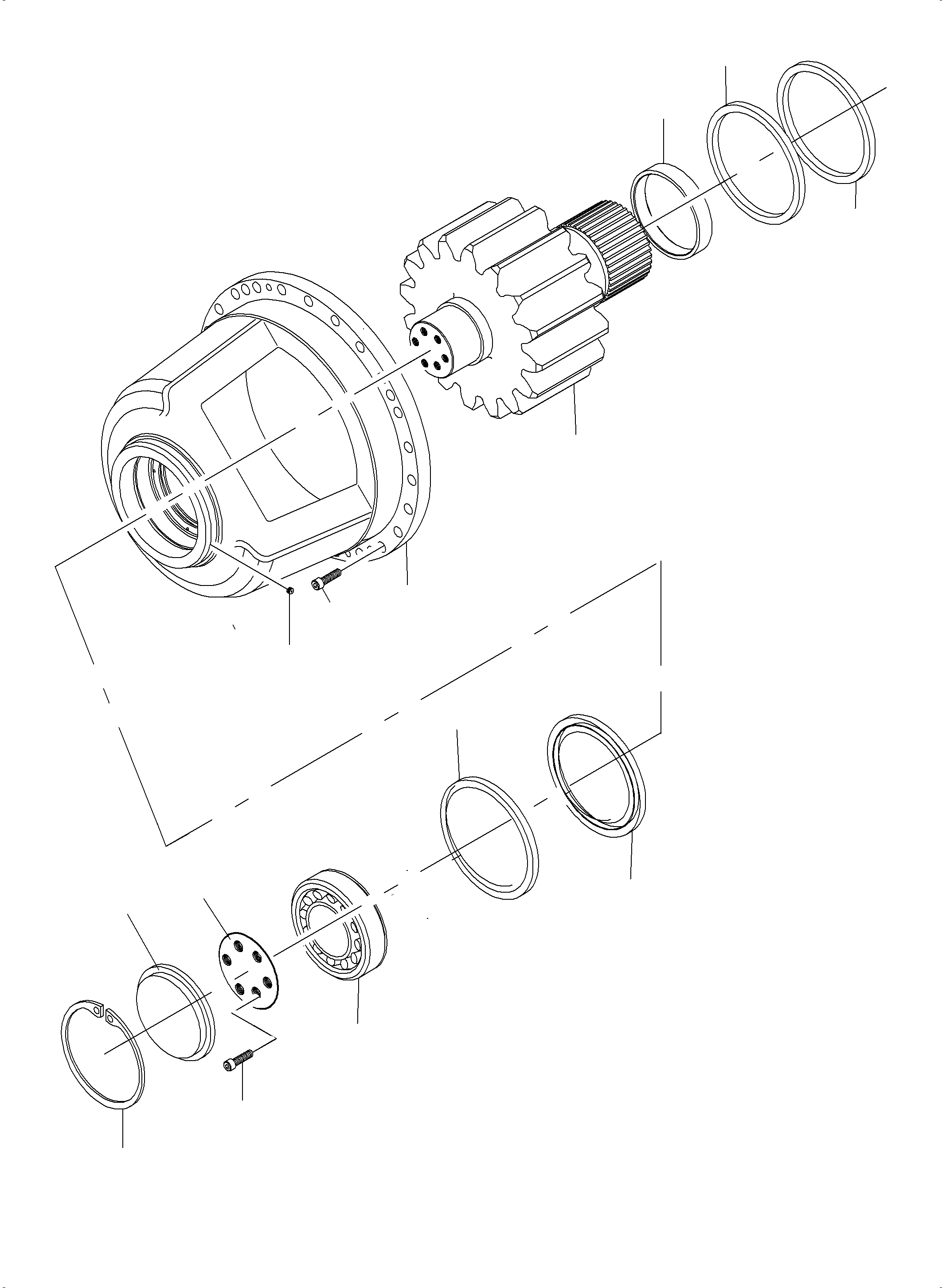

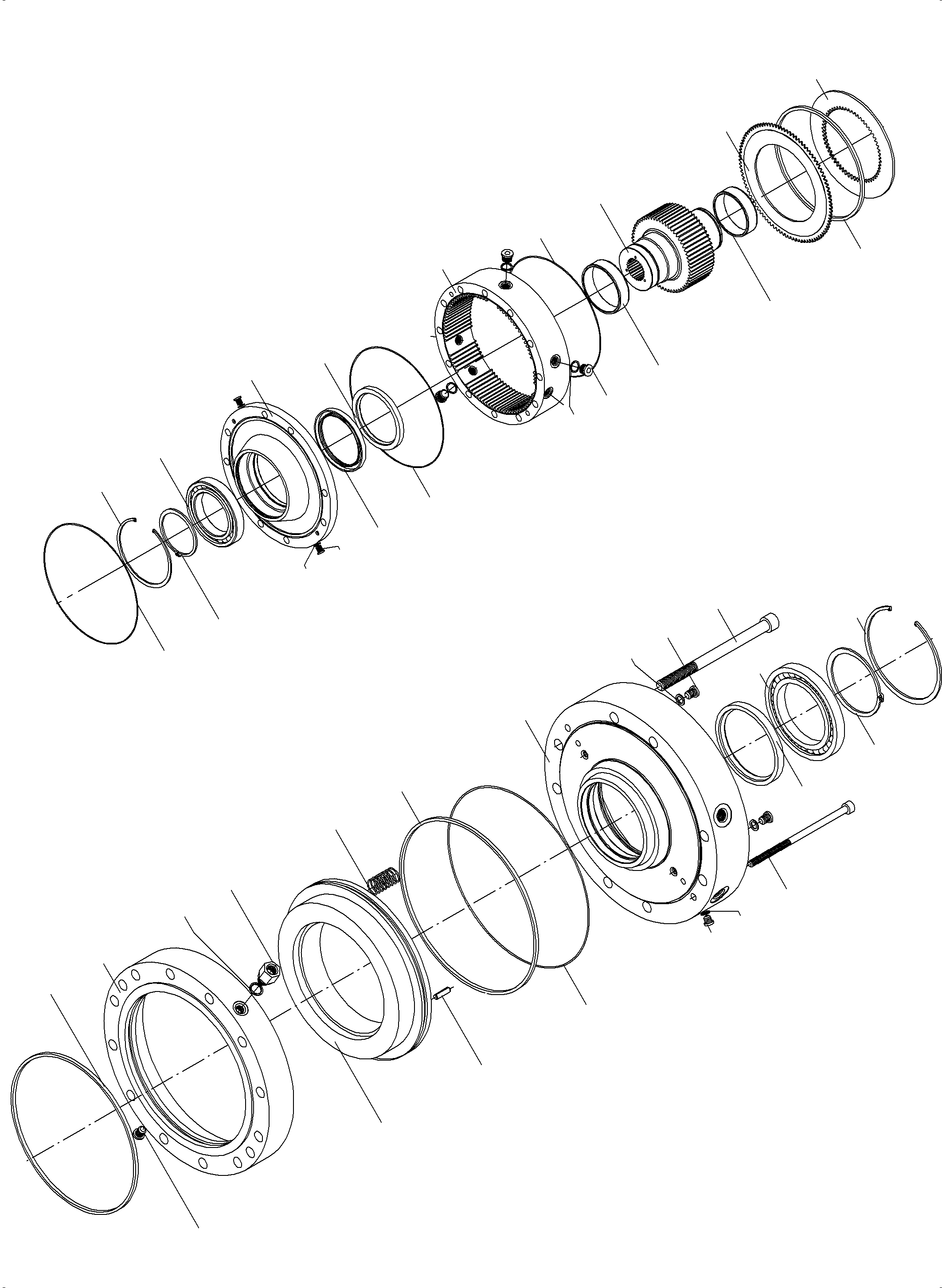

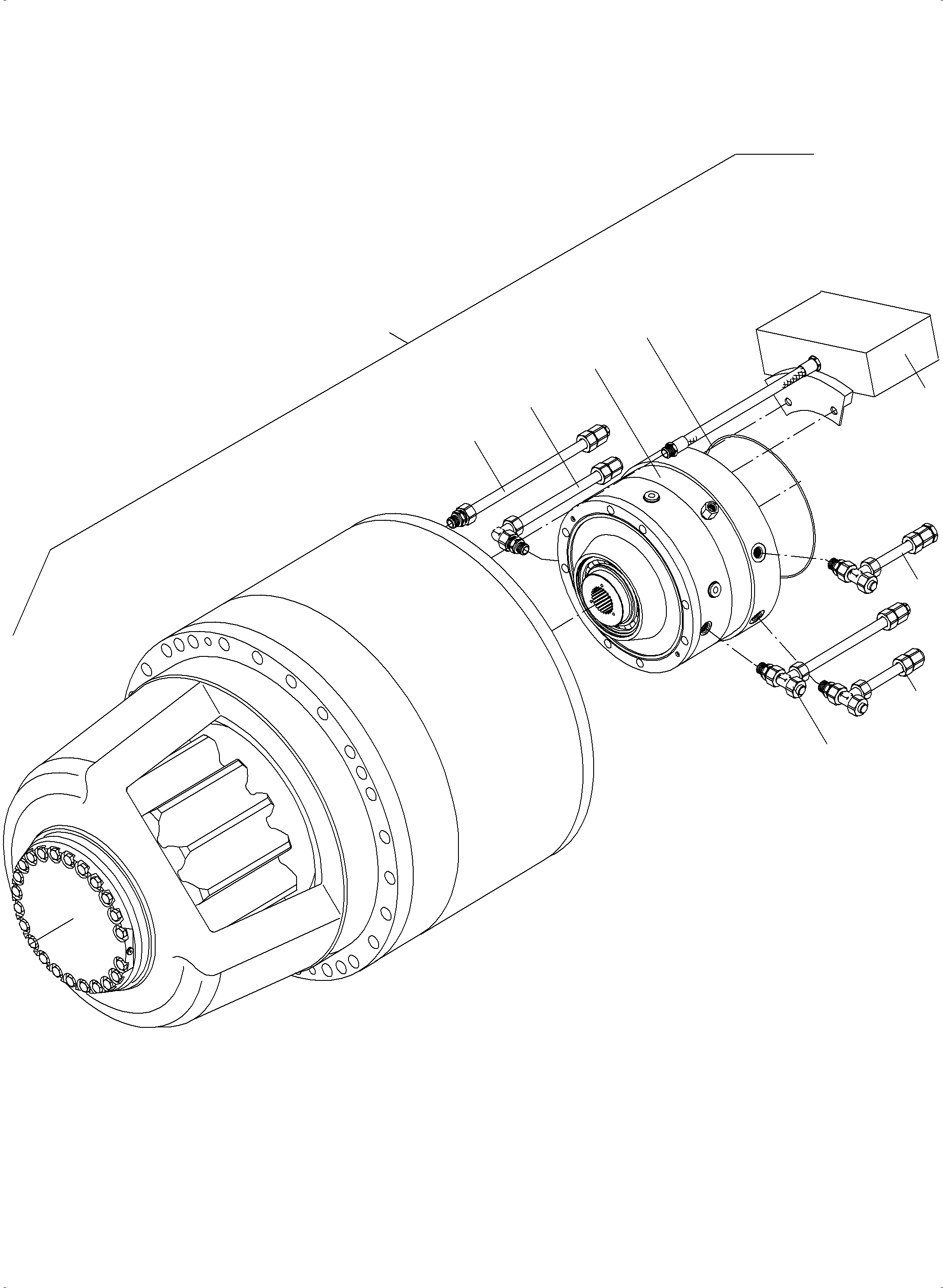

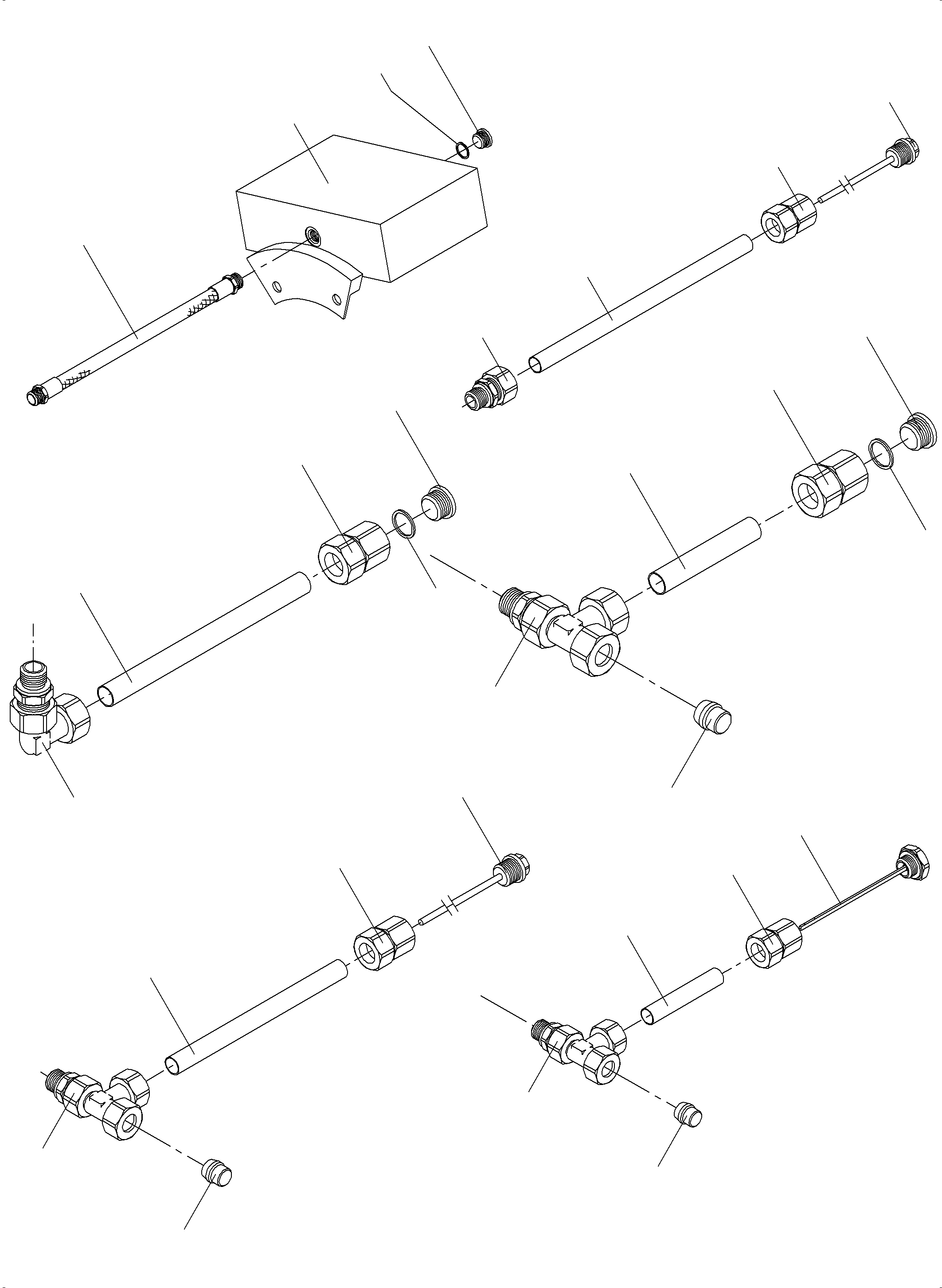

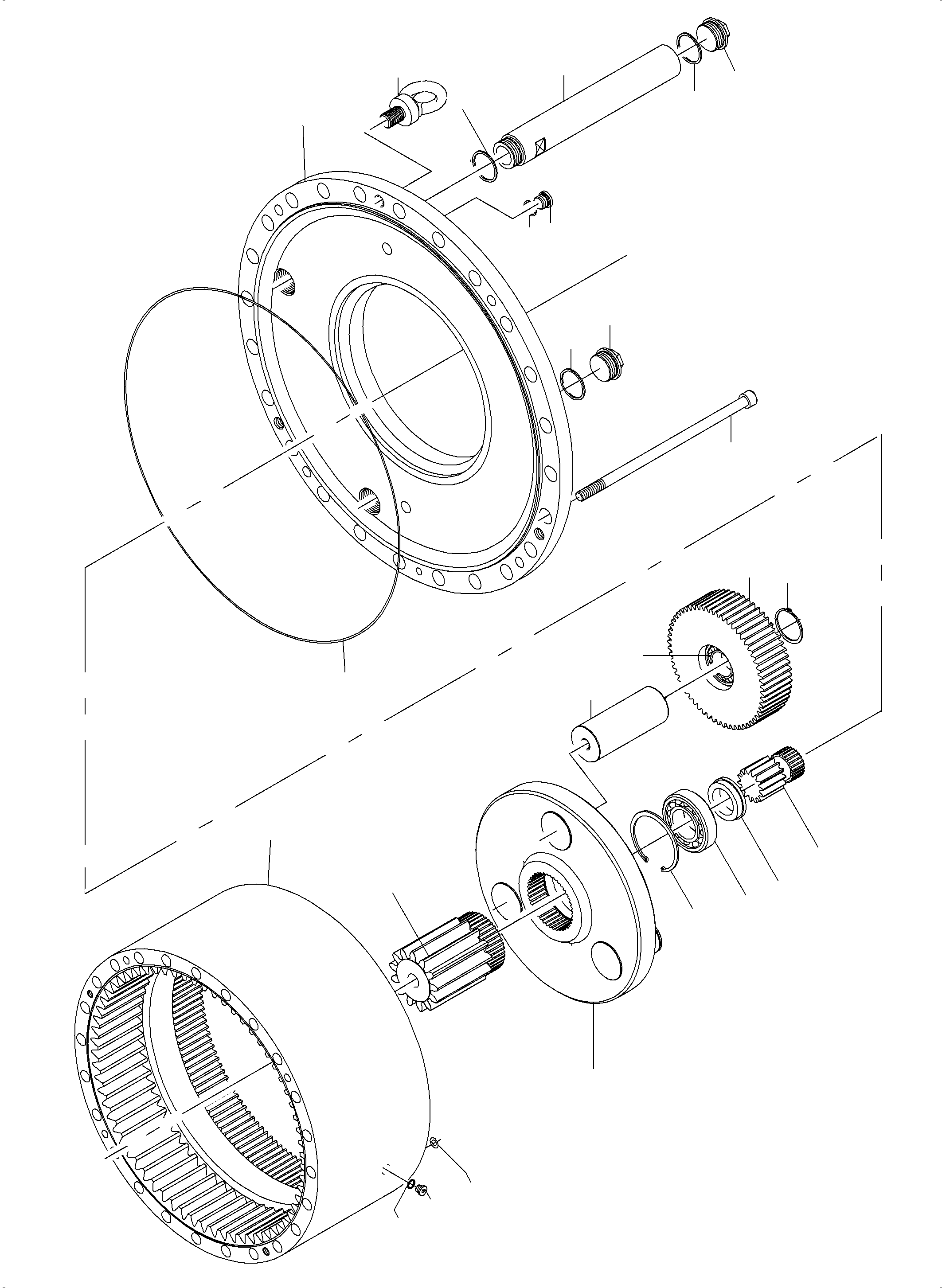

Diagram image 1 of 6

PC4000-6 S/N 08195

01 03 04 05 06 07 08 09 10

PC4000-6 S/N 08195

12 13 14 16 17 18 19 22 30 31 36 40 42 45 47 48 49 50 53 53 54 54 54 57 58 59

PC4000-6 S/N 08195

123 124 15 20 21 23 29 32 33 35 41 43 47 51 52 52

PC4000-6 S/N 08195

125 24 25 26 27 28 34 37 38 39 44 46 55 56

PC4000-6 S/N 08195

60 61 62 63 64 64 65 66 67 68 69 70 71 72 73 74 75 75 76 77 78 79 80 80 80 80 81 82 83 84 85 86 87 88 89 90 90 91 91 92 92 93

PC4000-6 S/N 08195

100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 94 95 96 97 98 99

#	Part Number	Partname	Quantity	Options
01	944 872 40	Slew gear	1	InternBDB: Siebenhaar 89 DS 03/7 731.8921.03-1E3 AT-Nr. 711 407 73
03	795 836 73	Disc brake assy. consist. of fig nos. 60-93	1	InternBDB: 63 BHN 61 \| InternKon: 89 DS 03/7 / 2
03	795 995 73	Repair kit brake (fig nos.65-68,74,75,77,80,89,91)	1
04	769 688 73	Expansion tank consist. of fig nos. 94-97	1	InternBDB: 00X 130-01 \| InternKon: 89 DS 03/7 / 3
05	769 689 73	Dipstick - gearbox consist. of fig nos. 98-101	1	InternBDB: 00X 130-02 \| InternKon: 89 DS 03/7 / 4
06	769 690 73	Oil drain - engine room consist. of fig nos. 102-107	1	InternBDB: 00X 131-01 \| InternKon: 89 DS 03/7 / 5
07	769 691 73	Dipstick - engine room consist. of fig nos 108-112	1	InternBDB: 00X 131-02 \| InternKon: 89 DS 03/7 / 6
08	769 692 73	Breather consist. of fig nos. 113-117	1	InternBDB: 00X 132-01 \| InternKon: 89 DS 03/7 / 7
09	769 693 73	Dipstick - brake housing consist. of fig nos. 118-122	1	InternBDB: 00X 132-02 \| InternKon: 89 DS 03/7 / 8
10	972 122	O-ring	1	InternBDB: 280 x 3 2.035.209 \| InternKon: 89 DS 03/7 / 9
12	769 695 73	Sun gear	1	InternBDB: 501.8902.17-3 A1 \| InternKon: 89 DDE 03/0 / 20
13	769 696 73	Planetary without support	3	InternBDB: 502.8902.13-3 A4 \| InternKon: 89 DDE 03/0 / 30
14	795 838 73	Sun gear	1	InternBDB: 501.8901.13-3 A0 \| InternKon: 89 DDE 03/0 / 40
15	769 698 73	Planetary without support	3	InternBDB: 502.8901.04-3 A2 \| InternKon: 89 DDE 03/0 / 50
16	793 288 73	Ring gear	1	InternBDB: 503.8901.04-1 A0 \| InternKon: 89 DDE 03/0 / 60
17	795 839 73	Trunnion support	1	InternBDB: 517.1673.02-2 A1 \| InternKon: 89 DDE 03/0 / 70
18	769 701 73	Pin	3	InternBDB: 505.000A.82-4 A0 \| InternKon: 89 DDE 03/0 / 80
19	769 702 73	Race	1	InternBDB: 560.8900.08-4 A2 \| InternKon: 89 DDE 03/0 / 90
20	797 329 73	Planetary carrier	1	InternBDB: 504.8911.03 \| InternKon: 89 DDE 03/0 / 100
21	769 704 73	Pin	3	InternBDB: 505.000A.81-4A0 \| InternKon: 89 DDE 03/0 / 110
22	795 840 73	Adapter	1	InternBDB: 506.8904.20 \| InternKon: 89 DDE 03/0 / 120
23	797 330 73	Bearing bush	1	InternBDB: 508.8910.08 \| InternKon: 89 DDE 03/0 / 130
24	797 331 73	Bearing hub	1	InternBDB: 521.8920.04 \| InternKon: 89 DDE 03/0 / 140
25	797 332 73	Cover	1	InternBDB: 561.8900.07 \| InternKon: 89 DDE 03/0 / 150
26	797 333 73	Spacer	1	InternBDB: 599.000G15 \| InternKon: 89 DDE 03/0 / 160
27	797 334 73	Inner ring	1	InternBDB: 599.000G14 \| InternKon: 89 DDE 03/0 / 170
28	797 335 73	Pinion shaft	1	InternBDB: 513.8930.02 \| InternKon: 89 DDE 03/0 / 180
29	797 336 73	Extension	1	InternBDB: 546.0000.87 \| InternKon: 89 DDE 03/0 / 190
30	769 713 73	Extension	1	InternBDB: 546.0000.67-403 \| InternKon: 89 DDE 03/0 / 200
31	360 457 99	Roller bearing	1	InternBDB: 16017 /625 2.042.103 \| InternKon: 89 DDE 03/0 / 220
32	360 456 99	Roller bearing	1	InternBDB: 16016 /625 2.042.102 \| InternKon: 89 DDE 03/0 / 230
33	362 039 99	Self-aligning bearing	1	InternBDB: 2.040.50.01 23044 CC C3 W33 \| InternKon: 89 DDE 03/0 / 240
34	797 337 73	Self-aligning bearing	1	InternBDB: 2.064.243 NU 2326 C3 \| InternKon: 89 DDE 03/0 / 250
35	795 843 73	Planet wheel bearing	3	InternBDB: 2.065.114 \| InternKon: 89 DDE 03/0 / 260
36	797 338 73	Planet wheel bearing	3	InternBDB: 2.065.177 \| InternKon: 89 DDE 03/0 / 270
37	797 339 73	Shaft seal	1	InternBDB: 2.061.268 \| InternKon: 89 DDE 03/0 / 295
38	797 340 73	Shaft seal	1	InternBDB: 2.061.264 \| InternKon: 89 DDE 03/0 / 290
39	797 341 73	V-seal	1	InternBDB: 2.056.27 \| InternKon: 89 DDE 03/0 / 300
40	342 560 99	Circlip	3	InternBDB: 70x2,5 /471 2.045.022 \| InternKon: 89 DDE 03/0 / 320
41	342 662 99	Circlip	3	InternBDB: 75x2,5 /472 2.045.117 \| InternKon: 89 DDE 03/0 / 340
42	342 676 99	Circlip	1	InternBDB: 130x4 /472 2.045.127 \| InternKon: 89 DDE 03/0 / 350
43	501 933 98	Circlip	1	InternBDB: 340x6 /472 2.045.142 \| InternKon: 89 DDE 03/0 / 370
44	515 722 98	Bolt	4	InternBDB: M16x60 /912 8.8 \| InternKon: 89 DDE 03/0 / 380
45	516 352 98	Bolt	4	InternBDB: M16x360 /912 8.8 \| InternKon: 89 DDE 03/0 / 390
46	512 963 98	Bolt	6	InternBDB: M12x40 /912 8.8 \| InternKon: 89 DDE 03/0 / 395
47	516 354 98	O-ring	2	InternBDB: 600x3 NBR 2.035.344 \| InternKon: 89 DDE 03/0 / 410
48	500 305 98	O-ring	2	InternBDB: 13x2,5 NBR 2.035.246 \| InternKon: 89 DDE 03/0 / 420
49	313 396 99	Plug	2	InternBDB: M16x1,5 /908 \| InternKon: 89 DDE 03/0 / 430
50	339 890 99	Seal ring	1	InternBDB: 16x22x1,5 /7603 \| InternKon: 89 DDE 03/0 / 440
51	502 801 98	Plug	1	InternBDB: M26x1,5 /908 \| InternKon: 89 DDE 03/0 / 470
52	339 918 99	Seal ring	2	InternBDB: 26x32x2 /7603 \| InternKon: 89 DDE 03/0 / 480
53	501 532 98	Plug	3	InternBDB: M 45 /910 \| InternKon: 89 DDE 03/0 / 490
54	339 796 99	Seal ring	4	InternBDB: 45x52x2 /7603 \| InternKon: 89 DDE 03/0 / 500
55	509 525 98	Grease nipple	2	InternBDB: R 1/4 /71412 2.0103.06 \| InternKon: 89 DDE 03/0 / 510
56	797 342 73	Final disc	1	InternBDB: 537.000A77 \| InternKon: 89 DDE 03/0 / 210
57	407 823 99	Plug	2	InternBDB: G 1/2 /908 \| InternKon: 89 DDE 03/0 / 530
58	339 902 99	Seal ring	2	InternBDB: 21x26x1,5 /7603 \| InternKon: 89 DDE 03/0 / 540
59	795 845 73	Bolt	3	InternBDB: 2.050.08.0200 \| InternKon: 89 DDE 03/0 / 550
60	795 846 73	Flange-mount	1	InternBDB: 541.8930.02-200 \| InternKon: 63 BHN 61 / 10
61	795 847 73	Disc carrier	1	InternBDB: 582.0063.38-3A0 \| InternKon: 63 BHN 61 / 15
62	795 848 73	Housing	1	InternBDB: 581.0063.16-300 \| InternKon: 63 BHN 61 / 20
63	795 849 73	Limit flange	1	InternBDB: 587.0063.25-301 \| InternKon: 63 BHN 61 / 25
64	793 294 73	Control linkage assy., incl. 92+93	1	InternBDB: 2.007.90 \| InternKon: 63 BHN 61 / 30
65	793 295 73	Compression spring	6	InternBDB: 2.012.14 \| InternKon: 63 BHN 61 / 40
66	769 720 73	Compression spring	12	InternBDB: 2.012.13 \| InternKon: 63 BHN 61 / 45
67	769 721 73	Outer disc	8	InternBDB: 2.003.40 \| InternKon: 63 BHN 61 / 50
68	769 722 73	Internal disc	7	InternBDB: 2.025.50 \| InternKon: 63 BHN 61 / 60
69	769 723 73	Sine ring	7	InternBDB: 2.074.11 \| InternKon: 63 BHN 61 / 70
70	500 049 98	Bolt	12	InternBDB: M16x220 /912 8.8 \| InternKon: 63 BHN 61 / 80
71	501 046 98	Hexagon socket head cap screw	2	InternBDB: M10x200 / 912 8.8 2.050.0536.0242 \| InternKon: 63 BHN 61 / 82
72	795 850 73	Inner ring	1	InternBDB: 2.026.22 \| InternKon: 63 BHN 61 / 85
73	796 052 73	Distance ring	1	InternBDB: 511.8900.11 \| InternKon: 63 BHN 61 / 90
74	763 292 73	Shaft seal	1	InternBDB: 2.061.339 \| InternKon: 63 BHN 61 / 100
75	795 851 73	Rotary shaft seal	2	InternBDB: 2.061.116 \| InternKon: 63 BHN 61 / 105
76	313 394 98	Valve	1	InternBDB: M10x1 / 908 2.059.30 \| InternKon: 63 BHN 61 / 110
77	795 852 73	Seal ring	1	InternBDB: 10x14x1 / 7603 2.086.10 \| InternKon: 63 BHN 61 / 120
78	795 853 73	Union	1	InternBDB: 591.000A.02-400 \| InternKon: 63 BHN 61 / 130
79	795 854 73	Seal	1	InternBDB: ED 18x1,5 2.014.64 \| InternKon: 63 BHN 61 / 140
80	795 855 73	O-ring	4	InternBDB: 290 x 2 2.035.43 \| InternKon: 63 BHN 61 / 150
81	795 720 73	Hexagon head socket pipe plug	1	InternBDB: M12x1,5 VSTI ED 2.059.46 \| InternKon: 63 BHN 61 / 160
82	795 721 73	Grooved ball bearing	1	InternBDB: 2.042.106.01 \| InternKon: 63 BHN 61 / 170
83	795 722 73	Grooved ball bearing	1	InternBDB: 2.042.036 \| InternKon: 63 BHN 61 / 180
84	342 570 99	Circlip	1	InternBDB: 100x3 / 471 2.045.030 \| InternKon: 63 BHN 61 / 190
85	342 571 99	Circlip	1	InternBDB: 105x4 / 471 2.045.031 \| InternKon: 63 BHN 61 / 200
86	342 680 99	Circlip	1	InternBDB: 150x4 / 472 2.045.130 \| InternKon: 63 BHN 61 / 210
87	342 682 99	Circlip	1	InternBDB: 160x4 / 472 2.045.131 \| InternKon: 63 BHN 61 / 220
88	407 823 99	Hexagon head socket pipe plug	3	InternBDB: R 1/2" / 908 verzinkt 2.059.22 \| InternKon: 63 BHN 61 / 230
89	795 723 73	Seal ring	3	InternBDB: 21x26x1,5 /7603 2.086.02 \| InternKon: 63 BHN 61 / 240
90	313 395 99	Hexagon head socket pipe plug	4	InternBDB: M12x1,5 / 908 2.059.40 \| InternKon: 63 BHN 61 / 250
91	339 711 99	Seal ring	4	InternBDB: 12x16x1,5 / 7603 2.086.07 \| InternKon: 63 BHN 61 / 260
92	793 296 73	Seal ring	2	InternBDB: 2.010.58 \| InternKon: 63 BHN 61 / 30.1
93	345 062 99	Dowel sleeve	1	InternBDB: 8x20 /1481 \| InternKon: 63 BHN 61 / 30.2
94	795 724 73	Equalizing reservoir	1	InternBDB: 590.0000.33-301 \| InternKon: 00X130-01 / 10
95	313 998 99	Hexagon head socket pipe plug	1	InternBDB: M22x1,5 / 908 2.059.35 \| InternKon: 00X130-01 / 20
96	340 294 99	Sealing ring	1	InternBDB: 22x27x1,5 / 7603 2.086.06 \| InternKon: 00X130-01 / 30
97	795 725 73	Hose	1	InternBDB: 2.038.29 \| InternKon: 00X130-01 / 40
98	795 726 73	Union piece	1	InternBDB: 2.060.129 \| InternKon: 00X130-02 / 20
99	795 727 73	Union piece	1	InternBDB: 2.060.234 \| InternKon: 00X130-02 / 50
100	215 754 99	Pipe l=305mm	1	InternBDB: 2.067.08 18x2 / 2391 \| InternKon: 00X130-02 / 60
101	793 297 73	Dipstick	1	InternBDB: 2.037.29 \| InternKon: 00X130-02 / 70
102	795 728 73	Union piece	1	InternBDB: 2.060.236 \| InternKon: 00X131-01 / 10
103	795 727 73	Union piece	1	InternBDB: 2.060.234 \| InternKon: 00X131-01 / 20
104	795 729 73	Union piece	1	InternBDB: 2.060.237 \| InternKon: 00X131-01 / 30
105	215 754 99	Pipe l= 100mm	1	InternBDB: 2.067.08 18x2 / 2391 \| InternKon: 00X131-01 / 40
106	313 398 99	Hexagon head socket pipe plug	1	InternBDB: M22x1,5 / 908 2.059.35 \| InternKon: 00X131-01 / 60
107	340 294 99	Sealing ring	1	InternBDB: 22x27x1,5 / 7603 2.086.06 \| InternKon: 00X131-01 / 70
108	795 728 73	Union piece	1	InternBDB: 2.060.236 \| InternKon: 00X131-02 / 10
109	795 727 73	Union piece	1	InternBDB: 2.060.234 \| InternKon: 00X131-02 / 20
110	795 729 73	Union piece	1	InternBDB: 2.060.237 \| InternKon: 00X131-02 / 30
111	215 754 99	Pipe l= 100mm	1	InternBDB: 2.067.08 18x2 / 2391 \| InternKon: 00X131-02 / 40
112	793 298 73	Screw plug w. fuel dip stick	1	InternBDB: M22x1,5 / 908 2.059.89 \| InternKon: 00X131-02 / 50
113	795 727 73	Union piece	1	InternBDB: 2.060.234 \| InternKon: 00X132-01 / 20
114	215 754 99	Pipe l= 220mm	1	InternBDB: 2.067.08 18x2 / 2391 \| InternKon: 00X132-01 / 50
115	795 730 73	Union piece	1	InternBDB: 2.060.194 \| InternKon: 00X132-01 / 80
116	313 398 99	Hexagon head socket pipe plug	1	InternBDB: M22x1,5 / 908 2.059.35 \| InternKon: 00X132-01 / 90
117	340 294 99	Sealing ring	1	InternBDB: 22x27x1,5 / 7603 2.086.06 \| InternKon: 00X132-01 / 100
118	795 728 73	Union piece	1	InternBDB: 2.060.236 \| InternKon: 00X132-02 / 10
119	795 727 73	Union piece	1	InternBDB: 2.060.234 \| InternKon: 00X132-02 / 20
120	793 299 73	Screw plug w. fuel dip stick	1	InternBDB: 2.037.28 \| InternKon: 00X132-02 / 30
121	795 729 73	Union piece	1	InternBDB: 2.060.237 \| InternKon: 00X132-02 / 40
122	215 754 99	Pipe l= 243mm	1	InternBDB: 2.067.08 18x2 / 2391 \| InternKon: 00X132-02 / 50
123	797 343 73	Pressure disc	1	InternBDB: 597.0000.44 \| InternKon: 89 DDE 03/0 / 215
124	509 005 98	Bolt	1	InternBDB: M24x65/912 12.9 2.050.0919.0013 \| InternKon: 89 DDE 03/0 / 385
125	342 707 99	Circlip	1	InternBDB: 280x5 / 472 2.045.152 \| InternKon: 89 DDE 03/0 / 400
