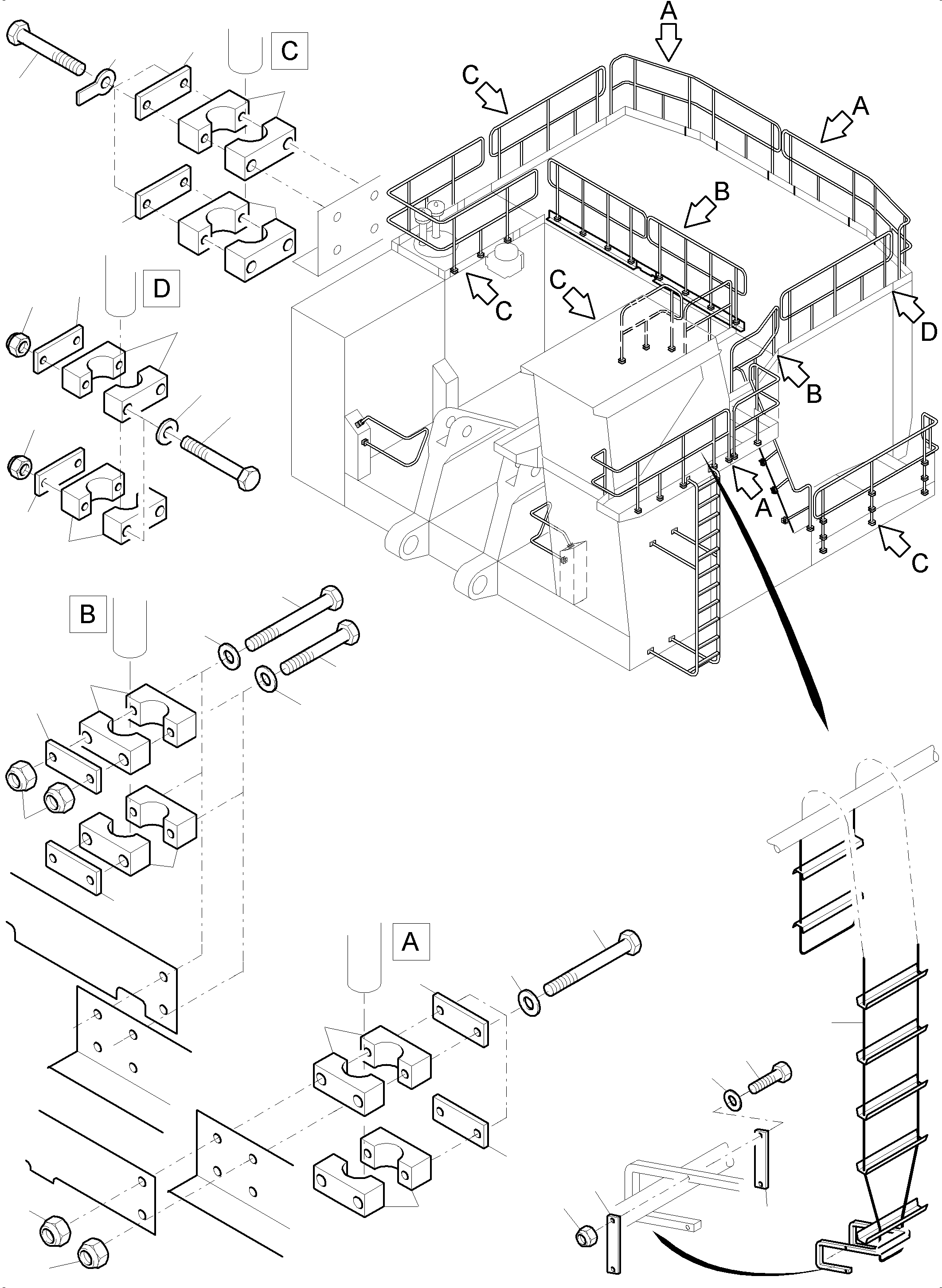

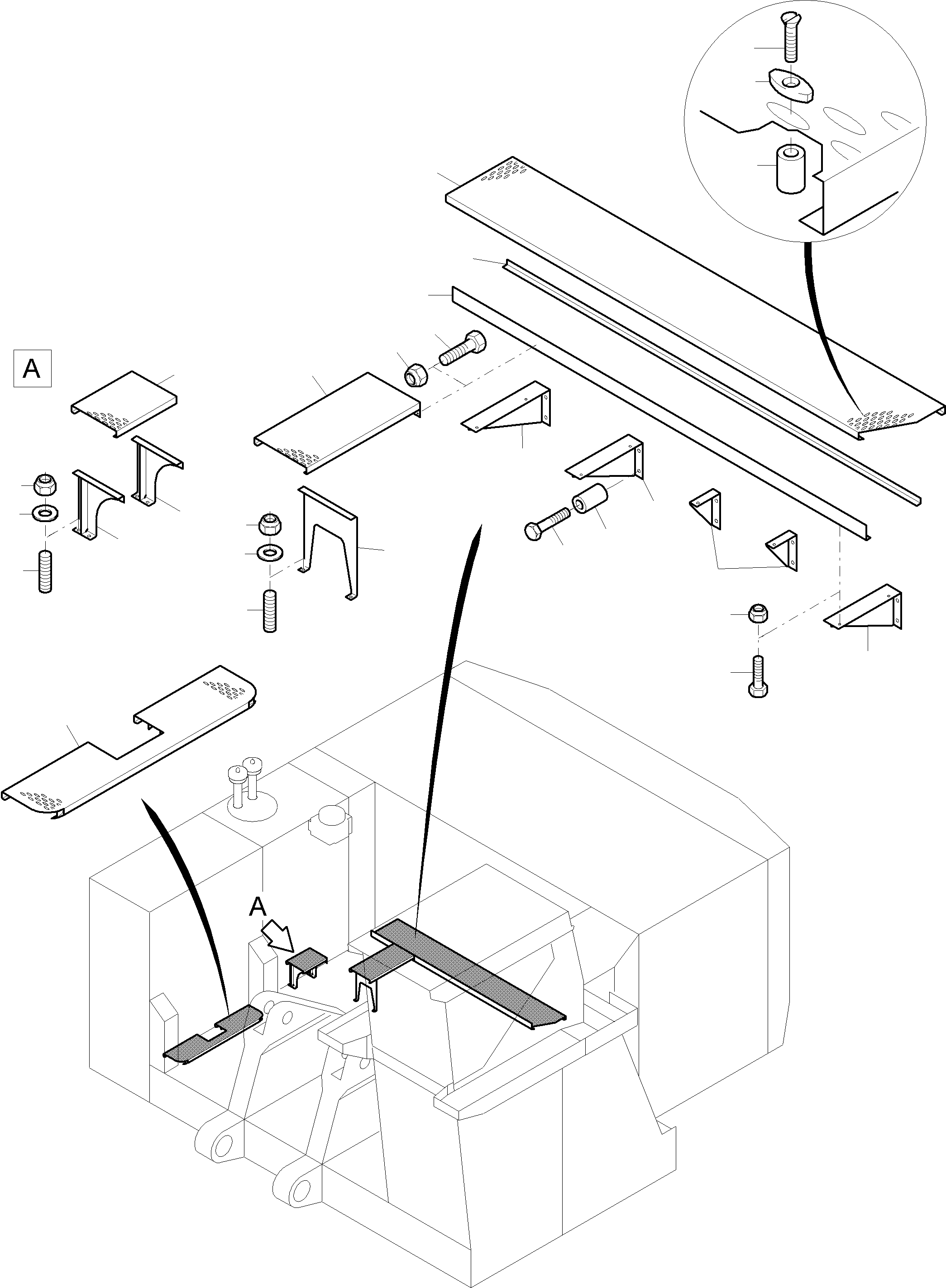

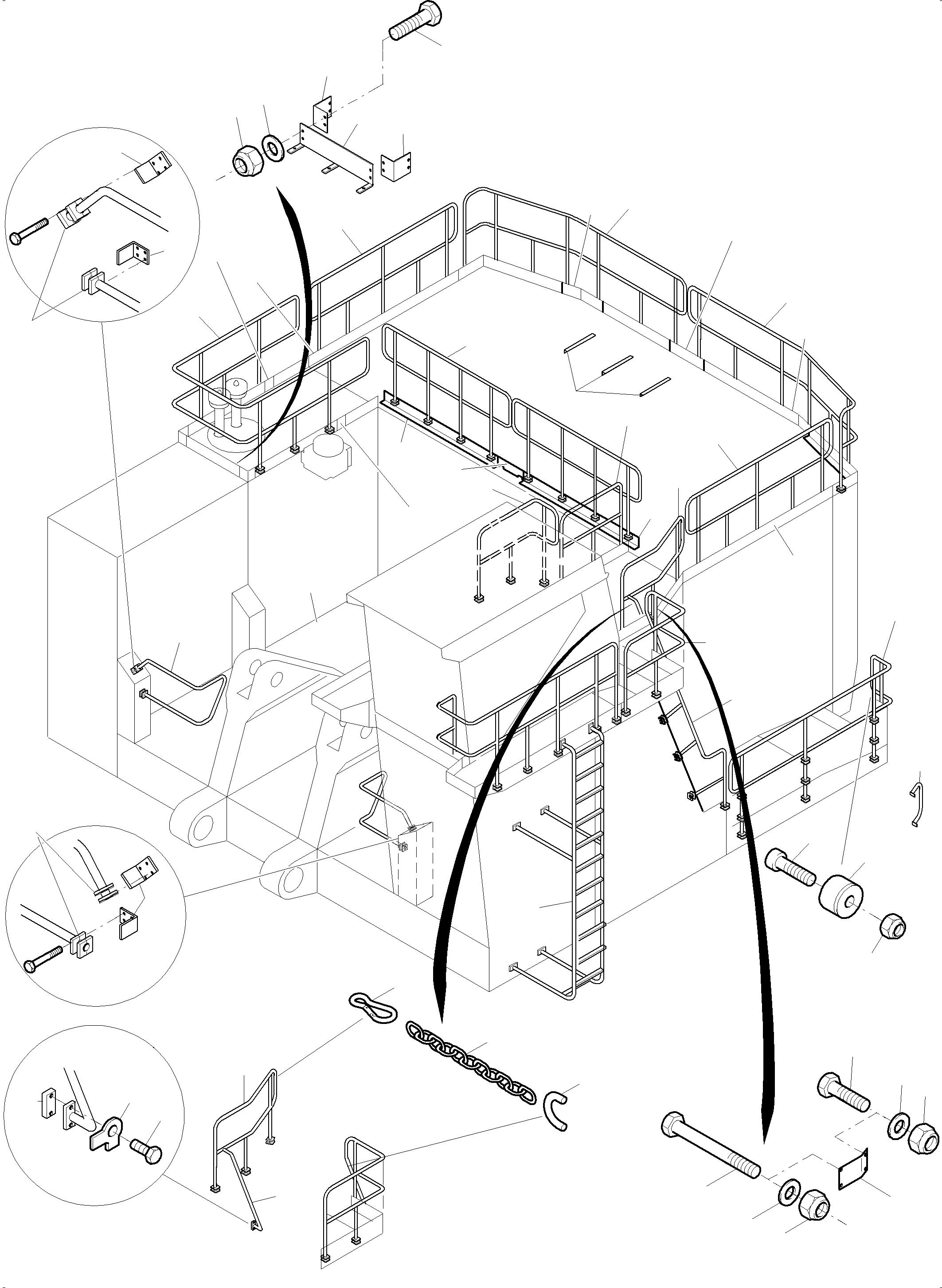

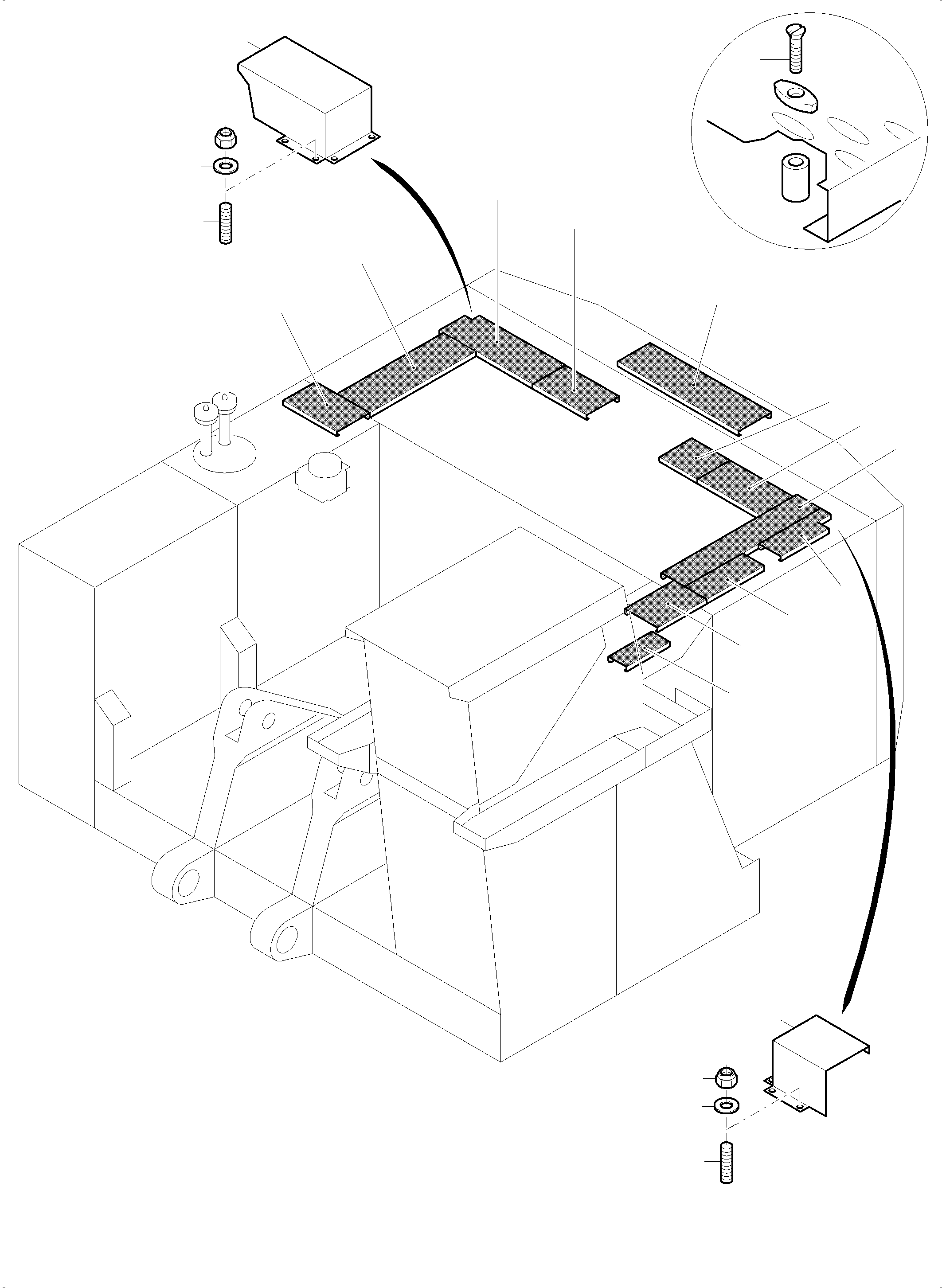

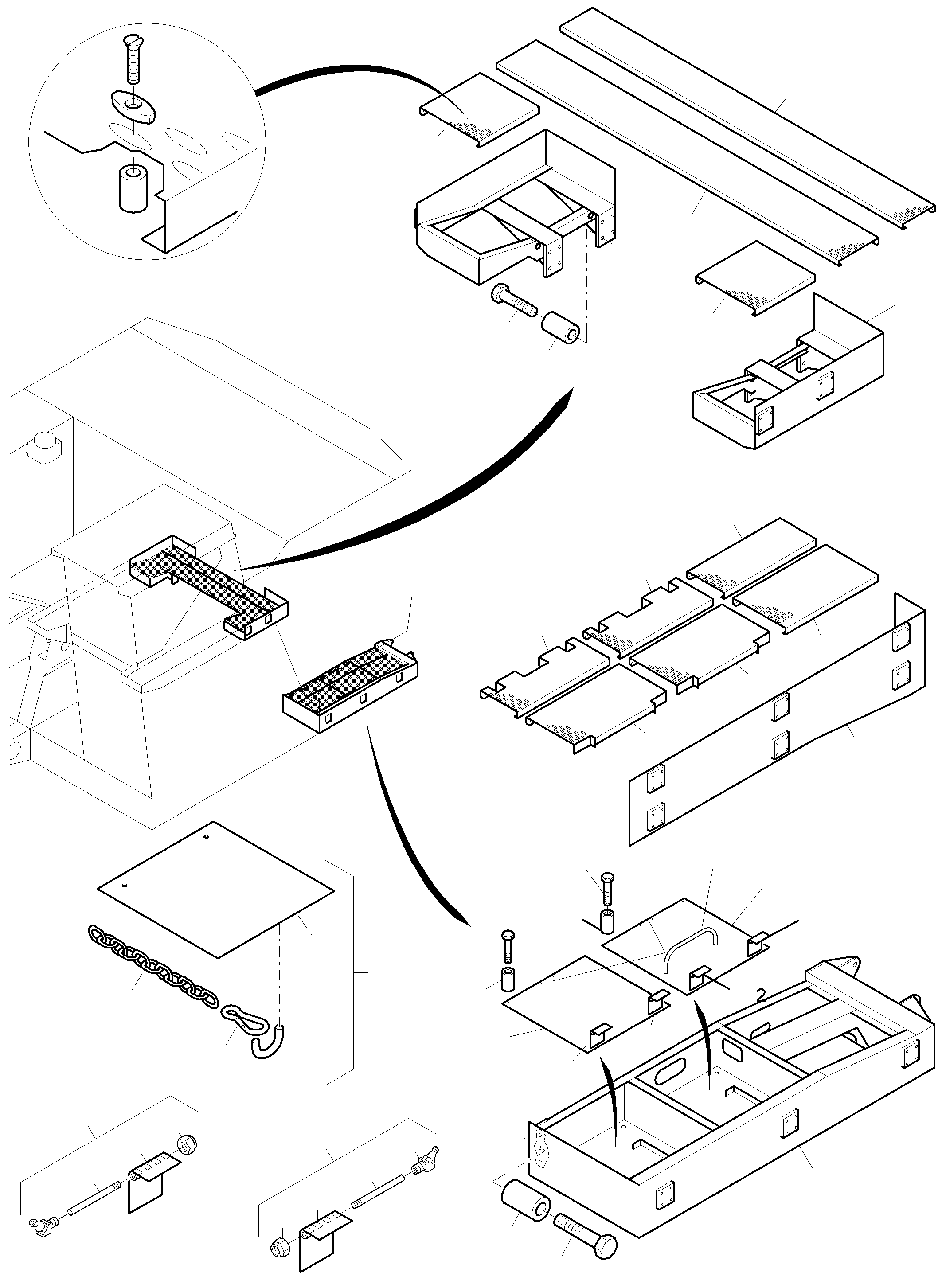

Diagram image 1 of 5

PC4000-6 S/N 08195

01 02 03 07 07 07 08 103 104 105 106 107 107 107 114 114 117 117 119 12 12 12 12 12 121 122 124 125 14 14 15 15 150 151 152 153 19 19 19 32 33 34 34 35 36 37 43 45 46 47 48 49 49 50 51 52 53 54 55 56 57 89

PC4000-6 S/N 08195

07 07 07 07 12 12 14 14 14 14 14 14 15 15 15 15 15 15 16 16 17 18 23 27 27 28 29 30 38 38 39 39 40 41 41 42 44

PC4000-6 S/N 08195

06 129 129 13 130 130 131 131 132 132 14 140 140 141 141 142 142 143 143 144 145 145 146 146 150 151 152 153 153 58 59 65 66 69 69 70 71 72 73 74 75 76 94 95 95 96 97 97

PC4000-6 S/N 08195

04 05 07 07 07 12 12 60 61 61 62 63 64 67 68 74 75 76 77 78 79 80 81 82 82 83 84 84

PC4000-6 S/N 08195

115 123 126 126 127 127 128 128 20 21 22 74 75 76 85 86 86 87 88 90 91 92 93

#	Part Number	Partname	Quantity	Options
01	237 129 40	Thread plate	1	InternKon: 936 090 40 / 12
02	307 802 99	Bolt	2	InternBDB: M12x25 / DIN 933 / St \| InternKon: 936 090 40 / 13
03	343 054 99	Washer	8	InternBDB: 13 / DIN 463 / St \| InternKon: 936 090 40 / 14
04	308 605 99	Bolt	28	InternBDB: M12x55 / DIN 931 / 8.8 \| InternKon: 936 090 40 / 25
05	510 744 98	Resilient sleeve	28	InternBDB: 13/25x32 / 42CrMo4-TQ+T / WN 34194840 \| InternKon: 936 090 40 / 26
06	945 968 40	Battery body assy.	1	InternKon: 936 090 40 / 27
07	334 600 99	Nut	142	InternBDB: M12 / DIN 985 / 8 \| InternKon: 936 090 40 / 49
08	945 978 40	Handle	1	InternKon: 936 090 40 / 126
12	340 467 99	Washer	170	InternBDB: B 13 / DIN 125 \| InternKon: 936 090 40 / 58
13	945 966 40	Safety plate	1	InternKon: 936 090 40 / 75
14	504 004 98	Clamp set	104	InternBDB: S-4-R-38 / DIN 3015 \| InternKon: 936 090 40 / 91
15	534 008 99	Cover plate	104	InternBDB: S-DP-A-4 / DIN 3015 \| InternKon: 936 090 40 / 92
16	308 615 99	Bolt	98	InternBDB: M12x130 / 931 \| InternKon: 936 090 40 / 93
17	308 434 99	Bolt	88	InternBDB: M12x115 / 931 \| InternKon: 936 090 40 / 96
18	509 310 98	Locking plate	56	InternBDB: SI-6 \| InternKon: 936 090 40 / 97
19	308 616 99	Bolt	26	InternBDB: M12x140 / 931 \| InternKon: 936 090 40 / 98
20	943 468 40	Grating	1	InternBDB: 2x40x300x1050 \| InternKon: 936 090 40 / 120
21	943 476 40	Cover	1	InternKon: 936 090 40 / 121
22	943 477 40	Cover	1	InternKon: 936 090 40 / 122
23	946 181 40	Emergency jack	1	InternBDB: KF-N5 4901.10.05 / CARLSTAHL \| InternKon: 916 740 40 / 1
27	946 189 40	Retainer	2	InternKon: 916 740 40 / 5
28	308 284 99	Bolt	4	InternBDB: M5x35 /931 8.8 \| InternKon: 916 740 40 / 6
29	507 036 98	Nut	4	InternBDB: M5 / 985 \| InternKon: 916 740 40 / 7
30	340 461 99	Disc	4	InternBDB: B5,3 / 125 \| InternKon: 916 740 40 / 8
32	948 036 40	Angle	1	InternKon: 931 063 40 / 13
33	922 840 40	Rail	2	InternKon: 931 063 40 / 1
34	930 245 40	Rail	2	InternKon: 931 063 40 / 2
35	948 039 40	Angle	1	InternKon: 931 063 40 / 3
36	948 037 40	Angle	1	InternKon: 931 063 40 / 4
37	948 035 40	Angle	1	InternKon: 931 063 40 / 5
38	504 004 98	Clamp set	36	InternBDB: S-4-R-38 / 3015 \| InternKon: 931 063 40 / 6
39	534 005 99	Weld-on plate	36	InternBDB: S-AP-A-3 \| InternKon: 931 063 40 / 7
40	308 615 99	Bolt	68	InternBDB: M12x130 / 931 \| InternKon: 931 063 40 / 8
41	512 545 98	Washer	72	InternBDB: A 13 / 125 \| InternKon: 931 063 40 / 9
42	334 600 99	Nut	72	InternBDB: M12 / 985 \| InternKon: 931 063 40 / 10
43	930 246 40	Plate	1	InternBDB: 144x550 \| InternKon: 931 063 40 / 11
44	308 616 99	Bolt	4	InternBDB: M12x140 / 931 \| InternKon: 931 063 40 / 12
45	922 837 40	Rail	1	InternKon: 937 153 40 / 1
46	922 849 40	Rail	1	InternKon: 937 153 40 / 6
47	937 594 40	Rail	1	InternKon: 937 153 40 / 7
48	922 802 40	Rail	1	InternKon: 937 153 40 / 8
49	931 176 40	Rail	1	InternKon: 937 153 40 / 9
50	904 372 40	Rail	1	InternKon: 937 153 40 / 10
51	931 179 40	Rail	1	InternKon: 937 153 40 / 11
52	949 097 40	Rail	1	InternKon: 937 153 40 / 22
53	949 099 40	Rail	1	InternKon: 937 153 40 / 23
54	922 821 40	Rail	1	InternKon: 937 153 40 / 24
55	931 067 40	Rail	1	InternKon: 937 153 40 / 28
56	943 475 40	Rail	1	InternKon: 937 153 40 / 45
57	916 497 40	Emergency Ladder	1	InternKon: 937 153 40 / 59
58	931 186 40	Platform left	1	InternKon: 936 090 40 / 4
59	931 185 40	Platform right	1	InternKon: 936 090 40 / 5
60	901 007 40	Console	1	InternKon: 936 090 40 / 2
61	901 004 40	Console	1	InternKon: 936 090 40 / 3
62	904 313 40	Console	2	InternKon: 936 090 40 / 38
63	954 102 40	Sheet metal	1	InternBDB: 284x3589 \| InternKon: 936 090 40 / 39
64	904 308 40	Angle	1	InternBDB: 80x40x6x3739 \| InternKon: 936 090 40 / 40
65	906 866 40	Grating	1	InternBDB: 40x240x2790 \| InternKon: 936 090 40 / 36
66	461 755 40	Grating	1	InternBDB: 40x300x2790 \| InternKon: 936 090 40 / 35
67	904 307 40	Grating	1	InternKon: 936 090 40 / 43
68	904 310 40	Grating	1	InternKon: 936 090 40 / 18
69	915 146 40	Grating	2	InternKon: 936 090 40 / 15
70	308 404 99	Bolt	6	InternBDB: M24X 140 \| InternKon: 936 090 40 / 31
71	510 728 98	Resilient sleeve	6	InternBDB: 25 / 45x80 \| InternKon: 936 090 40 / 30
72	308 637 99	Bolt	16	InternBDB: M16x90 /931 \| InternKon: 936 090 40 / 20
73	510 733 98	Resilient sleeve	16	InternBDB: 17/30x50 /341 948 40 \| InternKon: 936 090 40 / 21
74	317 319 40	Threaded block	105	InternKon: 936 090 40 / 32
75	317 318 40	Wing nut, plastic	105	InternKon: 936 090 40 / 33
76	502 354 98	Bolt	105	InternBDB: M8x40 / 963 \| InternKon: 936 090 40 / 34
77	334 599 99	Nut	8	InternBDB: M 8 / 985 \| InternKon: 936 090 40 / 42
78	307 754 99	Bolt	8	InternBDB: M8x25 /933 \| InternKon: 936 090 40 / 41
79	905 087 40	Grating	1	InternKon: 936 090 40 / 46
80	939 450 40	Plate	1	InternBDB: 420x628 \| InternKon: 936 090 40 / 47
81	307 804 99	Bolt	2	InternBDB: M12x30 / 933 \| InternKon: 936 090 40 / 48
82	937 598 40	Console	2	InternKon: 936 090 40 / 50
83	912 731 40	Grating	1	InternKon: 936 090 40 / 51
84	507 121 98	Thread pin	6	InternBDB: PM 12x25 \| InternKon: 936 090 40 / 52
85	324 395 40	Grating	1	InternBDB: 2x40x480x675 \| InternKon: 936 090 40 / 107
86	324 379 40	Grating	2	InternBDB: 2x40x480x1950 \| InternKon: 936 090 40 / 108
87	943 467 40	Grating	1	InternBDB: 2x40x480x1380 \| InternKon: 936 090 40 / 109
88	906 815 40	Grating	1	InternBDB: 2x40x480x840 \| InternKon: 936 090 40 / 110
89	561 723 40	Angle	3	InternBDB: 50x5x482 \| InternKon: 936 090 40 / 17
90	324 394 40	Grating	1	InternBDB: 2x40x240x630 \| InternKon: 936 090 40 / 101
91	323 073 40	Grating	1	InternBDB: 2x40x480x780 \| InternKon: 936 090 40 / 54
92	937 546 40	Grating	1	InternBDB: 2x40x480x1080 \| InternKon: 936 090 40 / 111
93	346 522 40	Grating	1	InternBDB: 2x40x480x600 \| InternKon: 936 090 40 / 100
94	270 192 40	Grating	1	InternBDB: 40x300x720 \| InternKon: 936 090 40 / 83
95	930 236 40	Grating	2	InternKon: 936 090 40 / 81
96	323 315 40	Grating	1	InternBDB: 40x480x720 \| InternKon: 936 090 40 / 82
97	930 237 40	Grating	1	InternKon: 936 090 40 / 29
103	931 002 40	Sheet metal	1	InternBDB: 227x3589 \| InternKon: 936 090 40 / 19
104	931 198 40	Sheet metal	1	InternKon: 936 090 40 / 63
105	943 473 40	Plate	1	InternKon: 936 090 40 / 64
106	931 199 40	Sheet metal	1	InternKon: 936 090 40 / 65
107	931 187 40	Angle	4	InternKon: 936 090 40 / 44
114	931 454 40	Plate	2	InternKon: 936 090 40 / 74
115	324 853 40	Grating	1	InternBDB: 2x40x300x1050 \| InternKon: 936 090 40 / 85
117	307 805 99	Bolt	10	InternBDB: M12x35 / 933 \| InternKon: 936 090 40 / 99
119	081 282 40	Silent block	2	InternBDB: Happich GHE 470 056 \| InternKon: 936 090 40 / 103
121	319 135 99	Bolt	2	InternBDB: M6x45/912 \| InternKon: 936 090 40 / 105
122	507 025 98	Nut	2	InternBDB: M6/985 \| InternKon: 936 090 40 / 106
123	937 548 40	Grating	1	InternBDB: 2x40x300x2310 \| InternKon: 936 090 40 / 112
124	953 418 40	Plate	1	InternKon: 936 090 40 / 118
125	953 419 40	Plate	1	InternKon: 936 090 40 / 119
126	907 854 40	Thread pin	8	InternBDB: PM 10x25 \| InternKon: 936 090 40 / 123
127	507 037 98	Nut	8	InternBDB: M 10/985 \| InternKon: 936 090 40 / 124
128	340 508 99	Washer	8	InternBDB: 10,5/125 \| InternKon: 936 090 40 / 125
129	081 320 40	Hinge	4	InternBDB: Happich GHE 6010011 \| InternKon: 943 809 40 / 1
130	943 807 40	Hinge pin	4	InternKon: 943 809 40 / 2
131	518 151 98	Lubricating nipple	4	InternBDB: BM6 DIN 71412 \| InternKon: 943 809 40 / 3
132	334 599 99	Nut	4	InternBDB: M8 DIN985 8 \| InternKon: 943 809 40 / 4
140	945 754 40	Battery cover	1	InternKon: 945 968 40 / 2
141	945 756 40	Battery cover	1	InternKon: 945 968 40 / 3
142	943 809 40	Hinge assy.	2	InternKon: 945 968 40 / 4
143	943 808 40	Hinge assy.	2	InternKon: 945 968 40 / 5
144	511 744 98	Yoke handle	2	InternBDB: 155x15 WN01118699 \| InternKon: 945 968 40 / 6
145	308 608 99	Bolt	4	InternBDB: M12x70 8.8 DIN00931 \| InternKon: 945 968 40 / 7
146	510 741 98	Resilient sleeve	4	InternBDB: 13/25x50 WN34194840 \| InternKon: 945 968 40 / 8
150	930 234 40	Plate	1	InternKon: 945 756 40 / 1
151	472 511 99	Chain	-2	InternBDB: 3-5x18,5 BK \| InternKon: 945 756 40 / 4
152	341 271 99	Trigger snap	4	InternBDB: C 70 \| InternKon: 945 756 40 / 2
153	191 538 40	Shackle	6	InternBDB: 65 \| InternKon: 945 756 40 / 3

Komatsu PC4000-6 S/N 08195 parts catalog PDF

RAILS AND PLATFORMS (355-1021d) in PC4000-6 S/N 08195. Diagram image and parts list.
