PC4000-6 S/N 08195

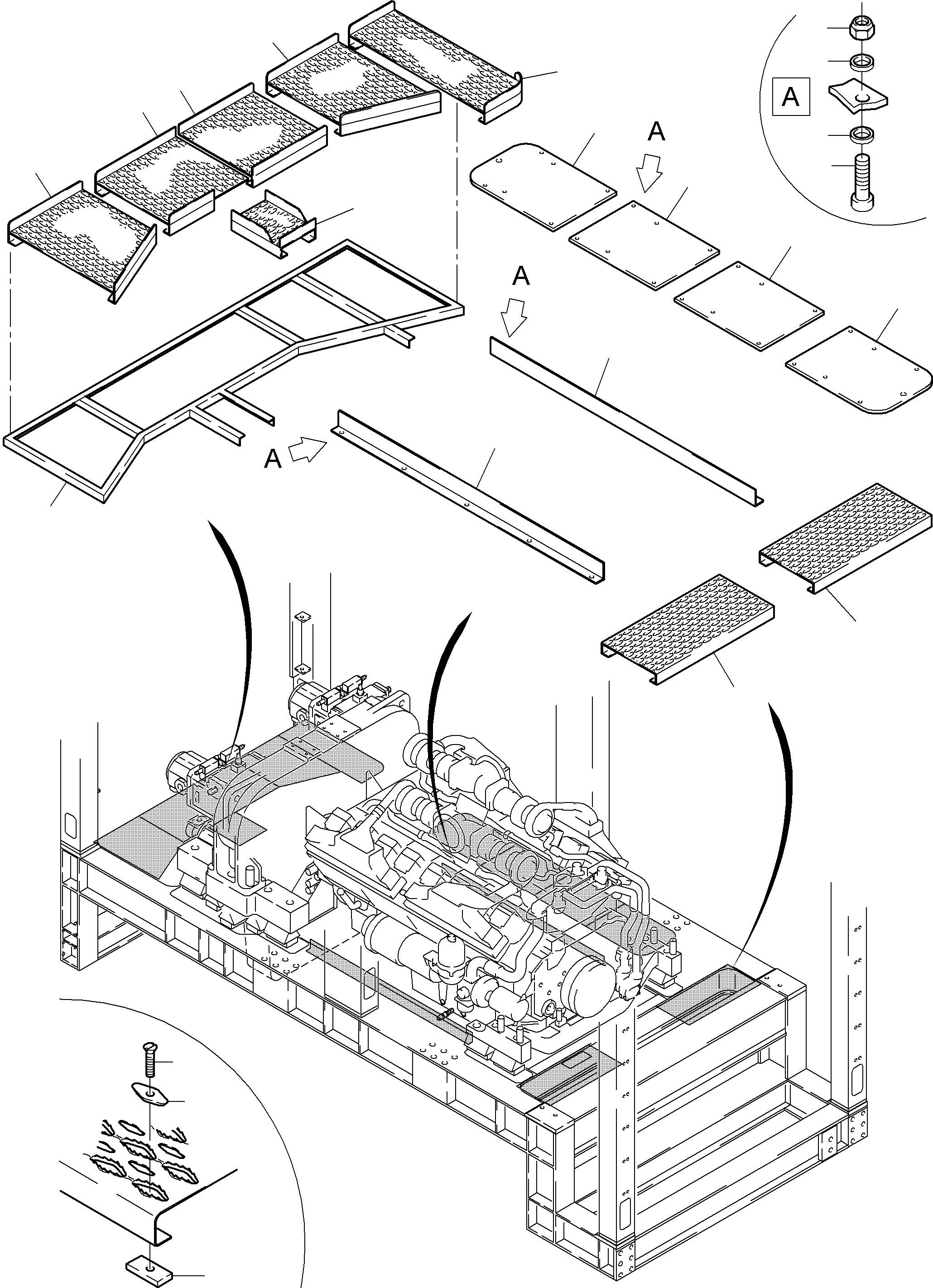

Komatsu parts book diagram for PC4000-6 S/N 08195: POWER FRAME - GRATINGS

01 03 03 04 05 06 07 08 09 10 15 15 16 16 17 18 19 20 21 24 25 26

	#	Part Number	Partname	Quantity	Options	Reference
	01	901 136 40	Frame	1	InternKon: 901 150 40 / 1
	03	904 268 40	Angle	2	InternBDB: 139x1760 \| InternKon: 901 150 40 / 3
	04	928 359 40	Grid	2	InternBDB: 2x40x360x780 \| InternKon: 901 150 40 / 4
	05	901 163 40	Grid	1	InternKon: 901 150 40 / 5
	06	901 164 40	Grid	1	InternKon: 901 150 40 / 6
	07	928 346 40	Grid	1	InternBDB: 2x40x480x480 \| InternKon: 901 150 40 / 7
	08	901 165 40	Grid	1	InternKon: 901 150 40 / 8
	09	901 166 40	Grid	1	InternKon: 901 150 40 / 9
	10	913 107 40	Grid	1	InternKon: 901 150 40 / 10
	15	901 161 40	Plate	2	InternBDB: 420x601 \| InternKon: 901 150 40 / 15
	16	901 162 40	Plate	2	InternBDB: 420x574 \| InternKon: 901 150 40 / 16
	17	307 777 99	Bolt	16	InternBDB: M10x25 8.8 DIN00933 \| InternKon: 901 150 40 / 17
	18	507 037 98	Nut	10	InternBDB: M10 8 DIN00985 \| InternKon: 901 150 40 / 18
	19	317 319 40	Threaded block	26	InternKon: 901 150 40 / 19
	20	317 318 40	Wing nut, plastic	26	InternKon: 901 150 40 / 20
	21	502 354 98	Countersunk screw	26	InternBDB: M8x40 4.8 DIN00963 \| InternKon: 901 150 40 / 21
	24	928 349 40	Grid	1	InternBDB: 2x40x480x540 \| InternKon: 901 150 40 / 24
	25	517 122 98	Lock washer	16	InternBDB: 10 WN65593840 \| InternKon: 901 150 40 / 25
	26	518 299 98	Washer	10	InternBDB: 10,5 14HV A2E DIN00125 \| InternKon: 901 150 40 / 26

Komatsu PC4000-6 S/N 08195 parts catalog PDF

POWER FRAME - GRATINGS (355-1060d) in PC4000-6 S/N 08195. Diagram image and parts list.
