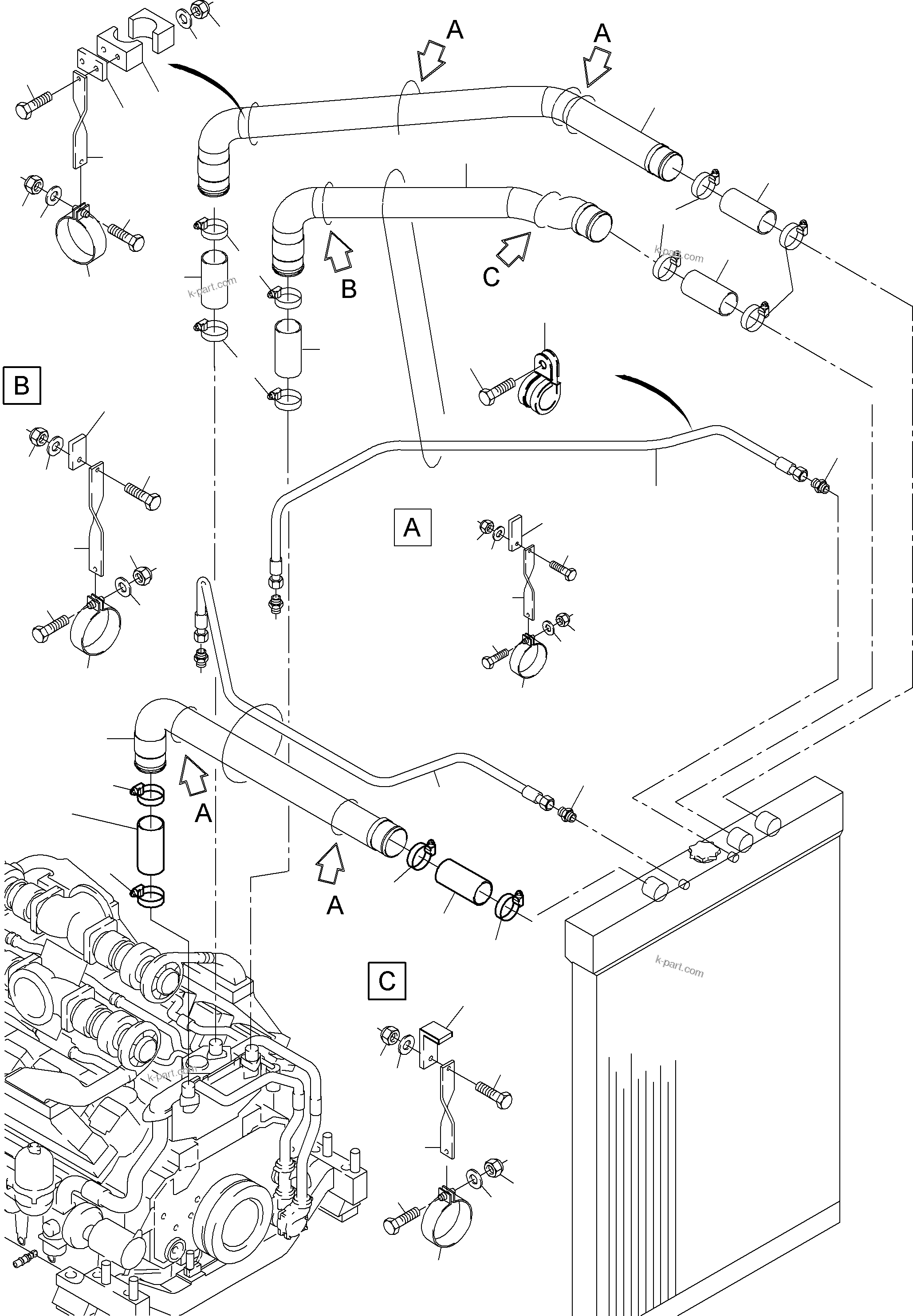

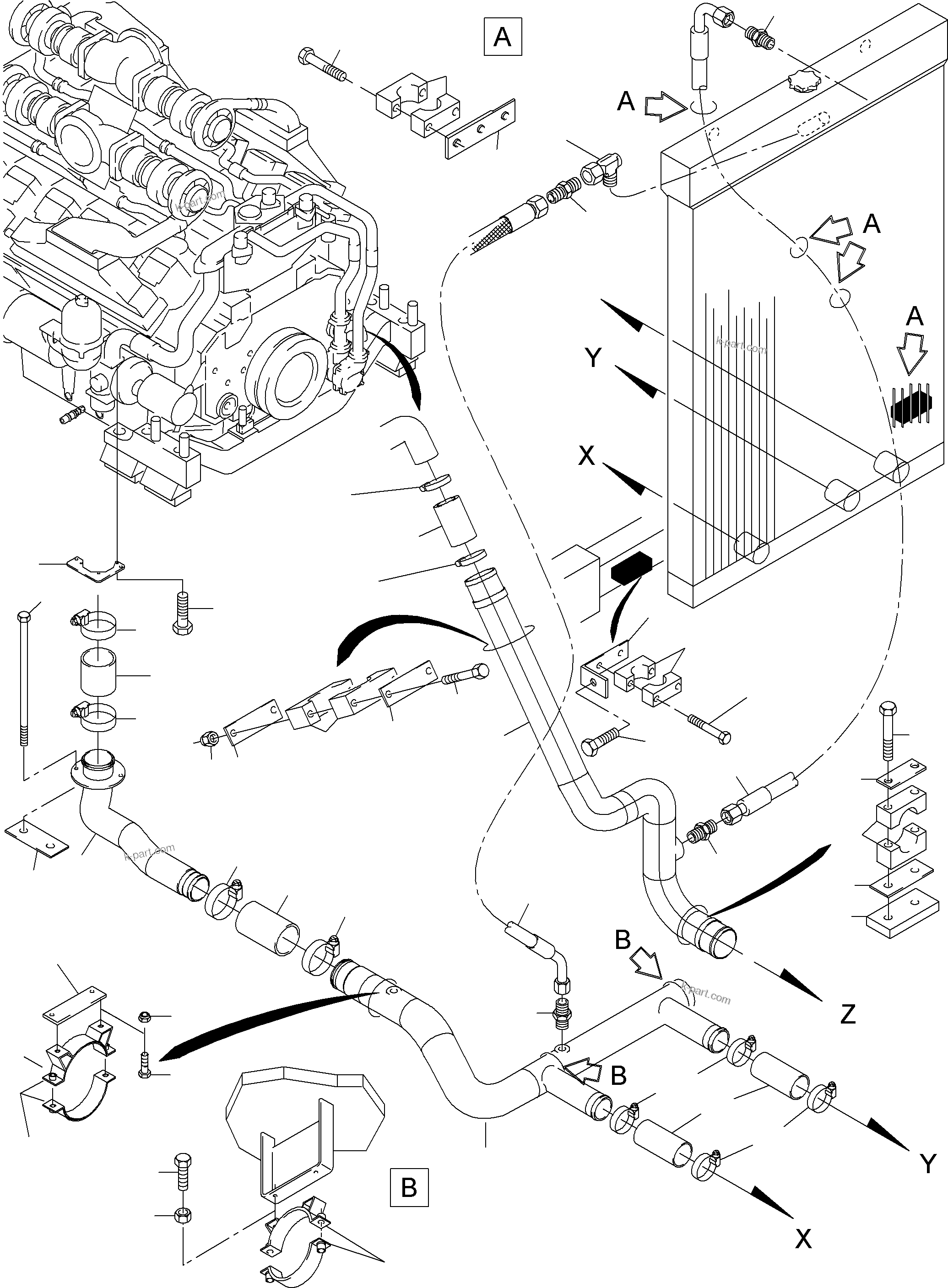

Diagram image 1 of 2

PC4000-6 S/N 08195

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08195

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	936 216 40	Water pipe, lower	1	InternKon: 942 290 40 / 48
?	498 985 40	Plate	1	InternKon: 942 290 40 / 43
?	307 782 99	Bolt	3	InternBDB: M10x45 DIN00933 \| InternKon: 942 290 40 / 44
?	940 779 40	Cooling water hose	1	InternBDB: 125x175 Turboflex EPDM \| InternKon: 942 290 40 / 45
?	907 090 40	Clamp	4	InternBDB: GBS 145/25-M8 Interhydraulik \| InternKon: 942 290 40 / 46
?	514 934 98	Bolt	2	InternBDB: M12x250 8.8 DIN00931 \| InternKon: 942 290 40 / 47
?	500 399 98	Plate	1	InternBDB: S-AP-A-5 DIN03015 W1 \| InternKon: 942 290 40 / 37
?	936 220 40	Header	1	InternKon: 942 290 40 / 50
?	490 020 40	Clamp with console	3	InternBDB: Norma 181 6025 / d=133 / 2-teilig \| InternKon: 942 290 40 / 51
?	938 592 40	Plate	1	InternBDB: 130x65x10x180 \| InternKon: 942 290 40 / 52
?	334 599 99	Nut	27	InternBDB: M8 8 DIN00985 \| InternKon: 942 290 40 / 31
?	940 778 40	Radiator hose	1	InternBDB: 75x210 Turboflex EPDM \| InternKon: 942 290 40 / 57
?	907 752 40	Clamp	20	InternBDB: GBS 89/25 M8 \| InternKon: 942 290 40 / 56
?	908 032 40	Water pipe	1	InternKon: 942 290 40 / 65
?	936 229 40	Water pipe	1	InternKon: 942 290 40 / 66
?	942 249 40	Water pipe	1	InternKon: 942 290 40 / 67
?	942 251 40	Water pipe	1	InternKon: 942 290 40 / 68
?	908 030 40	Retainer	1	InternBDB: RSt 37-2 \| InternKon: 942 290 40 / 69
?	608 197 40	Clamp	7	InternKon: 942 290 40 / 70
?	307 780 99	Bolt	14	InternBDB: M10x35 8.8DIN00933 \| InternKon: 942 290 40 / 71
?	902 057 40	Angle	1	InternKon: 942 290 40 / 72
?	515 792 98	Clamp set	2	InternBDB: S-5-R-76,1 DIN03015 / PA \| InternKon: 942 290 40 / 73
?	500 398 98	Cover plate	2	InternBDB: S-DP-A-5 DIN03015 / W1 \| InternKon: 942 290 40 / 74
?	308 645 99	Bolt	2	InternBDB: M16x170 8.8 DIN00931 \| InternKon: 942 290 40 / 75
?	334 601 99	Nut	2	InternBDB: M16 8 DIN00985 \| InternKon: 942 290 40 / 76
?	374 415 99	Socket	2	InternBDB: SDS-L42xM48x2 Type E ISO 8434 St A3C \| InternKon: 942 290 40 / 77
?	516 443 98	Hose assy. DN40 x 2550	1	InternBDB: 25 / DOL 42 / DOL 42-45 / WN 34195140 \| InternKon: 942 290 40 / 78
?	906 547 40	Hose assy. DN8 x 1550	1	InternBDB: 240 / DOL 10 / ORS 11/16-16 / WN 34195140 \| InternKon: 942 290 40 / 79
?	906 548 40	Hose assy. DN8 x 1650	1	InternBDB: 240 / DOL 10 / ORS 11/16-16 / WN 34195140 \| InternKon: 942 290 40 / 80
?	374 420 99	Socket	2	InternBDB: L 10 E-M DIN03901 \| InternKon: 942 290 40 / 81
?	905 081 40	Retainer	2	InternKon: 942 290 40 / 11
?	905 083 40	Plate	1	InternBDB: 30x70x165 \| InternKon: 942 290 40 / 36
?	507 037 98	Nut	46	InternBDB: M10 8 DIN00985 \| InternKon: 942 290 40 / 25
?	506 215 98	Clamp Set	4	InternBDB: L-2-G-14 PP DIN03015 \| InternKon: 942 290 40 / 82
?	307 837 99	Bolt	2	InternBDB: M16x140 8.8 DIN00933 \| InternKon: 942 290 40 / 83
?	533 989 99	Weld on plate	4	InternBDB: L-AP-K-2 W1 DIN03015 \| InternKon: 942 290 40 / 84
?	906 549 40	Hose assy. DN25 x 2700	1	InternBDB: 3TE / DOL 28 / DOL 28-90 / WN 34195140 \| InternKon: 942 290 40 / 87
?	374 431 99	Socket	2	InternBDB: SDS-L28xM33x2 Type E / ISO 8434 / St A3C \| InternKon: 942 290 40 / 88
?	518 060 98	Clamp Set	3	InternBDB: L-5-G-36 DIN03015 \| InternKon: 942 290 40 / 96
?	945 779 40	Retainer	3	InternBDB: S-AP-A-3 / DIN 3015 / W1 \| InternKon: 942 290 40 / 97
?	319 136 99	Bolt	6	InternBDB: M6x50 8.8 DIN00912 \| InternKon: 942 290 40 / 99
?	383 090 40	Retainer	5	InternBDB: 40x8x110 \| InternKon: 942 290 40 / 104
?	908 031 40	Retainer	2	InternBDB: RSt 37-2 \| InternKon: 942 290 40 / 105
?	340 465 99	Washer	14	InternBDB: B 10,5 / DIN 125 / 140 HV \| InternKon: 942 290 40 / 106
?	307 754 99	Bolt	4	InternBDB: M8x25 8.8 DIN00933 \| InternKon: 942 290 40 / 53
?	949 042 40	Plate	1	InternBDB: 6x40x138 \| InternKon: 942 290 40 / 107
?	940 936 40	Cooling water hose	5	InternBDB: 75x225 Turboflex EPDM \| InternKon: 942 290 40 / 54
?	941 267 40	Cooling water hose	2	InternBDB: 75x185 Turboflex EPDM \| InternKon: 942 290 40 / 58
?	941 362 40	Cooling water hose	2	InternBDB: 75x245 Turboflex EPDM \| InternKon: 942 290 40 / 62
?	516 163 98	Socket	1	InternBDB: SWE-L42 ST-NBR ISO08434-4 \| InternKon: 942 290 40 / 119
?	945 792 40	Retainer	2	InternKon: 942 290 40 / 120
?	515 913 98	Clamp Set	2	InternBDB: L-6-G-54,6 DIN03015 \| InternKon: 942 290 40 / 121
?	319 418 99	Bolt	4	InternBDB: 6x60 8.8 DIN00912 \| InternKon: 942 290 40 / 122
?	307 779 99	Bolt	2	InternBDB: M10x30 8.8 DIN00933 \| InternKon: 942 290 40 / 123
?	319 417 99	Bolt	8	InternBDB: M6x35 8.8 DIN00912 \| InternKon: 942 290 40 / 124
?	0443451210	Clip	5	InternBDB: 77 NW12 \| InternKon: 942 290 40 / 125

Komatsu PC4000-6 S/N 08195 parts catalog PDF

COOLANT WATER LINES (355-1240g) in PC4000-6 S/N 08195. Diagram image and parts list.
