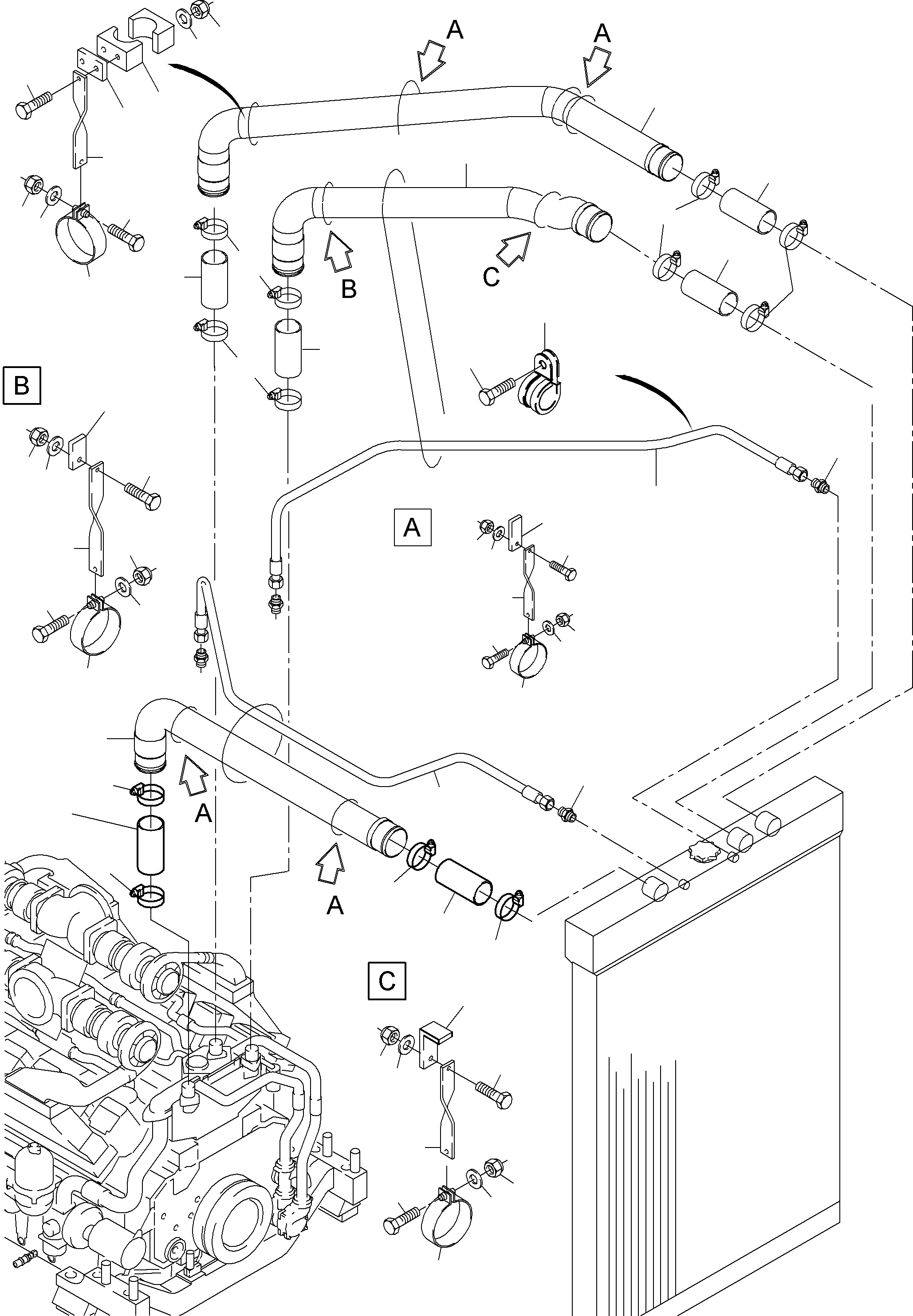

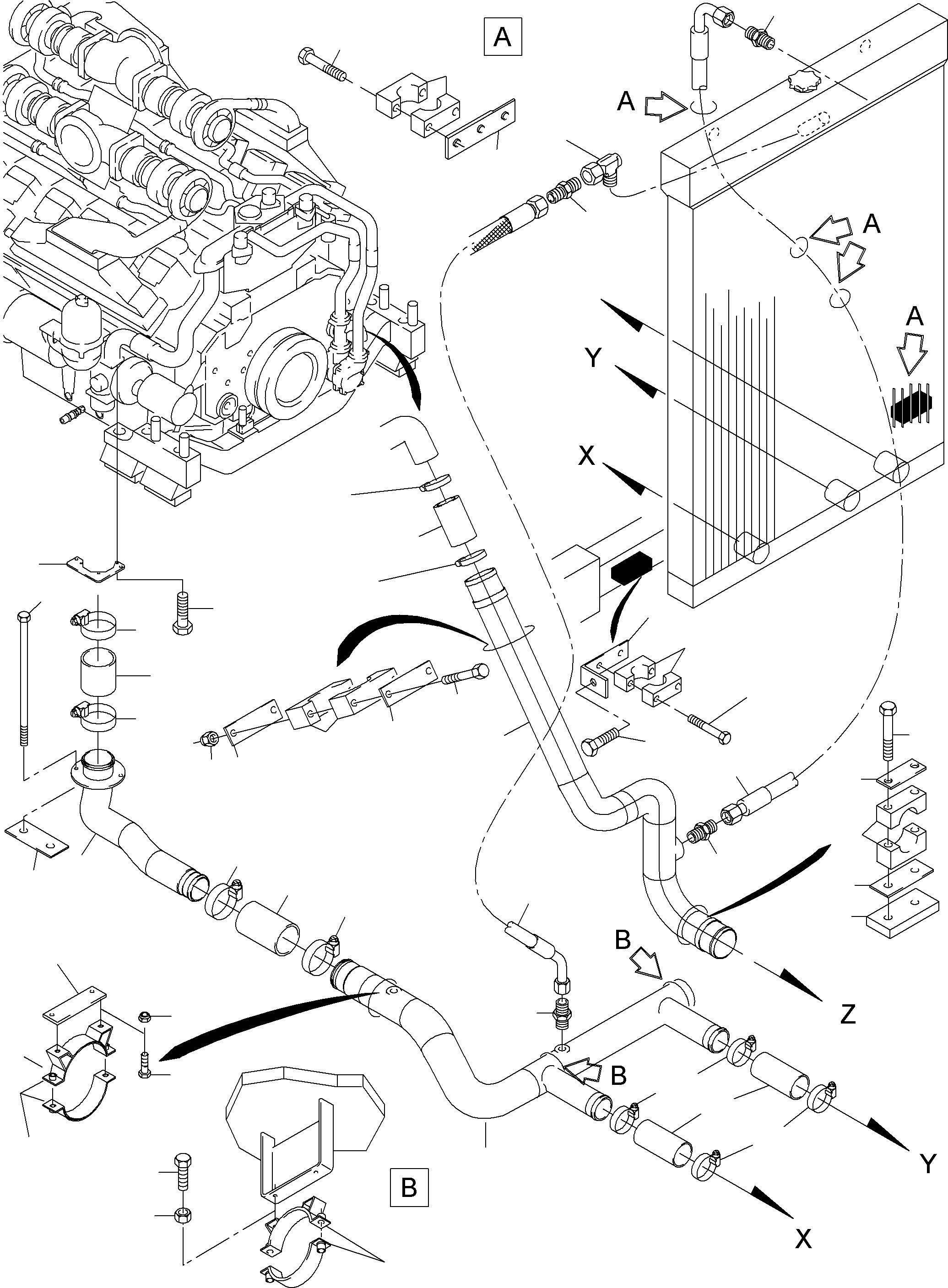

Diagram image 1 of 2

PC4000-6 S/N 08195

01 02 03 04 05 05 05 05 06 07 07 08 09 09 10 11 11 12 13 13 13 13 14 21 22 22 23 23 24 25 26 26 27 32 35 37 38 38 40 44 45 49 49 56 59 60 61 62 63 64

PC4000-6 S/N 08195

13 13 13 13 13 13 13 13 15 16 17 18 19 19 19 19 20 20 20 20 20 20 20 28 29 30 30 31 31 33 33 33 33 33 33 33 33 34 36 46 46 47 48 48 48 48 48 48 48 48 53 54 54 54 54 54 56 64 65 66

#	Part Number	Partname	Quantity	Options
01	936 216 40	Water pipe, lower	1	InternKon: 942 290 40 / 48
02	498 985 40	Plate	1	InternKon: 942 290 40 / 43
03	307 782 99	Bolt	3	InternBDB: M10x45 DIN00933 \| InternKon: 942 290 40 / 44
04	940 779 40	Cooling water hose	1	InternBDB: 125x175 Turboflex EPDM \| InternKon: 942 290 40 / 45
05	907 090 40	Clamp	4	InternBDB: GBS 145/25-M8 Interhydraulik \| InternKon: 942 290 40 / 46
06	514 934 98	Bolt	2	InternBDB: M12x250 8.8 DIN00931 \| InternKon: 942 290 40 / 47
07	500 399 98	Plate	1	InternBDB: S-AP-A-5 DIN03015 W1 \| InternKon: 942 290 40 / 37
08	936 220 40	Header	1	InternKon: 942 290 40 / 50
09	490 020 40	Clamp with console	3	InternBDB: Norma 181 6025 / d=133 / 2-teilig \| InternKon: 942 290 40 / 51
10	938 592 40	Plate	1	InternBDB: 130x65x10x180 \| InternKon: 942 290 40 / 52
11	334 599 99	Nut	27	InternBDB: M8 8 DIN00985 \| InternKon: 942 290 40 / 31
12	940 778 40	Radiator hose	1	InternBDB: 75x210 Turboflex EPDM \| InternKon: 942 290 40 / 57
13	907 752 40	Clamp	20	InternBDB: GBS 89/25 M8 \| InternKon: 942 290 40 / 56
14	908 032 40	Water pipe	1	InternKon: 942 290 40 / 65
15	936 229 40	Water pipe	1	InternKon: 942 290 40 / 66
16	942 249 40	Water pipe	1	InternKon: 942 290 40 / 67
17	942 251 40	Water pipe	1	InternKon: 942 290 40 / 68
18	908 030 40	Retainer	1	InternBDB: RSt 37-2 \| InternKon: 942 290 40 / 69
19	608 197 40	Clamp	7	InternKon: 942 290 40 / 70
20	307 780 99	Bolt	14	InternBDB: M10x35 8.8DIN00933 \| InternKon: 942 290 40 / 71
21	902 057 40	Angle	1	InternKon: 942 290 40 / 72
22	515 792 98	Clamp set	2	InternBDB: S-5-R-76,1 DIN03015 / PA \| InternKon: 942 290 40 / 73
23	500 398 98	Cover plate	2	InternBDB: S-DP-A-5 DIN03015 / W1 \| InternKon: 942 290 40 / 74
24	308 645 99	Bolt	2	InternBDB: M16x170 8.8 DIN00931 \| InternKon: 942 290 40 / 75
25	334 601 99	Nut	2	InternBDB: M16 8 DIN00985 \| InternKon: 942 290 40 / 76
26	374 415 99	Socket	2	InternBDB: SDS-L42xM48x2 Type E ISO 8434 St A3C \| InternKon: 942 290 40 / 77
27	516 443 98	Hose assy. DN40 x 2550	1	InternBDB: 25 / DOL 42 / DOL 42-45 / WN 34195140 \| InternKon: 942 290 40 / 78
28	906 547 40	Hose assy. DN8 x 1550	1	InternBDB: 240 / DOL 10 / ORS 11/16-16 / WN 34195140 \| InternKon: 942 290 40 / 79
29	906 548 40	Hose assy. DN8 x 1650	1	InternBDB: 240 / DOL 10 / ORS 11/16-16 / WN 34195140 \| InternKon: 942 290 40 / 80
30	374 420 99	Socket	2	InternBDB: L 10 E-M DIN03901 \| InternKon: 942 290 40 / 81
31	905 081 40	Retainer	2	InternKon: 942 290 40 / 11
32	905 083 40	Plate	1	InternBDB: 30x70x165 \| InternKon: 942 290 40 / 36
33	507 037 98	Nut	46	InternBDB: M10 8 DIN00985 \| InternKon: 942 290 40 / 25
34	506 215 98	Clamp Set	4	InternBDB: L-2-G-14 PP DIN03015 \| InternKon: 942 290 40 / 82
35	307 837 99	Bolt	2	InternBDB: M16x140 8.8 DIN00933 \| InternKon: 942 290 40 / 83
36	533 989 99	Weld on plate	4	InternBDB: L-AP-K-2 W1 DIN03015 \| InternKon: 942 290 40 / 84
37	906 549 40	Hose assy. DN25 x 2700	1	InternBDB: 3TE / DOL 28 / DOL 28-90 / WN 34195140 \| InternKon: 942 290 40 / 87
38	374 431 99	Socket	2	InternBDB: SDS-L28xM33x2 Type E / ISO 8434 / St A3C \| InternKon: 942 290 40 / 88
40	518 060 98	Clamp Set	3	InternBDB: L-5-G-36 DIN03015 \| InternKon: 942 290 40 / 96
44	945 779 40	Retainer	3	InternBDB: S-AP-A-3 / DIN 3015 / W1 \| InternKon: 942 290 40 / 97
45	319 136 99	Bolt	6	InternBDB: M6x50 8.8 DIN00912 \| InternKon: 942 290 40 / 99
46	383 090 40	Retainer	5	InternBDB: 40x8x110 \| InternKon: 942 290 40 / 104
47	908 031 40	Retainer	2	InternBDB: RSt 37-2 \| InternKon: 942 290 40 / 105
48	340 465 99	Washer	14	InternBDB: B 10,5 / DIN 125 / 140 HV \| InternKon: 942 290 40 / 106
49	307 754 99	Bolt	4	InternBDB: M8x25 8.8 DIN00933 \| InternKon: 942 290 40 / 53
53	949 042 40	Plate	1	InternBDB: 6x40x138 \| InternKon: 942 290 40 / 107
54	940 936 40	Cooling water hose	5	InternBDB: 75x225 Turboflex EPDM \| InternKon: 942 290 40 / 54
56	941 267 40	Cooling water hose	2	InternBDB: 75x185 Turboflex EPDM \| InternKon: 942 290 40 / 58
59	941 362 40	Cooling water hose	2	InternBDB: 75x245 Turboflex EPDM \| InternKon: 942 290 40 / 62
60	516 163 98	Socket	1	InternBDB: SWE-L42 ST-NBR ISO08434-4 \| InternKon: 942 290 40 / 119
61	945 792 40	Retainer	2	InternKon: 942 290 40 / 120
62	515 913 98	Clamp Set	2	InternBDB: L-6-G-54,6 DIN03015 \| InternKon: 942 290 40 / 121
63	319 418 99	Bolt	4	InternBDB: 6x60 8.8 DIN00912 \| InternKon: 942 290 40 / 122
64	307 779 99	Bolt	2	InternBDB: M10x30 8.8 DIN00933 \| InternKon: 942 290 40 / 123
65	319 417 99	Bolt	8	InternBDB: M6x35 8.8 DIN00912 \| InternKon: 942 290 40 / 124
66	0443451210	Clip	5	InternBDB: 77 NW12 \| InternKon: 942 290 40 / 125

Komatsu PC4000-6 S/N 08195 parts catalog PDF

COOLANT WATER LINES (355-1240g) in PC4000-6 S/N 08195. Diagram image and parts list.
