CAB SUPPORT ARR. | PC4000-6 S/N 08195 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

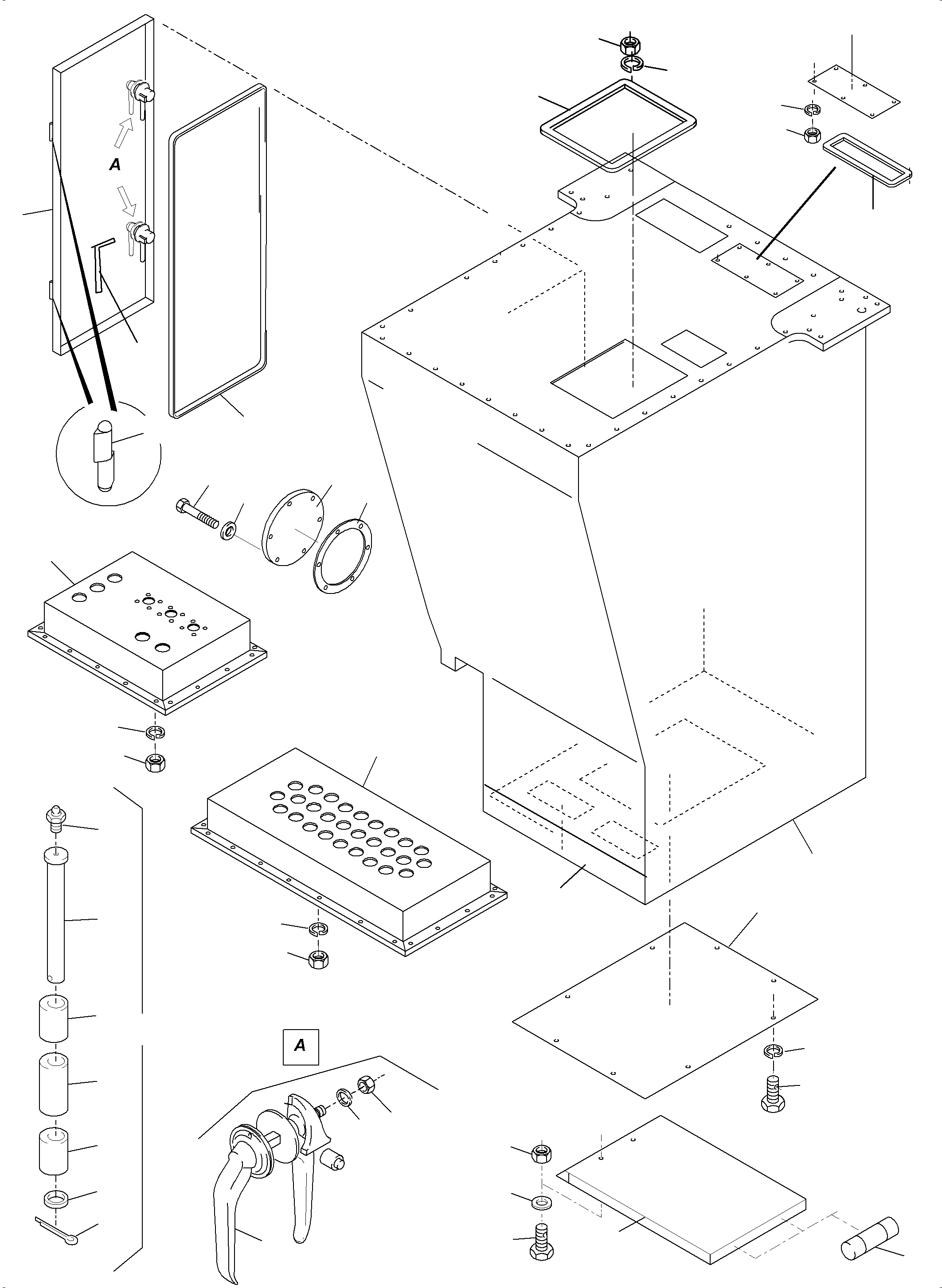

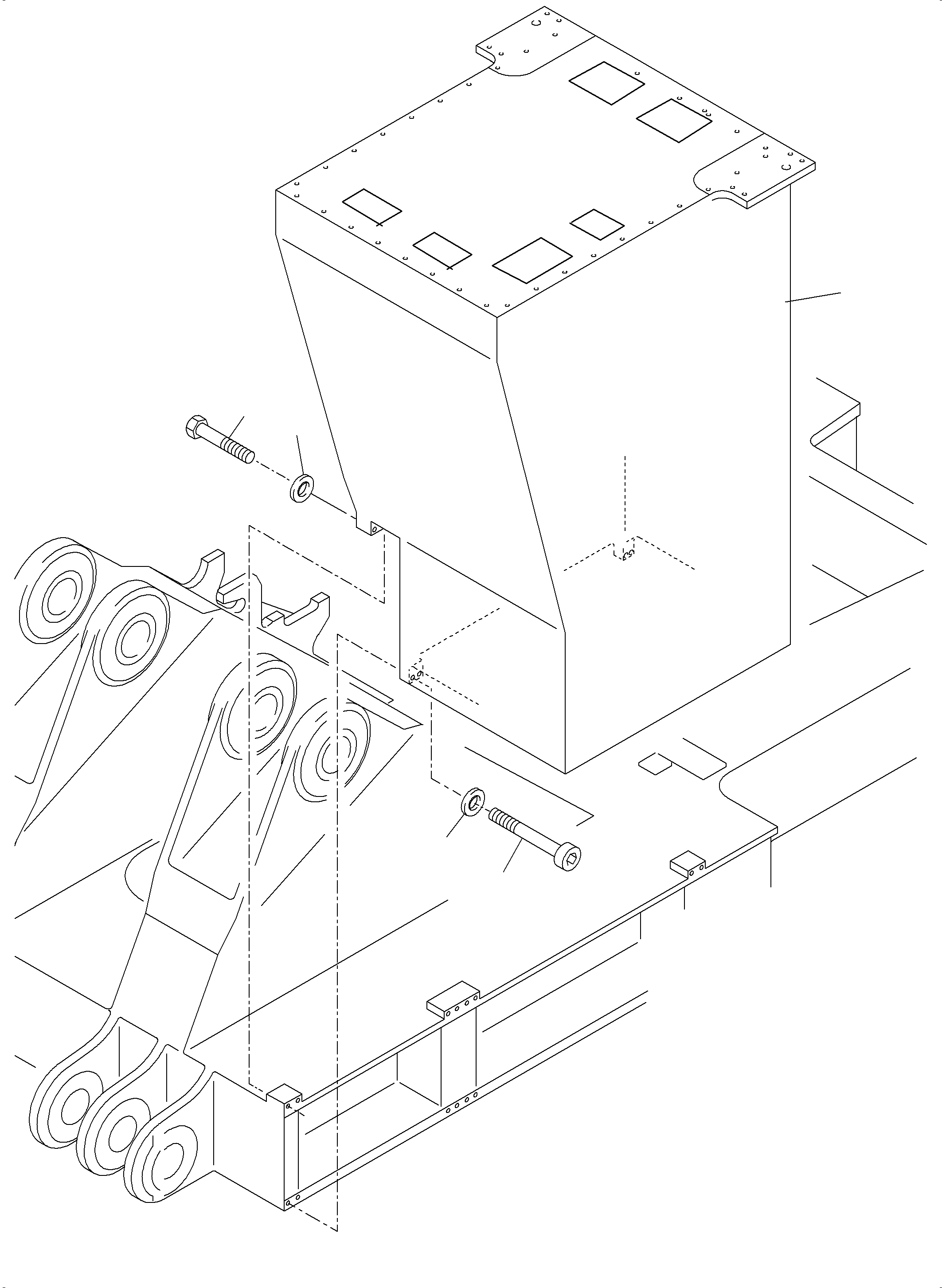

Diagram image 1 of 2

PC4000-6 S/N 08195

01 02 02 03 03 04 04

PC4000-6 S/N 08195

05 06 07 08 09 10 12 12 12 12 13 13 13 13 14 15 16 19 20 21 22 23 23 24 25 25 26 27 28 29 30 31 32 33 34 34 35 36 37 38 39 40 41 42 45 46

#	Part Number	Partname	Quantity	Options
01	939 920 40	Cab support assy.	1	InternKon: 938 550 40 / 7
02	302 662 99	Bolt (Standard)	8	InternBDB: M36x240 / DIN 931 / 10.9 \| InternKon: 938 550 40 / 15
03	511 809 98	Bolt (Cold weather design))	8	InternBDB: M36x240 / DIN 931 / 10.9 \| InternKon: 938 550 40 / 15
04	255 056 40	Washer	8	InternBDB: 37 / DIN 6916 \| InternKon: 938 550 40 / 19
05	939 918 40	Cab support	1	InternKon: 939 920 40 / 1
06	908 042 40	Cover	1	InternKon: 939 920 40 / 2
07	895 990 40	Covering	1	InternKon: 939 920 40 / 3
08	902 184 40	Cover	1	InternBDB: 200x280 \| InternKon: 939 920 40 / 8
09	935 484 40	Seal	3	InternBDB: 2x200x280 / NBR90 \| InternKon: 939 920 40 / 9
10	945 739 40	Seal	1	InternBDB: 2x400x480 / NBR80 \| InternKon: 939 920 40 / 10
12	334 599 99	Nut	37	InternBDB: M8 / DIN 985 / 8 \| InternKon: 939 920 40 / 15
13	340 507 99	Washer	37	InternBDB: 8,4 / DIN 125 / 140HV \| InternKon: 939 920 40 / 17
14	307 752 99	Bolt	8	InternBDB: M8x20 / DIN 933 \| InternKon: 939 920 40 / 29
15	343 108 99	Lock washer	8	InternBDB: 8 / DIN 127 \| InternKon: 939 920 40 / 30
16	592 259 40	Profiled joint 10.000 mm	-2	InternBDB: GHE 4610075 \| InternKon: 939 920 40 / 31
19	507 488 98	Thread pin	4	InternBDB: PM 10x20 / DIN 32500 \| InternKon: 939 920 40 / 34
20	507 037 98	Nut	4	InternBDB: M 10 / DIN 985 / 8 \| InternKon: 939 920 40 / 36
21	340 468 99	Washer	4	InternBDB: B 15,0 / 140HV / DIN 125 \| InternKon: 939 920 40 / 37
22	904 685 40	Flap	3	InternKon: 939 920 40 / 40
23	390 199 40	Hinge assy.	6	InternBDB: DKG \| InternKon: 939 920 40 / 41
24	307 810 99	Bolt	6	InternBDB: M12x60 / 8.8 / DIN 933 \| InternKon: 939 920 40 / 42
25	332 353 99	Nut	12	InternBDB: M12 / 10 / DIN 934 \| InternKon: 939 920 40 / 44
26	346 498 99	Lock washer	6	InternBDB: 12 \| InternKon: 939 920 40 / 45
27	904 244 40	Cover	1	InternBDB: 200x200 \| InternKon: 939 920 40 / 47
28	904 243 40	Seal	1	InternBDB: Klinger Sil \| InternKon: 939 920 40 / 48
29	307 805 99	Bolt	6	InternBDB: M12x35 / 8.8 / DIN 933 \| InternKon: 939 920 40 / 49
30	504 271 98	Spring	6	InternBDB: B12 / FST A2E / DIN 127 \| InternKon: 939 920 40 / 50
31	661 680 40	Door	1	InternKon: 945 750 40 / 1
32	440 556 40	Band roller with grease nipple	2	InternBDB: 1033 U11/20K 150mm \| InternKon: 945 750 40 / 2
33	621 108 40	Pin	4	InternKon: 390 199 40 / 1
34	390 600 40	Bushing	8	InternKon: 390 199 40 / 2
35	390 601 40	Bushing	4	InternKon: 390 199 40 / 3
36	340 612 99	Washer	4	InternKon: 390 199 40 / 4
37	342 061 99	Cotter pin	4	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
38	350 562 99	Grease nipple	4	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
39	512 545 98	Washer	1	InternBDB: 13 / DIN 125
40	940 907 40	Fastener	2	InternKon: 661 680 40 / 2
41	908 075 40	Catch	1	InternKon: 661 680 40 / 3
42	345 178 99	Dowel pin	1	InternBDB: 6x30 / DIN 1481 \| InternKon: 661 680 40 / 4
45	944 042 40	Mounting plate	1	InternKon: 944 002 40 / 93
46	944 044 40	Mounting plate	1	InternKon: 944 002 40 / 91
