Diagram image 1 of 3

PC4000-6 S/N 08195

01 02 03 04 05 05 06 07 109 110 111 112 113 114 115 116 116 130 131 132 133 20 21 22 23 24 25 25 26 27 27 27 27 28 28 28 28 28 29 29 30 30 31 31 32 33 34 35 36 37 38 39 40 41 42 63 65 66

PC4000-6 S/N 08195

08 09 120 120 120 121 121 122 122 123 123 124 124 124 125 125 126 126 126 33 45 45 46 47 47 48 48 49 49 51 52 52 53 53 54 54 56 56 57 59 59 60 61 62 62 63 63 63 63 63 64 64 65 65 66 66 66 66 67 68 68 68 68 69 70 72 73 75 78 79 80

PC4000-6 S/N 08195

10 100 102 103 104 105 106 106 107 108 108 109 109 11 12 120 120 120 121 123 124 124 124 125 126 126 126 13 14 15 16 59 63 63 63 66 68 68 73 78 78 78 79 79 79 80 80 80 81 81 81 86 89 90 90 91 92 93 95 96 97 98 99 99

#	Part Number	Partname	Quantity	Options
01	942 764 40	Switch plate assy.	1	InternKon: 944 077 40 / 1
02	796 613 73	C-GC-Display	1	InternBDB: 007835304101 MH801 \| InternKon: 944 077 40 / 2
03	940 047 40	Alarm transmitter	1	InternBDB: Lumitas 31 801 002 \| InternKon: 944 077 40 / 10
04	505 940 99	Assembly rail	-2
05	906 612 40	Through clamp	-2
06	906 769 40	Through clamp 16,0	2	InternBDB: Wago 283-901
07	906 773 40	Cover plate	1	InternBDB: Wago 283-325
08	942 743 40	Socket plate assy.	1	InternKon: 944 077 40 / 8
09	946 236 40	Harness X85A-X1C	1	InternKon: 944 077 40 / 11
10	946 237 40	Harness X85B-X1	1	InternKon: 944 077 40 / 12
11	946 238 40	Harness X85C-X1	1	InternKon: 944 077 40 / 13
12	946 239 40	Harness X85D-X1	1	InternKon: 944 077 40 / 14
13	946 240 40	Harness X85E-X1	1	InternKon: 944 077 40 / 15
14	946 251 40	Harness X2C-X1	1	InternKon: 944 077 40 / 18
15	946 252 40	Ground cable X1-X2C	1	InternKon: 944 077 40 / 19
16	946 253 40	Harness X2C-X1-K7	1	InternKon: 944 077 40 / 22
20	490 518 40	Alarm transmitter	1	InternBDB: Lumitas 14810902 \| InternKon: 942 764 40 / 3
21	942 119 40	Indicator lamp with LED, red	1	InternKon: 942 764 40 / 11
22	942 763 40	Shift plate, printed	1	InternKon: 942 764 40 / 1
23	942 118 40	Indicator lamp with LED, yellow	1	InternKon: 942 764 40 / 12
24	891 033 40	Emergency switch off assy.	1	InternKon: 942 764 40 / 9
25	913 237 40	Graphical symbol, warning light	1	InternKon: 942 764 40 / 13
26	770 326 73	Plate	1	InternBDB: Matek 503 500 210
27	324 400 40	Turn switch	8	InternBDB: Merit 26 10 00 \| InternKon: 942 764 40 / 5
28	324 401 40	Turn switch 1-stage	3	InternBDB: Merit 26 04 90 \| InternKon: 942 764 40 / 6
29	324 402 40	Turn switch 2-stage	1	InternBDB: Merit 26 34 90 \| InternKon: 942 764 40 / 10
30	399 702 40	Turn switch	1	InternBDB: Merit 26 20 00 \| InternKon: 942 764 40 / 7
31	440 369 40	Turn switch 3-stage	1	InternBDB: Merit 26 90 00 \| InternKon: 942 764 40 / 4
32	896 473 40	Toggle switch	1	InternBDB: Kissling 08.1.2.10 F \| InternKon: 942 764 40 / 8
33	440 307 99	Socket	2
34	796 187 73	Cigarette lighter	1	InternBDB: Hella 24V 8 EZ 008 021-011 Matec-Nr. 114200037
35	414 866 40	Ignition switch	1	InternBDB: Merit 327052 \| InternKon: 942 764 40 / 2
36	698 239 73	Key	1	InternBDB: Merit 14644
37	655 686 40	Impact key	1	InternBDB: Elan EDRR 40 RT 027 1270 \| InternKon: 891 033 40 / 1
38	655 676 40	Spring element	1	InternBDB: Elan EFR 028 0287 \| InternKon: 891 033 40 / 2
39	635 115 40	Contact element	1	InternBDB: Elan EF 220 F.1 0281388 \| InternKon: 891 033 40 / 3
40	635 652 40	Contact element	1	InternBDB: Elan EF 303 F.2 0281380 \| InternKon: 891 033 40 / 4
41	896 732 40	Ashtray	1	InternBDB: GHE 5500112
42	769 589 73	Switch	1	InternBDB: Fa. Mekra 119/001 24V 592/001 083200230
45	907 642 40	Socket	1	InternBDB: Amphenol MS 3102A 14S-5S \| InternKon: 942 743 40 / 9
46	942 742 40	Plate	1	InternBDB: TL \| InternKon: 942 743 40 / 1
47	952 025 40	Cable - Service plug X36	1	InternKon: 942 743 40 / 2
48	946 460 40	Cable Celect X52-1	1	InternKon: 942 743 40 / 3
49	946 456 40	Harness X85f-X13-1	1	InternKon: 942 743 40 / 14
51	518 224 98	Bolt	4	InternBDB: M4x20 /964 \| InternKon: 942 743 40 / 10
52	318 167 99	Bolt	12	InternBDB: M3x16/84 \| InternKon: 942 743 40 / 11
53	946 457 40	Harness X85g-X27a	1	InternKon: 942 743 40 / 13
54	946 248 40	Harness X85h	1	InternKon: 942 743 40 / 12
56	898 668 40	Socket assy.	1	InternKon: 942 743 40 / 4
57	913 255 40	Plug RS 232 assy.	1	InternKon: 942 743 40 / 6
59	056 070 40	Cable sleeve 1-1.5	37	InternKon: 952 025 40 / 8
60	940 453 40	Socket	1	InternBDB: 176116-6 Serie 70 \| InternKon: 952 025 40 / 4
61	906 633 40	Socket	1	InternBDB: 176118-6 18-Pol grau \| InternKon: 952 025 40 / 3
62	906 635 40	Contact plug	40	InternBDB: 175027-2 \| InternKon: 952 025 40 / 5
63	256 514 40	Name plate	5	InternKon: 952 025 40 / 7
64	906 577 40	Cable UIC	-2	InternKon: 952 025 40 / 10
65	056 292 40	Cable strip	3	InternKon: 952 025 40 / 6
66	515 213 40	Cable 1.0	-2	InternKon: 952 025 40 / 9
67	913 246 40	Cable bush assy.	1	InternKon: 952 025 40 / 2
68	0819105320	Pin	56	InternBDB: 0460-202-16141 795 157 73 \| InternKon: 952 025 40 / 1
69	940 467 40	Insulating tube B 14x1	-2	InternBDB: B 14x1 PUR 70 Shore \| InternKon: 952 025 40 / 11
70	906 647 40	T-Splitter	1	InternKon: 952 025 40 / 12
72	898 669 40	Socket assy.	1	InternKon: 946 460 40 / 1
73	940 462 40	Insulating tube B6x0,6	-2	InternBDB: B6x0,6 PUR 70 Shore \| InternKon: 946 460 40 / 6
75	940 169 40	Cable 4x1	-2	InternKon: 946 248 40 / 8
78	907 980 40	Fitting DN23	5	InternBDB: PMA BVIVG-U353 \| InternKon: 946 236 40 / 3
79	655 652 40	Cable protection hose DN 23	-2	InternBDB: PMA VCSG-23 B \| InternKon: 946 236 40 / 5
80	907 690 40	Cable union DN 23	5	InternBDB: PMA BVNV-M253 \| InternKon: 946 236 40 / 10
81	517 329 98	Reducing M32M25	5	InternBDB: M32x1,5 M25x1,5/50262 \| InternKon: 946 236 40 / 11
86	621 698 40	Contact plug 1-2mm	32	InternBDB: Deutsch 0460-215-16141 \| InternKon: 946 239 40 / 2
89	907 693 40	Fitting M20/DN17	1	InternBDB: PMA BVIR-M207 \| InternKon: 946 251 40 / 4
90	906 491 40	Union	2	InternBDB: Mann+Hunnel HSK-K M20x1,5 1.219.2000.50 \| InternKon: 946 251 40 / 5
91	907 202 40	Cable 7x4,0	-2	InternKon: 946 251 40 / 1
92	056 072 40	Cable sleeve	14	InternKon: 946 251 40 / 6
93	907 792 40	Marking sleeve	42	InternKon: 946 251 40 / 7
95	907 891 40	Cable 70,0	-2	InternBDB: SW 097000 \| InternKon: 946 252 40 / 1
96	655 653 40	Cable protection hose DN 48	-2	InternBDB: PMA VCSG-48 B \| InternKon: 946 252 40 / 2
97	907 479 40	Cable union DN 29	1	InternBDB: PMA BVNV-M329 \| InternKon: 946 252 40 / 3
98	932 531 40	Fitting	1	InternBDB: PMA BVIR-M329 \| InternKon: 946 252 40 / 4
99	906 493 40	Union	2	InternBDB: Mann+Hunnel HSK-K M32x1,5 1.209.3200.51 \| InternKon: 946 252 40 / 5
100	600 209 99	Cable shoe	2	InternKon: 946 252 40 / 6
102	907 553 40	Cable 16,0	-2	InternKon: 946 253 40 / 1
103	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12B \| InternKon: 946 253 40 / 2
104	907 477 40	Cable union DN 12	1	InternBDB: PMA BVNV-M162 \| InternKon: 946 253 40 / 3
105	269 078 40	Cable sleeve	2	InternKon: 946 253 40 / 4
106	906 490 40	Union	2	InternBDB: Mann+Hunnel HSK-K M16x1,5 1.209.1600.51 \| InternKon: 946 253 40 / 5
107	907 692 40	Fitting M16/DN12	1	InternBDB: PMA BVIR-M162 \| InternKon: 946 253 40 / 6
108	056 071 40	Cable sleeve 2,5	48	InternKon: 946 238 40 / 7
109	515 214 40	Cable 2.5	-2	InternKon: 946 238 40 / 6
110	655 675 40	Cable 6.0	-2
111	906 022 40	Cable 4.0	-2
112	440 151 99	Tab 1.5	-2
113	055 115 40	Tab 1.5 - 2.5	-2
114	697 269 73	Tab 4.0 - 6.0 yellow	-2
115	906 768 40	Through clamp 6,0	8	InternBDB: Wago 282-901
116	906 613 40	Cover plate	2	InternBDB: Wago 870-573
120	795 126 73	Plug	7	InternBDB: Deutsch HD36-18-14PE-059 000819121206 \| InternKon: 946 456 40 / 1
121	795 122 73	Sealing plate	27	InternBDB: 114 017 KES \| InternKon: 946 456 40 / 3
122	907 975 40	Fitting DN17	3	InternBDB: PMA BVIVG-U297 \| InternKon: 946 456 40 / 4
123	655 651 40	Cable protection hose DN 17	-2	InternBDB: PMA VCST-17 B \| InternKon: 946 456 40 / 6
124	940 629 40	Warmth shrink hose	-2	InternBDB: 0,090 m / Bьrklin .05060 91F2570 \| InternKon: 946 456 40 / 5
125	907 478 40	Cable union DN 17	3	InternBDB: PMA BVNV-M207 \| InternKon: 946 456 40 / 10
126	174 411 40	Cable strap	4	InternBDB: 200x4,8 5315/C \| InternKon: 946 456 40 / 9
130	933 358 40	Shift plate	1	InternKon: 942 045 40 / 32
131	794 380 73	Lamp	1	InternBDB: Hella 2AB 004 532-031
132	794 381 73	Bulb	1	InternBDB: Hella 2GP 002 067-241
133	906 630 40	Protective wire	10	InternBDB: Wago 870-537
\|$$108			-2
\|$$109			-2

Komatsu PC4000-6 S/N 08195 parts catalog PDF

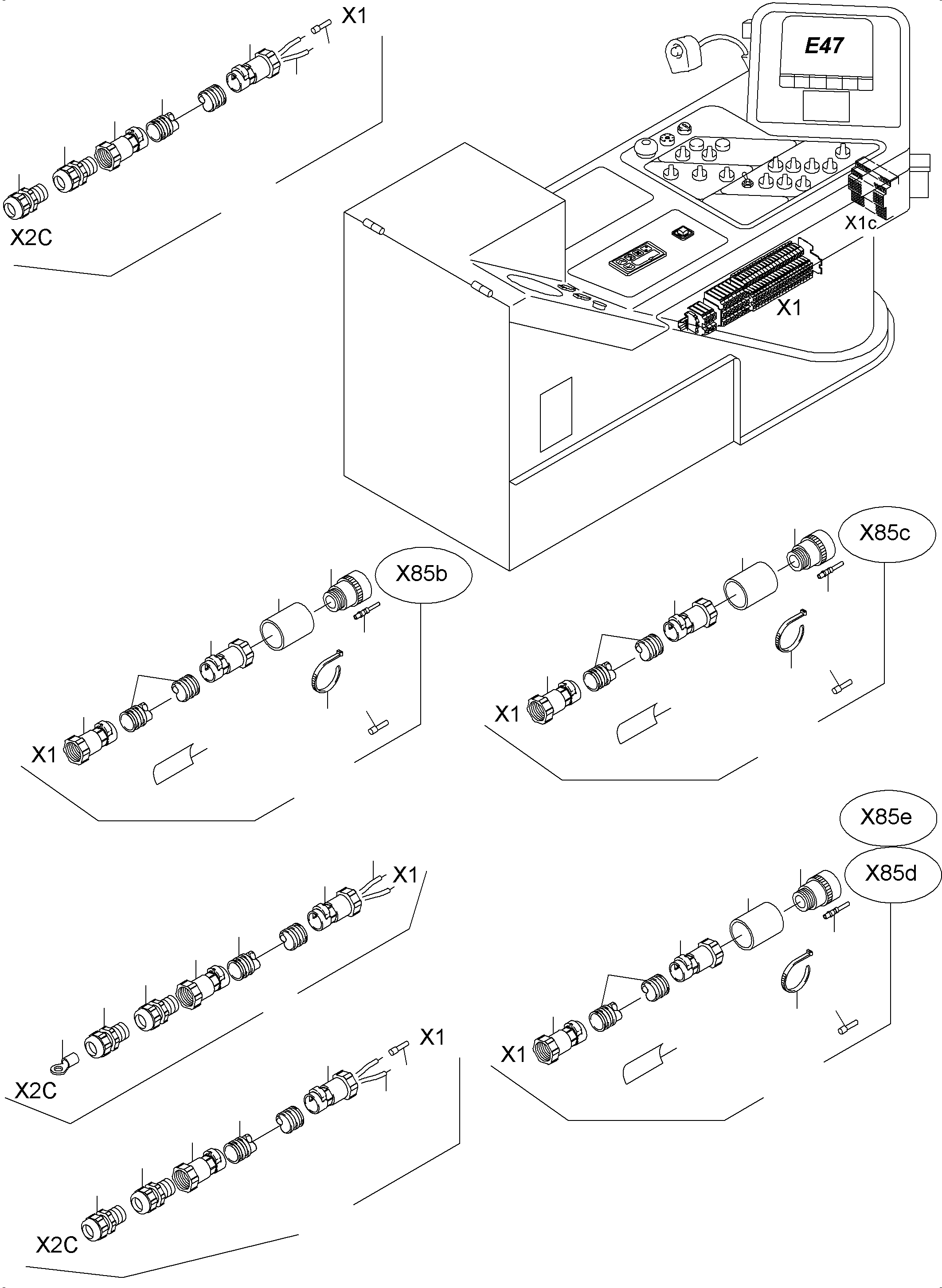

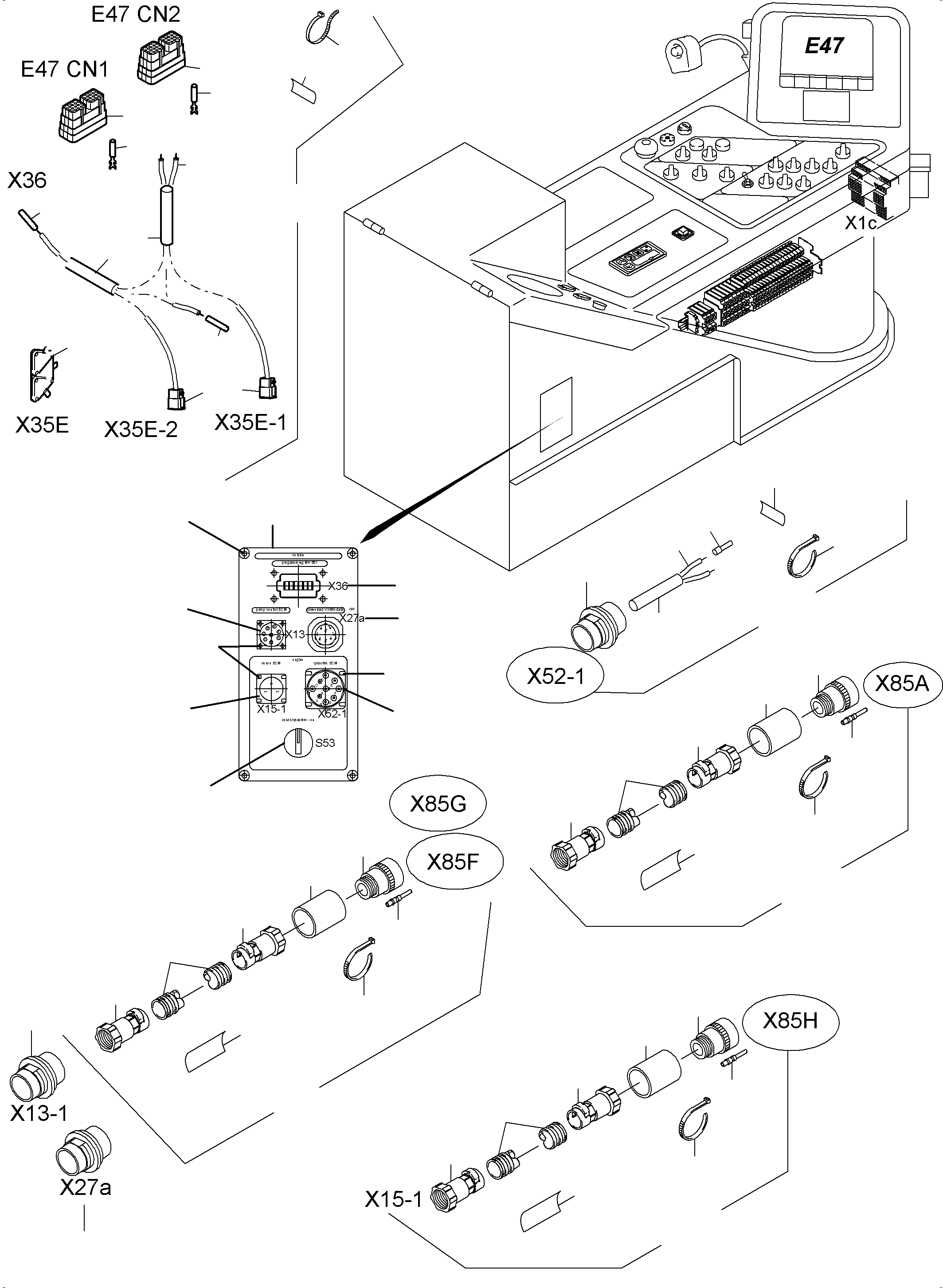

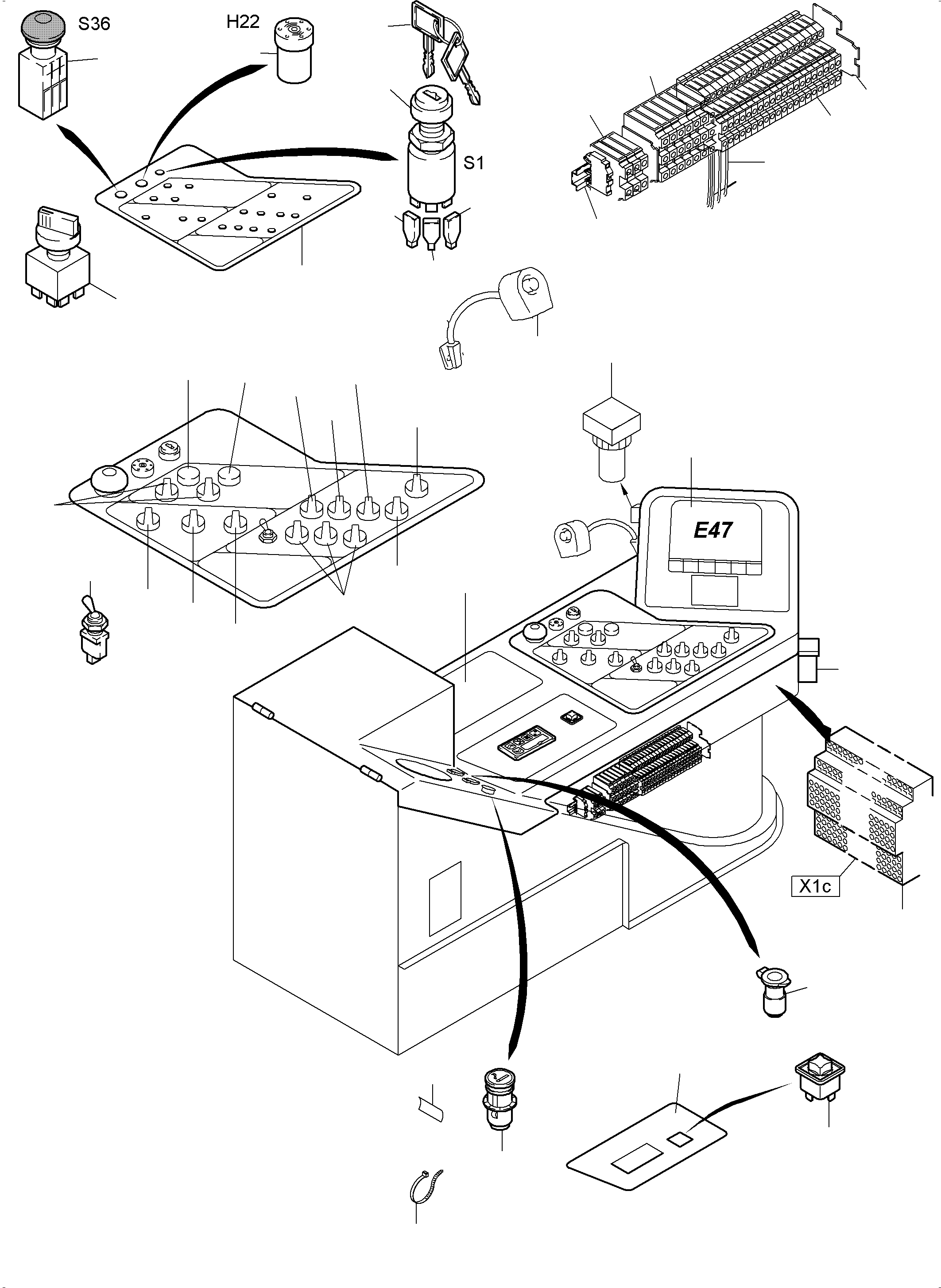

OPERATION PANEL (355-1926e) in PC4000-6 S/N 08195. Diagram image and parts list.
