#	Part Number	Partname	Quantity	Options
?	942 764 40	Switch plate assy.	1	InternKon: 944 077 40 / 1
?	796 613 73	C-GC-Display	1	InternBDB: 007835304101 MH801 \| InternKon: 944 077 40 / 2
?	940 047 40	Alarm transmitter	1	InternBDB: Lumitas 31 801 002 \| InternKon: 944 077 40 / 10
?	505 940 99	Assembly rail	-2
?	906 612 40	Through clamp	-2
?	906 769 40	Through clamp 16,0	2	InternBDB: Wago 283-901
?	906 773 40	Cover plate	1	InternBDB: Wago 283-325
?	942 743 40	Socket plate assy.	1	InternKon: 944 077 40 / 8
?	946 236 40	Harness X85A-X1C	1	InternKon: 944 077 40 / 11
?	946 237 40	Harness X85B-X1	1	InternKon: 944 077 40 / 12
?	946 238 40	Harness X85C-X1	1	InternKon: 944 077 40 / 13
?	946 239 40	Harness X85D-X1	1	InternKon: 944 077 40 / 14
?	946 240 40	Harness X85E-X1	1	InternKon: 944 077 40 / 15
?	946 251 40	Harness X2C-X1	1	InternKon: 944 077 40 / 18
?	946 252 40	Ground cable X1-X2C	1	InternKon: 944 077 40 / 19
?	946 253 40	Harness X2C-X1-K7	1	InternKon: 944 077 40 / 22
?	490 518 40	Alarm transmitter	1	InternBDB: Lumitas 14810902 \| InternKon: 942 764 40 / 3
?	942 119 40	Indicator lamp with LED, red	1	InternKon: 942 764 40 / 11
?	942 763 40	Shift plate, printed	1	InternKon: 942 764 40 / 1
?	942 118 40	Indicator lamp with LED, yellow	1	InternKon: 942 764 40 / 12
?	891 033 40	Emergency switch off assy.	1	InternKon: 942 764 40 / 9
?	913 237 40	Graphical symbol, warning light	1	InternKon: 942 764 40 / 13
?	770 326 73	Plate	1	InternBDB: Matek 503 500 210
?	324 400 40	Turn switch	8	InternBDB: Merit 26 10 00 \| InternKon: 942 764 40 / 5
?	324 401 40	Turn switch 1-stage	3	InternBDB: Merit 26 04 90 \| InternKon: 942 764 40 / 6
?	324 402 40	Turn switch 2-stage	1	InternBDB: Merit 26 34 90 \| InternKon: 942 764 40 / 10
?	399 702 40	Turn switch	1	InternBDB: Merit 26 20 00 \| InternKon: 942 764 40 / 7
?	440 369 40	Turn switch 3-stage	1	InternBDB: Merit 26 90 00 \| InternKon: 942 764 40 / 4
?	896 473 40	Toggle switch	1	InternBDB: Kissling 08.1.2.10 F \| InternKon: 942 764 40 / 8
?	440 307 99	Socket	2
?	796 187 73	Cigarette lighter	1	InternBDB: Hella 24V 8 EZ 008 021-011 Matec-Nr. 114200037
?	414 866 40	Ignition switch	1	InternBDB: Merit 327052 \| InternKon: 942 764 40 / 2
?	698 239 73	Key	1	InternBDB: Merit 14644
?	655 686 40	Impact key	1	InternBDB: Elan EDRR 40 RT 027 1270 \| InternKon: 891 033 40 / 1
?	655 676 40	Spring element	1	InternBDB: Elan EFR 028 0287 \| InternKon: 891 033 40 / 2
?	635 115 40	Contact element	1	InternBDB: Elan EF 220 F.1 0281388 \| InternKon: 891 033 40 / 3
?	635 652 40	Contact element	1	InternBDB: Elan EF 303 F.2 0281380 \| InternKon: 891 033 40 / 4
?	896 732 40	Ashtray	1	InternBDB: GHE 5500112
?	769 589 73	Switch	1	InternBDB: Fa. Mekra 119/001 24V 592/001 083200230
?	907 642 40	Socket	1	InternBDB: Amphenol MS 3102A 14S-5S \| InternKon: 942 743 40 / 9
?	942 742 40	Plate	1	InternBDB: TL \| InternKon: 942 743 40 / 1
?	952 025 40	Cable - Service plug X36	1	InternKon: 942 743 40 / 2
?	946 460 40	Cable Celect X52-1	1	InternKon: 942 743 40 / 3
?	946 456 40	Harness X85f-X13-1	1	InternKon: 942 743 40 / 14
?	518 224 98	Bolt	4	InternBDB: M4x20 /964 \| InternKon: 942 743 40 / 10
?	318 167 99	Bolt	12	InternBDB: M3x16/84 \| InternKon: 942 743 40 / 11
?	946 457 40	Harness X85g-X27a	1	InternKon: 942 743 40 / 13
?	946 248 40	Harness X85h	1	InternKon: 942 743 40 / 12
?	898 668 40	Socket assy.	1	InternKon: 942 743 40 / 4
?	913 255 40	Plug RS 232 assy.	1	InternKon: 942 743 40 / 6
?	056 070 40	Cable sleeve 1-1.5	37	InternKon: 952 025 40 / 8
?	940 453 40	Socket	1	InternBDB: 176116-6 Serie 70 \| InternKon: 952 025 40 / 4
?	906 633 40	Socket	1	InternBDB: 176118-6 18-Pol grau \| InternKon: 952 025 40 / 3
?	906 635 40	Contact plug	40	InternBDB: 175027-2 \| InternKon: 952 025 40 / 5
?	256 514 40	Name plate	5	InternKon: 952 025 40 / 7
?	906 577 40	Cable UIC	-2	InternKon: 952 025 40 / 10
?	056 292 40	Cable strip	3	InternKon: 952 025 40 / 6
?	515 213 40	Cable 1.0	-2	InternKon: 952 025 40 / 9
?	913 246 40	Cable bush assy.	1	InternKon: 952 025 40 / 2
?	0819105320	Pin	56	InternBDB: 0460-202-16141 795 157 73 \| InternKon: 952 025 40 / 1
?	940 467 40	Insulating tube B 14x1	-2	InternBDB: B 14x1 PUR 70 Shore \| InternKon: 952 025 40 / 11
?	906 647 40	T-Splitter	1	InternKon: 952 025 40 / 12
?	898 669 40	Socket assy.	1	InternKon: 946 460 40 / 1
?	940 462 40	Insulating tube B6x0,6	-2	InternBDB: B6x0,6 PUR 70 Shore \| InternKon: 946 460 40 / 6
?	940 169 40	Cable 4x1	-2	InternKon: 946 248 40 / 8
?	907 980 40	Fitting DN23	5	InternBDB: PMA BVIVG-U353 \| InternKon: 946 236 40 / 3
?	655 652 40	Cable protection hose DN 23	-2	InternBDB: PMA VCSG-23 B \| InternKon: 946 236 40 / 5
?	907 690 40	Cable union DN 23	5	InternBDB: PMA BVNV-M253 \| InternKon: 946 236 40 / 10
?	517 329 98	Reducing M32M25	5	InternBDB: M32x1,5 M25x1,5/50262 \| InternKon: 946 236 40 / 11
?	621 698 40	Contact plug 1-2mm	32	InternBDB: Deutsch 0460-215-16141 \| InternKon: 946 239 40 / 2
?	907 693 40	Fitting M20/DN17	1	InternBDB: PMA BVIR-M207 \| InternKon: 946 251 40 / 4
?	906 491 40	Union	2	InternBDB: Mann+Hunnel HSK-K M20x1,5 1.219.2000.50 \| InternKon: 946 251 40 / 5
?	907 202 40	Cable 7x4,0	-2	InternKon: 946 251 40 / 1
?	056 072 40	Cable sleeve	14	InternKon: 946 251 40 / 6
?	907 792 40	Marking sleeve	42	InternKon: 946 251 40 / 7
?	907 891 40	Cable 70,0	-2	InternBDB: SW 097000 \| InternKon: 946 252 40 / 1
?	655 653 40	Cable protection hose DN 48	-2	InternBDB: PMA VCSG-48 B \| InternKon: 946 252 40 / 2
?	907 479 40	Cable union DN 29	1	InternBDB: PMA BVNV-M329 \| InternKon: 946 252 40 / 3
?	932 531 40	Fitting	1	InternBDB: PMA BVIR-M329 \| InternKon: 946 252 40 / 4
?	906 493 40	Union	2	InternBDB: Mann+Hunnel HSK-K M32x1,5 1.209.3200.51 \| InternKon: 946 252 40 / 5
?	600 209 99	Cable shoe	2	InternKon: 946 252 40 / 6
?	907 553 40	Cable 16,0	-2	InternKon: 946 253 40 / 1
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12B \| InternKon: 946 253 40 / 2
?	907 477 40	Cable union DN 12	1	InternBDB: PMA BVNV-M162 \| InternKon: 946 253 40 / 3
?	269 078 40	Cable sleeve	2	InternKon: 946 253 40 / 4
?	906 490 40	Union	2	InternBDB: Mann+Hunnel HSK-K M16x1,5 1.209.1600.51 \| InternKon: 946 253 40 / 5
?	907 692 40	Fitting M16/DN12	1	InternBDB: PMA BVIR-M162 \| InternKon: 946 253 40 / 6
?	056 071 40	Cable sleeve 2,5	48	InternKon: 946 238 40 / 7
?	515 214 40	Cable 2.5	-2	InternKon: 946 238 40 / 6
?	655 675 40	Cable 6.0	-2
?	906 022 40	Cable 4.0	-2
?	440 151 99	Tab 1.5	-2
?	055 115 40	Tab 1.5 - 2.5	-2
?	697 269 73	Tab 4.0 - 6.0 yellow	-2
?	906 768 40	Through clamp 6,0	8	InternBDB: Wago 282-901
?	906 613 40	Cover plate	2	InternBDB: Wago 870-573
?	795 126 73	Plug	7	InternBDB: Deutsch HD36-18-14PE-059 000819121206 \| InternKon: 946 456 40 / 1
?	795 122 73	Sealing plate	27	InternBDB: 114 017 KES \| InternKon: 946 456 40 / 3
?	907 975 40	Fitting DN17	3	InternBDB: PMA BVIVG-U297 \| InternKon: 946 456 40 / 4
?	655 651 40	Cable protection hose DN 17	-2	InternBDB: PMA VCST-17 B \| InternKon: 946 456 40 / 6
?	940 629 40	Warmth shrink hose	-2	InternBDB: 0,090 m / Bьrklin .05060 91F2570 \| InternKon: 946 456 40 / 5
?	907 478 40	Cable union DN 17	3	InternBDB: PMA BVNV-M207 \| InternKon: 946 456 40 / 10
?	174 411 40	Cable strap	4	InternBDB: 200x4,8 5315/C \| InternKon: 946 456 40 / 9
?	933 358 40	Shift plate	1	InternKon: 942 045 40 / 32
?	794 380 73	Lamp	1	InternBDB: Hella 2AB 004 532-031
?	794 381 73	Bulb	1	InternBDB: Hella 2GP 002 067-241
?	906 630 40	Protective wire	10	InternBDB: Wago 870-537
?			-2
?			-2

Komatsu PC4000-6 S/N 08195 parts catalog PDF

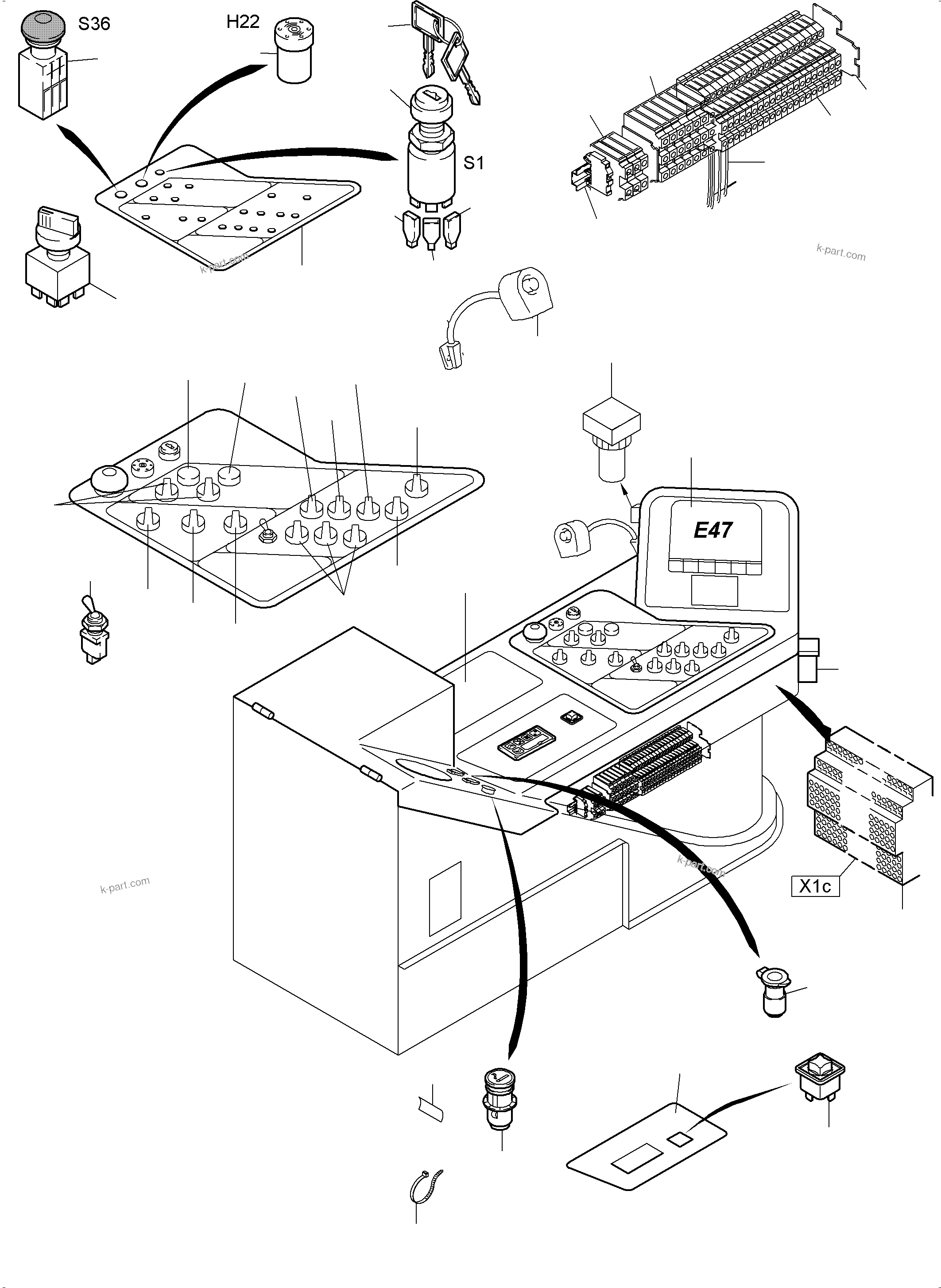

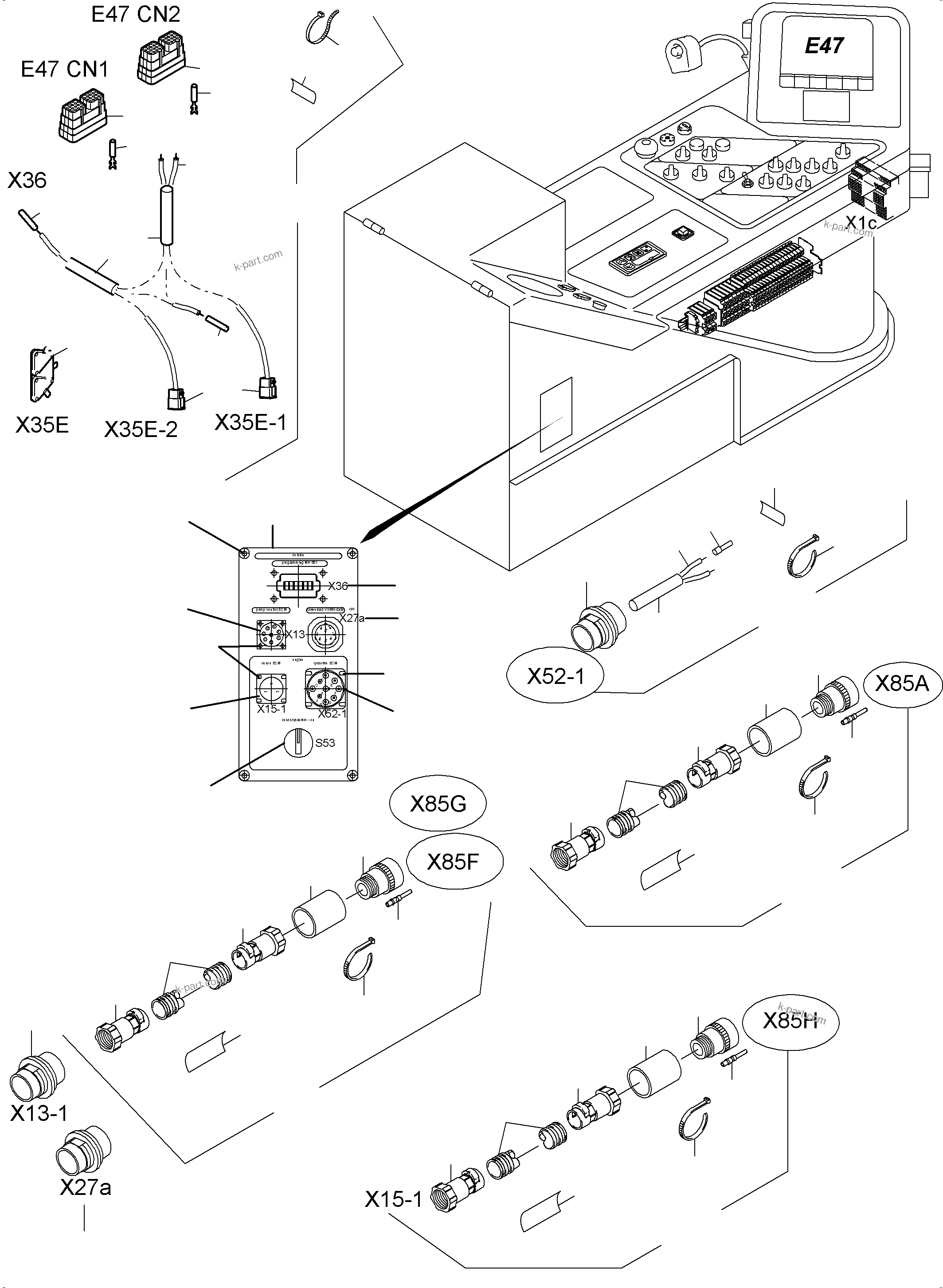

OPERATION PANEL (355-1926e) in PC4000-6 S/N 08195. Diagram image and parts list.
