Diagram image 1 of 3

PC5500-6E S/N 15060

01 02 03 04 05 06 07 08 09 10 11 12 20 21 21 22 22 23 24 25 25 26 26 27 28 29 29 30 31 31 71 71 74 75 75 76 77 78 79

PC5500-6E S/N 15060

16 17 18 19 32 32 33 33 34 35 36 37 41 42 43 44 44 45 47 49 50 51 52 52 53 62 63 64 64 66 66 68 69 70

PC5500-6E S/N 15060

80 80 81 82 83 84 85 86 87 87 87 88 89 89 89 90 91

#	Part Number	Partname	Quantity	Options	Reference

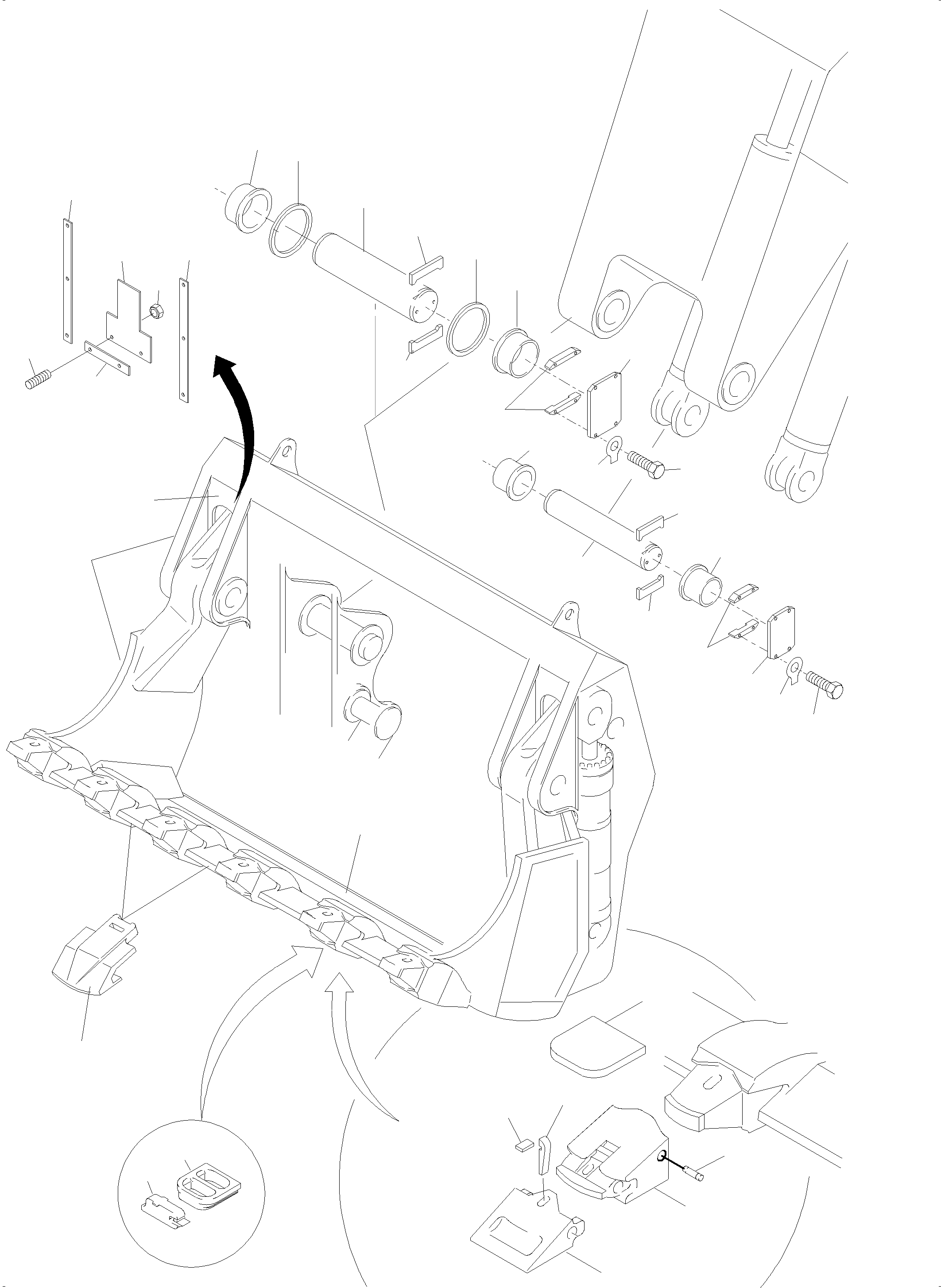

01	931 685 40	Bullclam bucket without lip	1	InternBDB: KMG \| InternKon: 911 104 40 / 1
02	942 653 40	Castlip with teeth and shroud	1	InternBDB: TL \| InternKon: 933 525 40 / 1
03	907 280 40	Castlip	1	InternBDB: PDE 52105-2 Esco \| InternKon: 942 653 40 / 1
04	945 541 40	Shroud	5	InternBDB: Esco PDE 56423X TCCF 130-28 \| InternKon: 942 653 40 / 7
05	906 088 40	Tooth adapter	6	InternBDB: Esco S 130 H 112 K \| InternKon: 942 653 40 / 2
06	604 691 40	Tooth tip	6	InternBDB: Esco 112 KH \| InternKon: 942 653 40 / 3
07	655 384 40	Wedge	5	InternBDB: TCP Toplok-Pin TCP \| InternKon: 942 653 40 / 9
08	906 090 40	Wedge	6	InternBDB: Esco S 130 PNA 413 9380 \| InternKon: 942 653 40 / 4
09	604 693 40	Spool	6	InternBDB: PL 112 KA \| InternKon: 942 653 40 / 5
10	604 692 40	Wedge	6	InternBDB: PN 112 KA \| InternKon: 942 653 40 / 6
11	655 383 40	Toplok-boss	5	InternBDB: TCB Toplok-Boss \| InternKon: 942 653 40 / 8
12		Base plate	6	InternBDB: 932 605 40 / PDE56112 \| InternKon: 942 653 40 / 10
16	911 196 40	Cover	2	InternKon: 924 250 40 / 40
17	896 665 40	Plug	4	InternBDB: F44 GPN 300 \| InternKon: 924 250 40 / 36
18	517 122 98	Lock washer	6	InternBDB: 10 WN 655 938 40 \| InternKon: 924 250 40 / 41
19	307 775 99	Bolt	6	InternBDB: M 10x20 /933 \| InternKon: 924 250 40 / 42
20	923 266 40	Pin	2	InternBDB: Ш 250 \| InternKon: 924 250 40 / 5
21	923 268 40	Freeze-in bushing	4	InternBDB: n. Zchng. 923 270 40 \| InternKon: 924 250 40 / 8
22	923 263 40	Axle stirrup	4	InternKon: 924 250 40 / 18
23	923 265 40	Catch	4	InternKon: 924 250 40 / 16
24	923 264 40	Shackle	2	InternKon: 924 250 40 / 20
25	517 123 98	Lock washer	16	InternBDB: 16 WN 655 938 40 \| InternKon: 924 250 40 / 34
26	307 826 99	Bolt	16	InternBDB: M16x50 /933 \| InternKon: 924 250 40 / 33
27	900 751 40	Shackle	2	InternKon: 924 250 40 / 21
28	900 749 40	Catch	4	InternKon: 924 250 40 / 17
29	900 750 40	Axle stirrup	4	InternKon: 924 250 40 / 19
30	923 269 40	Pin	2	InternBDB: Ш 200 \| InternKon: 924 250 40 / 6
31	923 267 40	Freeze-in bushing	4	InternBDB: n. Zchng. 923 270 40 \| InternKon: 924 250 40 / 9
32	923 273 40	Ring	4	InternKon: 924 250 40 / 31
33	504 376 98	O-ring	4	InternBDB: 335x10 NB 70 /3770 \| InternKon: 924 250 40 / 37
34	909 290 40	Plate	2	InternKon: 924 250 40 / 35
35	510 213 98	Thread pin	8	InternBDB: PM 12x30 /32500 \| InternKon: 924 250 40 / 38
36	517 118 98	Lock washer	8	InternBDB: 12 WN 655 938 40 \| InternKon: 924 250 40 / 39
37	334 600 99	Nut	8	InternBDB: M 12 /985 \| InternKon: 924 250 40 / 15

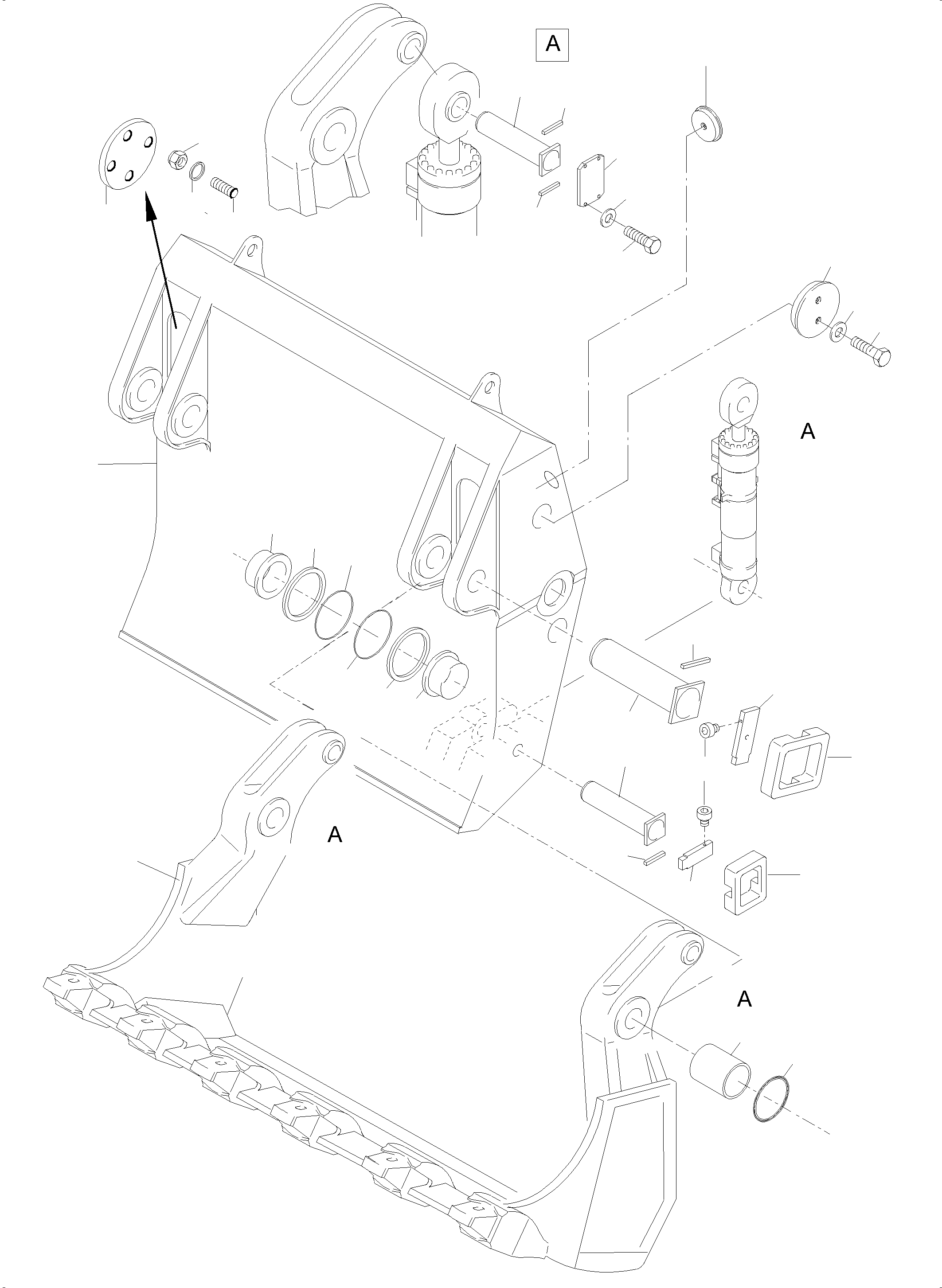

41		Bullclam bucket wall	1	InternBDB: 931 683 40 \| InternKon: 924 250 40 / 1
42	795 274 73	Bucket clam	1	InternBDB: E-ST
43		Bucket clam	1	InternBDB: 931 681 40 \| InternKon: 924 240 40 / 1
44	923 246 40	Freeze-in bushing	4	InternKon: 924 250 40 / 7
45	922 366 40	Freeze-in bushing	2	InternKon: 924 240 40 / 3
47	907 023 40	Pin seal ring	4	InternBDB: n. Zchng. 915 888 40 \| InternKon: 924 240 40 / 8
49	936 399 40	Pin with plate	2	InternKon: 924 240 40 / 2
50	923 274 40	Pin with plate	2	InternKon: 924 250 40 / 3
51	923 271 40	Pin with plate	2	InternKon: 924 250 40 / 4
52	936 397 40	Catch	4	InternBDB: 25x140 \| InternKon: 924 240 40 / 5
53	936 396 40	Shackle	2	InternBDB: 125x200 \| InternKon: 924 240 40 / 4
62	517 123 98	Lock washer	8	InternBDB: S16 WN 655 938 40 \| InternKon: 924 240 40 / 7
63	307 824 99	Bolt	8	InternBDB: M16x40 /933 \| InternKon: 924 240 40 / 6
64	890 921 40	Protective frame	4	InternKon: 924 250 40 / 10
66	890 916 40	Catch	4	InternKon: 924 250 40 / 14
68	890 884 40	Square	4	InternKon: 924 250 40 / 12
69	895 099 40	Square	4	InternKon: 924 250 40 / 13
70	320 374 99	Bolt	4	InternBDB: M16x20 /6912 \| InternKon: 924 250 40 / 32
71	923 262 40	Ring	4	InternKon: 924 250 40 / 30
74	922 371 40	Plate	2	InternKon: 924 260 40 / 3
75	919 348 40	Strip	4	InternKon: 924 260 40 / 4
76	922 373 40	Strip	2	InternKon: 924 260 40 / 5
77	922 374 40	Protection rubber	2	InternKon: 924 260 40 / 6
78	511 263 98	Thread pin	20	InternBDB: PM 10x25 /32500 \| InternKon: 924 260 40 / 7
79	507 037 98	Nut	20	InternBDB: M 10 /985 \| InternKon: 924 260 40 / 8
80		Cylinder with piping	2	InternBDB: 911 384 40 \| InternKon: 924 250 40 / 2	515-5035c

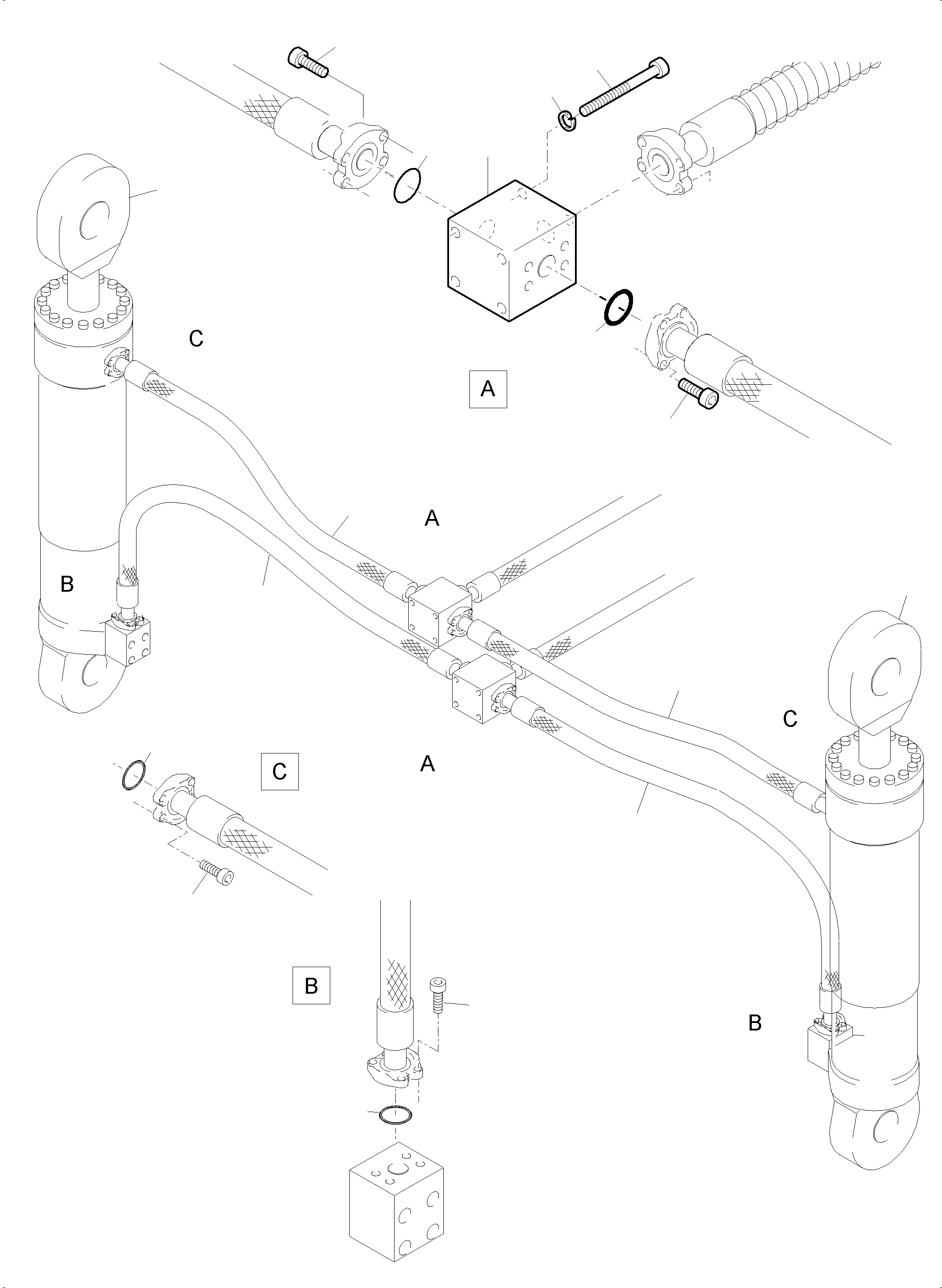

81	517 602 98	Hose assy. DN 32x2480	1	InternBDB: 350 / FS 1 1/4 FS 1 1/4 mit Rundspirale \| InternKon: 924 250 40 / 25
82	923 241 40	Manifold	2	InternKon: 924 250 40 / 22
83	517 192 98	Lock washer	8	InternBDB: 16 WN 655 937 40 \| InternKon: 924 250 40 / 27
84	319 444 99	Bolt	8	InternBDB: M16x150 /912 \| InternKon: 924 250 40 / 11
85	356 209 40	Flange seal	2	InternBDB: 1 1/2 \| InternKon: 924 250 40 / 28
86	319 288 99	Bolt	8	InternBDB: M16x50 /912 10.9 \| InternKon: 924 250 40 / 29
87	356 210 40	O-ring	6	InternBDB: 1 1/4" \| InternKon: 924 250 40 / 43
88	516 603 98	Hose assy. DN 32x 2280	1	InternBDB: 350 / FS 1 1/4 FS 1 1/4 mit Rundspirale \| InternKon: 924 250 40 / 26
89	319 209 99	Bolt	24	InternBDB: M14x45 /912 10.9 \| InternKon: 924 250 40 / 44
90	517 600 98	Hose assy. DN 32x1640	1	InternBDB: 350 / FS 1 1/4 FS 1 1/2 45 mit Rundspirale \| InternKon: 924 250 40 / 23
91	517 601 98	Hose assy. DN 32x1840	1	InternBDB: 350 / FS 1 1/4 FS 1 1/2 45 mit Rundspirale \| InternKon: 924 250 40 / 24
