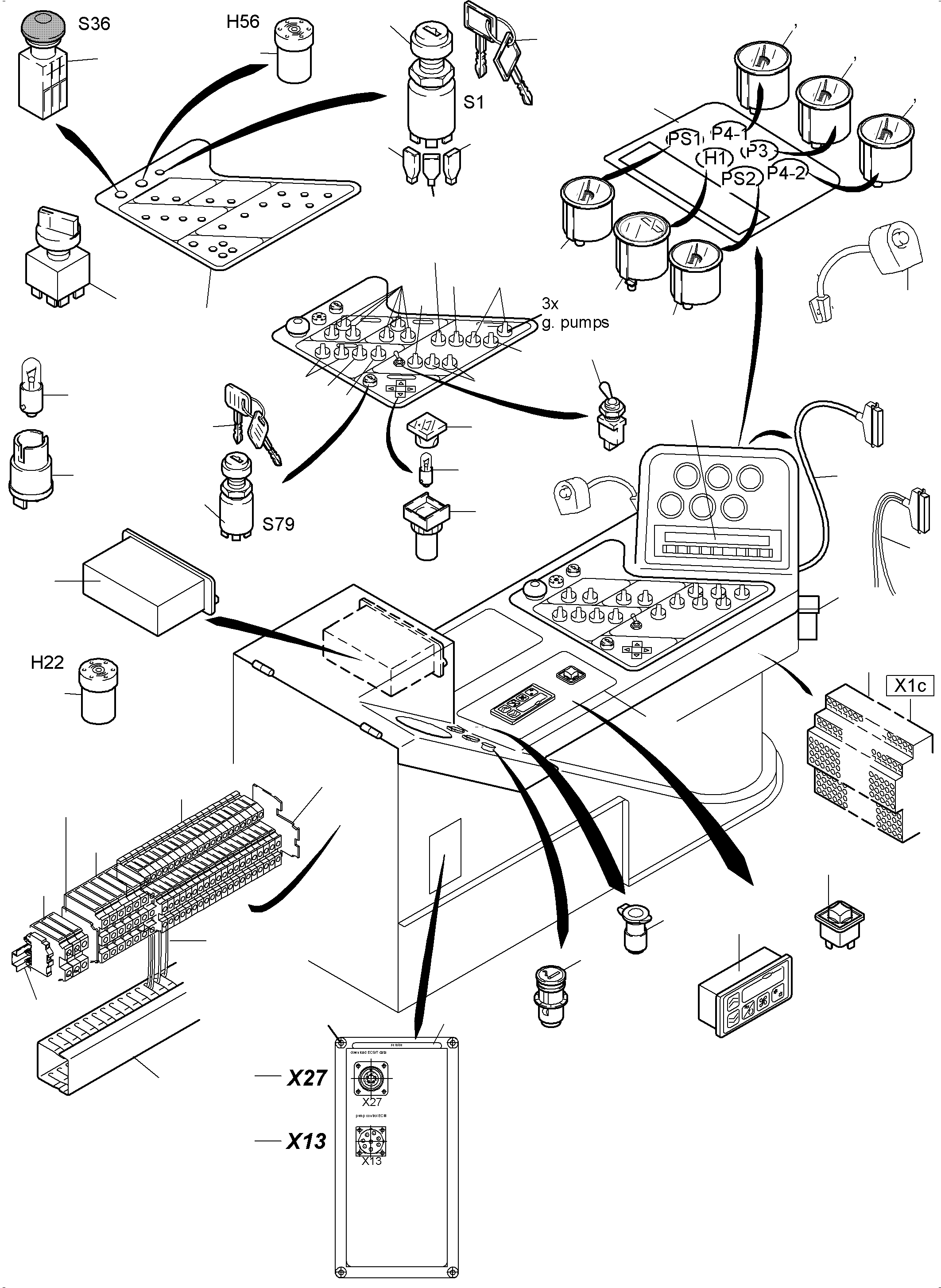

01 |
934 427 40
|
Switch plate (2 grease pumps) |
1 |
InternKon: 931 360 40 / 1
|
|
|
|
01 |
934 970 40
|
Switch plate (3 grease pumps) |
1 |
|
|
|
|
02 |
934 498 40
|
Instrumental board NT |
1 |
|
|
|
|
02 |
938 320 40
|
Instrumental board TT |
1 |
InternKon: 934 944 40 / 4
|
|
|
|
03 |
933 358 40
|
Shift plate |
1 |
InternKon: 925 780 40 / 32
|
|
|
|
04 |
551 272 40
|
Ignition switch |
1 |
InternBDB: Merit 327050 M601 | InternKon: 934 428 40 / 10
|
|
|
|
05 |
764 535 73
|
Key |
1 |
InternBDB: M601
|
|
|
|
06 |
896 716 40
|
Hour meter |
1 |
InternBDB: Moto-Meter 643.003.1006 D=52 mm | InternKon: 934 944 40 / 3
|
|
|
|
07 |
431 164 40
|
Thermometer cooling water (NT) |
2 |
InternBDB: Moto-Meter 641.011.1049 D=52 mm | InternKon: 934 944 40 / 1
|
|
|
|
08 |
431 163 40
|
Thermometer hydr. Oil (NT) |
1 |
InternBDB: Moto-Meter 641.003.7010 D=52 mm | InternKon: 934 944 40 / 4
|
|
|
|
09 |
515 105 40
|
Analog indicator (TT) |
3 |
InternBDB: Noris R60 | InternKon: 934 944 40 / 1
|
|
|
|
10 |
515 561 40
|
Pressure gauge 10 bar |
2 |
InternBDB: Moto-Meter 644.001.2222 D=52 mm | InternKon: 934 944 40 / 2
|
|
|
|
11 |
324 400 40
|
Turn switch |
8 |
InternBDB: Merit 261000 910 781 40 Pos. 02 | InternKon: 934 428 40 / 5
|
|
|
|
12 |
324 401 40
|
Turn switch 1-stage |
4 |
InternBDB: Merit 260490 | InternKon: 934 428 40 / 6
|
|
|
|
13 |
324 402 40
|
Turn switch 2-stage |
1 |
InternBDB: Merit 263490 | InternKon: 934 428 40 / 15
|
|
|
|
14 |
399 702 40
|
Turn switch |
2 |
InternBDB: Merit 262000 916 685 40 Pos. 03 | InternKon: 934 428 40 / 7
|
|
|
|
15 |
440 369 40
|
Turn switch 3-stage |
1 |
InternBDB: Merit 269000 | InternKon: 934 428 40 / 4
|
|
|
|
16 |
896 473 40
|
Toggle switch |
1 |
InternBDB: Kissling 08.1.2.10 F | InternKon: 934 428 40 / 8
|
|
|
|
17 |
515 299 40
|
Luminous touch contact |
4 |
InternBDB: 51.151.022 | InternKon: 934 428 40 / 12
|
|
|
|
18 |
515 300 40
|
Push hood |
4 |
InternBDB: 51-955.7 | InternKon: 934 428 40 / 13
|
|
|
|
19 |
414 866 40
|
Ignition switch |
1 |
InternBDB: Merit 327052 | InternKon: 934 428 40 / 2
|
|
|
|
20 |
698 239 73
|
Key |
1 |
InternBDB: Merit 14644
|
|
|
|
21 |
490 518 40
|
Alarm transmitter |
1 |
InternBDB: Lumitas 14810902 | InternKon: 934 428 40 / 3
|
|
|
|
22 |
592 661 40
|
Bulb |
4 |
InternBDB: 31-963.48 | InternKon: 934 428 40 / 11
|
|
|
|
23 |
631 556 40
|
Graphical symbol |
1 |
InternKon: 934 428 40 / 14
|
|
|
|
24 |
891 033 40
|
Emergency switch off assy. |
1 |
InternKon: 934 428 40 / 9
|
|
|
|
25 |
655 686 40
|
Impact key |
1 |
InternBDB: Elan EDRR 40 RT 027 1270 | InternKon: 891 033 40 / 1
|
|
|
|
26 |
655 676 40
|
Spring element |
1 |
InternBDB: Elan EFR 028 0287 | InternKon: 891 033 40 / 2
|
|
|
|
27 |
635 115 40
|
Contact element |
1 |
InternBDB: Elan EF 220 F.1 0281388 | InternKon: 891 033 40 / 3
|
|
|
|
28 |
635 652 40
|
Contact element |
1 |
InternBDB: Elan EF 303 F.2 0281380 | InternKon: 891 033 40 / 4
|
|
|
|
29 |
385 213 40
|
Cigarette lighter |
1 |
InternBDB: Hella 24V 8 EZ 00459512
|
|
|
|
31 |
440 307 99
|
Socket |
2 |
|
|
|
|
32 |
|
Display |
1 |
InternBDB: E-ST 907 496 40 | InternKon: 931 360 40 / 9
|
|
|
|
34 |
896 732 40
|
Console ashtray |
1 |
InternBDB: Happich 550 0112 / 114 002181 Matek
|
|
|
|
35 |
769 589 73
|
Switch |
1 |
InternBDB: Fa. Mekra 119/001 24V 592/001 083200230
|
|
|
|
36 |
940 835 40
|
Radio |
1 |
InternBDB: Siemens CD 5326 X-24V
|
|
|
|
41 |
505 955 99
|
Assembly rail |
-2 |
InternKon: 931 360 40 / 15
|
|
|
|
42 |
906 768 40
|
Through clamp 6,0 |
8 |
InternBDB: Wago 282-901
|
|
|
|
43 |
906 772 40
|
Cover plate |
1 |
InternBDB: Wago 282-325
|
|
|
|
44 |
515 213 40
|
Cable 1.0 |
-2 |
|
|
|
|
45 |
515 214 40
|
Cable 2.5 |
-2 |
|
|
|
|
46 |
471 731 99
|
Cable 6.0 |
-2 |
|
|
|
|
47 |
906 022 40
|
Cable 4.0 |
-2 |
|
|
|
|
48 |
270 873 40
|
Cable channel |
-2 |
|
|
|
|
49 |
891 087 40
|
Prostat assy. |
1 |
|
|
|
|
50 |
796 440 73
|
Data cable X27-PC |
1 |
InternKon: 891 087 40 / 2
|
|
|
|
54 |
|
Control unit assy., see air conditioning |
-2 |
|
|
|
|
55 |
440 151 99
|
Tab 1.5 |
-2 |
|
|
|
|
56 |
055 115 40
|
Tab 1.5 - 2.5 |
-2 |
|
|
|
|
57 |
697 269 73
|
Tab 4.0 - 6.0 yellow |
-2 |
|
|
|
|
58 |
507 382 99
|
Bulb 2 W |
-2 |
|
|
|
|
59 |
507 384 99
|
Bulb 3 W |
-2 |
|
|
|
|
60 |
966 740
|
Socket |
-2 |
|
|
|
|
61 |
966 975
|
Socket |
-2 |
|
|
|
|
62 |
906 769 40
|
Through clamp 16,0 |
2 |
InternBDB: Wago 283-901
|
|
|
|
63 |
906 773 40
|
Cover plate |
1 |
InternBDB: Wago 283-325
|
|
|
|
64 |
659 872 40
|
Data cable ECS /display - X27 |
1 |
InternKon: 931 360 40 / 12
|
|
|
|
66 |
906 612 40
|
Through clamp 2.5 |
50 |
InternBDB: Wago 870-531 | InternKon: 931 360 40 / 18
|
|
|
|
67 |
906 613 40
|
Cover plate |
2 |
InternBDB: Wago 870-573 | InternKon: 931 360 40 / 19
|
|
|
|
68 |
906 630 40
|
Protective wire clip 2.5 |
10 |
InternBDB: Wago 870-537
|
|
|
|
69 |
898 668 40
|
Socket assy |
1 |
InternBDB: TL | InternKon: 931 360 40 / 10
|
|
|
|
70 |
659 871 40
|
Connection cable assy |
1 |
InternKon: 931 360 40 / 8
|
|
|
|
71 |
794 380 73
|
Lamp |
1 |
InternBDB: Hella 2AB 004 532-031
|
|
|
|
72 |
794 381 73
|
Bulb |
1 |
InternBDB: Hella 2GP 002 067-241
|
|
|
|
73 |
940 047 40
|
Alarm transmitter |
1 |
InternBDB: Lumitas 31801002 88dB | InternKon: 931 360 40 / 21
|
|
|
|
75 |
919 429 40
|
Plate |
1 |
InternBDB: TL | InternKon: 931 360 40 / 11
|
|
|
|
78 |
318 448 99
|
Bolt |
4 |
InternBDB: M4x12 /963
|
|
|
|
79 |
513 357 98
|
Nut |
4 |
InternBDB: M 4 /934
|
|
|
|
|$$69 |
|
|
-2 |
|
|
|
|
|$$70 |
|
|
-2 |
|
|
