PC5500-6 S/N 15056

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	934 427 40	Switch plate (2 grease pumps)	1	InternKon: 931 360 40 / 1
?	934 970 40	Switch plate (3 grease pumps)	1
?	934 498 40	Instrumental board NT	1
?	938 320 40	Instrumental board TT	1	InternKon: 934 944 40 / 4
?	933 358 40	Shift plate	1	InternKon: 925 780 40 / 32
?	551 272 40	Ignition switch	1	InternBDB: Merit 327050 M601 \| InternKon: 934 428 40 / 10
?	764 535 73	Key	1	InternBDB: M601
?	896 716 40	Hour meter	1	InternBDB: Moto-Meter 643.003.1006 D=52 mm \| InternKon: 934 944 40 / 3
?	431 164 40	Thermometer cooling water (NT)	2	InternBDB: Moto-Meter 641.011.1049 D=52 mm \| InternKon: 934 944 40 / 1
?	431 163 40	Thermometer hydr. Oil (NT)	1	InternBDB: Moto-Meter 641.003.7010 D=52 mm \| InternKon: 934 944 40 / 4
?	515 105 40	Analog indicator (TT)	3	InternBDB: Noris R60 \| InternKon: 934 944 40 / 1
?	515 561 40	Pressure gauge 10 bar	2	InternBDB: Moto-Meter 644.001.2222 D=52 mm \| InternKon: 934 944 40 / 2
?	324 400 40	Turn switch	8	InternBDB: Merit 261000 910 781 40 Pos. 02 \| InternKon: 934 428 40 / 5
?	324 401 40	Turn switch 1-stage	4	InternBDB: Merit 260490 \| InternKon: 934 428 40 / 6
?	324 402 40	Turn switch 2-stage	1	InternBDB: Merit 263490 \| InternKon: 934 428 40 / 15
?	399 702 40	Turn switch	2	InternBDB: Merit 262000 916 685 40 Pos. 03 \| InternKon: 934 428 40 / 7
?	440 369 40	Turn switch 3-stage	1	InternBDB: Merit 269000 \| InternKon: 934 428 40 / 4
?	896 473 40	Toggle switch	1	InternBDB: Kissling 08.1.2.10 F \| InternKon: 934 428 40 / 8
?	515 299 40	Luminous touch contact	4	InternBDB: 51.151.022 \| InternKon: 934 428 40 / 12
?	515 300 40	Push hood	4	InternBDB: 51-955.7 \| InternKon: 934 428 40 / 13
?	414 866 40	Ignition switch	1	InternBDB: Merit 327052 \| InternKon: 934 428 40 / 2
?	698 239 73	Key	1	InternBDB: Merit 14644
?	490 518 40	Alarm transmitter	1	InternBDB: Lumitas 14810902 \| InternKon: 934 428 40 / 3
?	592 661 40	Bulb	4	InternBDB: 31-963.48 \| InternKon: 934 428 40 / 11
?	631 556 40	Graphical symbol	1	InternKon: 934 428 40 / 14
?	891 033 40	Emergency switch off assy.	1	InternKon: 934 428 40 / 9
?	655 686 40	Impact key	1	InternBDB: Elan EDRR 40 RT 027 1270 \| InternKon: 891 033 40 / 1
?	655 676 40	Spring element	1	InternBDB: Elan EFR 028 0287 \| InternKon: 891 033 40 / 2
?	635 115 40	Contact element	1	InternBDB: Elan EF 220 F.1 0281388 \| InternKon: 891 033 40 / 3
?	635 652 40	Contact element	1	InternBDB: Elan EF 303 F.2 0281380 \| InternKon: 891 033 40 / 4
?	385 213 40	Cigarette lighter	1	InternBDB: Hella 24V 8 EZ 00459512
?	440 307 99	Socket	2
?		Display	1	InternBDB: E-ST 907 496 40 \| InternKon: 931 360 40 / 9
?	896 732 40	Console ashtray	1	InternBDB: Happich 550 0112 / 114 002181 Matek
?	769 589 73	Switch	1	InternBDB: Fa. Mekra 119/001 24V 592/001 083200230
?	940 835 40	Radio	1	InternBDB: Siemens CD 5326 X-24V
?	505 955 99	Assembly rail	-2	InternKon: 931 360 40 / 15
?	906 768 40	Through clamp 6,0	8	InternBDB: Wago 282-901
?	906 772 40	Cover plate	1	InternBDB: Wago 282-325
?	515 213 40	Cable 1.0	-2
?	515 214 40	Cable 2.5	-2
?	471 731 99	Cable 6.0	-2
?	906 022 40	Cable 4.0	-2
?	270 873 40	Cable channel	-2
?	891 087 40	Prostat assy.	1
?	796 440 73	Data cable X27-PC	1	InternKon: 891 087 40 / 2
?		Control unit assy., see air conditioning	-2
?	440 151 99	Tab 1.5	-2
?	055 115 40	Tab 1.5 - 2.5	-2
?	697 269 73	Tab 4.0 - 6.0 yellow	-2
?	507 382 99	Bulb 2 W	-2
?	507 384 99	Bulb 3 W	-2
?	966 740	Socket	-2
?	966 975	Socket	-2
?	906 769 40	Through clamp 16,0	2	InternBDB: Wago 283-901
?	906 773 40	Cover plate	1	InternBDB: Wago 283-325
?	659 872 40	Data cable ECS /display - X27	1	InternKon: 931 360 40 / 12
?	906 612 40	Through clamp 2.5	50	InternBDB: Wago 870-531 \| InternKon: 931 360 40 / 18
?	906 613 40	Cover plate	2	InternBDB: Wago 870-573 \| InternKon: 931 360 40 / 19
?	906 630 40	Protective wire clip 2.5	10	InternBDB: Wago 870-537
?	898 668 40	Socket assy	1	InternBDB: TL \| InternKon: 931 360 40 / 10
?	659 871 40	Connection cable assy	1	InternKon: 931 360 40 / 8
?	794 380 73	Lamp	1	InternBDB: Hella 2AB 004 532-031
?	794 381 73	Bulb	1	InternBDB: Hella 2GP 002 067-241
?	940 047 40	Alarm transmitter	1	InternBDB: Lumitas 31801002 88dB \| InternKon: 931 360 40 / 21
?	919 429 40	Plate	1	InternBDB: TL \| InternKon: 931 360 40 / 11
?	318 448 99	Bolt	4	InternBDB: M4x12 /963
?	513 357 98	Nut	4	InternBDB: M 4 /934
?			-2
?			-2

Komatsu PC5500-6 S/N 15056 parts catalog PDF

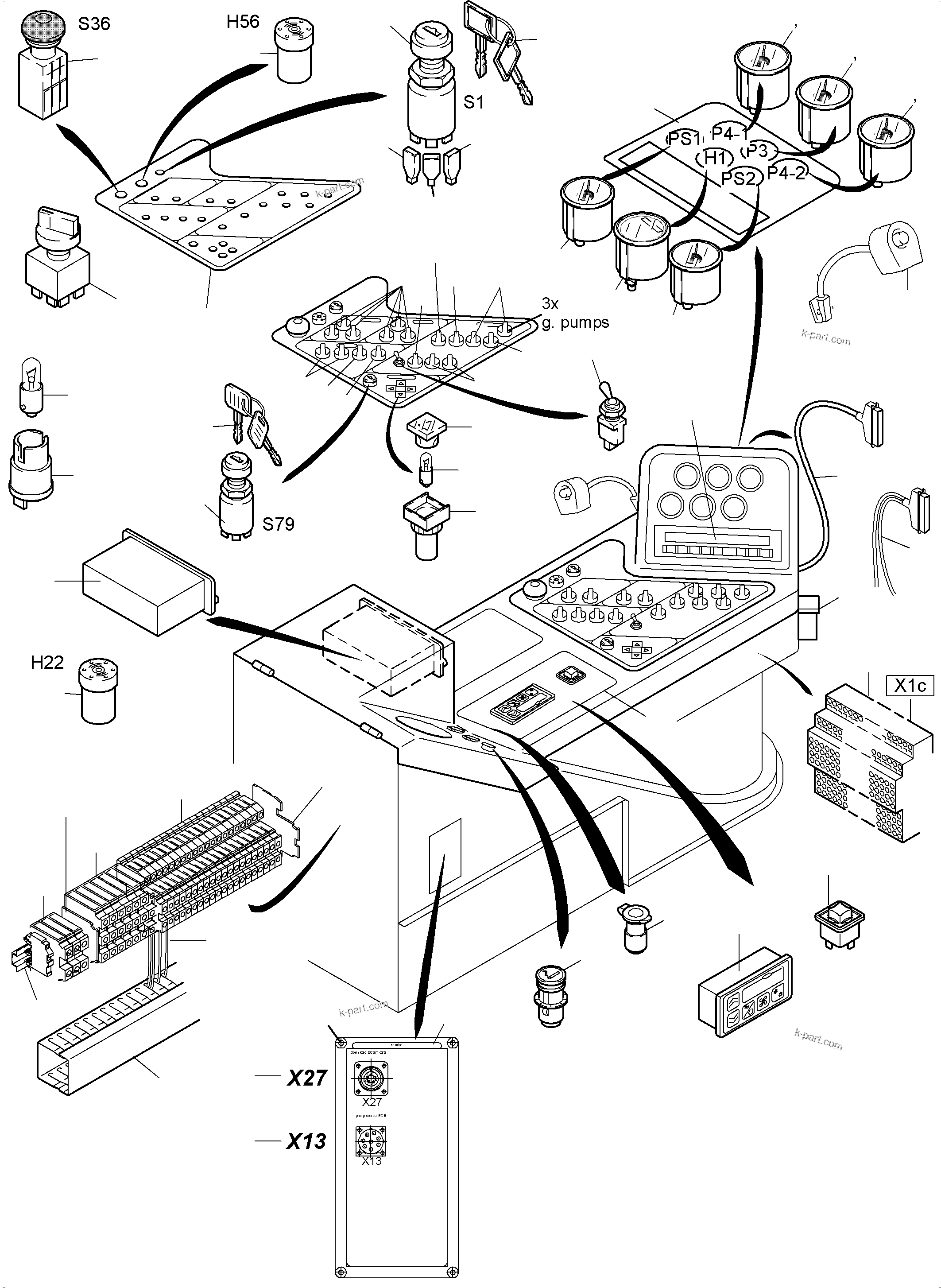

OPERATION PANEL NT/TT (515-1922c) in PC5500-6 S/N 15056. Diagram image and parts list.
