Diagram image 1 of 6

PC5500-6 S/N 15056

01 01 02 02 03 04 04 04 04 05 06 07 08 10 11 15 16 17 18 19 20 21 27 53 53 53 54 55 56 57 58 59 76

PC5500-6 S/N 15056

13 13 15 15 15 15 22 22 27 28 31 31 31 32 32 32 39 40 42 42 42 43 47 48 49 49 51 51 52 70 71 71 71 75

PC5500-6 S/N 15056

13 23 23 24 24 24 25 25 25 25 26 26 26 26 27 28 29 31 32 35 35 35 35 36 39 39 39 42 42 42 50 50 50 50 74 75

PC5500-6 S/N 15056

13 13 13 13 14 15 22 25 25 26 26 27 27 27 28 28 28 28 31 31 32 32 32 35 36 39 41 41 41 42 42 48 50 50 52 69 70 74 74 75

PC5500-6 S/N 15056

12 13 14 15 15 15 22 23 23 24 25 26 26 29 30 31 32 35 37 39 39 40 42 42 42 43 43 44 45 46 47 48 48 48 48 51 51 52 52 62 63 64 64 65 65 66 67 68 70 70 70 75

PC5500-6 S/N 15056

13 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 22 38 38 38 38 38 38 38 43 43 43 43 43 43 43 43 52 52 75

#	Part Number	Partname	Quantity	Options	Reference
01		Spread beam headlamp	4	InternBDB: Hella 1 GA 998 534-011 896 745 40 \| InternKon: 923 576 40 / 4	991-0377
02	340 461 99	Washer	32	InternBDB: 5,3 /125 \| InternKon: 923 576 40 / 10
03	507 036 98	Nut	16	InternBDB: M 5 /985 \| InternKon: 923 576 40 / 11
04	504 010 98	Bolt	32	InternBDB: M5x16 /933 \| InternKon: 923 576 40 / 9
05	634 009 40	Spotlight	10	InternBDB: AB-05-03 ohne Lampe \| InternKon: 926 550 40 / 1
06	507 383 99	Halogen lamp	10	InternBDB: H1 /24V /70W \| InternKon: 926 550 40 / 2
07	769 155 73	Seal	10	InternBDB: ABL 18-11401
08	769 156 73	Pane, white	10	InternBDB: ABL 18-10201
10	621 314 40	Camswitch	1	InternBDB: Klцckner-Mцller P1-25/I-SI-SW+H/11-P1/P3Z \| InternKon: 923 535 40 / 12
11	057 278 40	Socket	3	InternBDB: 0352 221 001 \| InternKon: 923 535 40 / 11
12	655 631 40	Pipe adapter NW 12/10	4	InternBDB: BAVR 12T10T \| InternKon: 923 156 40 / 8
13	517 322 98	Nut	3	InternBDB: M20x1,5 DINEN 50262 \| InternKon: 923 156 40 / 34
14	655 810 40	Pipe adapter NW 29/12	1	InternBDB: BAVR 29G12T \| InternKon: 923 156 40 / 3
15	655 649 40	Protecting hose DN 10	-2	InternBDB: VCST-10B PMA \| InternKon: 923 156 40 / 22
16	898 629 40	Rotaflare light yellow assy.	1
17	898 612 40	Retainer	1	InternKon: 898 629 40 / 1
18	896 497 40	Rotaflare light 24 yellow	1	InternBDB: Hella 2 RL 006 846-01 \| InternKon: 898 629 40 / 2
19	655 621 40	Cable union NW 10	1	InternBDB: PMA BVNV-P090T \| InternKon: 898 629 40 / 3
20	180 322 40	Plug	1	InternBDB: Bosch 0986 352 000 \| InternKon: 898 629 40 / 5
21	323 960 40	Tab	2	InternBDB: 6,3x0,8 35135 \| InternKon: 898 629 40 / 6
22	907 476 40	Cable union NW 10	6	InternBDB: PMA BVNV-M120 \| InternKon: 923 156 40 / 15
23	903 422 40	Plug head light assy.	4	InternKon: 923 156 40 / 2
24	907 692 40	Fitting M16/NW12	4	InternBDB: BVIR M162 \| InternKon: 923 156 40 / 19
25	907 704 40	Cable union NW12	4	InternBDB: Pflitsch 21650 YNPM 3x3,5 \| InternKon: 923 156 40 / 20
26	896 521 40	End pin	6	InternBDB: Pflitsch B0 4,0x25 916 610 40/21 \| InternKon: 923 156 40 / 21
27	515 214 40	Cable 2,5	-2	InternKon: 923 156 40 / 28
28	056 071 40	Cable sleeve 2,5	31	InternKon: 923 156 40 / 32
29	891 051 40	Plug with bushings assy.	2	InternKon: 923 156 40 / 1
30	891 031 40	Plug with pins assy.	1
31	056 070 40	Cable sleeve 1,0-1,5	46	InternKon: 923 156 40 / 31
32	515 213 40	Cable 1,0	-2	InternKon: 923 156 40 / 27
35	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12 B \| InternKon: 923 156 40 / 23
36	907 623 40	Cable union NW 12	1	InternBDB: BVNV-M202 \| InternKon: 923 156 40 / 16
37	907 693 40	Fitting M20/NW17	1	InternBDB: BVIR-M207 \| InternKon: 923 144 40 / 21
38	655 628 40	T-Distributor DN 10	6	InternBDB: PMA BFTL-101010 TTT \| InternKon: 923 156 40 / 4
39	655 629 40	T-Distributor DN 17	6	InternBDB: PMA BFTL-171717 GGG \| InternKon: 923 156 40 / 5
40	655 632 40	Pipe adapter DN 17/10	7	InternBDB: BAVR-17 G 10 T \| InternKon: 923 156 40 / 9
41	907 478 40	Cable union NW 17	3	InternBDB: BVNV-M207 \| InternKon: 923 156 40 / 17
42	655 651 40	Cable protection hose DN 17	-2	InternBDB: VCSG-17 B \| InternKon: 923 156 40 / 24
43	907 476 40	Cable union NW12	10	InternBDB: BVNV-M120 \| InternKon: 923 156 40 / 18
44	256 514 40	Name plate	22	InternBDB: BS5 55476 \| InternKon: 923 156 40 / 29
45	056 292 40	Cable strap	22	InternBDB: TY 23 M \| InternKon: 923 156 40 / 30
46	907 711 40	Cable union M6x4,0	1	InternBDB: 22553 YNPM6x4,0 \| InternKon: 923 144 40 / 24
47	655 634 40	Pipe adapter DN 23/17	2	InternBDB: BAVR-23 G 17 G \| InternKon: 923 156 40 / 11
48	655 630 40	T-Distributor DN 29/23	5	InternBDB: BFTL-292323 GGG \| InternKon: 923 156 40 / 6
49	906 079 40	T-Distributor DN 29	2	InternBDB: BFTL-292929 GGG \| InternKon: 923 156 40 / 7
50	655 633 40	Pipe adapter DN 17/12	1	InternBDB: BAVR-17 G 12 T \| InternKon: 923 156 40 / 10
51	655 809 40	Pipe adapter DN 29/10	5	InternBDB: BAVR-29 G 10 T \| InternKon: 923 156 40 / 12
52	517 320 98	Plug	10	InternBDB: M12x1,5 DINEN 50262 \| InternKon: 923 156 40 / 39
53	320 974 99	Screw	10	InternBDB: M4x10 /84 \| InternKon: 923 576 40 / 12
54	317 319 40	Threaded block	10	InternKon: 923 576 40 / 15
55	319 143 99	Screw	10	InternBDB: M8x40 /912 \| InternKon: 923 576 40 / 13
56	343 108 99	Lock washer	10	InternBDB: 8 /127 \| InternKon: 923 576 40 / 14
57	321 010 99	Screw	4	InternBDB: M5x25 /84 \| InternKon: 923 535 40 / 17
58	340 461 99	Washer	4	InternBDB: 5,3 /125
59	635 143 40	Emergency switch-off	3	InternBDB: Klцckner-Mцller FAK-R/V/KC11A/I \| InternKon: 923 535 40 / 13
62	003 670 79	Clip	3	InternKon: 903 399 40 / 1
63	145 831 40	Clamp 20/15	1	InternBDB: RSGU 1100 20/15 \| InternKon: 898 699 40 / 1
64	510 210 98	Thread pin	30	InternBDB: PM 6x20 /32500 \| InternKon: 898 699 40 / 2
65	507 025 98	Nut	30	InternBDB: M 6 /985 \| InternKon: 898 699 40 / 3
66	006 301 98	Clamp 12/15	17	InternBDB: RSGU 1100 12/15 \| InternKon: 910 019 40 / 1
67	534 092 99	Clamp 8/15	1	InternBDB: RSGU 1100 8/15 \| InternKon: 919 416 40 / 1
68	350 762 99	Washer	3	InternBDB: 6,6 /440 \| InternKon: 903 399 40 / 4
69	655 635 40	Pipe adapter DN 29/17	1	InternBDB: BAVR-29 G 17 G \| InternKon: 923 156 40 / 14
70	655 652 40	Protecting hose DN 23	-2	InternBDB: VCSG-23B \| InternKon: 923 156 40 / 25
71	655 696 40	Protecting hose DN 29	-2	InternBDB: VCSG-29B \| InternKon: 923 156 40 / 26
74	940 463 40	Insulating tube	-2	InternBDB: 7x0,7/ Shore 70 \| InternKon: 923 156 40 / 38
75	923 156 40	Harness - engine housing	1	InternKon: 923 160 40 / 10
76	551 362 40	Camswitch	2	InternBDB: T0-1-8220/I \| InternKon: 923 576 40 / 6

Komatsu PC5500-6 S/N 15056 parts catalog PDF

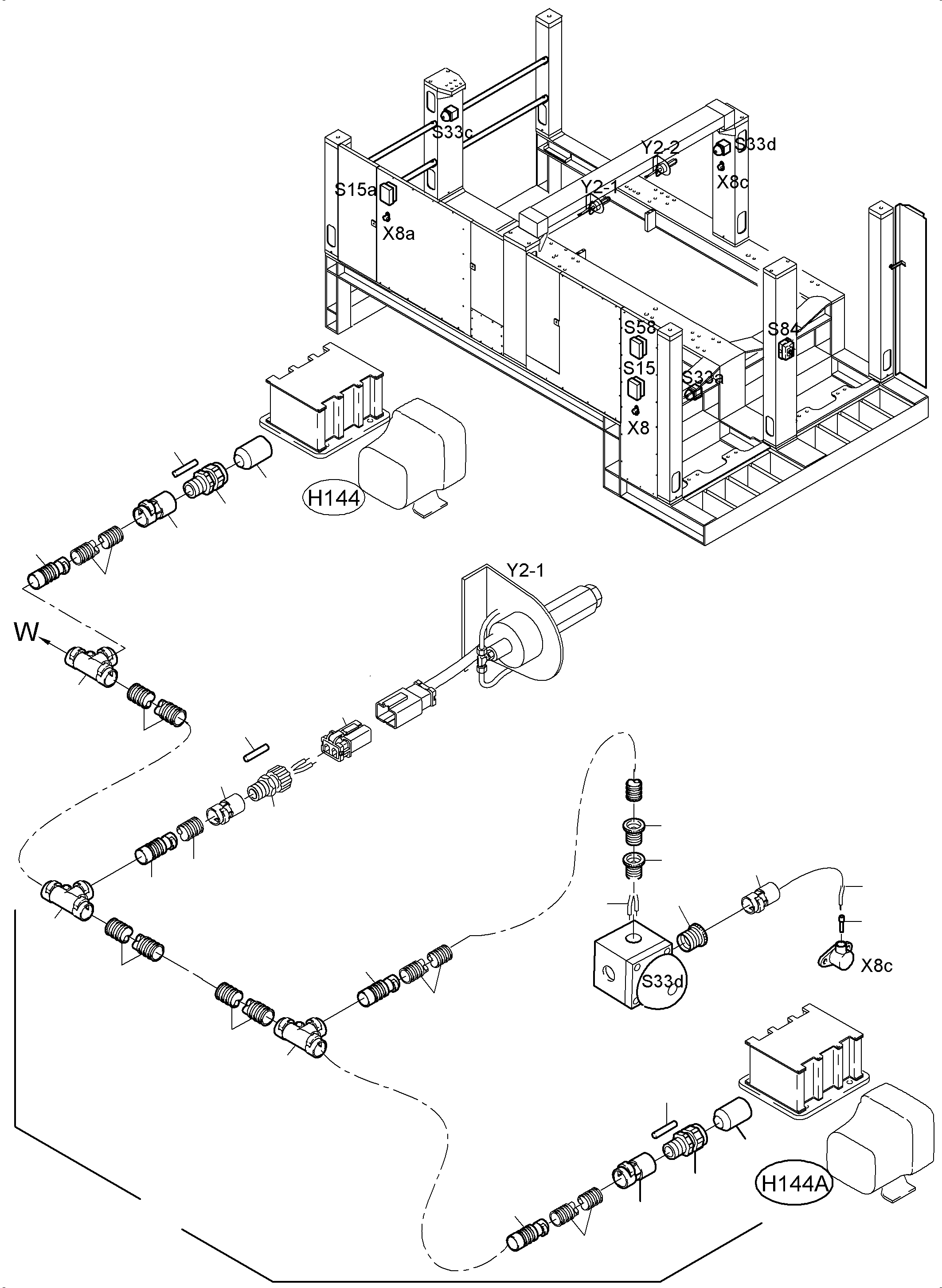

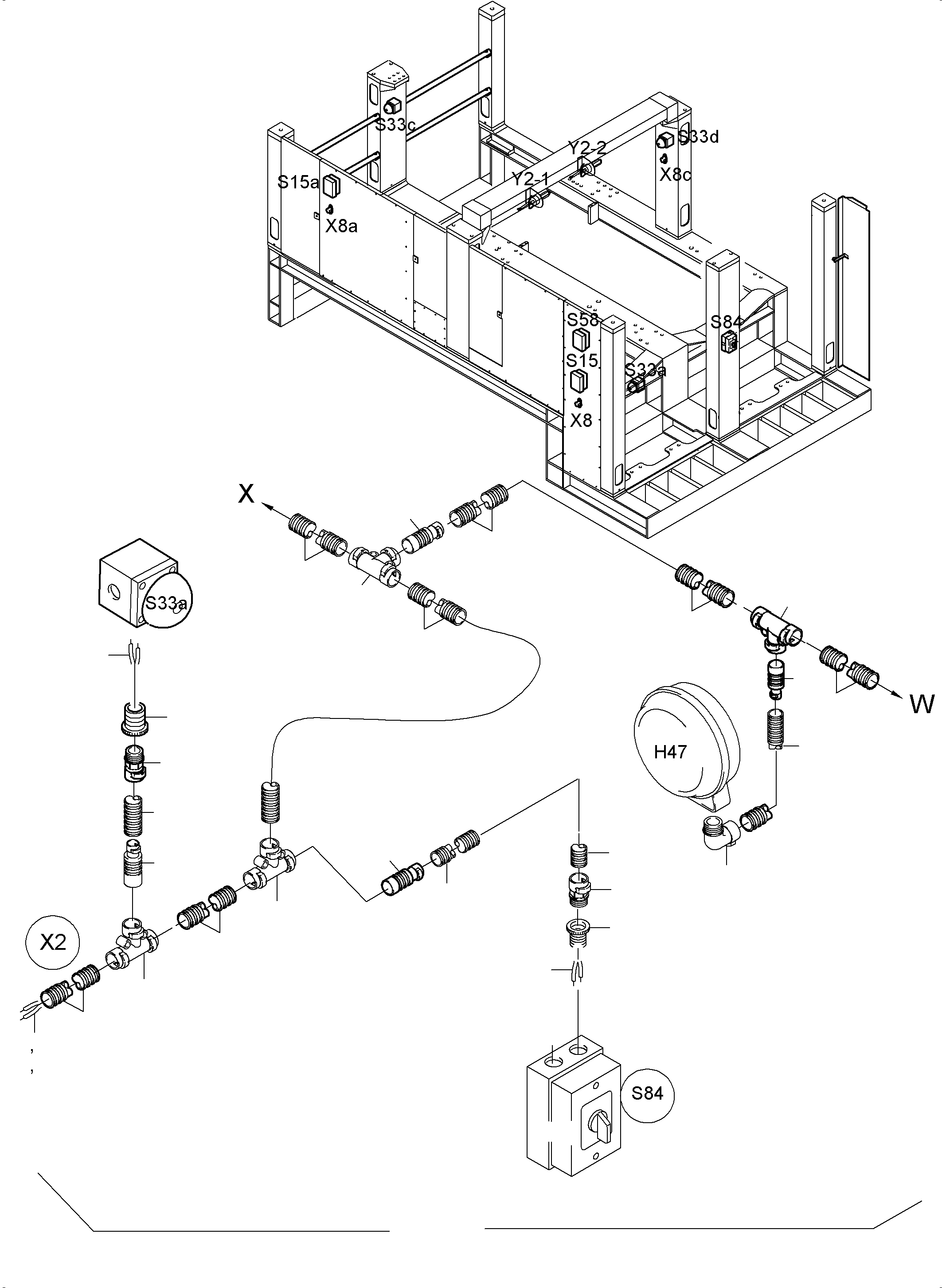

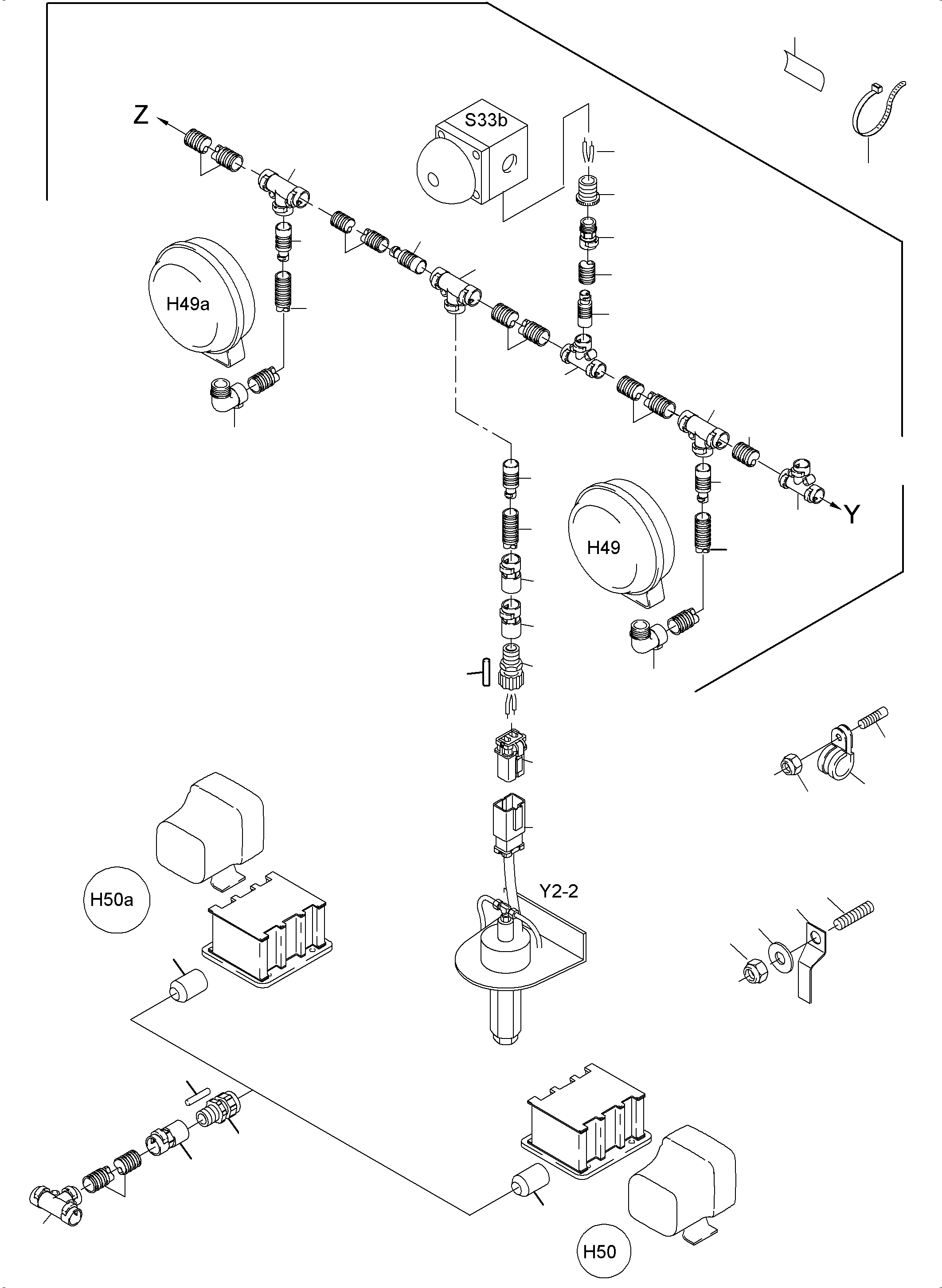

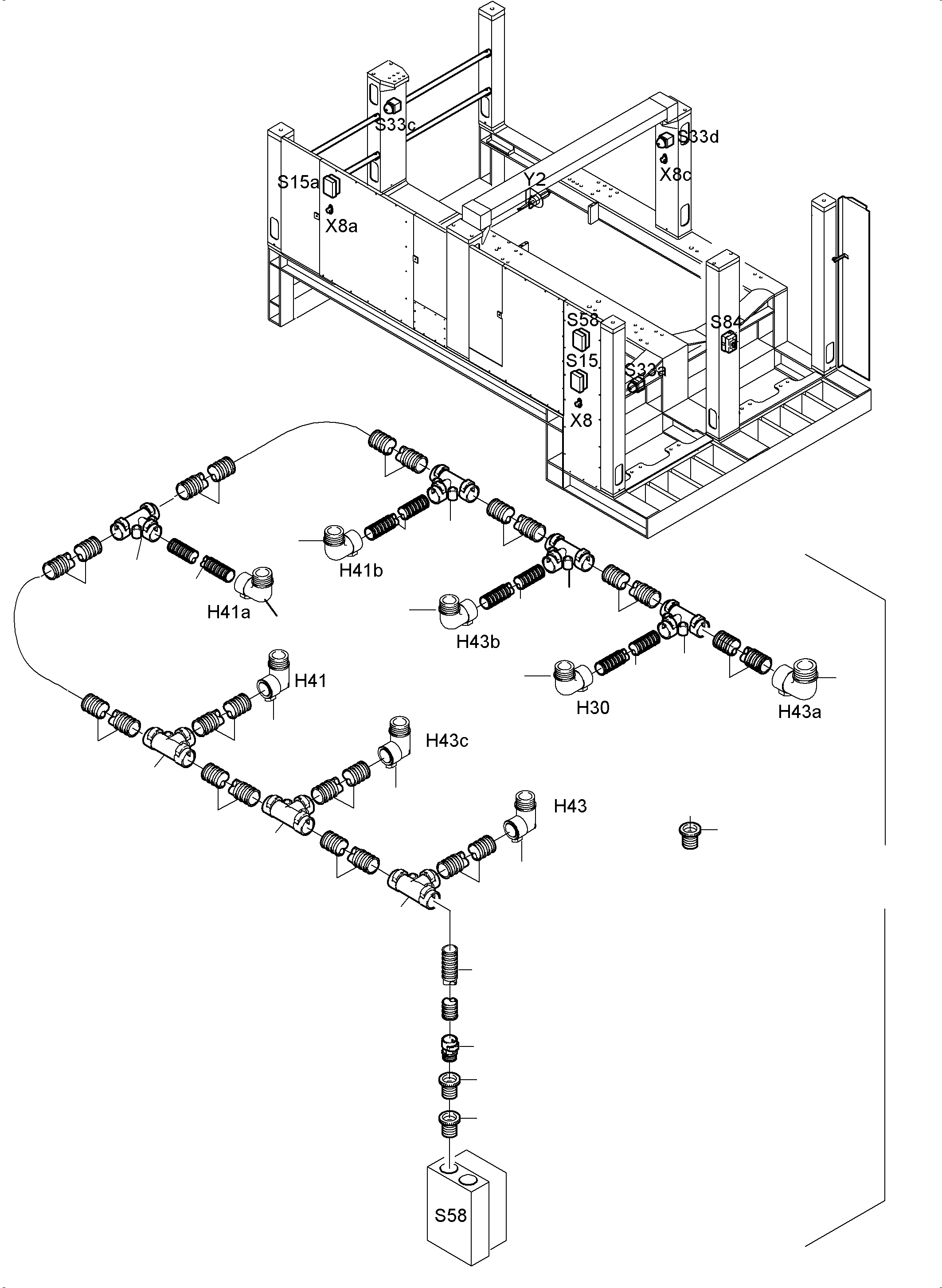

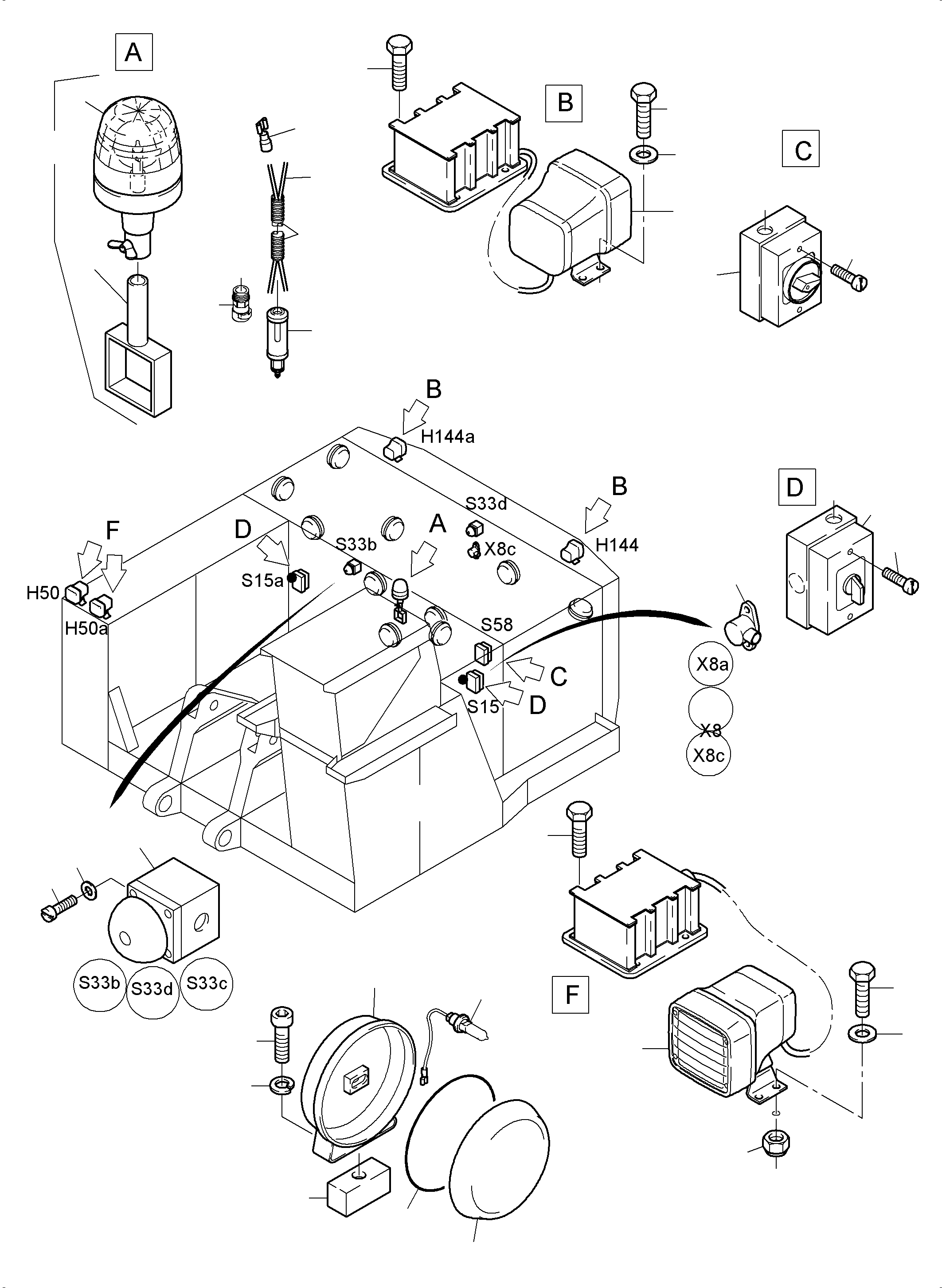

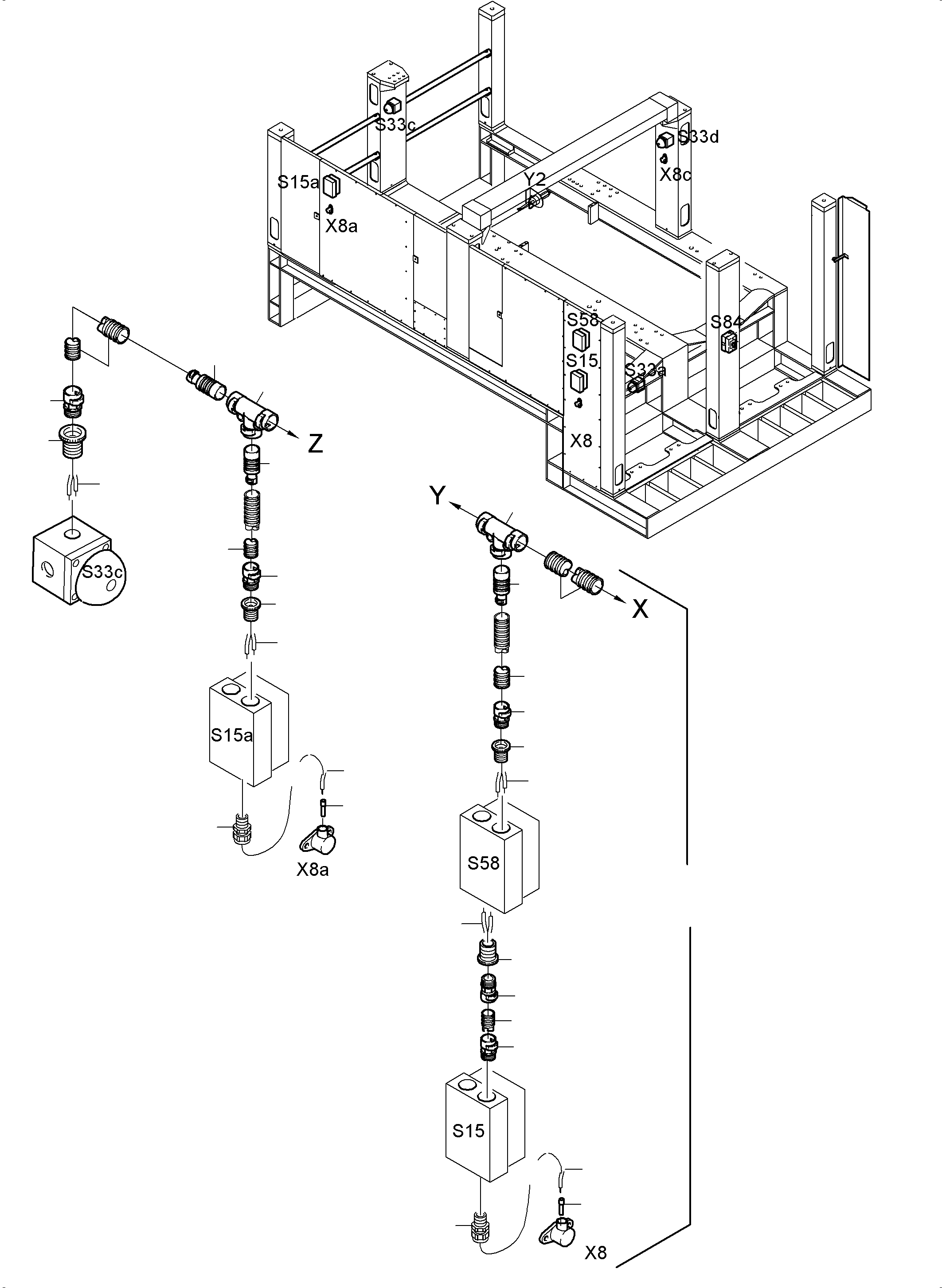

LIGHTING EQUIPMENT (515-2105k) in PC5500-6 S/N 15056. Diagram image and parts list.
