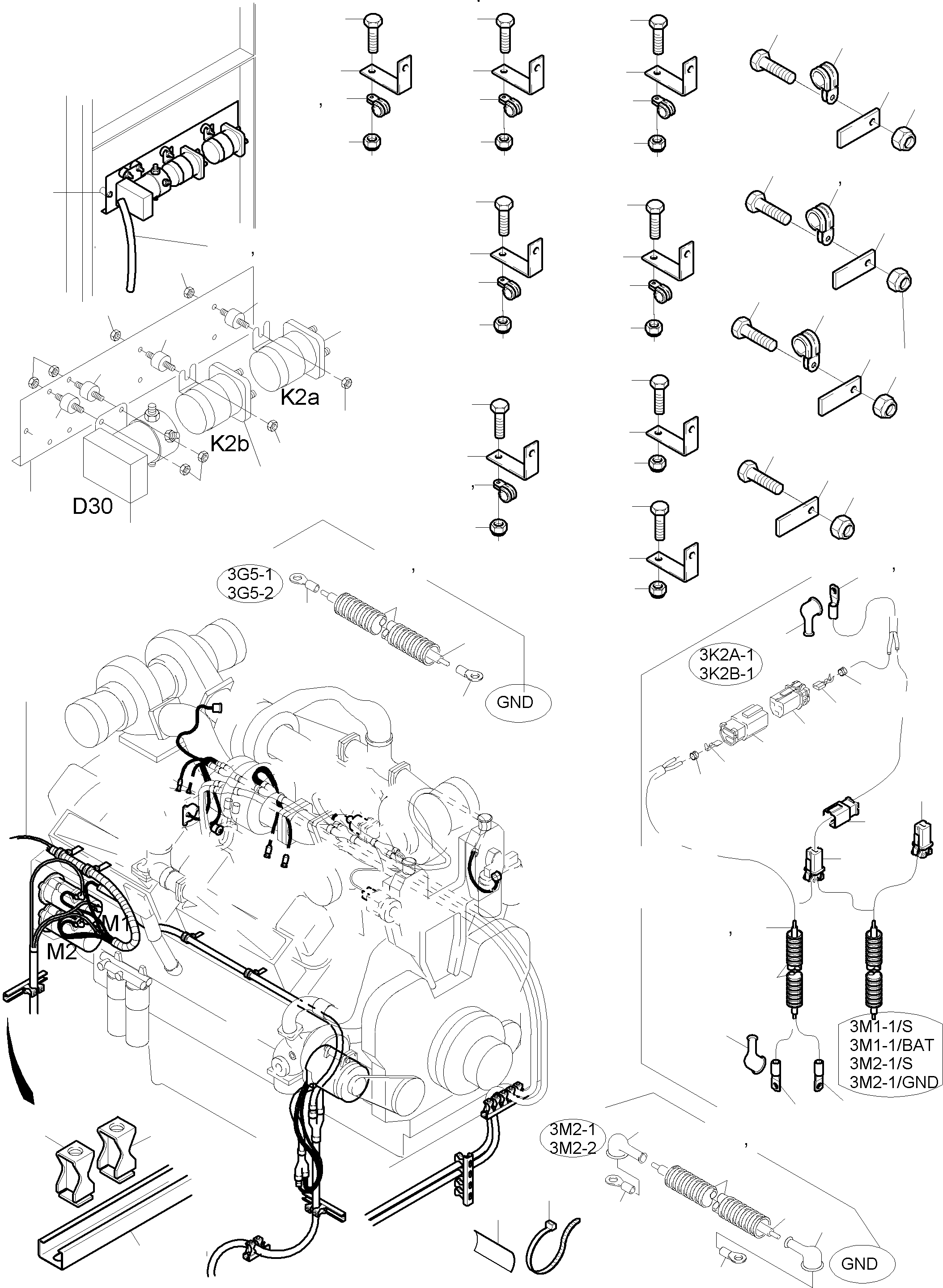

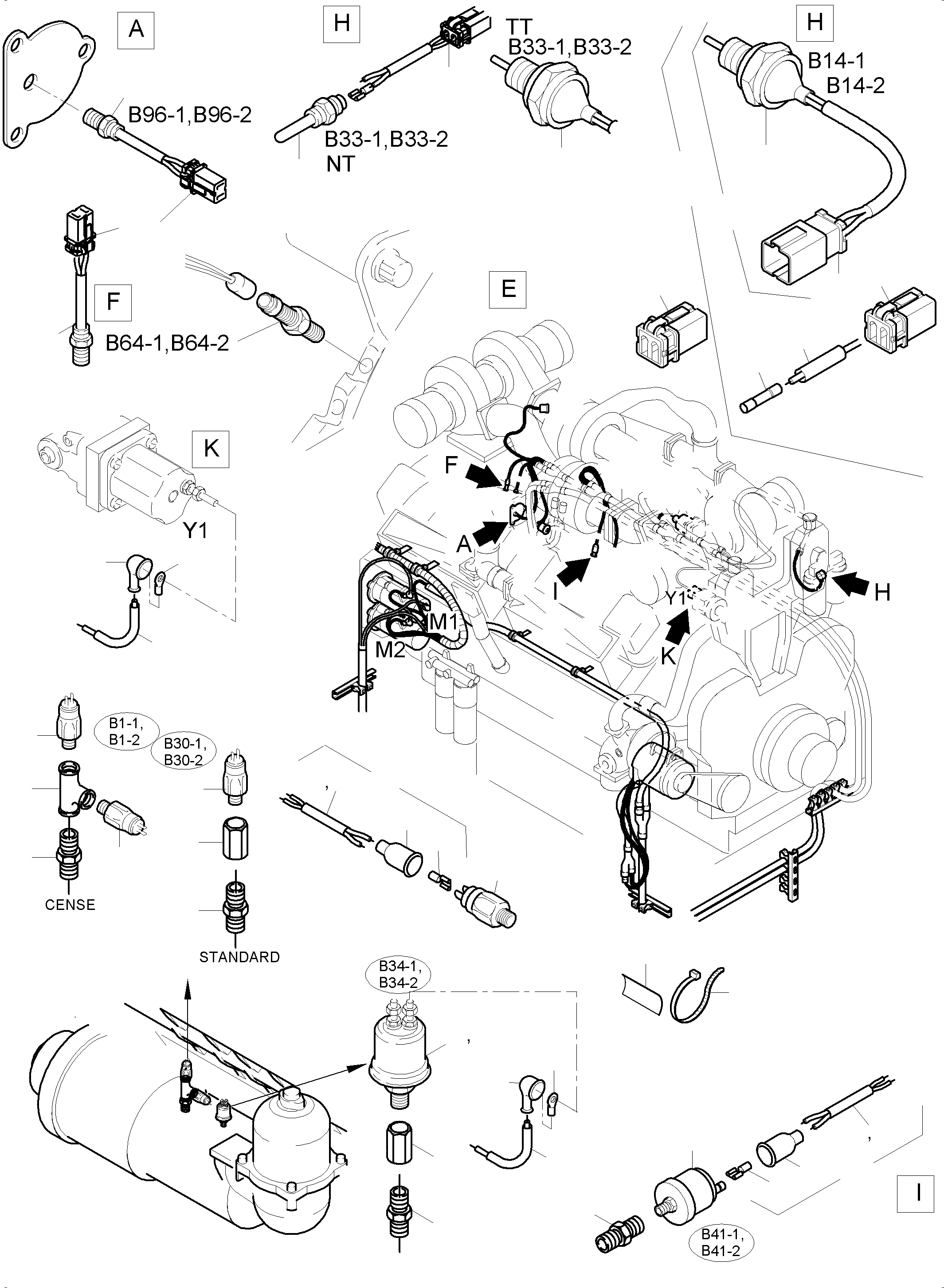

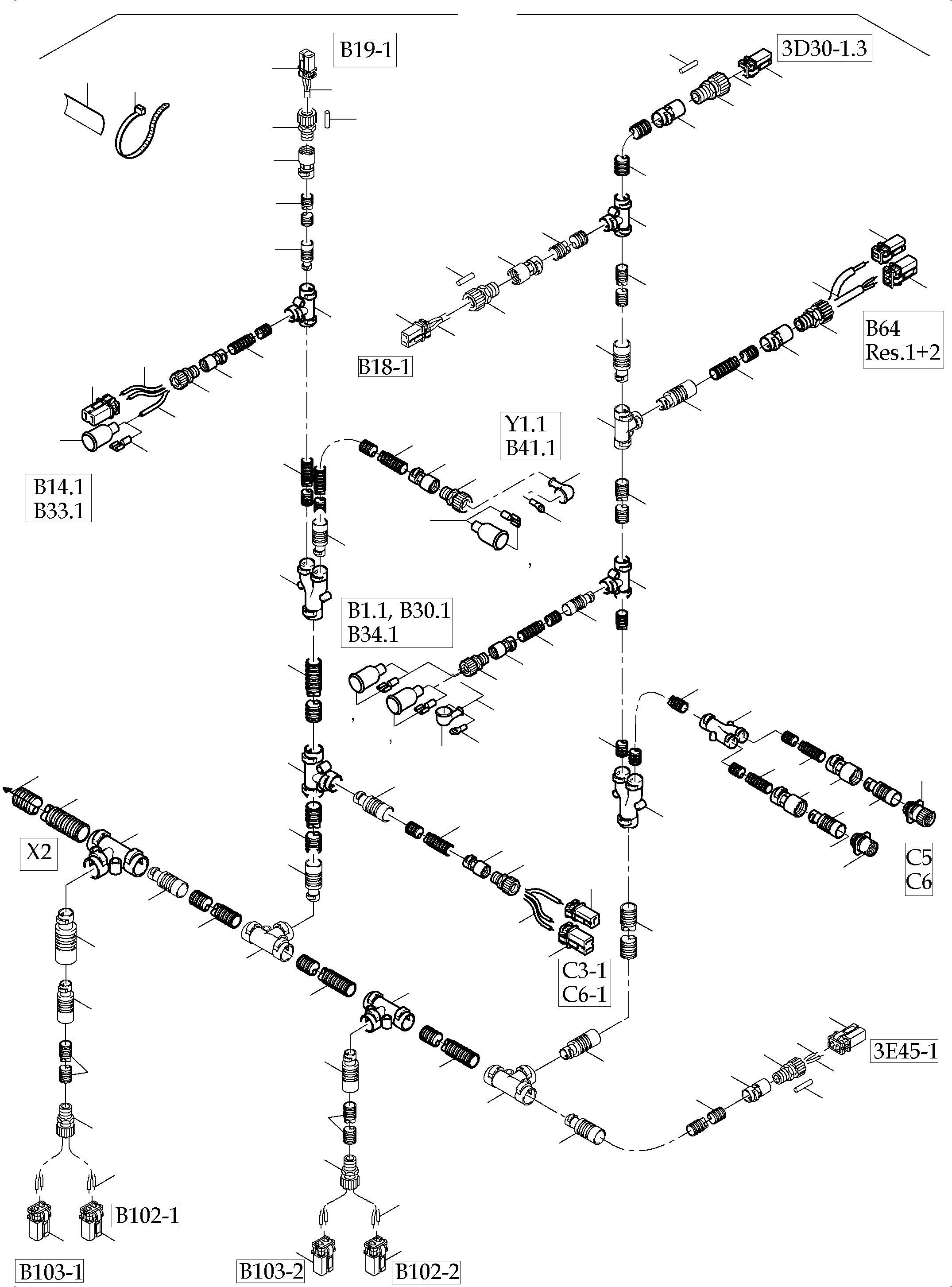

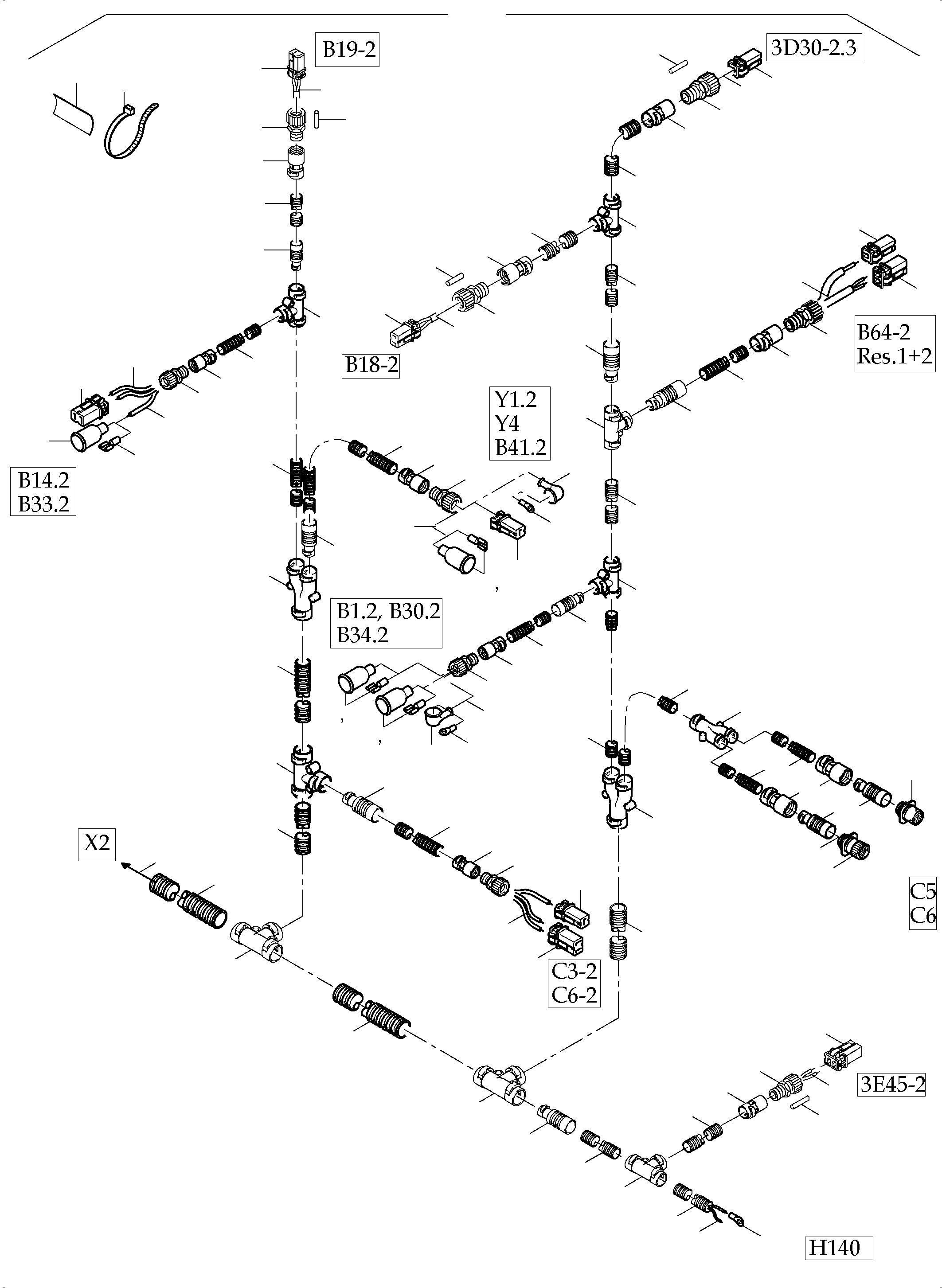

Diagram image 1 of 4

PC5500-6 S/N 15056

110 111 112 112 113 113 114 116 117 118 119 120 121 121 121 122 122 122 123 123 124 125 126 127 128 129 130 131 132 132 133 134 135 136 15 15 15 16 16 17 17 17 18 18 19 19 20 20 20 20 21 21 21 22 23 24 25 26 26 27 27 28 28 28 28 28 28 28 28 28 28 29 29 29 29 29 29 29 29 29 31 34 35 36 41 41 42 43 44 45 45 45 45 46 47 47 47 47 47 47 48 53 54 55 87 87 91 92 96

PC5500-6 S/N 15056

100 101 101 102 105 106 141 141 141 141 145 51 52 52 52 53 53 53 54 54 54 54 54 55 55 55 55 55 55 56 56 56 56 56 56 57 58 58 58 59 60 60 60 61 62 62 63 63 64 64 64 66 67 67 67 68 68 68 69 69 70 71 71 72 73 73 73 73 73 74 75 75 75 76 76 77 77 77 77 78 79 80 81 81 82 82 82 82 82 82 83 83 83 86 86 86 86 87 87 87 88 89 90 90 90 90 91 92 93 93 93 93 93 93 93 93 93 93 93 94 95 96 96 97 98 99

PC5500-6 S/N 15056

101 103 103 104 105 106 141 141 141 141 146 52 52 53 53 53 54 54 54 54 54 55 55 55 55 56 56 56 56 56 56 56 56 59 60 60 60 61 61 65 66 67 67 67 68 68 68 69 69 70 71 71 71 72 73 73 73 73 73 74 75 75 76 76 77 77 77 77 78 79 80 81 81 82 82 83 83 83 83 86 86 86 86 87 87 87 88 89 90 90 90 90 91 92 93 93 93 93 93 93 93 93 93 93 94 95 96 96 97 98 99

PC5500-6 S/N 15056

01 02 03 04 05 06 07 08 09 10 104 11 11 12 12 12 13 13 13 14 140 140 141 141 142 142 143 143 144 30 32 32 32 32 33 37 38 40 75 86 86 87 87 91 92 93 93 93 96

#	Part Number	Partname	Quantity	Options
01	461 350 40	Revolution sensor	2	InternBDB: 518-18 UNF 303 4572 \| InternKon: 923 522 40 / 1
02	414 899 40	Rpm-sensor	2	InternBDB: Cummi 303 9524 3/4-16 UNF \| InternKon: 923 522 40 / 2
03	906 756 40	Pressure switch (cooling water)	2	InternBDB: Suco 0166 403 03 3011 1,0 bar \| InternKon: 894 550 40 / 1
04	894 583 40	Sensor assy.	2	InternBDB: TL \| InternKon: 923 521 40 / 5
05	894 576 40	Temperature sensor assy.	2	InternBDB: TL \| InternKon: 894 583 40 / 1
06	907 651 40	Temperature sensor	2	InternBDB: 420 236 G1/2 PT100-4Leiter Bedia \| InternKon: 894 576 40 / 1
07	795 495 73	Plug , male	1	InternBDB: 0819214920 KES 08192 \| InternKon: 894 583 40 / 2
08	055 140 40	Cable shoe	4	InternBDB: 0,5-1,0 \| InternKon: 894 583 40 / 3
09	907 653 40	Insulating tube	-2	InternBDB: 91F3752 \| InternKon: 894 583 40 / 4
10	795 497 73	Plug , female	2	InternBDB: 0819224820 KES 08192 \| InternKon: 894 583 40 / 2
11	907 462 40	Pressure switch - engine-oil pressure	2	InternBDB: Suco 0166 403 03 3011 0,83bar \| InternKon: 894 536 40 / 6
12	906 754 40	Pressure switch - engine-oil pressure	2	InternBDB: Suco 0166 403 03 3027 2,8 bar \| InternKon: 919 584 40 / 1
13	515 460 40	Seal	6	InternBDB: 14,0x18,7x1 NSA
14	906 078 40	Pressure transmitter	2	InternBDB: Moto-Meter 675.004.1023 M14x1,5 \| InternKon: 923 521 40 / 8
15	006 302 98	Clamp	10	InternBDB: RSGU 1100 15/15 \| InternKon: 923 521 40 / 9
16	534 092 99	Clamp	6	InternBDB: RSGU 1100 8/15 \| InternKon: 923 521 40 / 10
17	006 303 98	Clamp	8	InternBDB: RSGU 1100 22/15 \| InternKon: 923 521 40 / 11
18	006 339 98	Clamp	4	InternBDB: RSGU 1100 18/15 \| InternKon: 923 521 40 / 12
19	145 831 40	Clamp	4	InternBDB: RSGU 1100 20/15 \| InternKon: 923 521 40 / 13
20	916 640 40	Angle	10	InternKon: 923 521 40 / 14
21	916 641 40	Angle	10	InternKon: 923 521 40 / 15
22	916 642 40	Angle	2	InternKon: 923 521 40 / 16
23	916 643 40	Plate	2	InternKon: 923 521 40 / 17
24	916 644 40	Plate	4	InternKon: 923 521 40 / 18
25	916 645 40	Plate	2	InternKon: 923 521 40 / 19
26	307 671 99	Bolt	8	InternBDB: M4x20/933 \| InternKon: 923 521 40 / 20
27	332 442 99	Nut	8	InternBDB: M4/934 \| InternKon: 923 521 40 / 21
28	307 736 99	Bolt	32	InternBDB: M6x40/933 \| InternKon: 923 521 40 / 22
29	332 331 99	Nut	32	InternBDB: M6/934 \| InternKon: 923 521 40 / 23
30	431 169 40	Temperature transmitter(standard)	2	InternBDB: Moto-Meter 642.007.1009 1/2-14 NPT \| InternKon: 923 521 40 / 24
31	942 790 40	Plate	2	InternKon: 923 521 40 / 26
32	940 684 40	Twin nipple	3	InternBDB: L10-9/16-18 UNF2A Voss \| InternKon: 923 521 40 / 27
33	518 225 98	Cable union	2	InternBDB: GAI10LM/OMD /65593540 \| InternKon: 923 521 40 / 28
34	551 474 40	Rail	-2	InternBDB: 111 8021
35	358 273 40	Series clamping	-2	InternBDB: 2054
36	358 274 40	Series clamping	-2	InternBDB: 2055
37	518 226 98	Cable union	1	InternBDB: GAI10LM/OMD /65593540 \| InternKon: 923 521 40 / 25
38	370 710 40	T-union	1	InternBDB: 1/4 /2987
40	896 579 40	Temperature sensor (Cold weather)	2	InternBDB: Bedia 420 100 PT100 R1/2 \| InternKon: 934 945 40 / 2
41	659 892 40	Starter relay assy.	4
42	792 585 73	Time lag relay	2	InternBDB: Cummi 3633715 /RPM 103044
43	635 965 40	Relay	2	InternBDB: Cummi 305 0692 \| InternKon: 659 892 40 / 1
44	891 140 40	Plate	1	InternKon: 923 537 40 / 7
45	655 642 40	Circular bearing	12	InternBDB: Typ A 5218 132 \| InternKon: 923 537 40 / 8
46	377 750 99	Bolt	4	InternBDB: M8x16/933 \| InternKon: 923 537 40 / 9
47	507 025 98	Nut	12	InternBDB: M 6 /985 \| InternKon: 923 537 40 / 10
48	317 319 40	Threaded block	4	InternKon: 923 537 40 / 12
51	655 834 40	Cable protection hose DN 36	-2	InternBDB: NW 36 VCSG-36B \| InternKon: 944 612 40 / 1
52	655 696 40	Cable protection hose DN 29	-2	InternBDB: NW 29 VCSG-29B \| InternKon: 944 612 40 / 2
53	655 652 40	Cable protection hose DN 23	-2	InternBDB: NW 23 VCSG-23B \| InternKon: 944 612 40 / 3
54	655 651 40	Cable protection hose DN 17	-2	InternBDB: NW 17 VCSG-17B \| InternKon: 944 612 40 / 4
55	655 650 40	Cable protection hose DN 12	-2	InternBDB: NW 12 VCST-12B \| InternKon: 944 612 40 / 5
56	655 649 40	Cable protection hose DN 10	-2	InternBDB: NW 10 VCST-10B \| InternKon: 944 612 40 / 6
57	907 500 40	T-Distributor DN 36	1	InternBDB: NW 36 BVTR-363636 \| InternKon: 944 612 40 / 7
58	906 079 40	T-Distributor DN 29	3	InternBDB: NW 29 BFTL-292929GGG \| InternKon: 944 612 40 / 8
59	907 733 40	T-Distributor DN 23	1	InternBDB: NW 23 BVTR-232323 \| InternKon: 944 612 40 / 9
60	655 629 40	T-Distributor DN 17	3	InternBDB: NW 17 BFTL-171717GGG \| InternKon: 944 612 40 / 10
61	655 628 40	T-Distributor DN 10	1	InternBDB: NW 10 BFTL-101010TTT \| InternKon: 944 612 40 / 11
62	907 999 40	Pipe adapter DN 36/29	2	InternBDB: NW 36/29 BAVR-36/29 \| InternKon: 944 612 40 / 12
63	896 558 40	Pipe adapter DN 29/23	2	InternBDB: NW 29/23 BAVR-29G23G \| InternKon: 944 612 40 / 13
64	655 810 40	Pipe adapter DN 29/12	2	InternBDB: NW 29/12 BAVR-29G12T \| InternKon: 944 612 40 / 14
65	655 809 40	Pipe adapter DN 29/10	1	InternBDB: NW 29/10 BAVR-29G10T \| InternKon: 944 612 40 / 15
66	907 971 40	Pipe adapter DN 23/12	1	InternBDB: NW 23/12 BAVR-23/12 \| InternKon: 944 612 40 / 16
67	655 633 40	Pipe adapter DN 17/12	4	InternBDB: NW 17/12 BAVR-17G12T \| InternKon: 944 612 40 / 17
68	655 632 40	Pipe adapter DN 17/10	3	InternBDB: NW 17/10 BAVR-17G10T \| InternKon: 944 612 40 / 18
69	655 627 40	Distributor DN 23/17	2	InternBDB: NW 23/17 BVYR-231717GGG \| InternKon: 944 612 40 / 19
70	655 626 40	Distributor DN 17/12	1	InternBDB: NW 17/12 BVYR-171212GTT HOSEN- \| InternKon: 944 612 40 / 20
71	940 520 40	Fitting	4	InternBDB: M20/NW12 BVIR-M202 \| InternKon: 944 612 40 / 21
72	907 693 40	Fitting PG 16	1	InternBDB: M20/NW17 BVIR-M207 \| InternKon: 944 612 40 / 22
73	940 471 40	Fitting M16/NW10	5	InternBDB: M16/NW10 BVIR-M160 METRISCH * \| InternKon: 944 612 40 / 23
74	655 848 40	Fitting PG 17	2	InternBDB: NW 17 BFILA-U347T 1 3/8"-18 \| InternKon: 944 612 40 / 24
75	907 708 40	Cable union	3	InternBDB: 22052YNPM6X2,5 \| InternKon: 944 612 40 / 25
76	907 705 40	Cable union	1	InternBDB: 22051YNPM5X2,5 \| InternKon: 944 612 40 / 26
77	907 703 40	Cable union	5	InternBDB: 21650YNPM4X3 \| InternKon: 944 612 40 / 27
78	621 547 40	Socket	1	InternBDB: Deutsch HD14- 9-96P \| InternKon: 944 612 40 / 28
79	621 548 40	Plug	1	InternBDB: Deutsch HD16- 9-96S \| InternKon: 944 612 40 / 29
80	795 495 73	Plug MALE	1	InternBDB: 0819214920 KES 08192 \| InternKon: 944 612 40 / 30
81	651 461 40	Housing assy.	2	InternBDB: JUNIOR TIMER KPL H 485E \| InternKon: 944 612 40 / 31
82	795 134 73	Plug assy. MALE	6	InternBDB: 0819213920 Deutsch \| InternKon: 944 612 40 / 32
83	795 132 73	Plug assy. MALE	2	InternBDB: 0819212920 Deutsch \| InternKon: 944 612 40 / 33
86	906 922 40	Protection cap	4	InternBDB: 1166621 003 \| InternKon: 910 055 40 / 36
87	255 745 40	Rubber grommet	2	InternBDB: 3 130 558 000 \| InternKon: 944 083 40 / 37
88	055 107 40	Cable lug	1	InternBDB: BLAU 2.5F M4 \| InternKon: 944 083 40 / 38
89	055 108 40	Cable lug	9	InternBDB: BLAU 2.5F M5 33307 \| InternKon: 944 083 40 / 39
90	896 520 40	End pin	9	InternBDB: BO 3,0X25 \| InternKon: 944 083 40 / 40
91	256 514 40	Name plate	21	InternBDB: 15X30X1,5 ALU \| InternKon: 944 083 40 / 41
92	056 292 40	Cable strap	21	InternBDB: TY 23 M \| InternKon: 944 083 40 / 42
93	515 213 40	Cable 1,0	-2	InternBDB: PUR-LITZE 1,0MM2 BLAU \| InternKon: 944 083 40 / 43
94	940 169 40	Cable 4x1	-2	InternBDB: KENPUR 600C 4X 1,0MM2 CE \| InternKon: 944 083 40 / 45
95	907 877 40	Cable 2x0,75	-2	InternBDB: KENPUR 2X0,75MM2 GRAU 21151 \| InternKon: 944 083 40 / 44
96	515 214 40	Cable 2,5	-2	InternBDB: KENPUR-LITZE 2,5MM2 BLAU 090250BL \| InternKon: 944 083 40 / 46
97	056 071 40	Cable sleeve 2,5	2	InternBDB: 2,5 4KT 20312723 \| InternKon: 944 083 40 / 47
98	056 070 40	Cable sleeve 1,0-1,5	53	InternBDB: 1,0-1,5 \| InternKon: 944 083 40 / 48
99	500 090 98	Wire end ferrule 0,75-6	2	InternBDB: A 0,75- 6 CU DIN 46228 \| InternKon: 944 083 40 / 49
100	940 461 40	Insulating tube B5x0,6	-2	InternBDB: B 5 X0,6 PUR 70 SHORE \| InternKon: 944 083 40 / 50
101	907 704 40	Cable union	2	InternBDB: 21650YNPM3X3,5 \| InternKon: 944 083 40 / 51
102	907 692 40	Fitting PG 9	1	InternBDB: M16/NW12 BVIR-M162 \| InternKon: 944 083 40 / 52
103	655 630 40	T-Distributor DN 29/23	2	InternBDB: NW 29/23 BFTL-292323GGG \| InternKon: 944 612 40 / 7
104	055 104 40	Cable lug 1,5	2	InternBDB: 1,5 4KT \| InternKon: 944 612 40 / 38
105	795 157 73	Pin	5	InternBDB: 0819105320 Deutsch 0460-202-16141 \| InternKon: 944 612 40 / 50
106	795 154 73	Bushing	8	InternBDB: 0819105420 Deutsch 0460-201-16141 \| InternKon: 944 612 40 / 51
110	917 320 40	Cable - starter 3M2-1-GND	1	InternKon: 923 179 40 / 20
111	917 321 40	Cable - starter 3M2-2-GND	1	InternKon: 923 179 40 / 21
112	056 076 40	Protection cap	4	InternKon: 917 320 40 / 1
113	600 212 99	Cable lug 12-95	4	InternKon: 917 320 40 / 2
114	906 658 40	Cable 1x120	-2	InternKon: 917 320 40 / 4
116	923 550 40	Cable generator G5-1 ground 3G5-1-GND	1	InternKon: 923 179 40 / 29
117	923 552 40	Cable generator G5-2 ground 3G5-2-GND	1	InternKon: 923 179 40 / 30
118	654 421 40	Cable lug 35	2	InternBDB: M12 105 R 12 \| InternKon: 923 550 40 / 1
119	655 690 40	Cable lug 35	2	InternBDB: M8 105 R 8 \| InternKon: 923 550 40 / 2
120	907 556 40	Cable 35 qmm	-2	InternKon: 923 550 40 / 4
121	923 548 40	Harness-starter-relay 1	1
122	923 549 40	Harness-starter-relay 2	1
123	055 108 40	Cable lug blue 2,5	18	InternBDB: BLAU 2.5F M5 33307 \| InternKon: 923 549 40 / 1
124	055 109 40	Cable lug yellow 4-6	12	InternBDB: GELB 4-6F M8 GHW33513.000.000 \| InternKon: 923 549 40 / 2
125	940 460 40	Insulating tube B4x0,5	-2	InternKon: 923 549 40 / 5
126	891 050 40	Plug with pins assy.	2	InternBDB: FEMALE 2,5MM2 Yazaki \| InternKon: 923 549 40 / 4
127	891 051 40	Plug assy. FEMALE2,5MM2	1	InternBDB: STECKVERBINDUNG 2-POLIG PC 3000- 1E \| InternKon: 923 548 40 / 8
128	891 079 40	Plug with pins assy. MALE 2,5MM2	1	InternBDB: STECKVERBINDUNG 2-POLIG PC 3000- 1E \| InternKon: 923 548 40 / 9
129	006 340 79	Plug	1	InternBDB: 7222-6234-40 MALE, 3 POLES KES 08055 \| InternKon: 923 548 40 / 10
130	006 346 79	Rear holder 2-poles	2	InternBDB: 7157-6730-30 REAR HOLDER, 3 POLES KES 08055 \| InternKon: 923 548 40 / 11
131	006 349 79	Pin	3	InternBDB: 7114-2874 MALE, SIZE 2 TO 3 KES 08055 \| InternKon: 923 548 40 / 12
132	006 353 79	Spout	6	InternBDB: 7157-3571-80 GROMMET, SIZE2 TO 3 KES 08055 \| InternKon: 923 548 40 / 13
133	006 341 79	Plug	1	InternBDB: 7123-6234-40 FEMALE, 3 POLES KES 08055 \| InternKon: 923 548 40 / 14
134	006 351 79	Bushing	3	InternBDB: 7116-2874 FEMALE, SIZE 2 TO 3 KES 08055 \| InternKon: 923 548 40 / 15
135	055 112 40	Cable lug, yellow	1	InternBDB: GELB F M10 GHW 33514.000.0000 \| InternKon: 923 548 40 / 16
136	907 511 40	Cable lug 2,5	1	InternBDB: BLAU 2.5F M12 12-250R \| InternKon: 923 548 40 / 17
140	910 055 40	Protection cap assy. 2-pole	4
141	323 961 40	Sleeve 6,3x0,8	2	InternKon: 910 055 40 / 2
142	940 462 40	Insulating tube B 6x0,6	-2	InternBDB: B 6x0,6 /40621 \| InternKon: 910 055 40 / 3
143	891 039 40	Plug with bushings assy.	10
144	795 501 73	Receptacle assy.	1	InternBDB: 0819214820
145	944 083 40	Harness-motor 1	1	InternKon: 923 160 40 / 2
146	944 612 40	Harness-motor 2	1	InternKon: 923 160 40 / 3

Komatsu PC5500-6 S/N 15056 parts catalog PDF

CABLES - ENGINE AND TRANSMITTER (515-2148p) in PC5500-6 S/N 15056. Diagram image and parts list.
