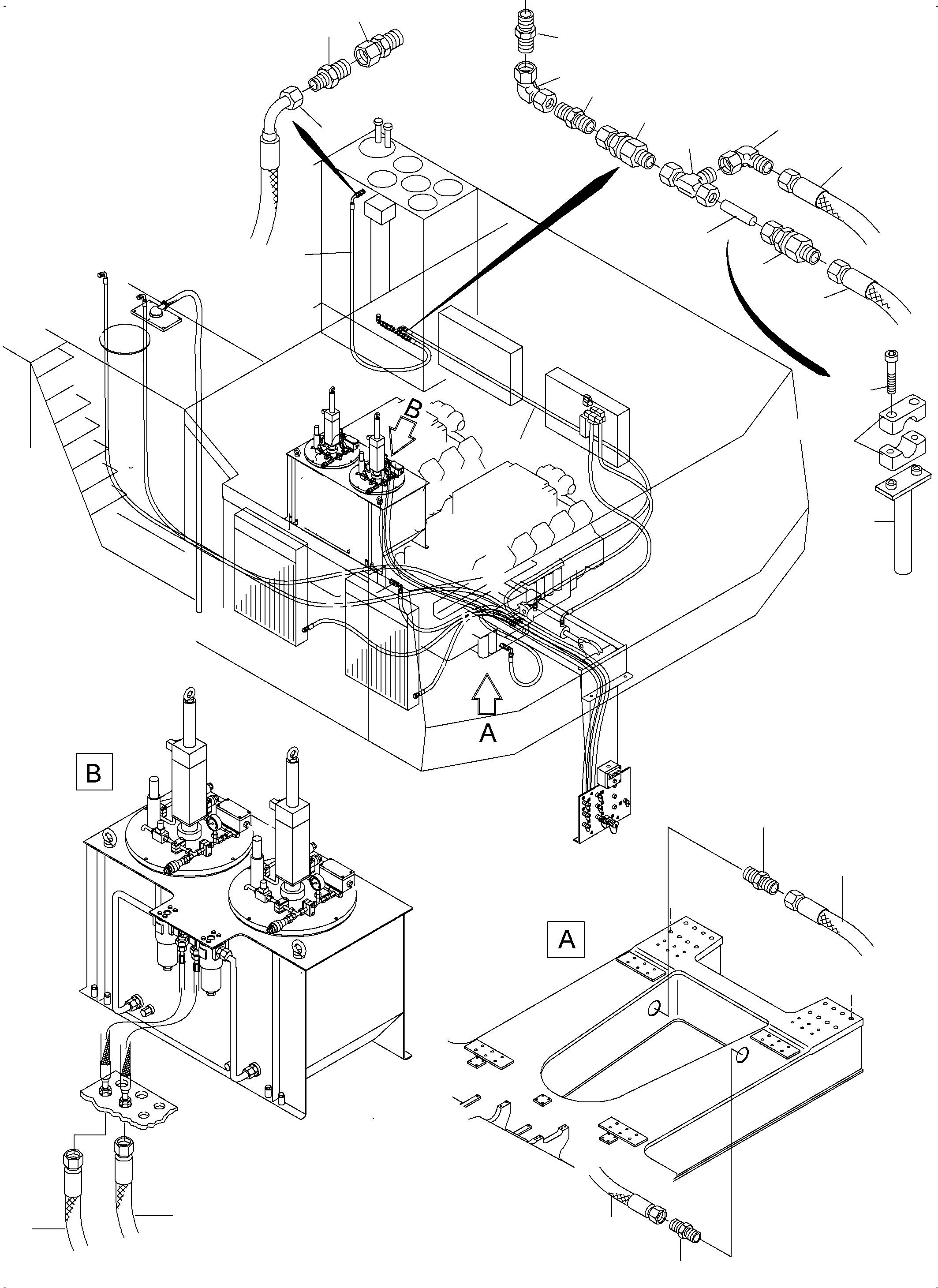

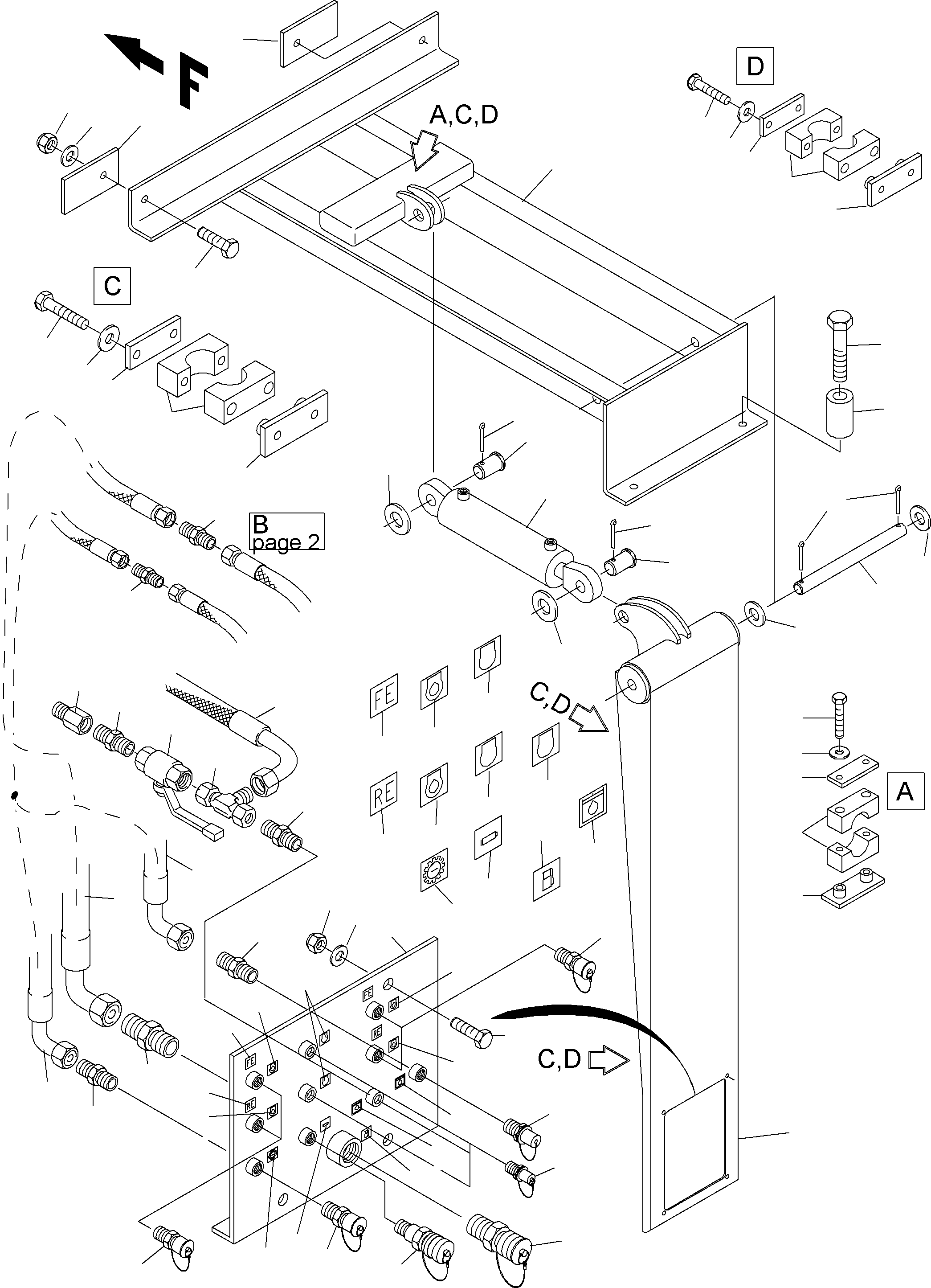

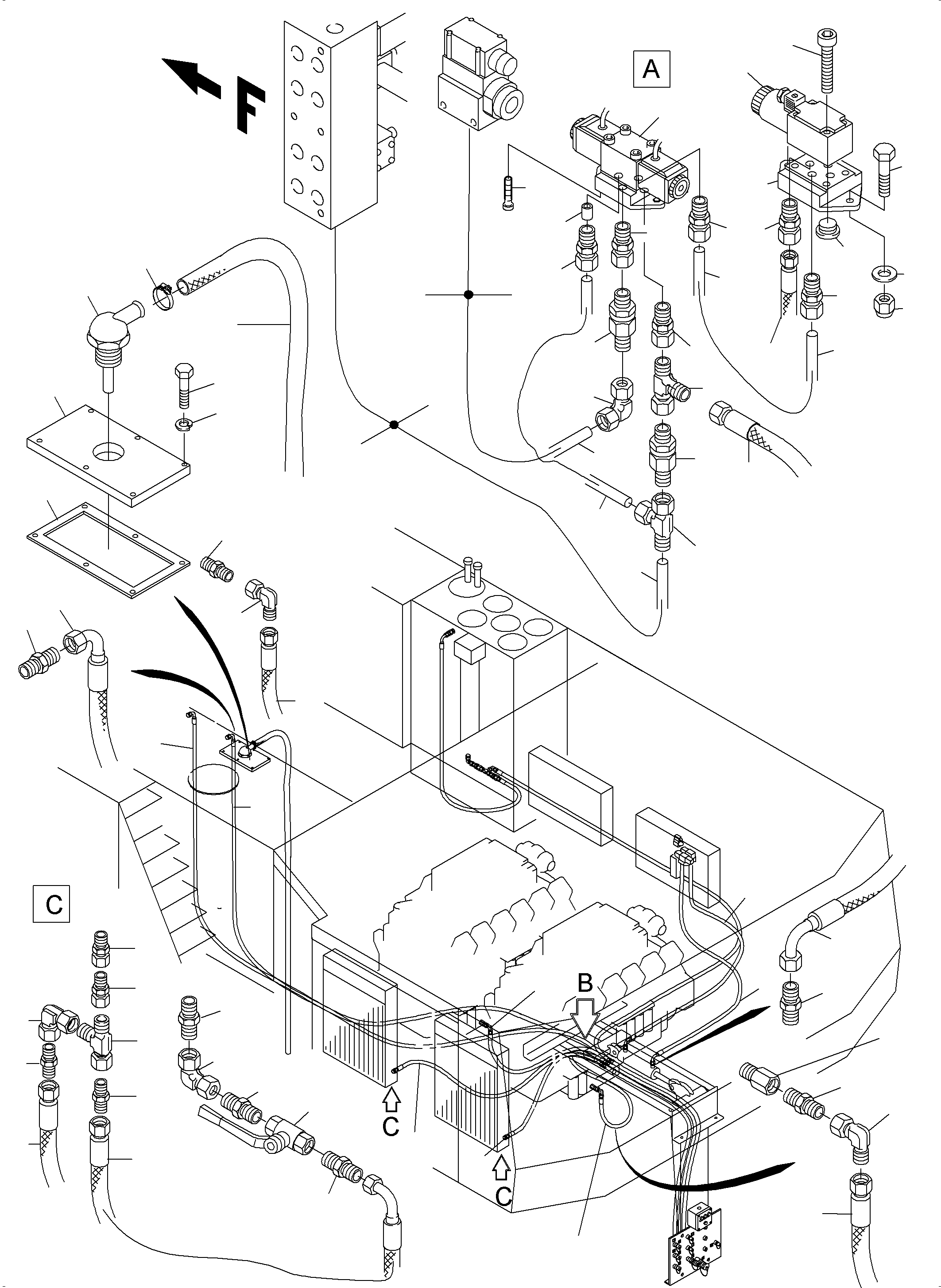

Diagram image 1 of 3

PC5500-6 S/N 15056

01 02 03 03 04 05 06 07 07 08 08 08 08 09 09 09 10 11 12 14 15 16 17 18 19 19 20 20 21 21 21 22 24 24 24 25 37 38 39 40 40 41 41 42 43 44 44 44 44 45 45 46 46 46 47 49 51 51 51 55 56 57 57 58 59 63 64 71 72 73 73 74 74 75 76 80 81 82 84 85 86 87 88 89 90 91 92 92 92

PC5500-6 S/N 15056

103 104 105 106 107 108 109 109 109 110 110 110 111 111 111 111 111 112 113 114 115 116 117 118 118 118 119 119 120 120 121 121 122 123 124 130 130 131 131 132 132 133 134 135 23 23 23 24 24 27 28 28 29 29 33 34 34 34 35 61 61 62 64 68 68 69 69 77 78 83 83 94 95 96 98

PC5500-6 S/N 15056

136 137 138 21 21 24 24 30 30 31 31 31 32 32 34 34 36 50 50 59 60 65 66 67 79 82

#	Part Number	Partname	Quantity	Options	Reference
01	942 012 40	Supporting beam	1	InternKon: 913 305 40 / 1
02	942 011 40	Lifting beam	1	InternKon: 913 305 40 / 2
03	903 218 40	Console	2	InternKon: 913 305 40 / 5
04	903 232 40	Plate	1	InternKon: 913 305 40 / 3
05	903 258 40	Pin	1	InternKon: 913 305 40 / 6
06	903 262 40	Hydraulic cylinder	1	InternBDB: TL / Burnside \| InternKon: 913 305 40 / 4	991-0531
07	515 827 98	Pin	1	InternBDB: 40F7x75x60 /1434 \| InternKon: 913 305 40 / 7
08	500 995 98	Washer	4	InternBDB: 41 /125 \| InternKon: 913 305 40 / 8
09	342 125 99	Cotter pin	4	InternBDB: 8x71 /94 \| InternKon: 913 305 40 / 9
10	308 631 99	Bolt	4	InternBDB: M16x55 /931 \| InternKon: 913 305 40 / 48
11	308 426 99	Bolt	2	InternBDB: M16x80 /931 10.9 \| InternKon: 913 305 40 / 49
12	308 666 99	Bolt	2	InternBDB: M20x70 /931 \| InternKon: 913 305 40 / 50
14	340 470 99	Washer	4	InternBDB: 21 /125 \| InternKon: 913 305 40 / 53
15	504 662 98	Nut	2	InternBDB: M 20 /934 \| InternKon: 913 305 40 / 51
16	334 601 99	Nut	4	InternBDB: M 16 /985 \| InternKon: 913 305 40 / 52
17	340 510 99	Washer	8	InternBDB: 17 /125 \| InternKon: 913 305 40 / 54
18	510 733 98	Resilient sleeve	2	InternBDB: 17/30x50 \| InternKon: 913 305 40 / 55
19	515 923 98	Graphical symbol RE	2	InternKon: 913 305 40 / 56
20	515 924 98	Graphical symbol FE	2	InternKon: 913 305 40 / 57
21	374 409 99	Socket	12	InternBDB: L 22E-M/3901 \| InternKon: 913 305 40 / 10
22	374 415 99	Socket	1	InternBDB: L 42E-M/3901 \| InternKon: 913 305 40 / 11
23	653 524 40	Hose assy. DN 20x640	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 913 305 40 / 60
24	903 259 40	Hose assy. D 20	10	InternBDB: TL / Dunlop \| InternKon: 913 305 40 / 29
25	903 260 40	Hose assy. D 50	1	InternBDB: TL / Dunlop \| InternKon: 913 305 40 / 30
27	324 572 40	Washer	2	InternBDB: Cummi 67946 \| InternKon: 913 305 40 / 73
28	650 712 40	Hose assy. DN 20x2650	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 913 305 40 / 61
29	513 482 98	Hose assy. DN 20x2800	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 913 305 40 / 62
30	513 484 98	Hose assy. DN 20x3450	2	InternBDB: DOL 22 /DOL 22 \| InternKon: 913 305 40 / 63
31	512 951 98	Hose assy. DN 20x6800	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 913 305 40 / 67
32	604 478 40	Hose assy. DN 20x7100	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 913 305 40 / 65
33	324 571 40	Adapter	2	InternBDB: Cummi 196 155 \| InternKon: 913 305 40 / 72
34	516 160 98	Socket	5	InternBDB: L22/3942 \| InternKon: 913 305 40 / 74
35	372 476 99	Union	2	InternBDB: GE 22-PL / 3/4 NPT 010 880 99 \| InternKon: 913 305 40 / 71
36	634 301 40	Union	1	InternBDB: GR 28/22-L \| InternKon: 913 305 40 / 78
37	504 987 98	Clamp set	1	InternBDB: L-2-G-18 /3015 \| InternKon: 913 305 40 / 33
38	533 989 99	Plate	1	InternBDB: L-AP-K-2 /3015 \| InternKon: 913 305 40 / 31
39	502 501 98	Screw	6	InternBDB: M6x100 /931 \| InternKon: 913 305 40 / 41
40	323 905 40	Filler, engine oil	4	InternBDB: ON-2 \| InternKon: 913 305 40 / 19
41	324 437 40	Cap	4	InternBDB: Doedijns OC-12 E \| InternKon: 913 305 40 / 20
42	270 861 40	Filler, hydr.-oil	1	InternBDB: Wiggins 6005 A 12 \| InternKon: 913 305 40 / 16
43	270 862 40	Cap	1	InternBDB: Doedijns 6008-12 \| InternKon: 913 305 40 / 17
44	515 873 98	Graphical symbol (engine oil)	2	InternKon: 913 305 40 / 26
45	515 877 98	Graphical symbol (hydraulic oil)	1	InternKon: 913 305 40 / 23
46	515 875 98	Graphical symbol (cooling water)	2	InternKon: 913 305 40 / 25
47	511 855 98	Cover plate	1	InternBDB: L-2 /3015 \| InternKon: 913 305 40 / 32
49	504 643 98	Socket	9	InternBDB: L 22/3902 \| InternKon: 913 305 40 / 69
50	654 458 40	Valve	2	InternBDB: RHD 22-PL \| InternKon: 913 305 40 / 80
51	515 874 98	Graphical symbol (engine oi-reservl)	2	InternKon: 913 305 40 / 42
55	896 748 40	Filler, fuel	1	InternBDB: ZN 2 B \| InternKon: 913 305 40 / 12
56	324 436 40	Cap	1	InternBDB: Doedijns ZC-20 E \| InternKon: 913 305 40 / 18
57	515 872 98	Graphical symbol (fuel)	1	InternKon: 913 305 40 / 24
58	341 711 40	Filler neck (greasing)	1	InternBDB: 6000 B 12 \| InternKon: 913 305 40 / 13
59	516 281 98	Socket	2	InternBDB: L 22/3944 \| InternKon: 913 305 40 / 64
60	374 409 99	Socket	1	InternBDB: L 22E-M/3901 \| InternKon: 913 305 40 / 66
61	510 904 98	Hose assy. DN 20x12500	1	InternBDB: Dol 22/Dol 22-90 \| InternKon: 913 305 40 / 79
62	906 751 40	Socket	1	InternBDB: GR 22/12-L OMD \| InternKon: 913 305 40 / 83
63	515 880 98	Graphic symbol	1	InternKon: 913 305 40 / 84
64	305 992 99	Ball cock	3	InternKon: 913 305 40 / 85
65	903 208 40	Pipe	1	InternKon: 913 305 40 / 86
66	906 752 40	Clamp ring	2	InternKon: 913 305 40 / 87
67	371 277 99	Union nut	2	InternKon: 913 305 40 / 88
68	906 347 40	Clamp ring	8	InternKon: 912 738 40 / 21
69	371 274 99	Union nut	8	InternKon: 912 738 40 / 22
71	360 856 40	Protection cap	1	InternBDB: 6009-12 \| InternKon: 913 305 40 / 14
72	341 710 40	Filler neck (pinion greasing)	1	InternBDB: OSP 2 \| InternKon: 913 305 40 / 15
73	515 878 98	Graphical symbol (greasing)	1	InternKon: 913 305 40 / 28
74	515 879 98	Graphical symbol (pinion greasing)	1	InternKon: 913 305 40 / 27
75	323 906 40	Filler neck (water)	3	InternBDB: EC 285 A8 \| InternKon: 913 305 40 / 21
76	324 438 40	Protection cap	3	InternBDB: 1208-8 \| InternKon: 913 305 40 / 22
77	374 409 99	Socket	2	InternBDB: Ll 22E-M/3901 \| InternKon: 913 305 40 / 75
78	374 415 99	Socket	1	InternBDB: L 42E-M/3901 \| InternKon: 913 305 40 / 76
79	516 189 98	Socket	1	InternBDB: L 28-M/3945 \| InternKon: 913 305 40 / 77
80	374 444 99	Union	1	InternBDB: L 42/3902 \| InternKon: 913 305 40 / 70
81	374 438 99	Union	3	InternBDB: SDS-L22XG 3/4 E ISO 8434 \| InternKon: 913 305 40 / 81
82	515 882 98	Union	1	InternBDB: GV 22-LR \| InternKon: 913 305 40 / 82
83	517 805 98	Hose assy. DN 40x8500	1	InternBDB: Dol 42/Dol 42-90 \| InternKon: 913 305 40 / 68
84	515 828 98	Weld on plate	3	InternBDB: L-AP-K 7 /3015 \| InternKon: 913 305 40 / 34
85	515 829 98	Cover plate	3	InternBDB: L-7 /3015 \| InternKon: 913 305 40 / 35
86	515 831 98	Clamp set	3	InternBDB: L-7-G-63,5 /3015 \| InternKon: 913 305 40 / 36
87	502 512 98	Weld on plate	6	InternBDB: L-AP-K-6 /3015 \| InternKon: 913 305 40 / 37
88	505 712 98	Cover plate	6	InternBDB: L-6 /3015 \| InternKon: 913 305 40 / 38
89	515 913 98	Clamp set	6	InternBDB: L-6-G-54,6 /3015 \| InternKon: 913 305 40 / 39
90	308 942 99	Bolt	12	InternBDB: M6x140 /931 \| InternKon: 913 305 40 / 40
91	308 542 99	Bolt	2	InternBDB: M6x70 /931 \| InternKon: 913 305 40 / 43
92	343 003 99	Washer	20	InternBDB: 6,4 /93 \| InternKon: 913 305 40 / 44
94	914 936 40	Cover	1	InternKon: 914 465 40 / 1
95	551 704 40	Vent valve	1	InternBDB: ZV 10 A \| InternKon: 914 465 40 / 2
96	896 671 40	Hose DN 32	-2	InternBDB: 32x5 Gewehr \| InternKon: 914 465 40 / 6
98	374 921 99	Clamp	1	InternBDB: A 25-40x9 /3017 \| InternKon: 914 465 40 / 7
103	307 752 99	Bolt	6	InternBDB: M8x20 /933 \| InternKon: 914 465 40 / 4
104	346 510 99	Lock washer	6	InternBDB: 8 /128 \| InternKon: 914 465 40 / 5
105	914 939 40	Seal	1	InternKon: 914 465 40 / 3
106	180 325 40	Base plate	2	InternBDB: G 342/1 \| InternKon: 912 738 40 / 1
107	896 619 40	Switch valve	1	InternBDB: Rexroth M3 SED 6 UK 1X /350 CG 24 K4 \| InternKon: 912 738 40 / 2
108	940 732 40	4/3-Directional spool valve	1	InternBDB: Eaton DG 4V-3M-2C-M-KUP5D-H7-60 \| InternKon: 912 738 40 / 3
109	643 879 40	Hose assy. DN 10x4250	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 912 738 40 / 4
110	512 336 98	Hose assy. DN 10x4600	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 912 738 40 / 5
111	215 424 99	Pipe Ш 12	-2	InternBDB: 12x1,5 /2391 \| InternKon: 912 738 40 / 6
112	896 680 40	Throttle	1	InternBDB: Vickers 694347 2,0 mm \| InternKon: 912 738 40 / 10
113	319 174 99	Screw	8	InternBDB: M5x50 /912 10.9 \| InternKon: 912 738 40 / 11
114	307 734 99	Bolt	4	InternBDB: M6x30 /933 \| InternKon: 912 738 40 / 12
115	507 025 98	Nut	4	InternBDB: M 6 /985 \| InternKon: 912 738 40 / 13
116	340 506 99	Washer	4	InternBDB: 6,4 /125 \| InternKon: 912 738 40 / 14
117	374 430 99	Socket	2	InternBDB: L 12E-M/3901 \| InternKon: 912 738 40 / 15
118	371 459 99	Socket	4	InternBDB: L 12E-G 3/8 ED \| InternKon: 912 738 40 / 16
119	516 184 98	Socket	2	InternBDB: L 12-G/3945 \| InternKon: 912 738 40 / 18
120	516 174 98	Socket	2	InternBDB: l 12/3944 \| InternKon: 912 738 40 / 19
121	906 748 40	Valve	2	InternBDB: RHD 12-PL/OMD 0,2 bar \| InternKon: 912 738 40 / 20
122	255 694 40	Plug	2	InternBDB: Vsti R 3/8 ED \| InternKon: 912 738 40 / 17
123	516 157 98	Socket	1	InternBDB: L12 /3942 \| InternKon: 912 738 40 / 23
124	514 340 98	Screw	4	InternBDB: M5x30 /912 \| InternKon: 912 738 40 / 24
130	372 475 99	Union	4	InternBDB: GE 18 PL 1/2 NPT WN 01088099 \| InternKon: 913 305 40 / 89
131	515 316 98	Socket	4	InternBDB: GZR 22/18 -PL WN 65591040 \| InternKon: 913 305 40 / 90
132	551 404 40	Union	4	InternBDB: RED 22/ 18 PL /OMD ERMETO \| InternKon: 913 305 40 / 91
133	516 829 98	Union	2	InternBDB: T-L 22 ISO 08434 \| InternKon: 913 305 40 / 92
134	516 159 98	Socket	2	InternBDB: L 18 DIN 3942 \| InternKon: 913 305 40 / 93
135	604 321 40	Hose assy DN 16x600	2	InternBDB: 120 / DOL18 DOL18 90 \| InternKon: 913 305 40 / 94
136	914 965 40	Retainer	1	InternKon: 913 305 40 / 95
137	500 942 98	Clamp set	1	InternBDB: L-3-R-22 /3015 \| InternKon: 913 305 40 / 96
138	319 133 99	Bolt	2	InternBDB: M6x30 /912 \| InternKon: 913 305 40 / 97

Komatsu PC5500-6 S/N 15056 parts catalog PDF

REFUELING EQUIPMENT (515-2305e) in PC5500-6 S/N 15056. Diagram image and parts list.
