#	Part Number	Partname	Quantity	Options	Reference
?		Metering valve	2	InternBDB: 269 880 40 \| InternKon: 922 130 40 / 2	991-0091
?	654 130 40	Protection cap with o-ring	10	InternBDB: 83272 \| InternKon: 922 130 40 / 3
?	372 182 99	Union	3	InternBDB: DDS 12 /2353 \| InternKon: 922 130 40 / 44
?	308 579 99	Bolt	6	InternBDB: M 10x60 /931 \| InternKon: 922 130 40 / 15
?	373 772 99	Union	1	InternBDB: TR 25/12/25-S \| InternKon: 922 130 40 / 43
?	372 415 99	Union	3	InternBDB: ES 25 /2353 \| InternKon: 922 130 40 / 42
?	517 165 98	Hose assy. DN 20x3100 lg.	1	InternBDB: DOS 25 /DOS 25 WN 341 951 40 \| InternKon: 922 130 40 / 51
?	922 128 40	Pipe assy. Ш 25	1	InternKon: 922 130 40 / 52
?	942 847 40	Pipe assy. Ш 25	1	InternKon: 922 130 40 / 53
?	635 896 40	Tube protection 12x9x1.5	-2	InternBDB: 100 121 005 Baier u. Kцppel \| InternKon: 922 130 40 / 26
?		Metering valve	1	InternBDB: 270 131 40 \| InternKon: 922 130 40 / 1	991-0091
?	308 555 99	Bolt	5	InternBDB: M8x45 /931 \| InternKon: 922 130 40 / 5
?	936 978 40	Thread plate	1	InternKon: 922 130 40 / 4
?	324 672 40	Plug	3	InternBDB: 3/8 - NPT \| InternKon: 922 130 40 / 7
?	517 121 98	Washer	5	InternBDB: 8 /65593840 \| InternKon: 922 130 40 / 6
?	512 273 98	Socket	3	InternBDB: EVGE 12-S 3/8 NPT \| InternKon: 922 130 40 / 46
?	372 130 99	Union	1	InternBDB: EES 12 /2353 \| InternKon: 922 130 40 / 45
?	534 001 99	Cover plate	5	InternBDB: S-2-R-25 /3015 \| InternKon: 922 130 40 / 13
?	323 945 40	Thread pin	105	InternBDB: M6x15 /32501 \| InternKon: 922 130 40 / 37
?	373 588 99	Union	10	InternBDB: GE-6-PL / 1/8 NPT \| InternKon: 922 130 40 / 39
?	534 002 99	Weld on plate	3	InternBDB: S-AP-A-2 /3015 \| InternKon: 922 130 40 / 14
?	372 456 99	Union	4	InternBDB: DS 6 /2353 \| InternKon: 922 130 40 / 41
?	006 912 98	Union	6	InternBDB: Voss 6-SR \| InternKon: 922 130 40 / 40
?	006 302 98	Clamp	60	InternBDB: RSGU 1100 15/15 \| InternKon: 922 130 40 / 33
?	534 092 99	Clamp	18	InternBDB: RSGU 1100 8/15 \| InternKon: 922 130 40 / 31
?	507 025 98	Nut	105	InternBDB: M 6 /985 \| InternKon: 922 130 40 / 38
?	534 000 99	Clamp set	10	InternBDB: S-2-R-25 /3015 \| InternKon: 922 130 40 / 12
?	515 029 40	Hose connection 90 ?	12	InternBDB: Lincoln 532-30739-1 \| InternKon: 922 130 40 / 28
?	515 028 40	Collet	20	InternBDB: 432-23031-1 \| InternKon: 922 130 40 / 30
?	515 027 40	Hose connection, straight	6	InternBDB: 432-23030-1 \| InternKon: 922 130 40 / 27
?	509 308 98	Locking plate	3	InternBDB: SI 4 WN 011 839 99 \| InternKon: 922 130 40 / 16
?	576 160 40	Plastic hose	-2	InternBDB: Lincoln 504-36033-3 8,4x2,1 \| InternKon: 922 130 40 / 25
?	651 255 40	Clamp set	6	InternBDB: S-2-R-25 - Sonder \| InternKon: 922 130 40 / 8
?	634 978 40	Cover plate	12	InternKon: 922 130 40 / 9
?	512 055 98	Thread pin	12	InternBDB: PM 12x80 /32500 \| InternKon: 922 130 40 / 10
?	307 789 99	Bolt	4	InternBDB: M10x80 /933 \| InternKon: 922 130 40 / 18
?	332 114 99	Nut	4	InternBDB: M 10 /934 \| InternKon: 922 130 40 / 19
?	509 310 98	Locking plate	2	InternBDB: SI 6 /WN 011 839 99 \| InternKon: 922 130 40 / 24
?	504 445 98	Clamp set	2	InternBDB: S-4-R-65 /3015 \| InternKon: 922 130 40 / 20
?	534 008 99	Cover plate	1	InternBDB: S-DP-A-4 /3015 \| InternKon: 922 130 40 / 21
?	534 009 99	Weld-on plate	1	InternBDB: S-AP-A-4 /3015 \| InternKon: 922 130 40 / 22
?	308 599 99	Bolt	2	InternBDB: M12x105 /931 \| InternKon: 922 130 40 / 23
?	635 853 40	Hose connection 45 ?	2	InternBDB: 1001 21 206 Baier u. Kцppel \| InternKon: 922 130 40 / 29
?	922 132 40	Pipe assy. Ш 25	1	InternKon: 922 130 40 / 55
?	942 848 40	Pipe assy. Ш 25	1	InternKon: 922 130 40 / 54
?	334 600 99	Nut	12	InternBDB: M 12 /985 \| InternKon: 922 130 40 / 11
?	006 301 98	Clamp	6	InternBDB: RSGU 1100 12/15 \| InternKon: 922 130 40 / 32
?	006 339 98	Clamp	15	InternBDB: RSGU 1100 18/15 \| InternKon: 922 130 40 / 34
?	006 303 98	Clamp	3	InternBDB: RSGU 1100 22/15 \| InternKon: 922 130 40 / 35
?	502 855 98	Clamp	3	InternBDB: RSGU 1100 25/15 \| InternKon: 922 130 40 / 36
?	372 724 99	Union	1	InternBDB: KS 25 /2353 \| InternKon: 922 130 40 / 47
?	515 951 98	Union	1	InternBDB: Red 25/12-PS \| InternKon: 922 130 40 / 48
?	372 627 99	Union	1	InternBDB: QS 25 /2353 \| InternKon: 922 130 40 / 49
?	371 867 99	Breech block	2	InternBDB: 25-S \| InternKon: 922 130 40 / 50
?	918 209 40	Angle	1	InternKon: 922 130 40 / 17
?	936 979 40	Thread plate	2	InternKon: 922 130 40 / 56

Komatsu PC5500-6 S/N 15056 parts catalog PDF

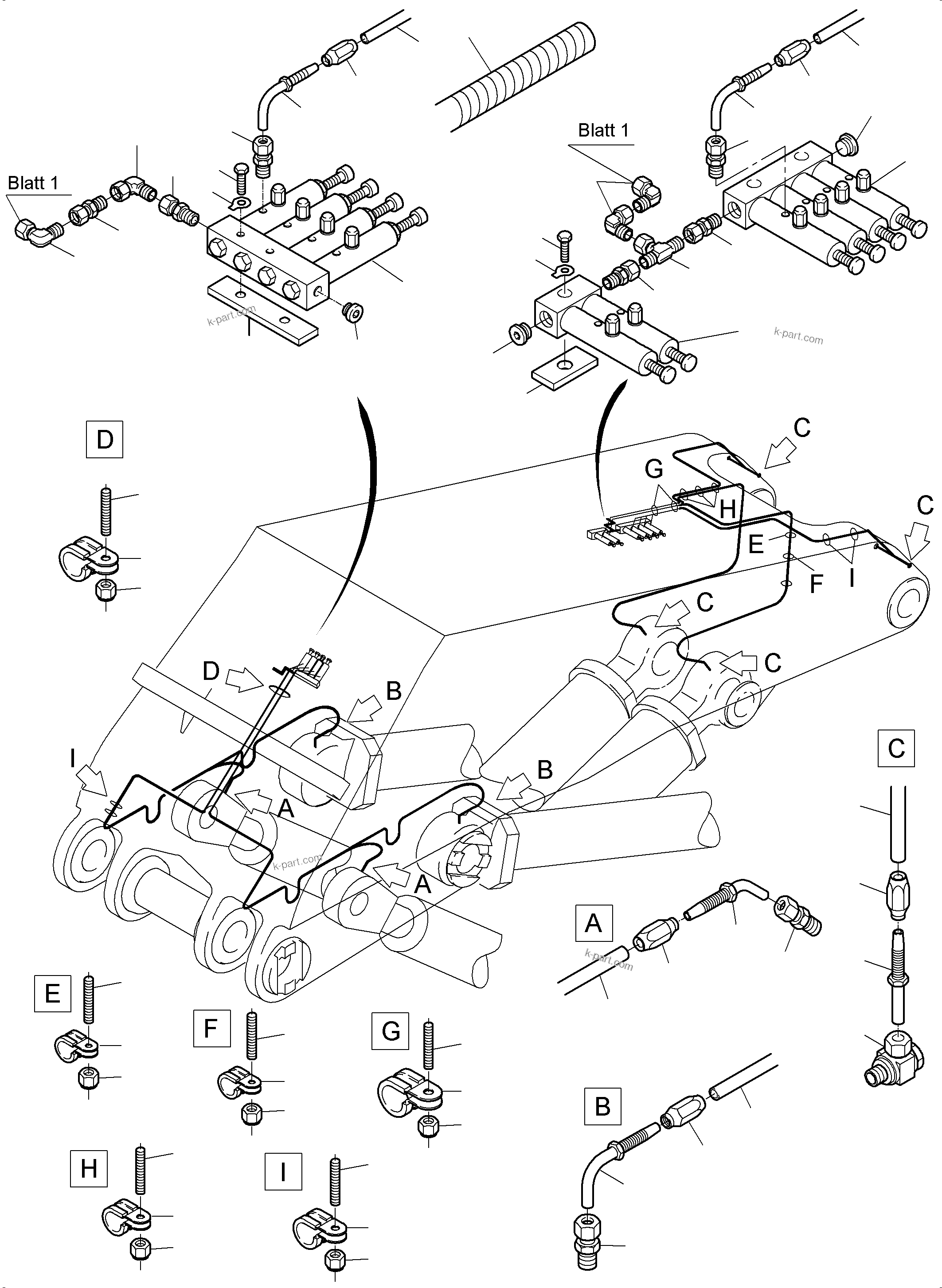

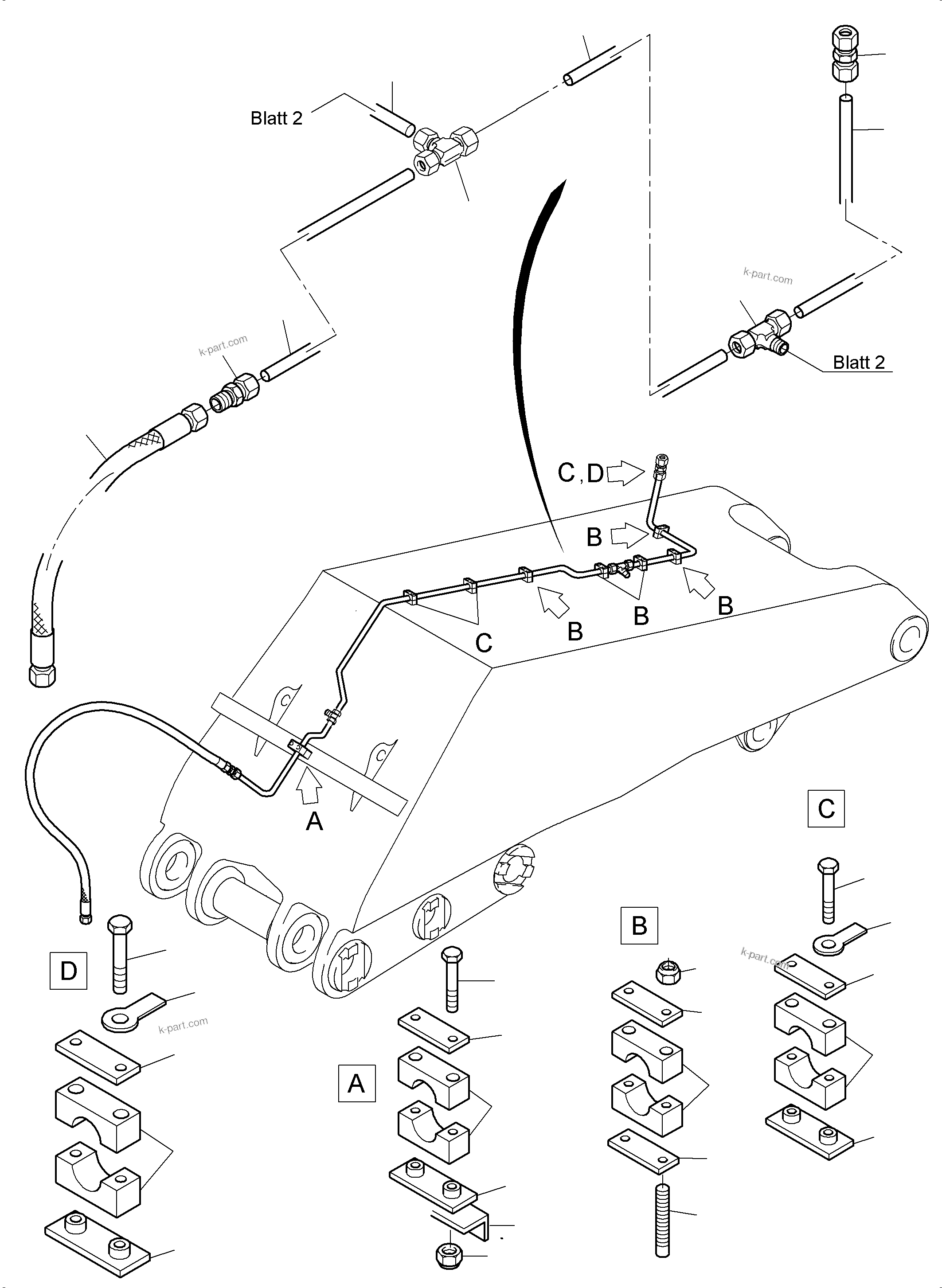

BOOM - CENTRAL LUBRICATION (BBE) (515-2330e) in PC5500-6 S/N 15056. Diagram image and parts list.
