#	Part Number	Partname	Quantity	Options	Reference
?	906 423 40	Immersion heater	7	InternBDB: OE 1 NPT 500W 240V \| InternKon: 933 983 40 / 3
?	932 675 40	Immersion heater	6	InternBDB: SO10AL33-020EP 0433.0633 \| InternKon: 933 983 40 / 4
?	906 245 40	Immersion heater	4	InternBDB: OE 430 200-00 /300W \| InternKon: 933 983 40 / 6
?	257 965 40	Thermostat	8	InternBDB: ALS 68 EP 3/4 NPT \| InternKon: 933 983 40 / 7
?	251 816 40	Flange	6	InternKon: 933 982 40 / 31
?	621 579 40	Adapter	2	InternKon: 933 982 40 / 11
?		Coolant preheating arr.	2	InternBDB: 932 673 40 \| InternKon: 933 983 40 / 1	991-0647
?	906 422 40	Battery heating plate set	2	InternBDB: 300W240V \| InternKon: 933 983 40 / 2
?	551 345 40	Union	4	InternBDB: Red 28/22-PL/OMD \| InternKon: 933 982 40 / 16
?	515 025 40	Flange	4	InternBDB: Cummi 317 8301 \| InternKon: 933 982 40 / 12
?	516 187 98	Socket	4	InternBDB: SWSDS-L28xG1 Type E / ISO 8434 \| InternKon: 933 982 40 / 37
?	305 991 99	Ball cock	2	InternBDB: G1 \| InternKon: 933 982 40 / 38
?	374 439 99	Socket	4	InternBDB: SDS-L28xG1 Type E / ISO 8434 \| InternKon: 933 982 40 / 36
?	372 477 99	Union	4	InternBDB: GE 28 PL \| InternKon: 933 982 40 / 15
?	516 281 98	Socket	2	InternBDB: L22/3944 \| InternKon: 933 982 40 / 17
?	515 585 40	Hose assy. DN 20x3150	1	InternBDB: DOL 22 90 \| InternKon: 933 982 40 / 20
?	514 116 98	Hose assy. DN 20x2600	1	InternBDB: DOL 22 90 \| InternKon: 933 982 40 / 22
?	514 118 98	Hose assy. DN 20x2700	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 19
?	514 115 98	Hose assy. DN 20x2500	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 21
?	511 857 98	Cover plate	12	InternBDB: L4/3015 \| InternKon: 933 982 40 / 24
?	501 584 98	Weld on plate	12	InternBDB: L-AP-K-4/3015 \| InternKon: 933 982 40 / 25
?	504 900 98	Half clamp	32	InternBDB: L-4-G-28 /3015 \| InternKon: 933 982 40 / 26
?	308 537 99	Bolt	24	InternBDB: M10x70 /931 \| InternKon: 933 982 40 / 28
?		Switch box	1	InternBDB: 932 674 40 \| InternKon: 933 983 40 / 5	991-0669
?	006 739 98	O-ring	6	InternBDB: 89,2x5,7 \| InternKon: 910 950 40 / 24
?	307 752 99	Bolt	36	InternBDB: M8x20 /933 \| InternKon: 910 950 40 / 32
?	346 510 99	Lock washer	36	InternKon: 910 950 40 / 41
?	907 415 40	Seal	4	InternBDB: Cummins 3177556 \| InternKon: 933 982 40 / 32
?	307 754 99	Bolt	4	InternBDB: M 8x25/933 \| InternKon: 933 982 40 / 34
?	340 507 99	Washer	4	InternBDB: A 8,4/125 \| InternKon: 933 982 40 / 35
?	317 319 40	Threaded block	4	InternKon: 933 982 40 / 33
?	518 025 98	Hose assy. DN 20x2200	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 18
?	518 026 98	Hose assy. DN 20x1650	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 23
?	372 478 99	Union	2	InternBDB: GE 35-PL/ 1 1/4NPT /WN01088099 \| InternKon: 933 982 40 / 13
?	551 457 40	Union	2	InternBDB: RED 35/22-PL/OMD \| InternKon: 933 982 40 / 14
?	930 563 40	Threaded block	8	InternKon: 933 982 40 / 39
?	307 780 99	Bolt	4	InternBDB: M 10x35/933 \| InternKon: 933 982 40 / 40
?	514 921 98	Nut	4	InternBDB: M10 /985 \| InternKon: 933 982 40 / 41
?	340 465 99	Washer	4	InternBDB: B 10,5/125 \| InternKon: 933 982 40 / 42
?	0443452711	Clip	10	InternBDB: KES 04434 \| InternKon: 933 982 40 / 43
?	511 773 98	Thread pin	8	InternBDB: PM 10x70 \| InternKon: 933 982 40 / 44
?	507 037 98	Nut	10	InternBDB: M10 /985 \| InternKon: 933 982 40 / 45
?	510 741 98	Resilient sleeve	6	InternBDB: 13/25x50 \| InternKon: 933 982 40 / 46
?	914 705 40	Flange	4	InternBDB: Nacharbeit TL \| InternKon: 933 982 40 / 47

Komatsu PC5500-6 S/N 15056 parts catalog PDF

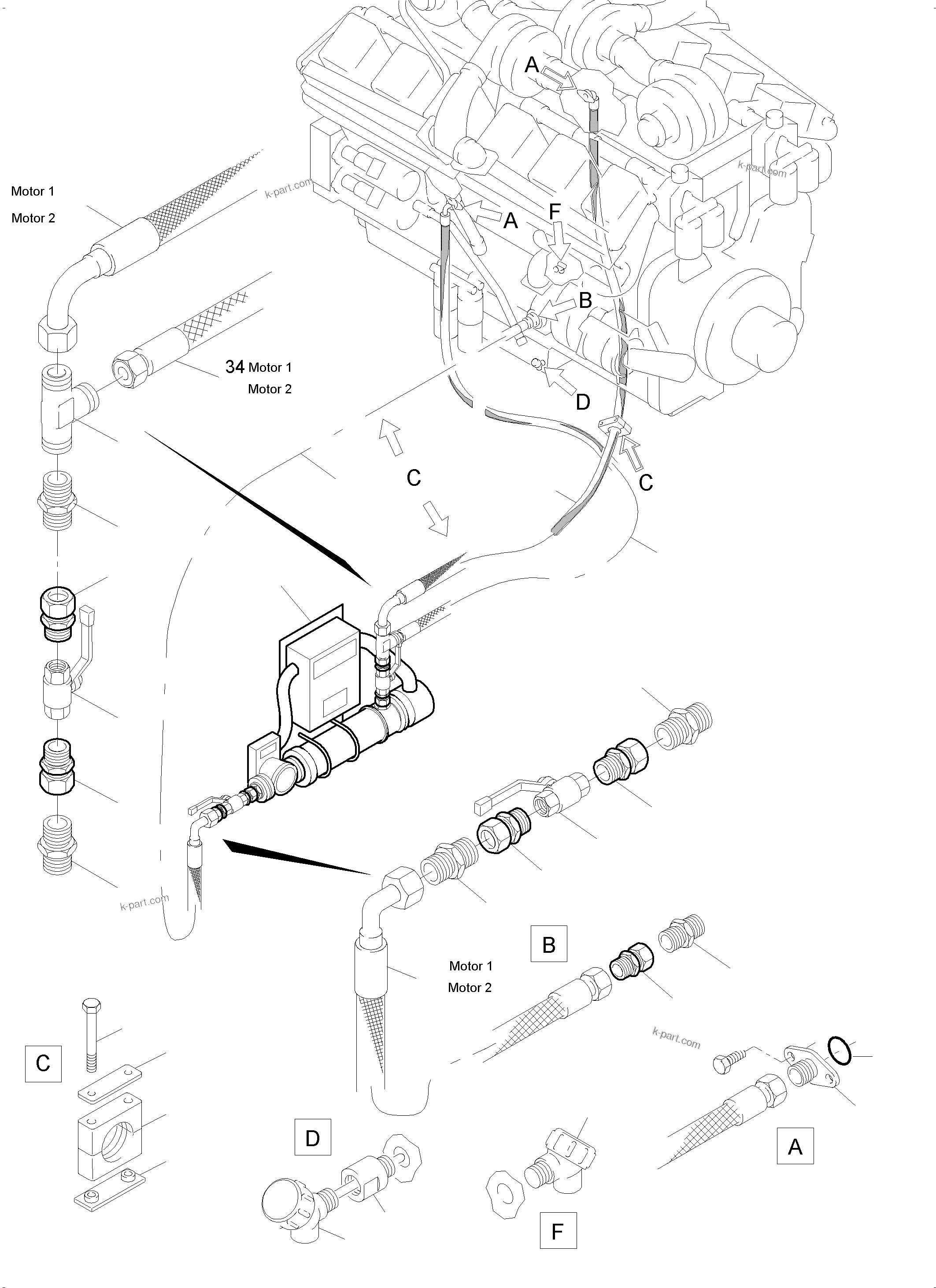

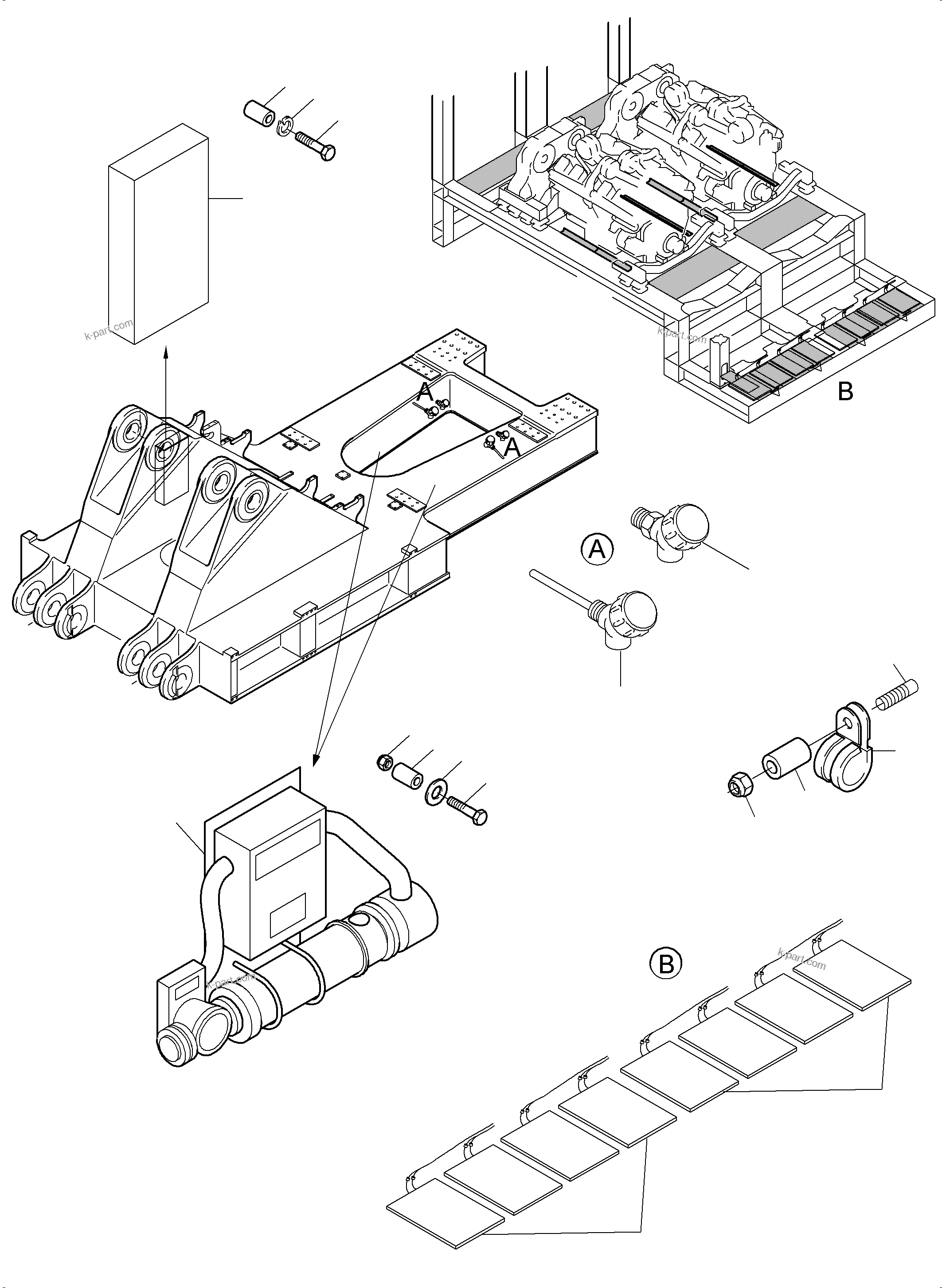

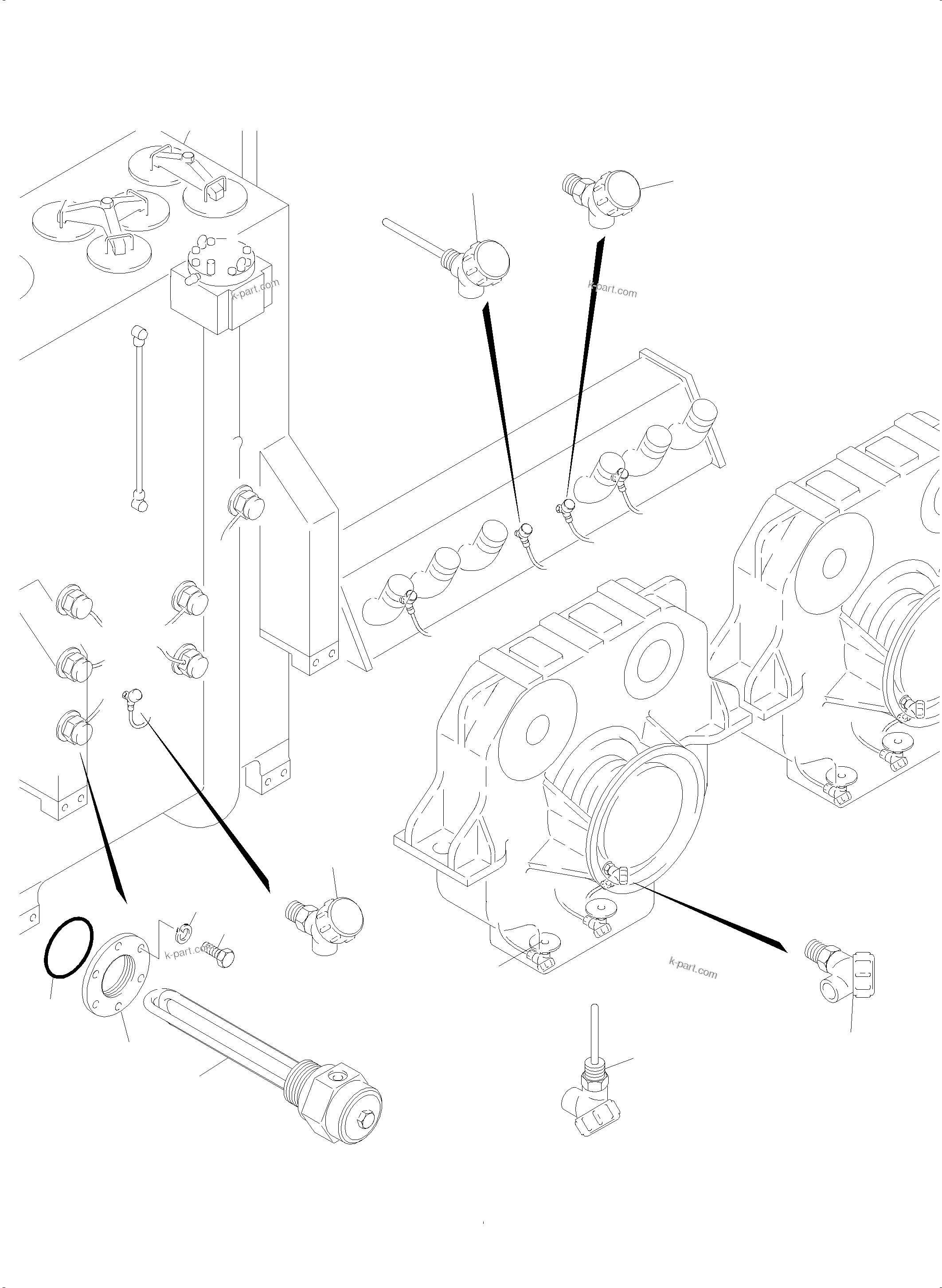

TEMPERATURE CONDITIONING (515-2500i) in PC5500-6 S/N 15056. Diagram image and parts list.
