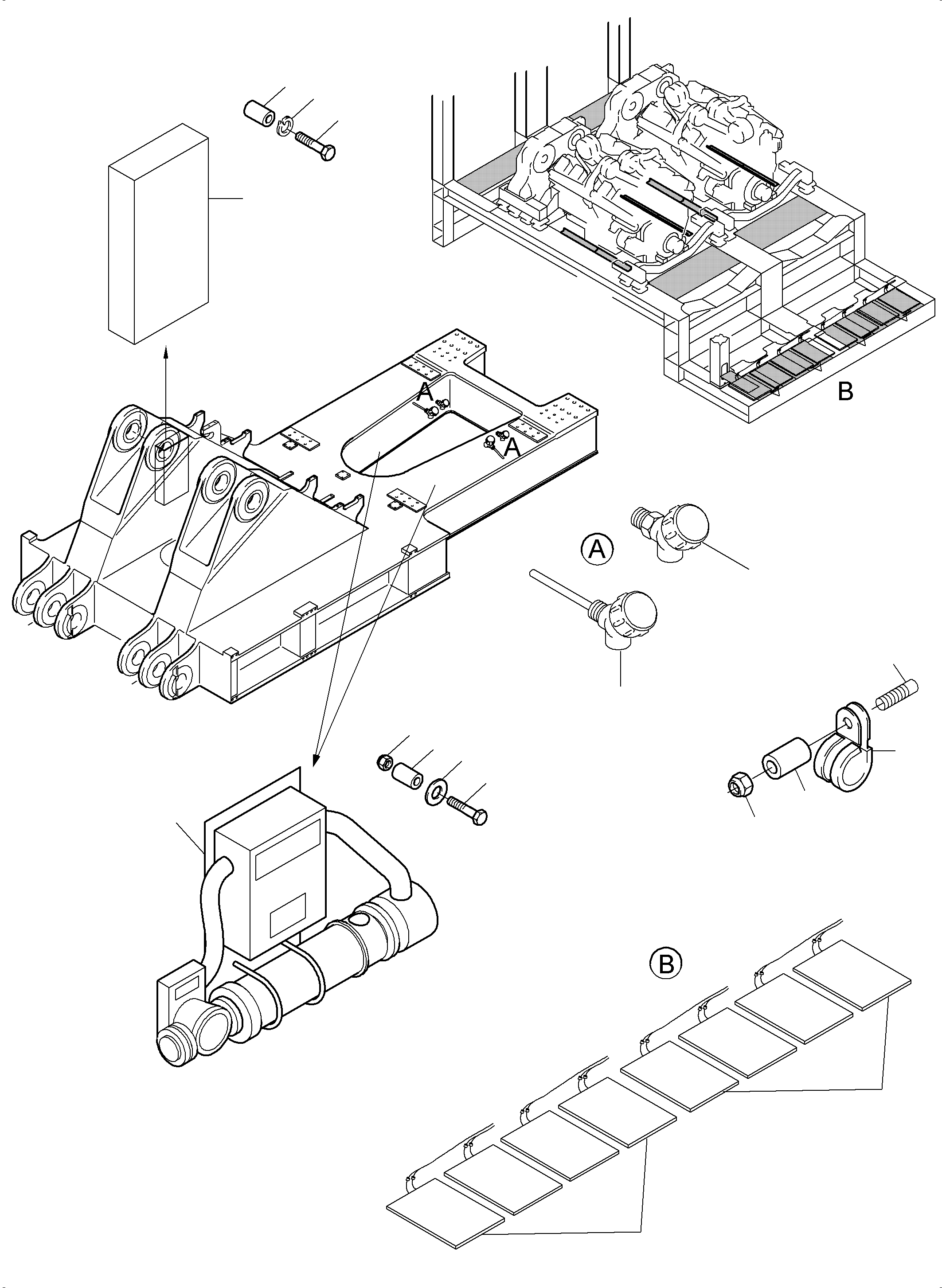

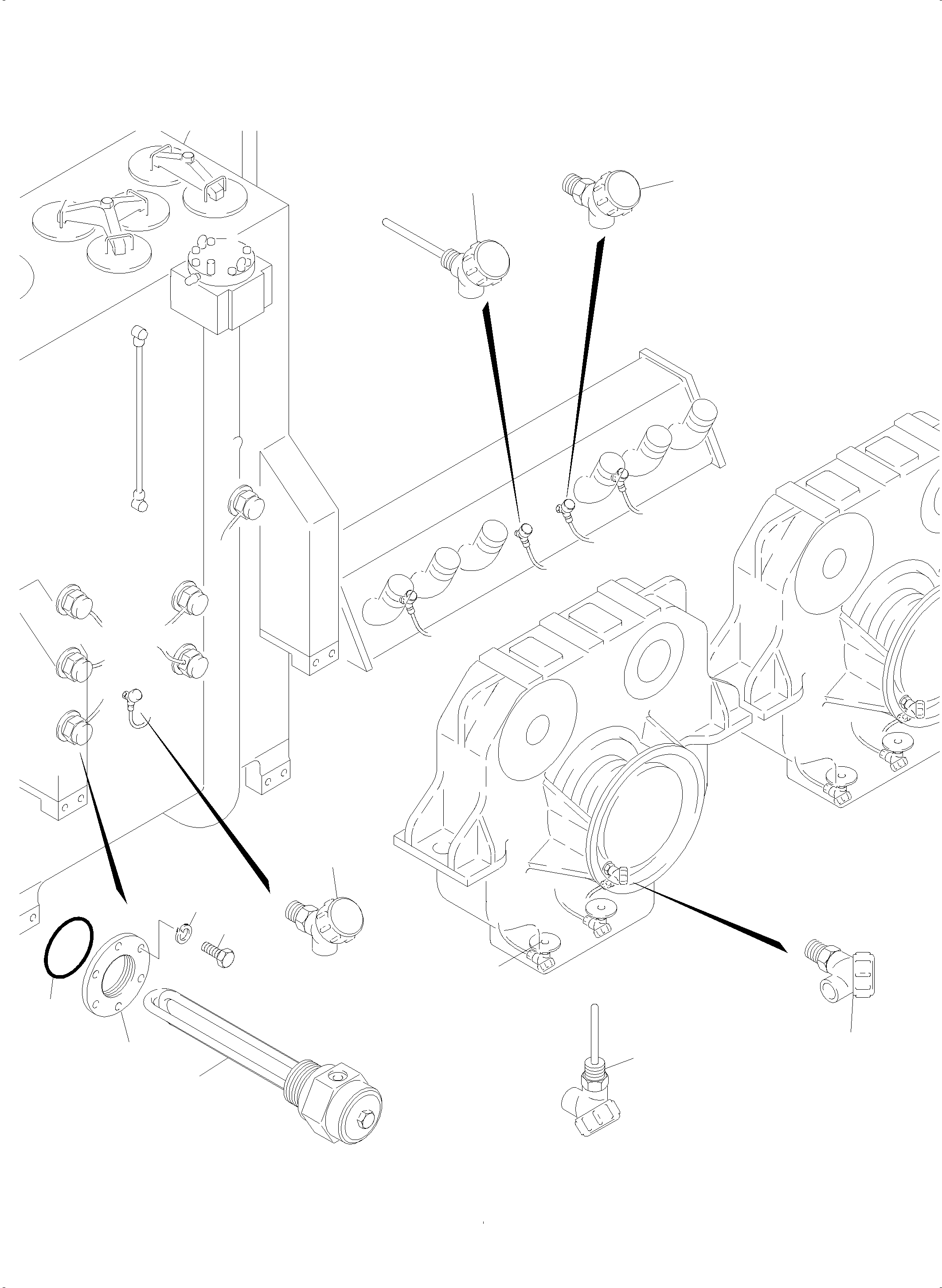

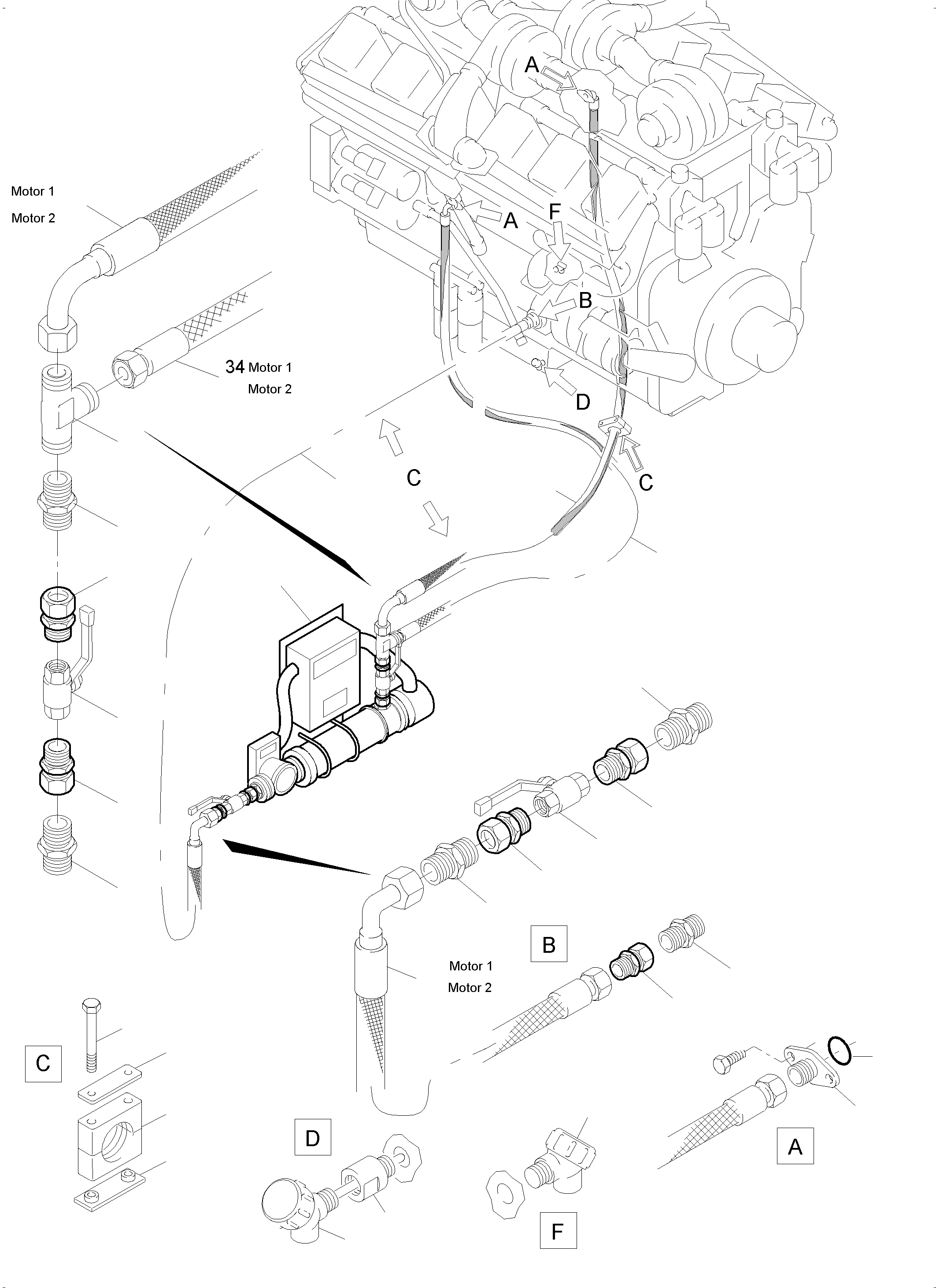

Diagram image 1 of 3

PC5500-6 S/N 15056

01 02 03 04 04 04 05 11 27 28 29 47

PC5500-6 S/N 15056

01 04 06 07 09 09 10 11 11 12 12 13 13 14 14 15 16 16 17 17 18 18 19 19 21 22 23 25 30 34 35 35 36 37

PC5500-6 S/N 15056

01 04 07 08 08 26 31 32 33 38 39 40 41 42 43 44 45

#	Part Number	Partname	Quantity	Options	Reference
01	906 423 40	Immersion heater	7	InternBDB: OE 1 NPT 500W 240V \| InternKon: 933 983 40 / 3
02	932 675 40	Immersion heater	6	InternBDB: SO10AL33-020EP 0433.0633 \| InternKon: 933 983 40 / 4
03	906 245 40	Immersion heater	4	InternBDB: OE 430 200-00 /300W \| InternKon: 933 983 40 / 6
04	257 965 40	Thermostat	8	InternBDB: ALS 68 EP 3/4 NPT \| InternKon: 933 983 40 / 7
05	251 816 40	Flange	6	InternKon: 933 982 40 / 31
06	621 579 40	Adapter	2	InternKon: 933 982 40 / 11
07		Coolant preheating arr.	2	InternBDB: 932 673 40 \| InternKon: 933 983 40 / 1	991-0647
08	906 422 40	Battery heating plate set	2	InternBDB: 300W240V \| InternKon: 933 983 40 / 2
09	551 345 40	Union	4	InternBDB: Red 28/22-PL/OMD \| InternKon: 933 982 40 / 16
10	515 025 40	Flange	4	InternBDB: Cummi 317 8301 \| InternKon: 933 982 40 / 12
11	516 187 98	Socket	4	InternBDB: SWSDS-L28xG1 Type E / ISO 8434 \| InternKon: 933 982 40 / 37
12	305 991 99	Ball cock	2	InternBDB: G1 \| InternKon: 933 982 40 / 38
13	374 439 99	Socket	4	InternBDB: SDS-L28xG1 Type E / ISO 8434 \| InternKon: 933 982 40 / 36
14	372 477 99	Union	4	InternBDB: GE 28 PL \| InternKon: 933 982 40 / 15
15	516 281 98	Socket	2	InternBDB: L22/3944 \| InternKon: 933 982 40 / 17
16	515 585 40	Hose assy. DN 20x3150	1	InternBDB: DOL 22 90 \| InternKon: 933 982 40 / 20
17	514 116 98	Hose assy. DN 20x2600	1	InternBDB: DOL 22 90 \| InternKon: 933 982 40 / 22
18	514 118 98	Hose assy. DN 20x2700	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 19
19	514 115 98	Hose assy. DN 20x2500	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 21
21	511 857 98	Cover plate	12	InternBDB: L4/3015 \| InternKon: 933 982 40 / 24
22	501 584 98	Weld on plate	12	InternBDB: L-AP-K-4/3015 \| InternKon: 933 982 40 / 25
23	504 900 98	Half clamp	32	InternBDB: L-4-G-28 /3015 \| InternKon: 933 982 40 / 26
25	308 537 99	Bolt	24	InternBDB: M10x70 /931 \| InternKon: 933 982 40 / 28
26		Switch box	1	InternBDB: 932 674 40 \| InternKon: 933 983 40 / 5	991-0669
27	006 739 98	O-ring	6	InternBDB: 89,2x5,7 \| InternKon: 910 950 40 / 24
28	307 752 99	Bolt	36	InternBDB: M8x20 /933 \| InternKon: 910 950 40 / 32
29	346 510 99	Lock washer	36	InternKon: 910 950 40 / 41
30	907 415 40	Seal	4	InternBDB: Cummins 3177556 \| InternKon: 933 982 40 / 32
31	307 754 99	Bolt	4	InternBDB: M 8x25/933 \| InternKon: 933 982 40 / 34
32	340 507 99	Washer	4	InternBDB: A 8,4/125 \| InternKon: 933 982 40 / 35
33	317 319 40	Threaded block	4	InternKon: 933 982 40 / 33
34	518 025 98	Hose assy. DN 20x2200	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 18
35	518 026 98	Hose assy. DN 20x1650	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 933 982 40 / 23
36	372 478 99	Union	2	InternBDB: GE 35-PL/ 1 1/4NPT /WN01088099 \| InternKon: 933 982 40 / 13
37	551 457 40	Union	2	InternBDB: RED 35/22-PL/OMD \| InternKon: 933 982 40 / 14
38	930 563 40	Threaded block	8	InternKon: 933 982 40 / 39
39	307 780 99	Bolt	4	InternBDB: M 10x35/933 \| InternKon: 933 982 40 / 40
40	514 921 98	Nut	4	InternBDB: M10 /985 \| InternKon: 933 982 40 / 41
41	340 465 99	Washer	4	InternBDB: B 10,5/125 \| InternKon: 933 982 40 / 42
42	0443452711	Clip	10	InternBDB: KES 04434 \| InternKon: 933 982 40 / 43
43	511 773 98	Thread pin	8	InternBDB: PM 10x70 \| InternKon: 933 982 40 / 44
44	507 037 98	Nut	10	InternBDB: M10 /985 \| InternKon: 933 982 40 / 45
45	510 741 98	Resilient sleeve	6	InternBDB: 13/25x50 \| InternKon: 933 982 40 / 46
47	914 705 40	Flange	4	InternBDB: Nacharbeit TL \| InternKon: 933 982 40 / 47

Komatsu PC5500-6 S/N 15056 parts catalog PDF

TEMPERATURE CONDITIONING (515-2500i) in PC5500-6 S/N 15056. Diagram image and parts list.
