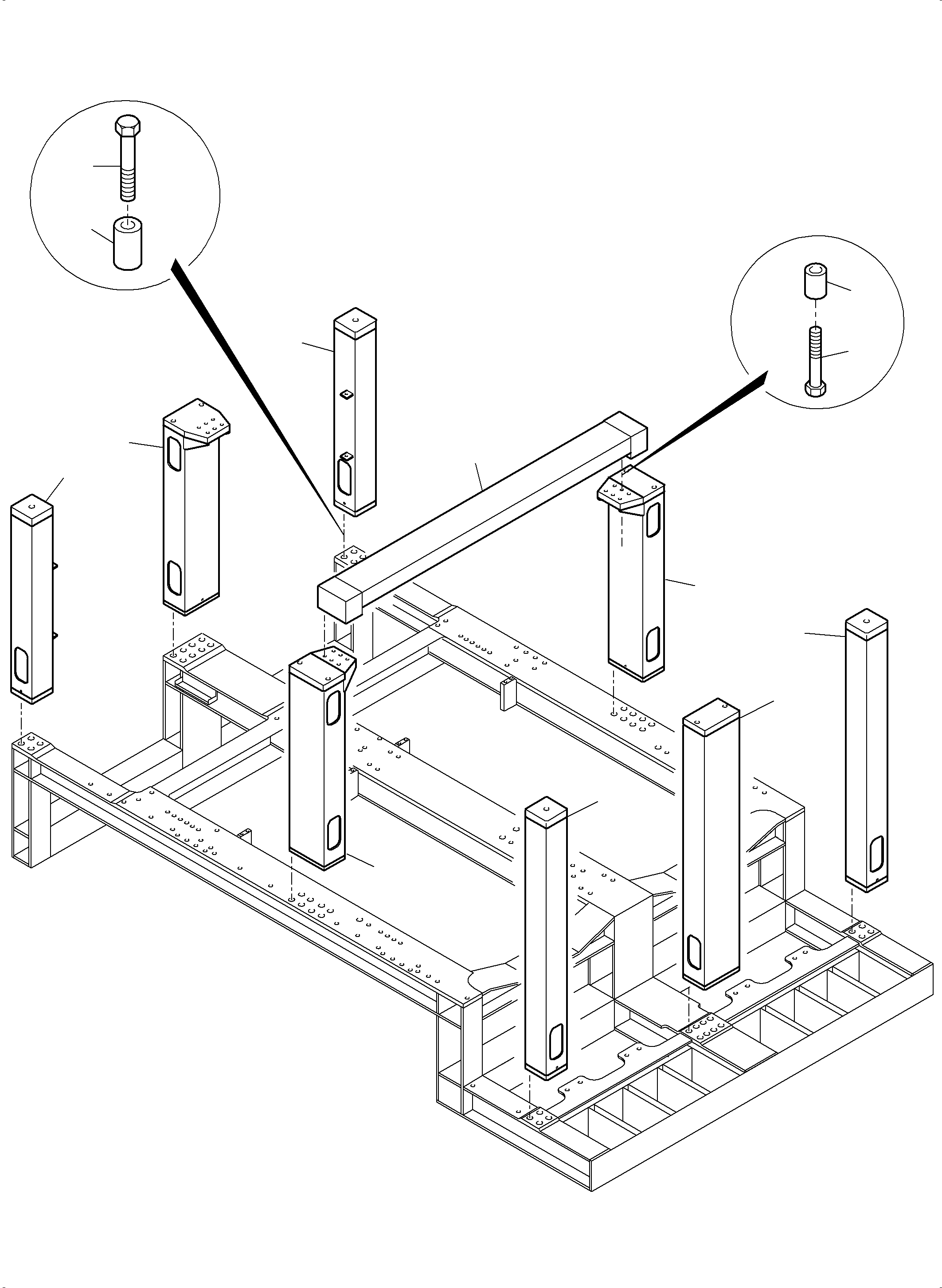

01 02 03 04 05 06 06 07 07 08 09 10 100 11 11 12 12 13 13 14 14 15 15 20 21

PC5500-6 S/N 15056

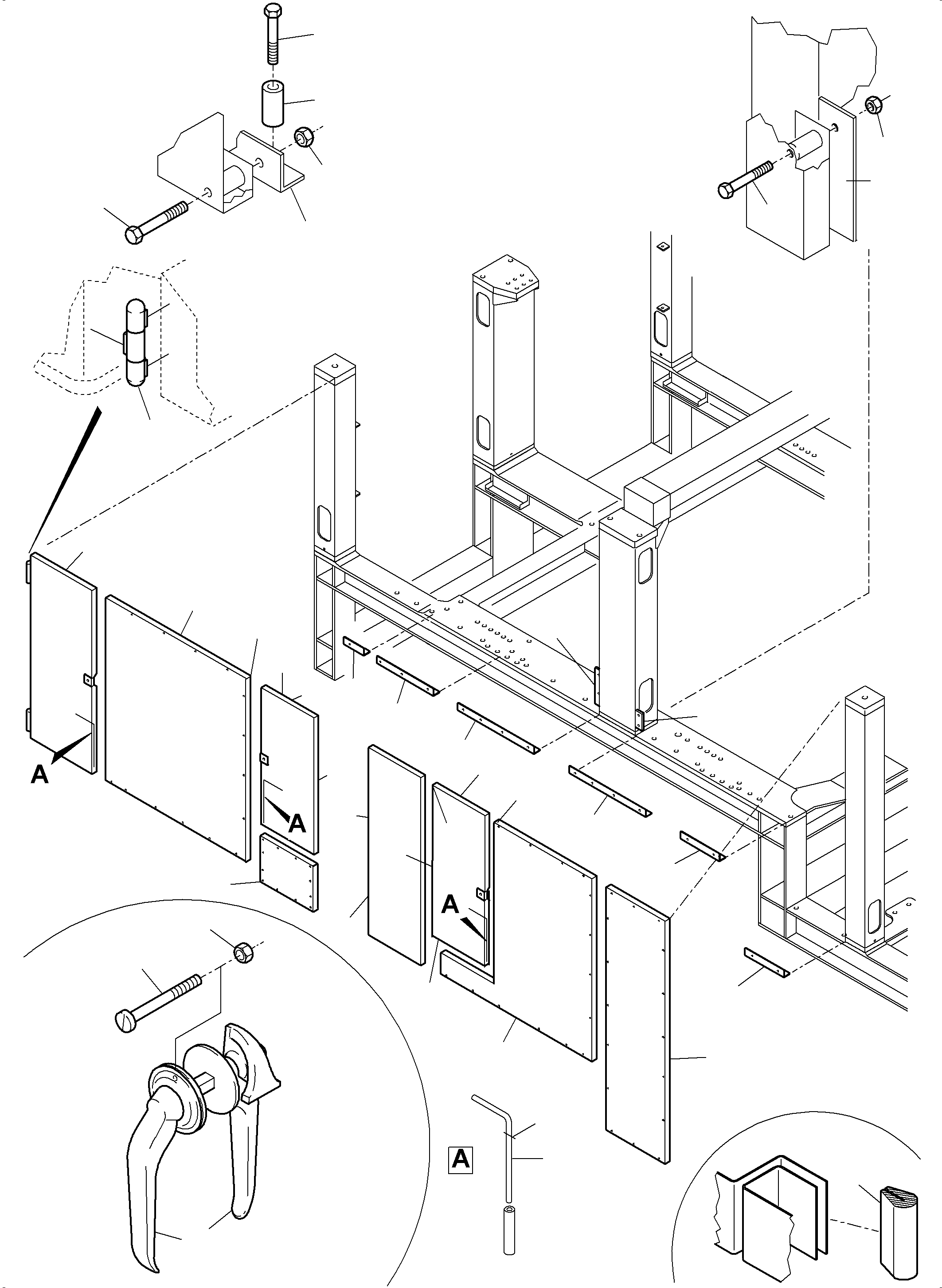

25 26 26 26 26 27 28 29 29 30 31 32 37 37 38 38 39 39 40 40 41 42 43

PC5500-6 S/N 15056

111 112 113 114 115 116 117 118 26 43 50 51 52 53 54 55 56 57 58 59 60 60 61 62 63 63 64 65 66 67 68 69 70 71 71 91 92 93

PC5500-6 S/N 15056

75 76 77 78 79 80 81 82 83 84 85 86 87

#	Part Number	Partname	Quantity	Options
01	912 834 40	Roof frame	1	InternKon: 925 800 40 / 1
02	912 823 40	Roof section	1	InternKon: 925 800 40 / 2
03	886 254 40	Roof section	1	InternKon: 925 800 40 / 3
04	886 260 40	Roof section	1	InternKon: 925 800 40 / 4
05	914 595 40	Roof section	1	InternKon: 925 800 40 / 15
06	500 816 98	Bolt	43	InternBDB: M12x75 \| InternKon: 925 800 40 / 18
07	510 741 98	Resilient sleeve	43	InternKon: 925 800 40 / 19
08	592 259 40	Profiled joint	-2	InternBDB: GHE 461 0075 ca 11 mm \| InternKon: 925 800 40 / 16
09	307 802 99	Bolt	9	InternBDB: M12x25 \| InternKon: 925 800 40 / 29
10	346 498 99	Lock washer	9	InternKon: 925 800 40 / 37
11	914 587 40	Threaded rail	2	InternKon: 925 800 40 / 6
12	914 586 40	Threaded rail	2	InternKon: 925 800 40 / 7
13	914 585 40	Threaded rail	2	InternKon: 925 800 40 / 8
14	914 584 40	Threaded rail	2	InternKon: 925 800 40 / 9
15	914 583 40	Threaded rail	2	InternKon: 925 800 40 / 10
20	304 172 99	Bolt	12	InternBDB: M36x260 \| InternKon: 912 849 40 / 14
21	255 056 40	Washer	12	InternBDB: 37 \| InternKon: 912 849 40 / 15
25	904 794 40	Outer door	2	InternKon: 912 849 40 / 9
26	390 199 40	Hinge assy.	4	InternKon: 912 849 40 / 16
27	350 562 99	Grease nipple	4	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
28	621 108 40	Pin	4	InternKon: 390 199 40 / 1
29	390 600 40	Bushing	8	InternKon: 390 199 40 / 2
30	390 601 40	Bushing	4	InternKon: 390 199 40 / 3
31	340 612 99	Washer	4	InternKon: 390 199 40 / 4
32	342 061 99	Cotter pin	4	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
37	308 424 99	Bolt	6	InternBDB: M16x110 \| InternKon: 912 849 40 / 18
38	340 469 99	Washer	6	InternBDB: Ш17 \| InternKon: 912 849 40 / 19
39	912 850 40	Plate	2	InternKon: 912 849 40 / 17
40	332 336 99	Nut	6	InternBDB: M16 \| InternKon: 912 849 40 / 49
41	674 904 40	Pipe	4	InternKon: 912 849 40 / 20
42	307 806 99	Bolt	8	InternBDB: M12x40 \| InternKon: 912 849 40 / 21
43	334 600 99	Nut	44	InternBDB: M 12 \| InternKon: 912 849 40 / 22
50	912 844 40	Door	1	InternKon: 912 849 40 / 26
51	921 018 40	Wall	1	InternKon: 912 849 40 / 27
52	912 843 40	Door	1	InternKon: 912 849 40 / 28
53	886 915 40	Wall	1	InternKon: 912 849 40 / 29
54	912 842 40	Door	1	InternKon: 912 849 40 / 30
55	914 977 40	Wall	1	InternKon: 912 849 40 / 31
56	918 890 40	Wall	1	InternKon: 912 849 40 / 32
57	906 709 40	Fastener	3	InternBDB: Emka 30312 \| InternKon: 912 849 40 / 40
58	318 116 99	Screw	6	InternBDB: AM 4x50 \| InternKon: 912 849 40 / 43
59	332 442 99	Nut	6	InternBDB: M 4 \| InternKon: 912 849 40 / 44
60	661 613 40	Angle	2	InternKon: 912 849 40 / 33
61	661 614 40	Angle	1	InternKon: 912 849 40 / 34
62	921 399 40	Angle	1	InternKon: 912 849 40 / 35
63	872 282 40	Shackle	1	InternKon: 912 849 40 / 36
64	539 761 40	Pipe	3
65	921 398 40	Angle	1	InternKon: 912 849 40 / 37
66	661 619 40	Angle	1	InternKon: 912 849 40 / 38
67	918 892 40	Angle	1	InternKon: 912 849 40 / 39
68	210 983 40	Profiled joint	-2	InternBDB: GHE 461 0048 / ca 5m \| InternKon: 912 849 40 / 41
69	510 741 98	Resilient sleeve	15	InternBDB: 13/25x50 \| InternKon: 912 849 40 / 45
70	308 608 99	Bolt	15	InternBDB: M12x70 \| InternKon: 912 849 40 / 42
71	308 610 99	Bolt	34	InternBDB: M12x80 / 931 \| InternKon: 912 849 40 / 46
75	624 000 40	Post	1	InternKon: 912 849 40 / 3
76	651 870 40	Post	1	InternKon: 912 849 40 / 2
77	624 002 40	Post	1	InternKon: 912 849 40 / 1
78	886 214 40	Post	1	InternKon: 912 849 40 / 4
79	914 976 40	Post	1	InternKon: 912 849 40 / 5
80	675 681 40	Post	1	InternKon: 912 849 40 / 6
81	651 873 40	Post	1	InternKon: 912 849 40 / 7
82	651 880 40	Bridge	1	InternKon: 912 849 40 / 8
83	510 742 98	Resilient sleeve	12	InternKon: 912 849 40 / 12
84	510 725 98	Resilient sleeve	48	InternKon: 912 849 40 / 11
85	304 369 99	Bolt	48	InternBDB: M30x180 \| InternKon: 912 849 40 / 10
86	308 404 99	Bolt	12	InternBDB: M24x140 \| InternKon: 912 849 40 / 13
87	921 002 40	Post	1	InternKon: 912 849 40 / 23
91	886 913 40	Wall	1	InternKon: 912 849 40 / 47
92	908 071 40	Catch	3	InternKon: 912 849 40 / 50
93	345 178 99	Dowel pin	3	InternBDB: 6x30 \| InternKon: 912 849 40 / 51
100	490 694 40	Rubber sealing	-2	InternBDB: 20x20 Z 125 \| InternKon: 925 800 40 / 17
111	928 751 40	Strip	1	InternKon: 928 743 40 / 11
112	928 752 40	Strip	1	InternKon: 928 743 40 / 12
113	928 753 40	Strip	1	InternKon: 928 743 40 / 13
114	891 661 40	Strip	1	InternKon: 928 743 40 / 14
115	463 968 40	Strip	1	InternKon: 928 743 40 / 15
116	928 754 40	Strip	1	InternKon: 928 743 40 / 16
117	928 755 40	Strip	1	InternKon: 928 743 40 / 17
118	928 756 40	Strip	1	InternKon: 928 743 40 / 18
