PC5500-6 S/N 15056

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Pump unit	1	InternBDB: 936 534 40 \| InternKon: 934 937 40 / 45	991-0449b
?	308 556 99	Bolt	3	InternBDB: M8x50 /931 \| InternKon: 934 937 40 / 49
?	334 599 99	Nut	3	InternBDB: M 8 /985 \| InternKon: 934 937 40 / 56
?	576 471 40	Union	1	InternBDB: Red 35/28-PL \| InternKon: 934 937 40 / 104
?	374 460 99	Socket	3	InternBDB: L 35 E-G 1 1/4 \| InternKon: 934 937 40 / 92
?	943 013 40	Retainer	1
?	643 814 40	Hose assy. DN 25x700	1	InternBDB: DOL 28 /DOL 28 \| InternKon: 934 937 40 / 114
?	943 014 40	Retainer	1
?	516 235 98	Socket	1	InternBDB: SWDS-L22xM26x1,5 Type E /ISO 8434 \| InternKon: 934 937 40 / 67
?	513 597 98	Hose assy. DN 32x560	1	InternBDB: DOL 35 /DOL 35 \| InternKon: 934 937 40 / 115
?	516 849 98	Union	1	InternBDB: T-L 35 ISO 08434 \| InternKon: 934 937 40 / 106
?	516 162 98	Socket	2	InternBDB: L 35 /3942 \| InternKon: 934 937 40 / 93
?	516 171 98	Socket	1	InternBDB: L 35 /3943 \| InternKon: 934 937 40 / 90
?	516 751 98	Union	3	InternBDB: BH-L 35 ISO 08434 \| InternKon: 934 937 40 / 112
?	516 188 98	Socket	6	InternBDB: L 35-G /3945 \| InternKon: 934 937 40 / 109
?	516 753 98	Ball cock	3	InternBDB: G11/4 MSNI /34196040 \| InternKon: 934 937 40 / 108
?	516 473 98	Socket	1	InternBDB: L 35 /3944 \| InternKon: 934 937 40 / 107
?	517 999 98	Hose assy. DN 32x2100	1	InternBDB: DOL 35 /DOL 35-45 \| InternKon: 934 937 40 / 116
?	507 557 98	Nut	3	InternBDB: M45x2,0 /80705 \| InternKon: 934 937 40 / 113
?	340 507 99	Washer	6	InternBDB: A Ш8,4 /DIN125 \| InternKon: 934 937 40 / 52
?	634 301 40	Union	1	InternBDB: GR 28/22-L/OMD \| InternKon: 934 937 40 / 91
?	516 161 98	Union	1	InternBDB: SWE-L28 \| InternKon: 934 937 40 / 105
?	374 422 99	Socket	1	InternBDB: SDS-L35-M42x2 Type E \| InternKon: 934 937 40 / 111
?	517 997 98	Hose assy. DN 32x2300	1	InternBDB: DOL 35 /DOL 35-45 \| InternKon: 913 585 40 / 40
?	517 998 98	Hose assy. DN 32x3600	1	InternBDB: DOL 35 /DOL 35-45 \| InternKon: 913 585 40 / 41
?	551 457 40	Union	1	InternBDB: Red 35/22-PL /OMD \| InternKon: 913 585 40 / 70
?	511 701 98	Socket	1	InternBDB: L 35 /3902 \| InternKon: 913 585 40 / 71
?	516 160 98	Socket	3	InternBDB: L 22 /3942 \| InternKon: 913 585 40 / 75
?	516 281 98	Socket	1	InternBDB: L 22 /3944 \| InternKon: 913 585 40 / 76

Komatsu PC5500-6 S/N 15056 parts catalog PDF

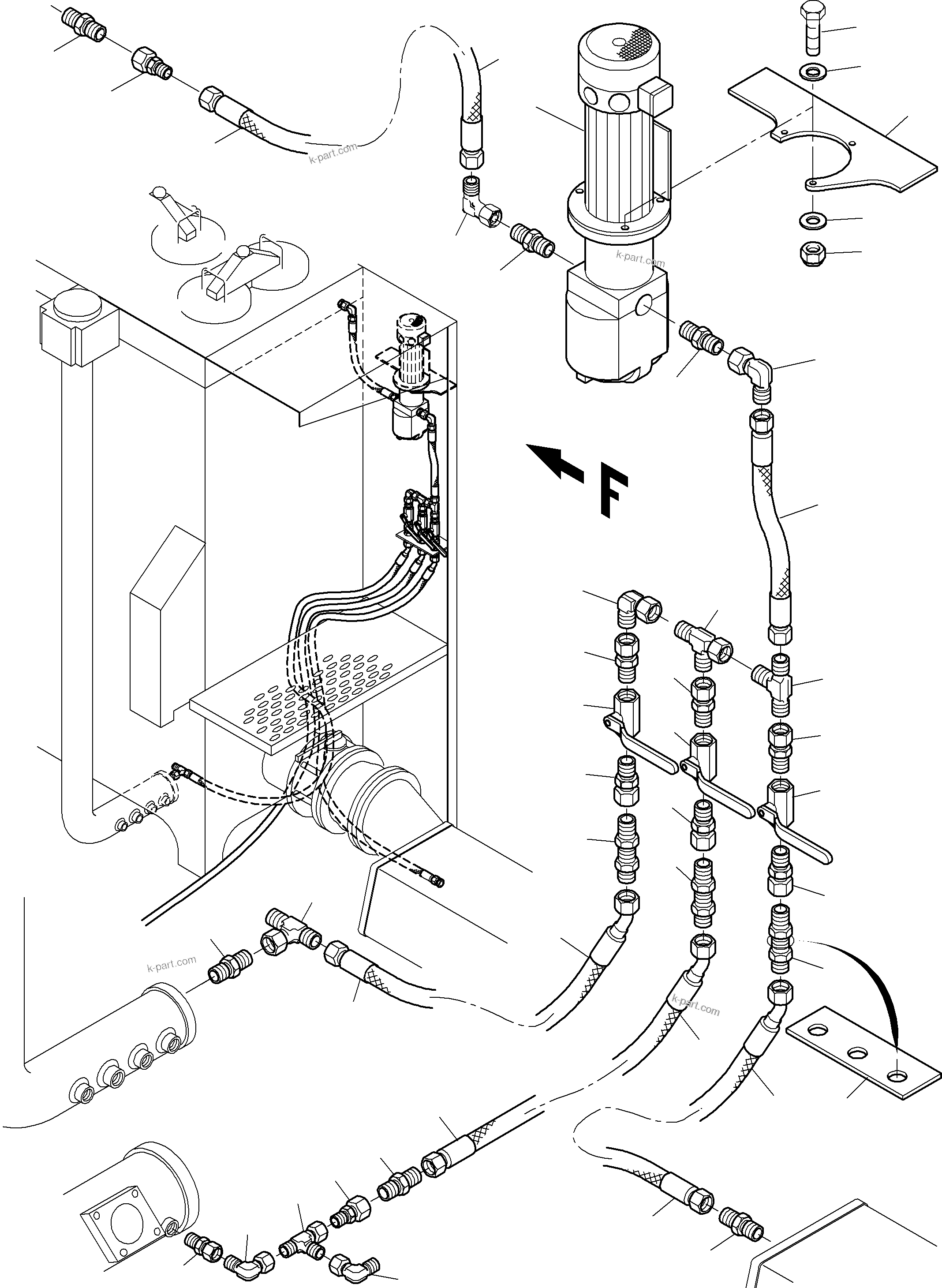

INSTALLATION - TRANSFUSING PUMP (515-1805d) in PC5500-6 S/N 15056. Diagram image and parts list.
