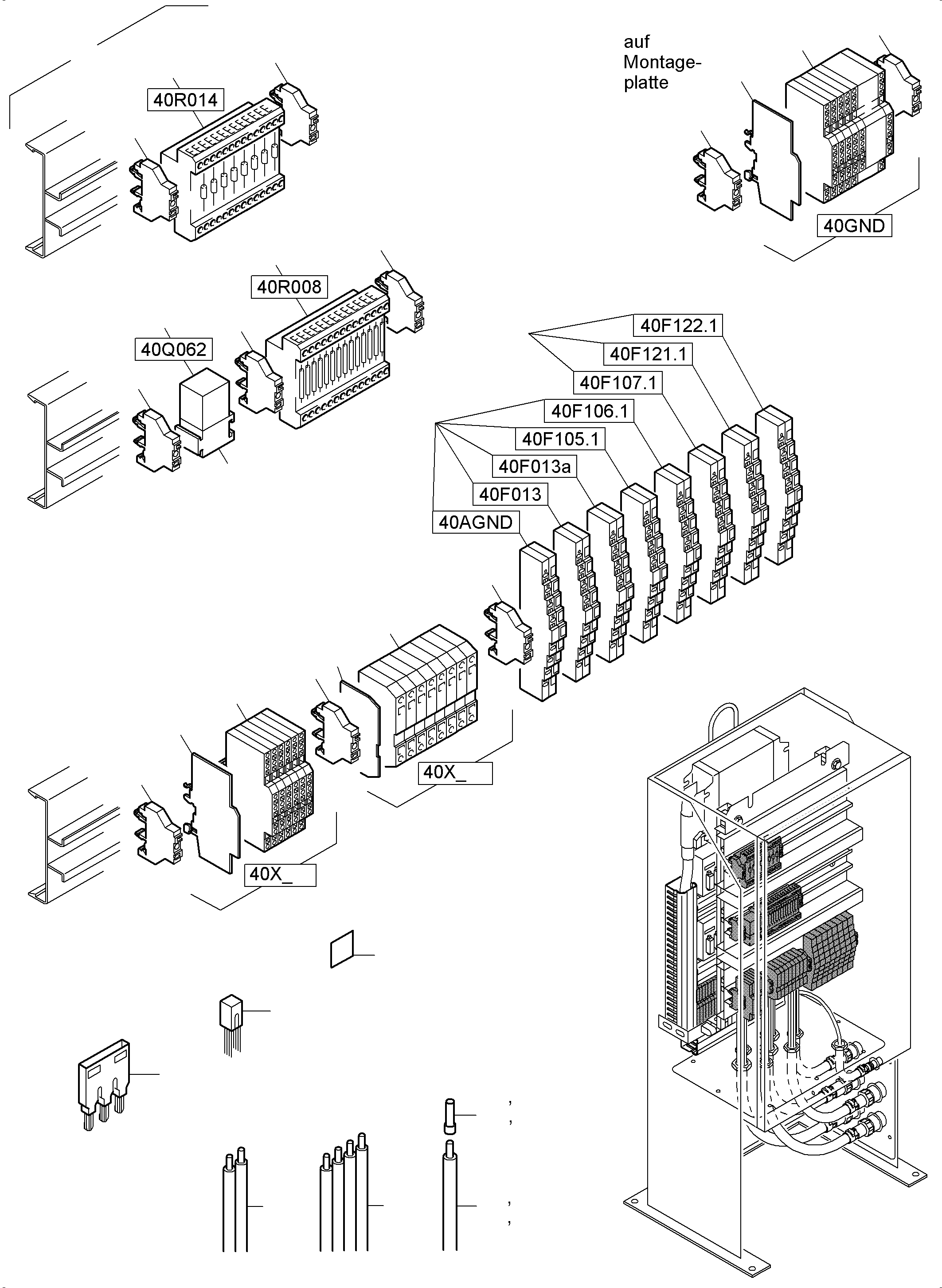

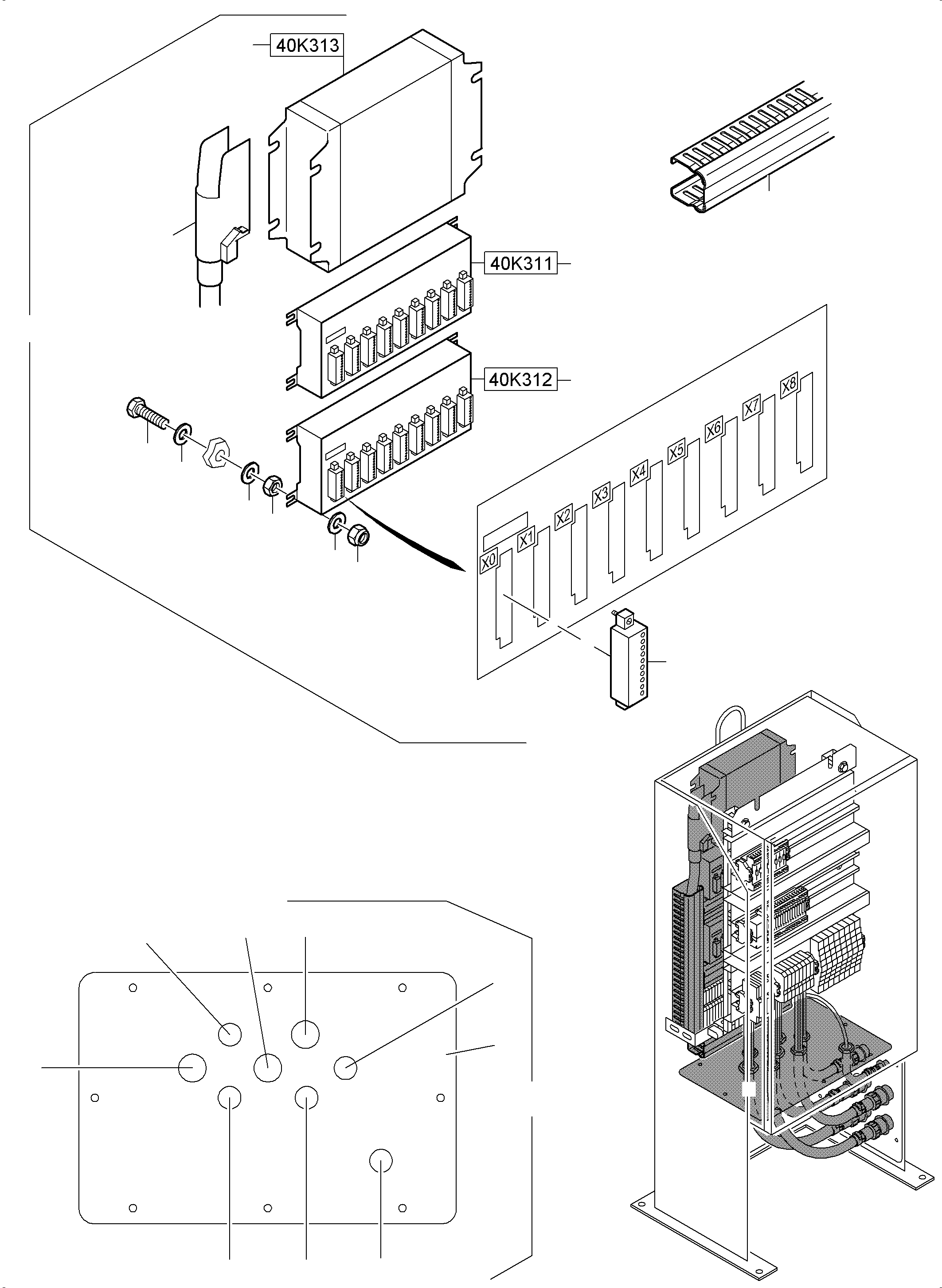

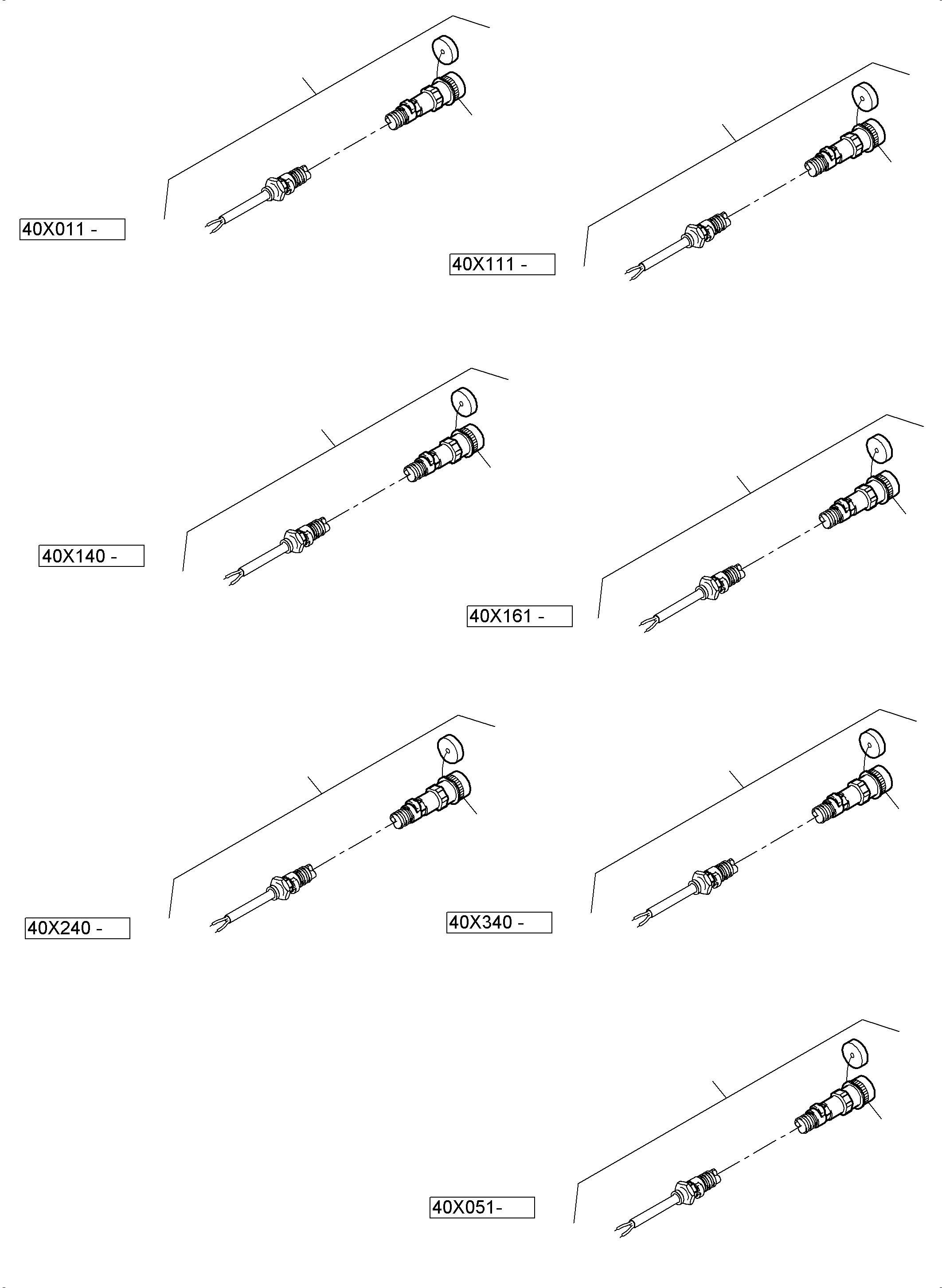

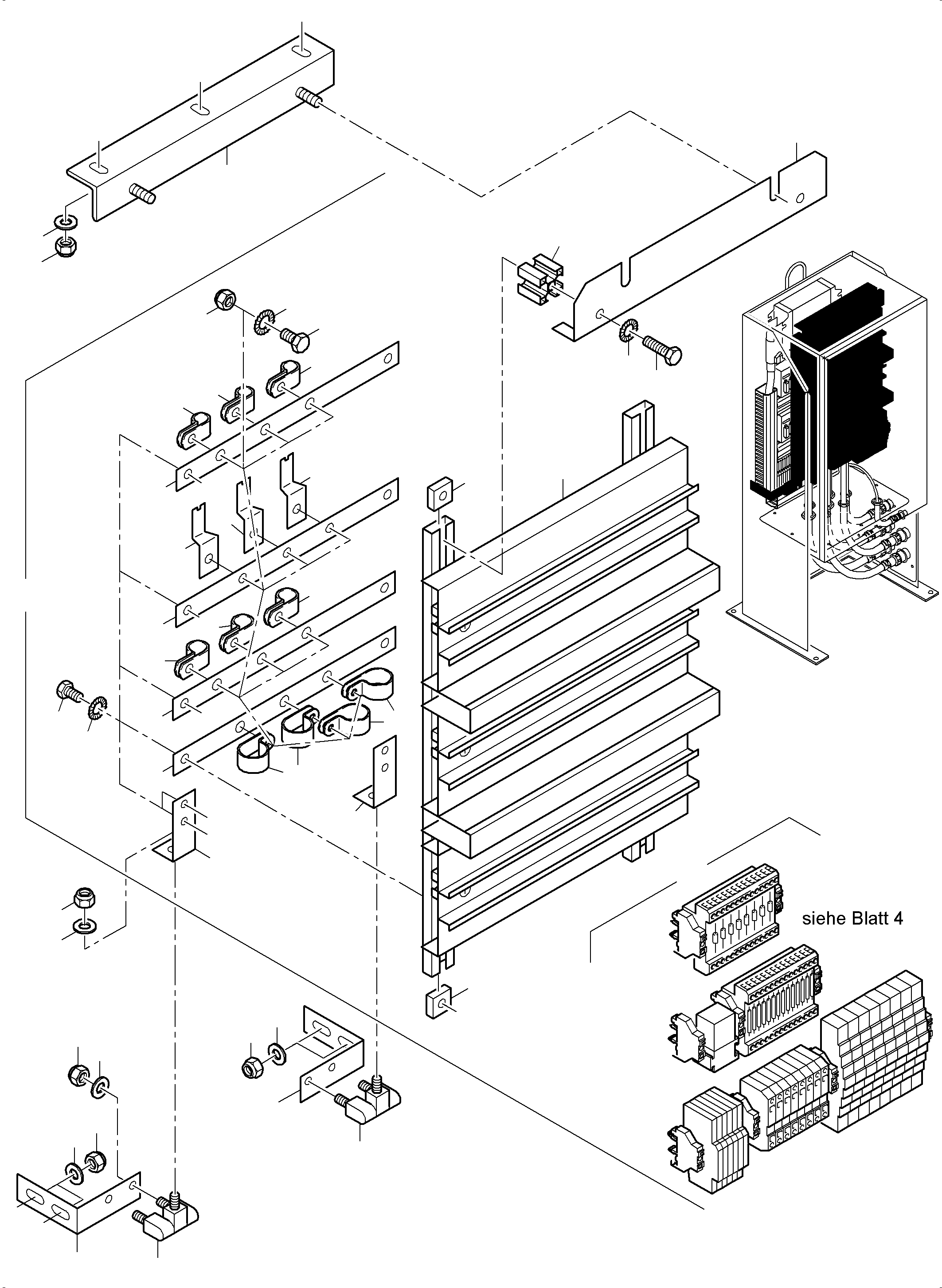

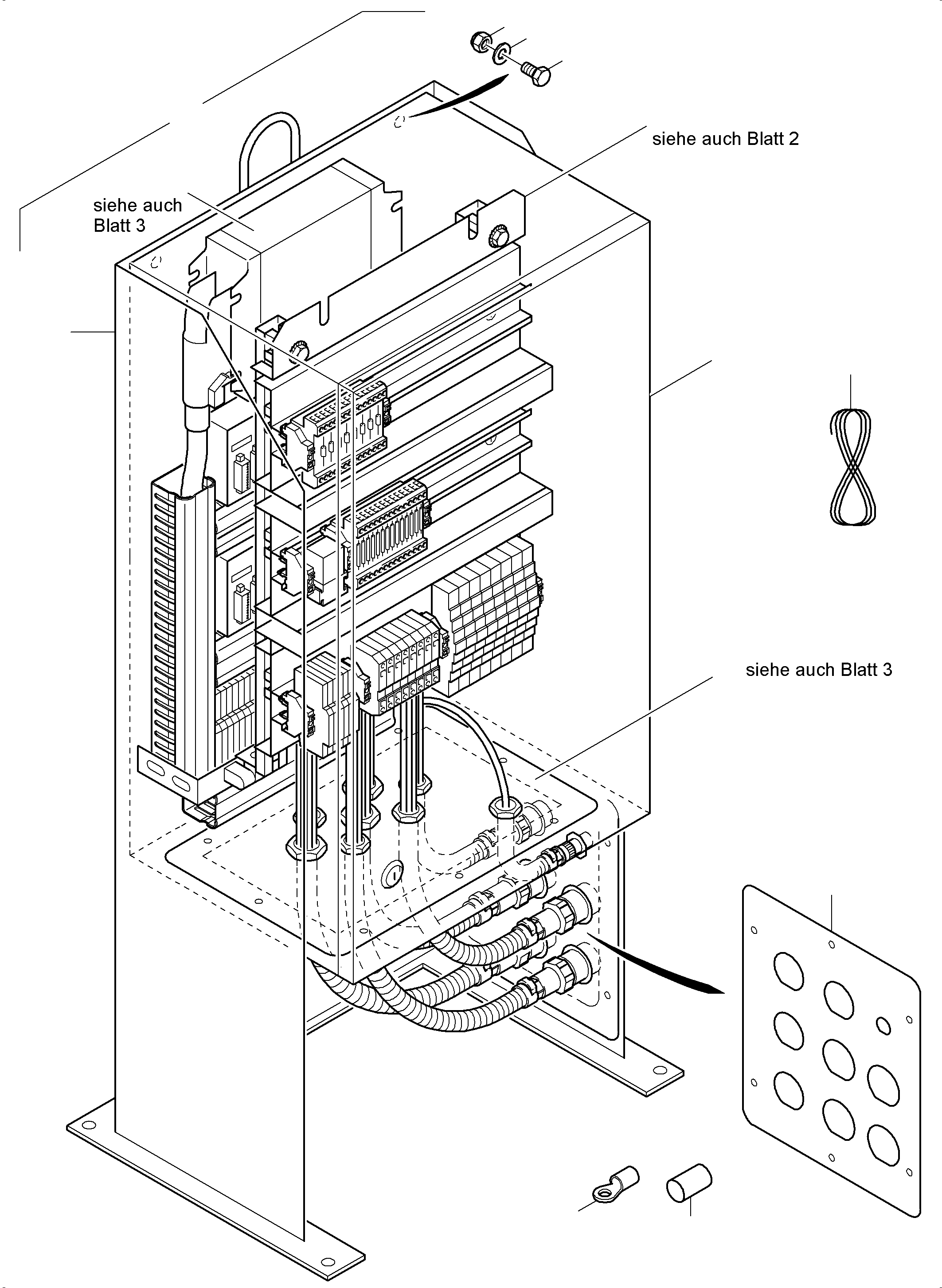

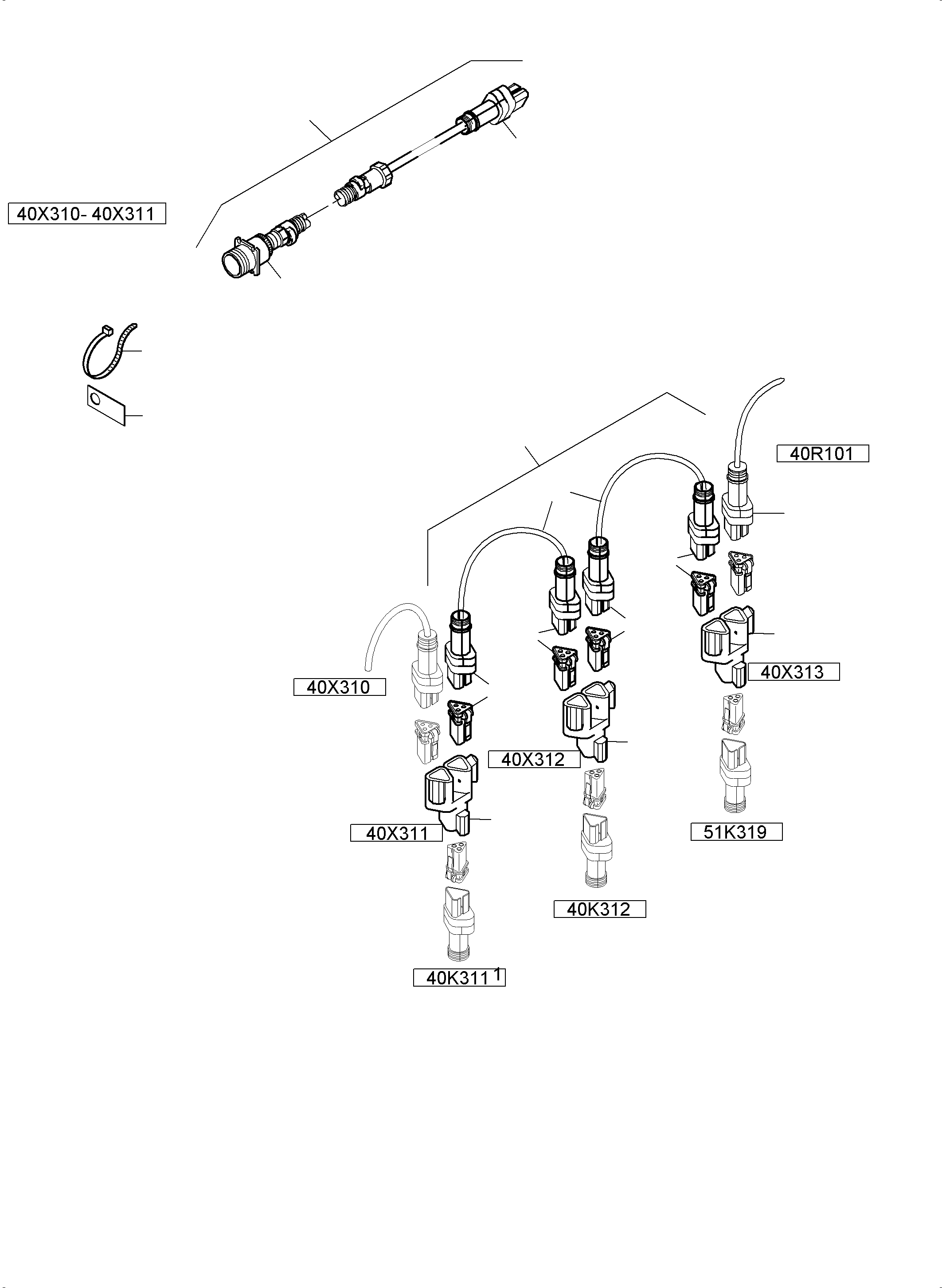

Diagram image 1 of 6

PC8000-6 S/N 12082

01 02 03 04 05 06 07 08 09 10 11 21 22 23 24

PC8000-6 S/N 12082

08 15 15 16 17 18 18 18 18 18 19 19 19 19 19 20 26 27 28 28 29 30 31 32 32 33 34 35 36 36 37 38 39 39 40 40 41 42 42 42 43 43 43 44 44 45 45 45

PC8000-6 S/N 12082

09 10 11 46 47 48 48 49 50 51 52 53 54 55 56 56 56 57 58 59 60 61 62 63 64 65

PC8000-6 S/N 12082

11 14 26 40 66 67 68 69 70 70 71 71 72 73 74 75 76 77 78 79 80 81 81 81 81 81 81 81 81 81 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97

PC8000-6 S/N 12082

100 101 101 102 103 40 40 40 40 40 40 40 58 59 60 61 62 63 65 98 99

PC8000-6 S/N 12082

104 105 105 105 106 106 107 108 109 12 13 13 13 14 64

#	Part Number	Partname	Quantity
01	956 759 40	Switch cabinet assy. ORT 40	-2
02	957 410 40	Switch cabinet retainer	1
03	307 773 99	Bolt	4
04	507 037 98	Nut	4
05	340 465 99	Washer	4
06	957 092 40	Socket plate	1
07	950 188 40	Switch cabinet	1
08	957 443 40	Switch framing assy.	1
09	956 723 40	Mounting plate assy.	1
10	956 760 40	Switch cabinet plate assy. with harnesses	1
11	949 128 40	Seal	1
12	956 770 40	Cable can bus H-tank	1
13	958 955 40	Bushing assy. with rubber grommet	6
14	940 435 40	Cable	-2
15	950 187 40	Hinge	2
16	957 071 40	Angle	1
17	957 413 40	Angle	1
18	334 599 99	Nut	11
19	340 507 99	Washer	11
20	957 072 40	Angle	1
21	515 253 40	Cord 500lg	-2
22	517 487 98	Cable shoe	1
23	906 947 40	Cable shoe	1
24	940 913 40	Warmth shrink hose	-2
26	957 016 40	Switch framing assy.	1
27	950 241 40	Frame	1
28	957 439 40	Retainer	2
29	957 440 40	Retainer	1
30	957 441 40	Retainer	1
31	957 442 40	Stop	1
32	957 073 40	Angle	2
33	307 748 99	Bolt	12
34	307 445 99	Bolt	12
35	505 383 98	Bolt	2
36	518 594 98	Lock washer	14
37	518 547 98	Lock washer	12
38	507 037 98	Nut	12
39	950 242 40	Sliding Nut	14
40	950 243 40	Sliding nut cage	14
41	950 244 40	Assembly rail 60lg	-2
42	0819320010	Clip	3
43	0443451010	Clamp	3
44	0443452110	Clamp NW17	4
45	0443550810	Clamp	3
46	941 431 40	Contoller housing	1
47	960 666 40	Plug aasy	1
48	941 430 40	Modul	2
49	941 412 40	Plug connector	18
50	270 288 40	Wiring channel 40x25	-2
51	270 873 40	Cable channel	-2
52	270 905 40	Cable channel	-2
53	511 836 98	Bolt	8
54	512 464 98	Nut	8
55	332 202 99	Nut	8
56	340 459 99	Washer	24
57	957 010 40	Switch cabinet plate	1
58	956 716 40	Harness 40X011 - 40	1
59	956 717 40	Harness 40X111 - 40	1
60	956 765 40	Harness 40X140 - 40	1
61	956 766 40	Harness 40X161 - 40	1
62	956 767 40	Harness 40X240 - 40	1
63	956 768 40	Harness 40X340 - 40	1
64	956 769 40	Harness 40X310-40X311	1
65	956 771 40	Harness 40X051 - 40	1
66	960 613 40	Resistor array assy.	1
67	655 748 40	Diode array	1
68	941 734 40	Relay	1
69	941 686 40	Relay socket	1
70	941 502 40	Potencial clamp	10
71	941 503 40	Cover plate	10
72	906 612 40	Through clamp 2.5	20
73	906 613 40	Cover plate	3
74	906 614 40	Bridge 2-fold	1
75	906 615 40	Bridge 3-fold	1
76	906 768 40	Through clamp 6,0	8
77	906 774 40	Cover plate	1
78	906 775 40	Bridge	6
79	950 185 40	Protective wire clip	35
80	950 186 40	Cover plate	1
81	940 673 40	Clamp	10
82	906 624 40	Marker	5
83	906 625 40	Marker	2
84	906 626 40	Marker	2
85	906 627 40	Marker	2
86	906 628 40	Marker	2
87	515 213 40	Cable 1,0	-2
88	515 214 40	Cable 2,5	-2
89	655 873 40	Cable 1,5	-2
90	940 169 40	Cable 4x1	-2
91	907 877 40	Cable 2x0,75	-2
92	500 090 98	Wire end ferrule 0,75-6	13
93	635 042 40	Wire end ferrule 1,5	70
94	907 640 40	Wire end ferrule 2,5	1
95	907 501 40	Wire end ferrule 10 qmm	2
96	896 727 40	Cable 10,0	-2
97	941 640 40	Cable 1x0,75	-2
98	950 118 40	Socket	1
99	950 121 40	Socket	1
100	950 140 40	Socket	1
101	950 146 40	Socket	2
102	950 125 40	Socket	1
103	950 124 40	Socket	1
104	950 171 40	Socket	1
105	906 647 40	T-Splitter	3
106	958 956 40	Bushing assy.	2
107	941 144 40	End resistor 120OHM	1
108	941 777 40	Plate	8
109	174 411 40	Cable strap	16

Komatsu PC8000-6 S/N 12082 parts catalog PDF

SWITCH CABINET ORT 40 (113-2272b) in PC8000-6 S/N 12082. Diagram image and parts list.
