Diagram image 1 of 5

PC8000-6 S/N 12082

01 02 03 04 05 07 08 09 10 11 21 22 23 24

PC8000-6 S/N 12082

08 15 15 16 17 18 18 18 18 18 19 19 19 19 19 20 26 27 28 28 29 30 31 32 32 33 34 35 36 36 37 38 39 39 40 40 41 42 42 42 43 43 43 44 44 45 45 45

PC8000-6 S/N 12082

09 10 100 46 47 48 49 50 51 52 53 54 55 56 56 56 57 58 59 60 61 62 63 64 65

PC8000-6 S/N 12082

101 101 101 102 102 102 14 26 66 67 67 68 68 68 69 70 70 71 71 72 73 74 74 74 74 74 74 74 74 74 74 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89

PC8000-6 S/N 12082

12 13 13 14 56 56 56 56 56 56 58 59 60 61 62 63 64 65 91 92 93 94 94 94 95 96 97 98 98 98 99 99 99

#	Part Number	Partname	Quantity
01	956 763 40	Switch cabinet assy. ORT 56	-2
02	957 408 40	Switch cabinet retainer	1
03	307 773 99	Bolt	4
04	507 037 98	Nut	4
05	340 465 99	Washer	4
07	950 188 40	Switch cabinet	1
08	957 445 40	Switch framing assy.	1
09	957 404 40	Mounting plate assy.	1
10	956 764 40	Switch cabinet plate assy. with harnesses	1
11	949 128 40	Seal	1
12	956 796 40	Cable can bus P-room	1
13	958 955 40	Can bushing	3
14	950 435 40	Ca bushing cable	-2
15	950 187 40	Hinge	2
16	957 071 40	Angle	1
17	957 413 40	Angle	1
18	334 599 99	Nut	11
19	340 507 99	Washer	11
20	957 072 40	Angle	1
21	515 253 40	Cord 500lg	-2
22	517 487 98	Cable shoe	1
23	906 947 40	Cable shoe	1
24	940 913 40	Warmth shrink hose	-2
26	957 406 40	Switch framing assy.	1
27	950 241 40	Frame	1
28	957 439 40	Retainer	2
29	957 440 40	Retainer	1
30	957 441 40	Retainer	1
31	957 442 40	Stop	1
32	957 073 40	Angle	2
33	307 748 99	Bolt	12
34	307 445 99	Bolt	12
35	505 383 98	Bolt	2
36	518 594 98	Lock washer	14
37	518 547 98	Lock washer	12
38	507 037 98	Nut	12
39	950 242 40	Sliding Nut	14
40	950 243 40	Sliding nut cage	14
41	950 244 40	Assembly rail 60lg	-2
42	0819320010	Clip	3
43	0443451010	Clamp	3
44	0443452110	Clamp NW17	4
45	0443550810	Clamp	3
46	941 432 40	Contoller housing	1
47	960 667 40	Plug aasy ICNV-56K315	1
48	941 430 40	Modul	1
49	941 412 40	Plug connector	9
50	270 288 40	Wiring channel 40x25	-2
51	270 873 40	Cable channel	-2
52	270 905 40	Cable channel	-2
53	511 836 98	Bolt	8
54	512 464 98	Nut	8
55	332 202 99	Nut	8
56	340 459 99	Washer	24
57	957 012 40	Switch cabinet plate	1
58	956 788 40	Harness 56X011-56	1
59	956 789 40	Harness 56X057-56	1
60	956 790 40	Harness 56X111-56	1
61	956 791 40	Harness 56X257-56	1
62	956 792 40	Harness 56X357-56	1
63	956 793 40	Harness 56X457-56	1
64	956 794 40	Harness 56X313-56X314	1
65	956 795 40	Harness 56X317-56X316	1
66	960 613 40	Resistor array assy.	1
67	655 748 40	Diode array	2
68	941 487 40	Semiconductor relay	14
69	910 027 40	Converter	2
70	941 502 40	Potencial clamp	8
71	941 503 40	Cover plate	8
72	950 185 40	Protective wire clip	18
73	950 186 40	Cover plate	1
74	940 673 40	Clamp	4
75	906 624 40	Marker	2
76	906 625 40	Marker	2
77	906 626 40	Marker	2
78	906 627 40	Marker	2
79	515 213 40	Cable 1,0	-2
80	515 214 40	Cable 2,5	-2
81	655 873 40	Cable 1,5	-2
82	940 169 40	Cable 4x1	-2
83	907 877 40	Cable 2x0,75	-2
84	896 727 40	Cable 10,0	-2
85	941 640 40	Cable 1x0,75	-2
86	500 090 98	Wire end ferrule 0,75-6	22
87	635 042 40	Wire end ferrule 1,5	70
88	907 640 40	Wire end ferrule 2,5	10
89	907 501 40	Wire end ferrule 10 qmm	10
91	950 118 40	Socket	1
92	941 777 40	Plate	11
93	174 411 40	Cable strap	22
94	950 146 40	Socket	2
95	950 143 40	Socket	1
96	950 125 40	Socket	1
97	950 171 40	Socket	2
98	958 956 40	Can bushing assy. 3-pol.	4
99	906 647 40	T-Splitter	3
100	960 668 40	Plug aasy ICNV-56K316	1
101	950 456 40	Obtokoppler part	14
102	960 622 40	Cross connection	1

Komatsu PC8000-6 S/N 12082 parts catalog PDF

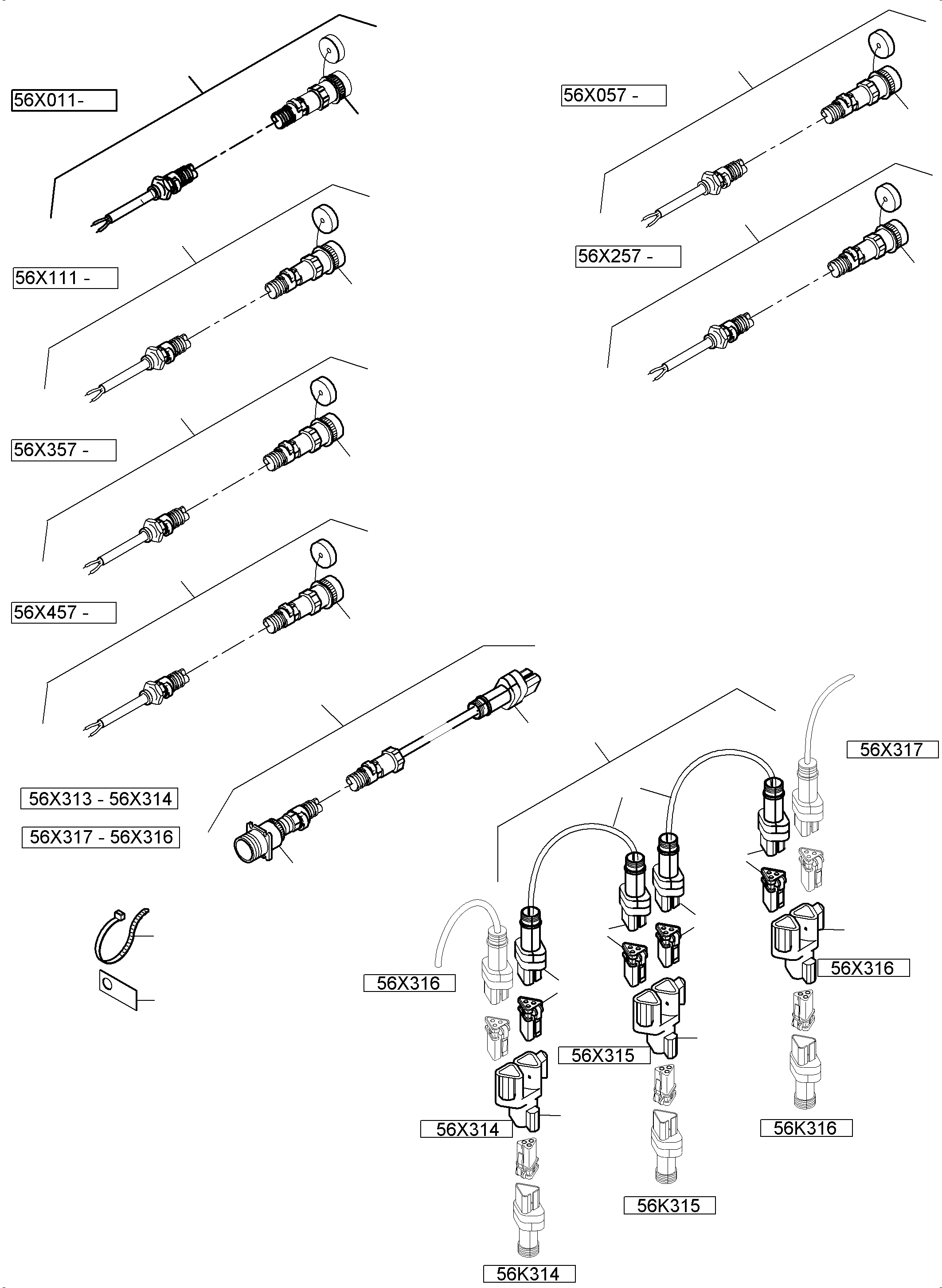

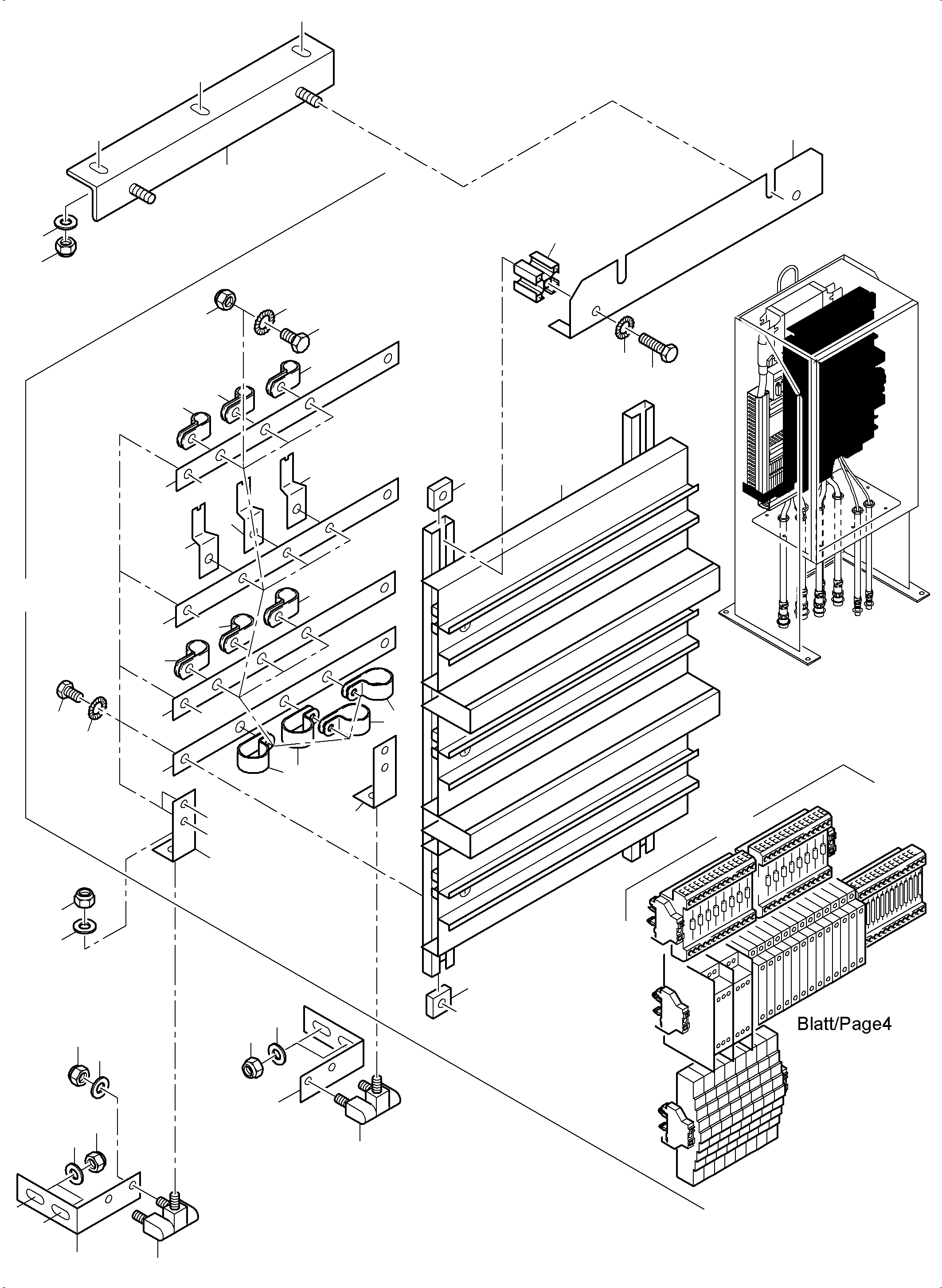

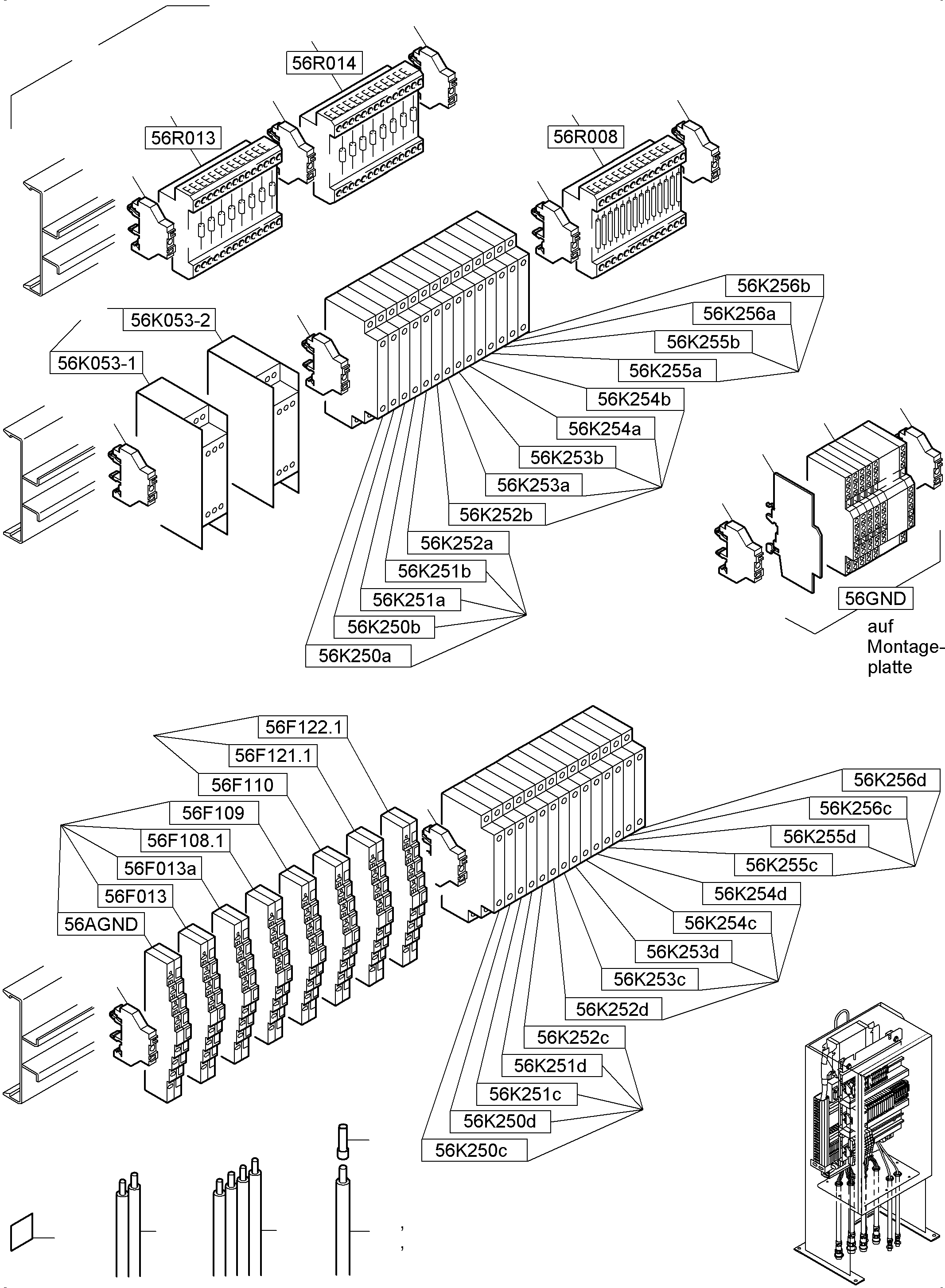

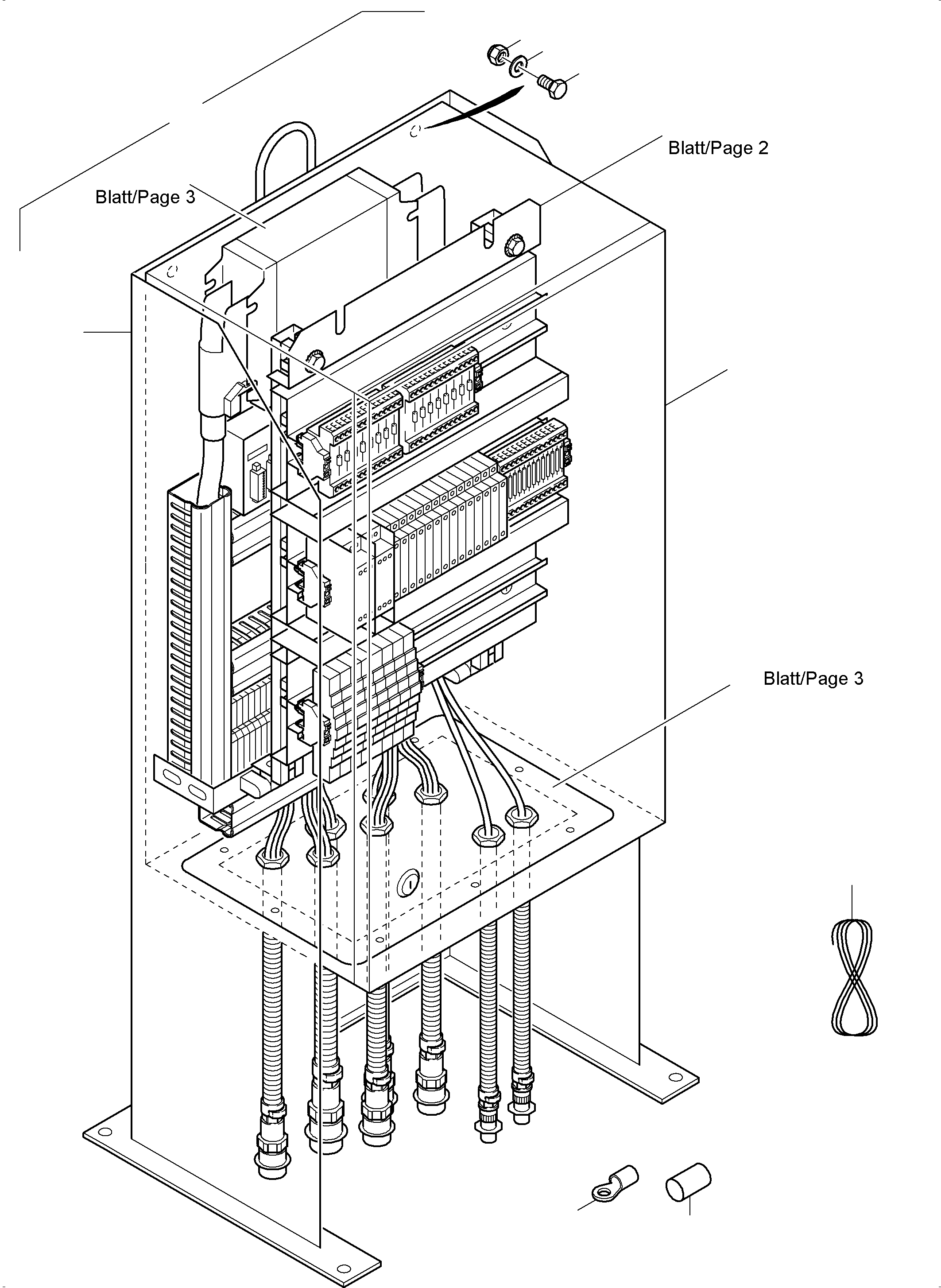

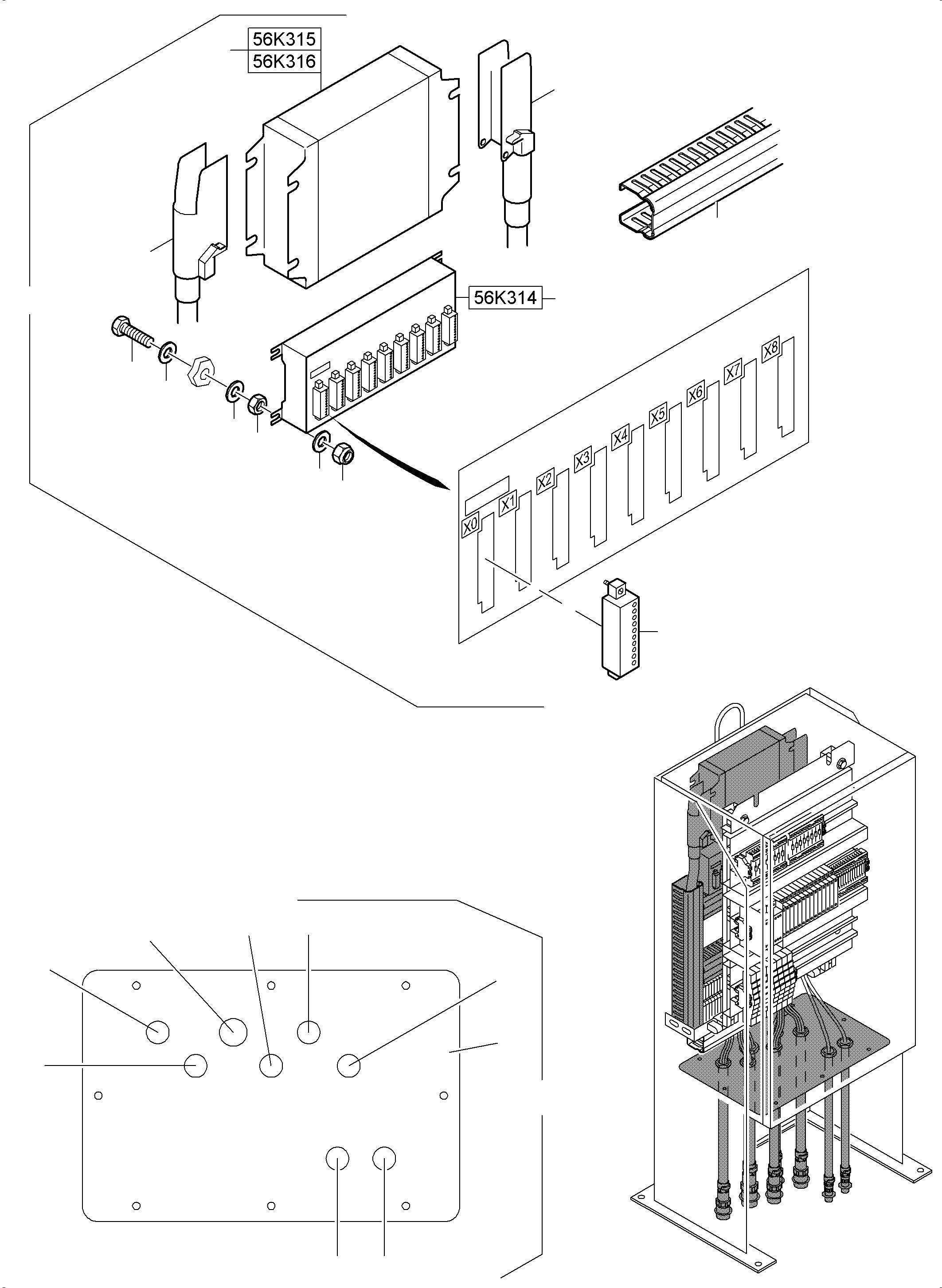

SWITCH CABINET ORT 56 (113-2276b) in PC8000-6 S/N 12082. Diagram image and parts list.
