H285 S/N 78099

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	390 450 40	Ladder	1	InternKon: 390 445 40 / 2
?	390 446 40	Ladder guide	1	InternKon: 390 445 40 / 1
?	335 561 40	Hinge, assy.	1	InternKon: 390 445 40 / 5
?	335 563 40	Plate	1	InternKon: 335 561 40 / 1
?	335 564 40	Plate	1	InternKon: 335 561 40 / 2
?	335 565 40	Bush	5	InternKon: 335 561 40 / 3
?	342 081 99	Cotter pin	1	InternKon: 335 561 40 / 5
?	335 566 40	Pin	-2
?	341 762 40	Angle	2	InternKon: 390 445 40 / 7
?	319 140 99	Screw	4	InternBDB: M8x20 /912 8.8 \| InternKon: 390 445 40 / 10
?	307 843 99	Bolt	16	InternBDB: M20x40 /933 8.8 \| InternKon: 390 445 40 / 8
?	343 117 99	Lock washer	32	InternBDB: B 20 /127 \| InternKon: 390 445 40 / 12
?	319 148 99	Screw	24	InternBDB: M10x30 /912 8.8 \| InternKon: 390 445 40 / 9
?	346 500 99	Lock washer	24	InternBDB: B 10 /128 \| InternKon: 390 445 40 / 13
?	332 113 99	Nut	24	InternBDB: M 10 /934 \| InternKon: 390 445 40 / 11
?	314 761 40	Guide block	12	InternKon: 390 445 40 / 6
?	256 699 40	Limit switch	1	InternBDB: Schmersal Typ T4VH 332-11Y \| InternKon: 390 445 40 / 15
?	319 553 99	Screw	4	InternBDB: M5x60 /912 8.8
?	346 509 99	Lock washer	4	InternBDB: B 5 /128
?	332 109 99	Nut	4	InternBDB: M 5 /8
?	448 330 40	Pawl, assy.	1	InternKon: 390 445 40 / 3
?	448 326 40	Pawl	1	InternKon: 448 330 40 / 1
?	308 581 99	Bolt	1	InternBDB: M10x70 /931 \| InternKon: 448 330 40 / 6
?	332 114 99	Nut	2	InternBDB: M 10 /934 \| InternKon: 448 330 40 / 8
?	304 136 99	Bolt	1	InternBDB: M10x45 /931 \| InternKon: 448 330 40 / 7
?	329 164 40	Draw spring	1	InternKon: 448 330 40 / 13
?	342 061 99	Cotter pin	2	InternBDB: 4x32 /94 \| InternKon: 448 330 40 / 10
?	340 469 99	Washer	1	InternBDB: B 17 /125 \| InternKon: 448 330 40 / 9
?	322 180 99	Rope ca. 2500 lg. Bulk ware, state length required	1	InternBDB: 5-FE-bk 1770 sz 3060 \| InternKon: 448 330 40 / 11
?	111 260 99	Cable clamp	2	InternBDB: S 5 /1142 \| InternKon: 448 330 40 / 12
?	329 163 40	Handle	1	InternKon: 448 330 40 / 5
?	448 310 40	Ladder locking	1	InternKon: 371 590 40 / 98
?	448 313 40	Handle assy.	1	InternKon: 448 310 40 / 1
?	506 209 98	Compression spring	1	InternBDB: 3,2x40x82 / 2098 \| InternKon: 448 310 40 / 2
?	448 311 40	Guide tube	1	InternKon: 448 310 40 / 3
?	448 317 40	Plate	1	InternKon: 448 310 40 / 4
?	332 340 40	Nut	2	InternBDB: M 24 /934 \| InternKon: 448 310 40 / 5
?	307 802 99	Bolt	4	InternBDB: M12x25 /933 \| InternKon: 448 310 40 / 6
?	343 112 99	Lock washer	4	InternBDB: 12 /128 \| InternKon: 448 310 40 / 7
?	399 589 99	Ball knob	1	InternBDB: C 50 /319 \| InternKon: 448 313 40 / 5
?	324 507 99	Threaded pin	1	InternBDB: M12x50 /551 \| InternKon: 448 313 40 / 4

Komatsu H285 S/N 78099 parts catalog PDF

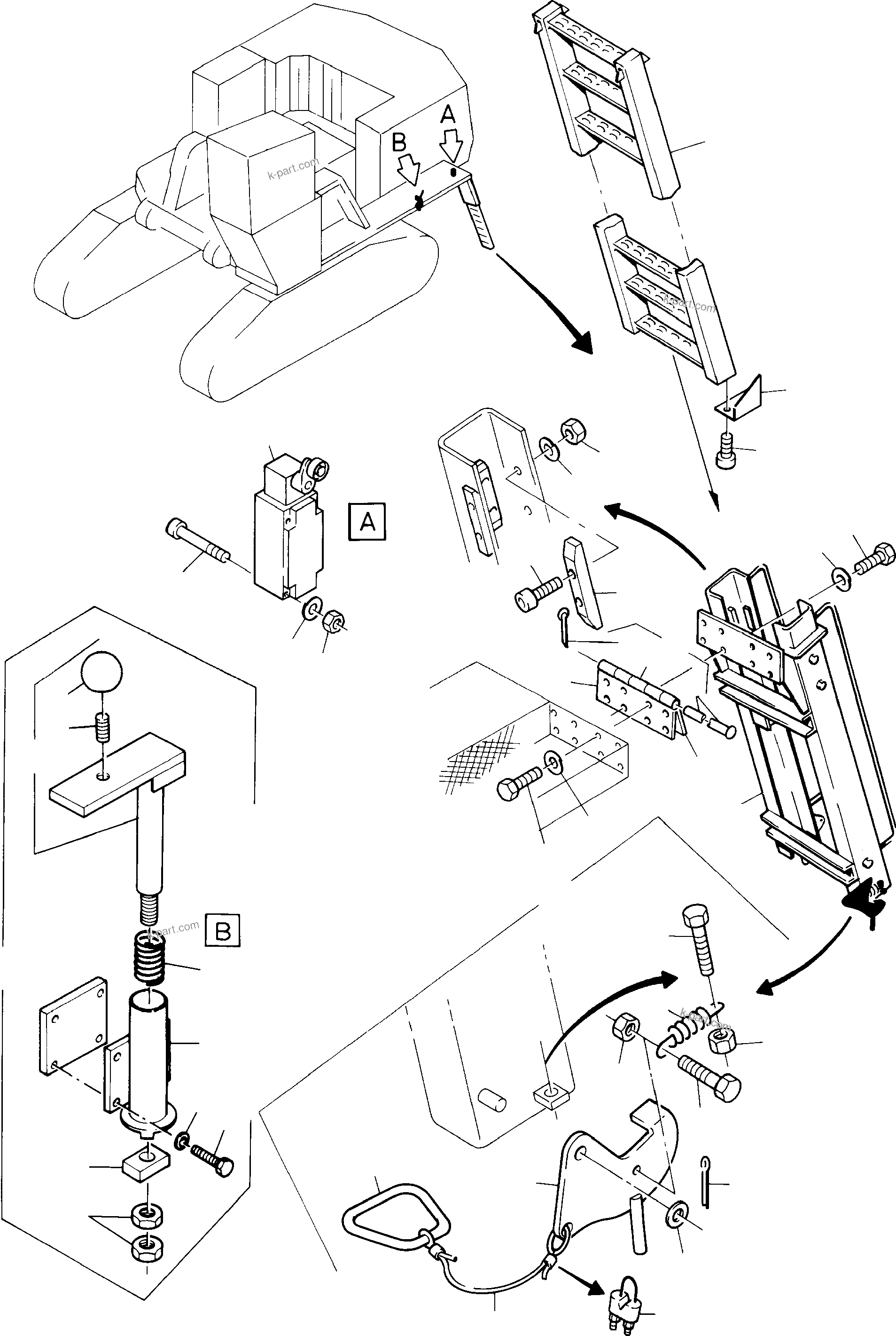

STEPS (114-1950a) in H285 S/N 78099. Diagram image and parts list.
