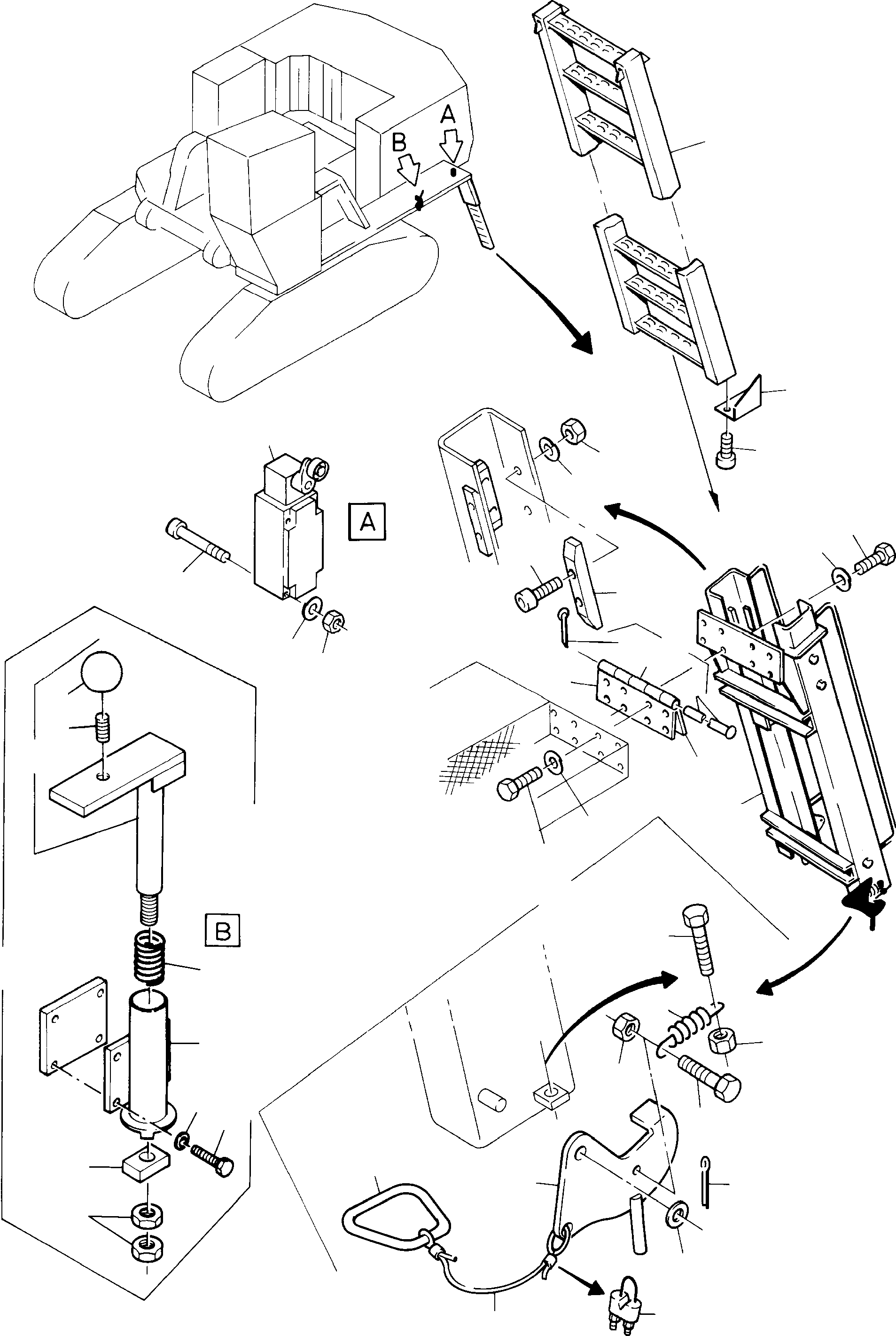

STEPS | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	390 450 40	Ladder	1	InternKon: 390 445 40 / 2
02	390 446 40	Ladder guide	1	InternKon: 390 445 40 / 1
03	335 561 40	Hinge, assy.	1	InternKon: 390 445 40 / 5
04	335 563 40	Plate	1	InternKon: 335 561 40 / 1
05	335 564 40	Plate	1	InternKon: 335 561 40 / 2
06	335 565 40	Bush	5	InternKon: 335 561 40 / 3
07	342 081 99	Cotter pin	1	InternKon: 335 561 40 / 5
08	335 566 40	Pin	-2
09	341 762 40	Angle	2	InternKon: 390 445 40 / 7
10	319 140 99	Screw	4	InternBDB: M8x20 /912 8.8 \| InternKon: 390 445 40 / 10
11	307 843 99	Bolt	16	InternBDB: M20x40 /933 8.8 \| InternKon: 390 445 40 / 8
12	343 117 99	Lock washer	32	InternBDB: B 20 /127 \| InternKon: 390 445 40 / 12
13	319 148 99	Screw	24	InternBDB: M10x30 /912 8.8 \| InternKon: 390 445 40 / 9
14	346 500 99	Lock washer	24	InternBDB: B 10 /128 \| InternKon: 390 445 40 / 13
15	332 113 99	Nut	24	InternBDB: M 10 /934 \| InternKon: 390 445 40 / 11
16	314 761 40	Guide block	12	InternKon: 390 445 40 / 6
17	256 699 40	Limit switch	1	InternBDB: Schmersal Typ T4VH 332-11Y \| InternKon: 390 445 40 / 15
18	319 553 99	Screw	4	InternBDB: M5x60 /912 8.8
19	346 509 99	Lock washer	4	InternBDB: B 5 /128
20	332 109 99	Nut	4	InternBDB: M 5 /8
21	448 330 40	Pawl, assy.	1	InternKon: 390 445 40 / 3
22	448 326 40	Pawl	1	InternKon: 448 330 40 / 1
23	308 581 99	Bolt	1	InternBDB: M10x70 /931 \| InternKon: 448 330 40 / 6
24	332 114 99	Nut	2	InternBDB: M 10 /934 \| InternKon: 448 330 40 / 8
25	304 136 99	Bolt	1	InternBDB: M10x45 /931 \| InternKon: 448 330 40 / 7
26	329 164 40	Draw spring	1	InternKon: 448 330 40 / 13
27	342 061 99	Cotter pin	2	InternBDB: 4x32 /94 \| InternKon: 448 330 40 / 10
28	340 469 99	Washer	1	InternBDB: B 17 /125 \| InternKon: 448 330 40 / 9
29	322 180 99	Rope ca. 2500 lg. Bulk ware, state length required	1	InternBDB: 5-FE-bk 1770 sz 3060 \| InternKon: 448 330 40 / 11
30	111 260 99	Cable clamp	2	InternBDB: S 5 /1142 \| InternKon: 448 330 40 / 12
31	329 163 40	Handle	1	InternKon: 448 330 40 / 5
32	448 310 40	Ladder locking	1	InternKon: 371 590 40 / 98
33	448 313 40	Handle assy.	1	InternKon: 448 310 40 / 1
34	506 209 98	Compression spring	1	InternBDB: 3,2x40x82 / 2098 \| InternKon: 448 310 40 / 2
35	448 311 40	Guide tube	1	InternKon: 448 310 40 / 3
36	448 317 40	Plate	1	InternKon: 448 310 40 / 4
37	332 340 40	Nut	2	InternBDB: M 24 /934 \| InternKon: 448 310 40 / 5
38	307 802 99	Bolt	4	InternBDB: M12x25 /933 \| InternKon: 448 310 40 / 6
39	343 112 99	Lock washer	4	InternBDB: 12 /128 \| InternKon: 448 310 40 / 7
40	399 589 99	Ball knob	1	InternBDB: C 50 /319 \| InternKon: 448 313 40 / 5
41	324 507 99	Threaded pin	1	InternBDB: M12x50 /551 \| InternKon: 448 313 40 / 4
