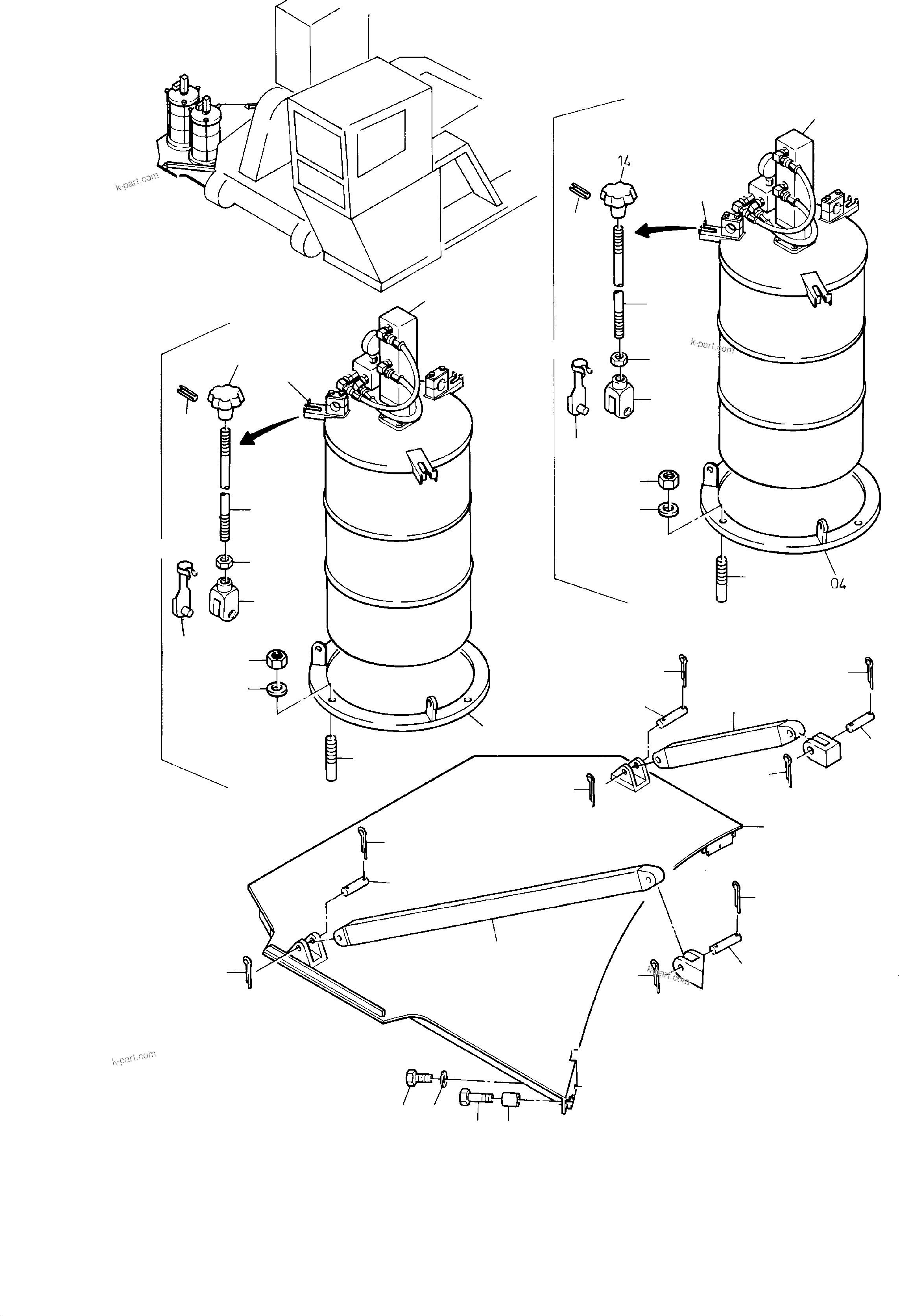

LUBE PUMP ARRANGEMENT | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H285 S/N 78099

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Lube station	1		090-0867
?		Drip lube station	1		090-0867
?	516 417 40	Barrel support fig-nos: 04,05,14-22	2
?	489 275 40	Ring	1	InternKon: 516 417 40 / 1
?	489 277 40	Retainer	3	InternKon: 516 417 40 / 2
?	358 730 40	Platform	1	InternKon: 358 760 40 / 1
?	358 740 40	Carrier	1	InternKon: 358 760 40 / 2
?	358 750 40	Carrier	1	InternKon: 358 760 40 / 3
?	504 688 98	Pin	4	InternKon: 358 760 40 / 7
?	358 731 40	Sleeve	4	InternKon: 358 760 40 / 12
?	342 121 99	Cotter pin	8	InternBDB: 8x50 /94 \| InternKon: 358 760 40 / 13
?	308 873 99	Bolt	9	InternBDB: M16x60 /931 \| InternKon: 358 760 40 / 16
?	343 116 99	Lock washer	9	InternBDB: 16 /128 \| InternKon: 358 760 40 / 14
?	507 057 98	Star grip	3	InternKon: 516 417 40 / 3
?	489 278 40	Threaded rod	3	InternBDB: M16x821 / 975 5.6 \| InternKon: 516 417 40 / 4
?	350 754 99	Fork end	3	InternBDB: G16x32 /71752 \| InternKon: 516 417 40 / 5
?	002 833 98	Pin	3	InternBDB: 16x32 ESN 01 \| InternKon: 516 417 40 / 6
?	507 286 98	Thread pin	6	InternBDB: PM 12x50 / 32500 \| InternKon: 516 417 40 / 7
?	340 467 99	Washer	6	InternBDB: B 13 /125 \| InternKon: 516 417 40 / 8
?	334 600 99	Nut	6	InternBDB: M 12 /985 \| InternKon: 516 417 40 / 9
?	332 336 99	Nut	3	InternBDB: M 16 /934 \| InternKon: 516 417 40 / 10
?	489 279 40	Plate	6	InternBDB: 16x3x15 \| InternKon: 516 417 40 / 11
