01 |
|

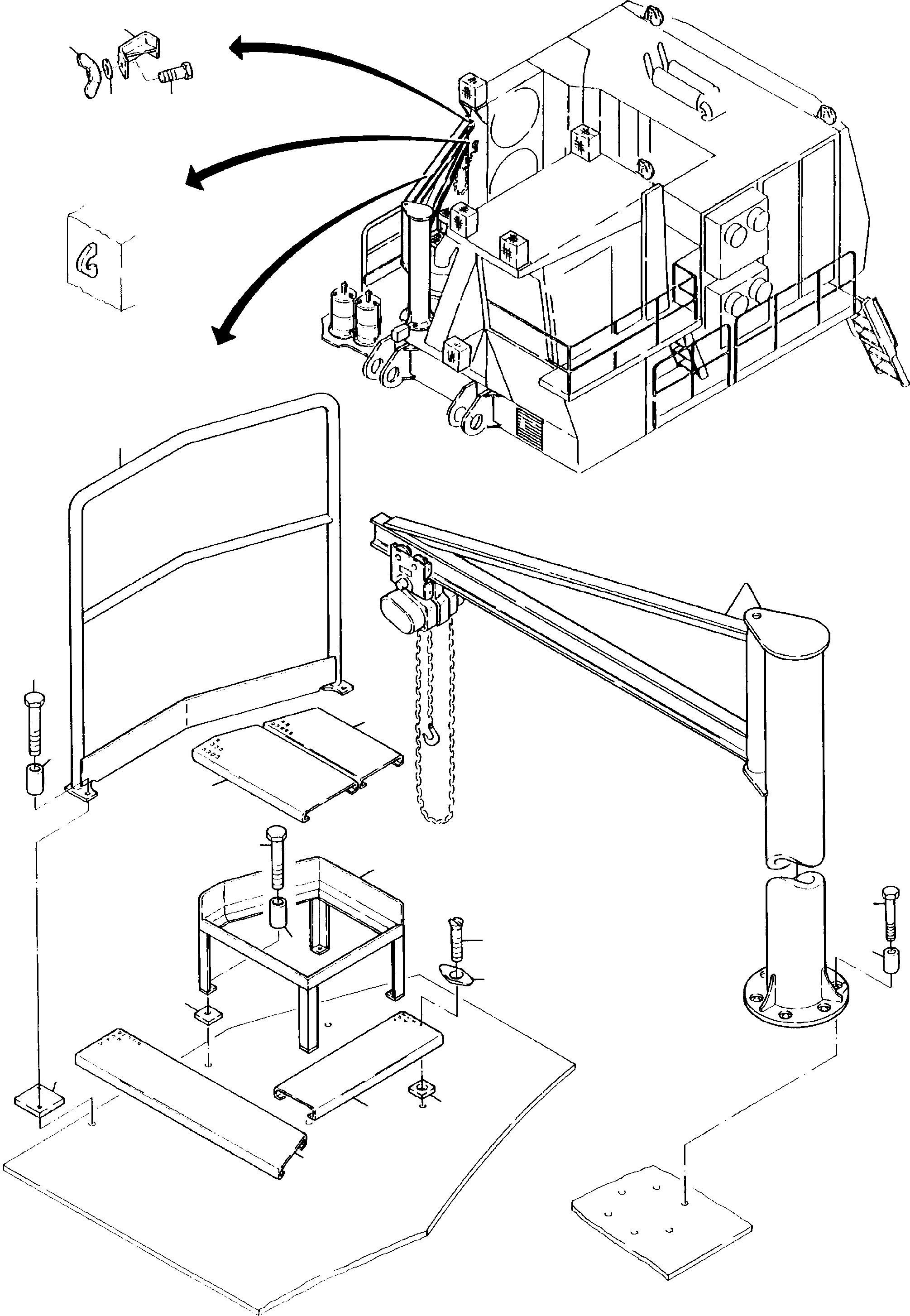

Barrel crane |
1 |
InternBDB: 551 487 40 | InternKon: 519 878 40 / 1
|
090-0784 |
|
|
02 |
519 870 40
|
Platform |
1 |
InternKon: 519 878 40 / 2
|
|
|
|
03 |
519 880 40
|
Rail |
1 |
InternKon: 519 878 40 / 3
|
|
|
|
04 |
519 875 40
|
Retainer |
1 |
InternKon: 519 878 40 / 4
|
|
|
|
05 |
519 887 40
|
Grate |
1 |
InternKon: 519 878 40 / 5
|
|
|
|
06 |
519 889 40
|
Grate |
1 |
InternKon: 519 878 40 / 6
|
|
|
|
07 |
519 890 40
|
Grate |
1 |
InternKon: 519 878 40 / 7
|
|
|
|
08 |
323 316 40
|
Grating 240x720 |
1 |
InternKon: 519 878 40 / 8
|
|
|
|
09 |
509 261 40
|
Resilient sleeve |
6 |
InternKon: 519 878 40 / 9
|
|
|
|
10 |
516 801 40
|
Resilient sleeve |
8 |
InternKon: 519 878 40 / 10
|
|
|
|
11 |
509 715 98
|
Thread plate |
4 |
InternKon: 519 878 40 / 11
|
|
|
|
12 |
237 130 40
|
Thread plate |
2 |
InternKon: 519 878 40 / 12
|
|
|
|
13 |
307 754 99
|
Bolt |
1 |
InternBDB: M8x25 /933 | InternKon: 519 878 40 / 13
|
|
|
|
14 |
308 605 99
|
Bolt |
8 |
InternBDB: M12x55 /931 | InternKon: 519 878 40 / 14
|
|
|
|
15 |
308 406 99
|
Bolt |
6 |
InternBDB: M24x110 /931 | InternKon: 519 878 40 / 15
|
|
|
|
16 |
338 011 99
|
Wing nut |
1 |
InternBDB: M 8 /315 | InternKon: 519 878 40 / 16
|
|
|
|
17 |
340 464 99
|
Washer |
1 |
InternBDB: 8,4 /125 | InternKon: 519 878 40 / 17
|
|
|
|
18 |
317 319 40
|
Threaded block |
8 |
InternKon: 519 878 40 / 18
|
|
|
|
19 |
317 318 40
|
Wing nut, plastic |
8 |
InternKon: 519 878 40 / 19
|
|
|
|
20 |
502 354 98
|
Bolt |
8 |
InternBDB: M8x40 /963 | InternKon: 519 878 40 / 20
|
|
