H285 S/N 78099

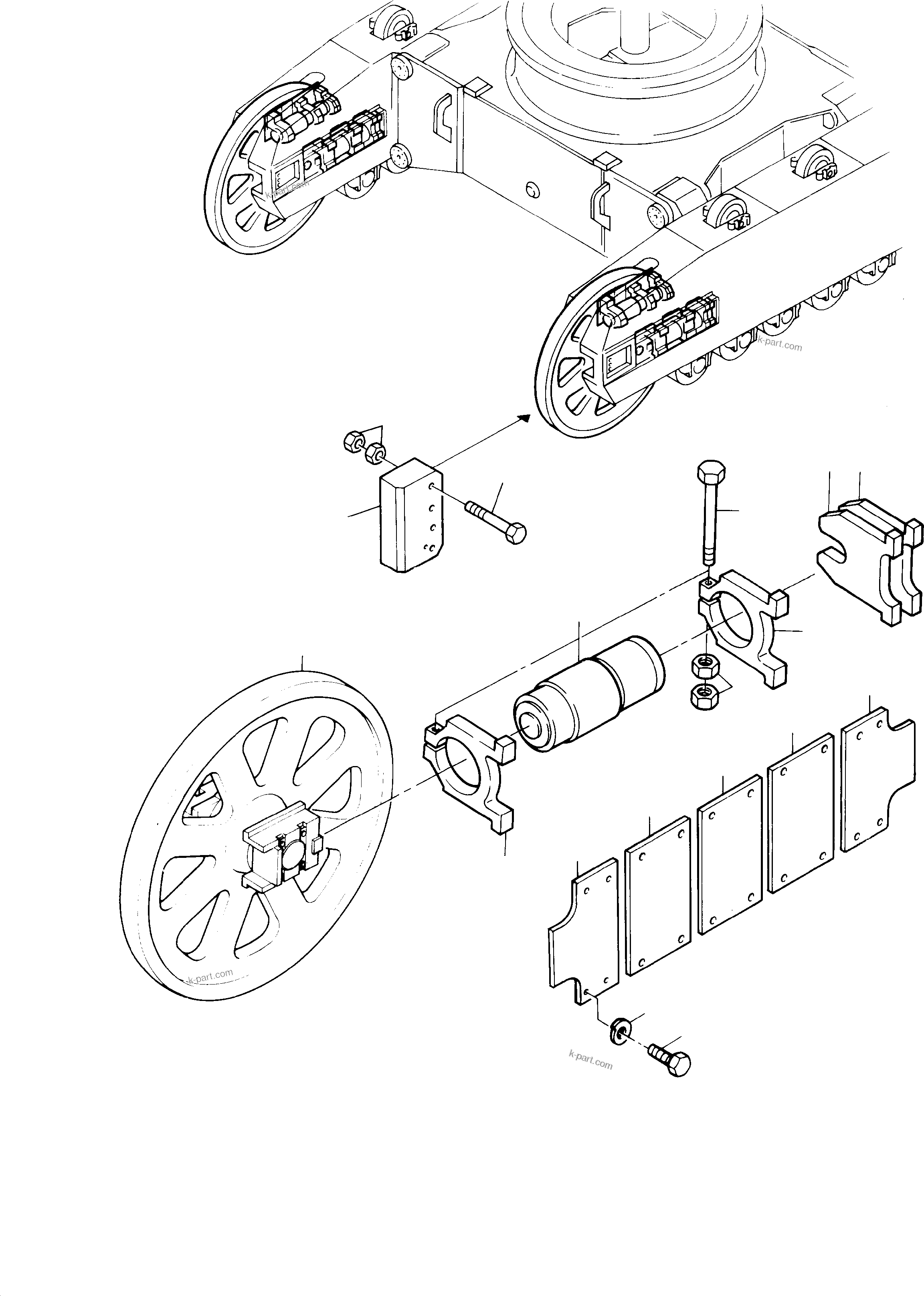

Komatsu parts book diagram for H285 S/N 78099: TRACK GROUP - IDLER PROTECTION, R.H. AND L.H.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Idler assy.	2	InternBDB: 429 697 40 \| InternKon: 448 870 40 / 1	114-3115a
	?		Tensioner	4	InternBDB: 460 316 40 \| InternKon: 445 376 40 / 1	114-3112
	?	460 332 40	Clamp	8	InternKon: 445 376 40 / 2
	?	308 710 99	Bolt	8	InternBDB: M24x200 /931 \| InternKon: 445 376 40 / 3
	?	332 340 99	Nut	16	InternBDB: M 24 /934 \| InternKon: 445 376 40 / 4
	?	456 247 40	Plate (60 thick)	4	InternKon: 482 878 40 / 2
	?	482 879 40	Plate (55 thick)	4	InternKon: 482 878 40 / 3
	?	499 506 40	Cover plate	4	InternKon: 482 878 40 / 6
	?	456 229 40	Cover plate	12	InternKon: 482 878 40 / 4
	?	499 503 40	Cover plate	4	InternKon: 482 878 40 / 5
	?	500 333 98	Bolt	80	InternBDB: M20x50 /933 10.9 \| InternKon: 482 878 40 / 8
	?	343 117 99	Lock washer	80	InternBDB: 20 /127 \| InternKon: 482 878 40 / 9
	?	482 882 40	Plate	4	InternKon: 482 878 40 / 7
	?	308 405 99	Bolt	12	InternBDB: M24x130 /931 10.9 \| InternKon: 482 878 40 / 10
	?	332 359 99	Nut	24	InternBDB: M 24 /934 \| InternKon: 482 878 40 / 11

Komatsu H285 S/N 78099 parts catalog PDF

TRACK GROUP - IDLER PROTECTION, R.H. AND L.H. (114-3110c) in H285 S/N 78099. Diagram image and parts list.
