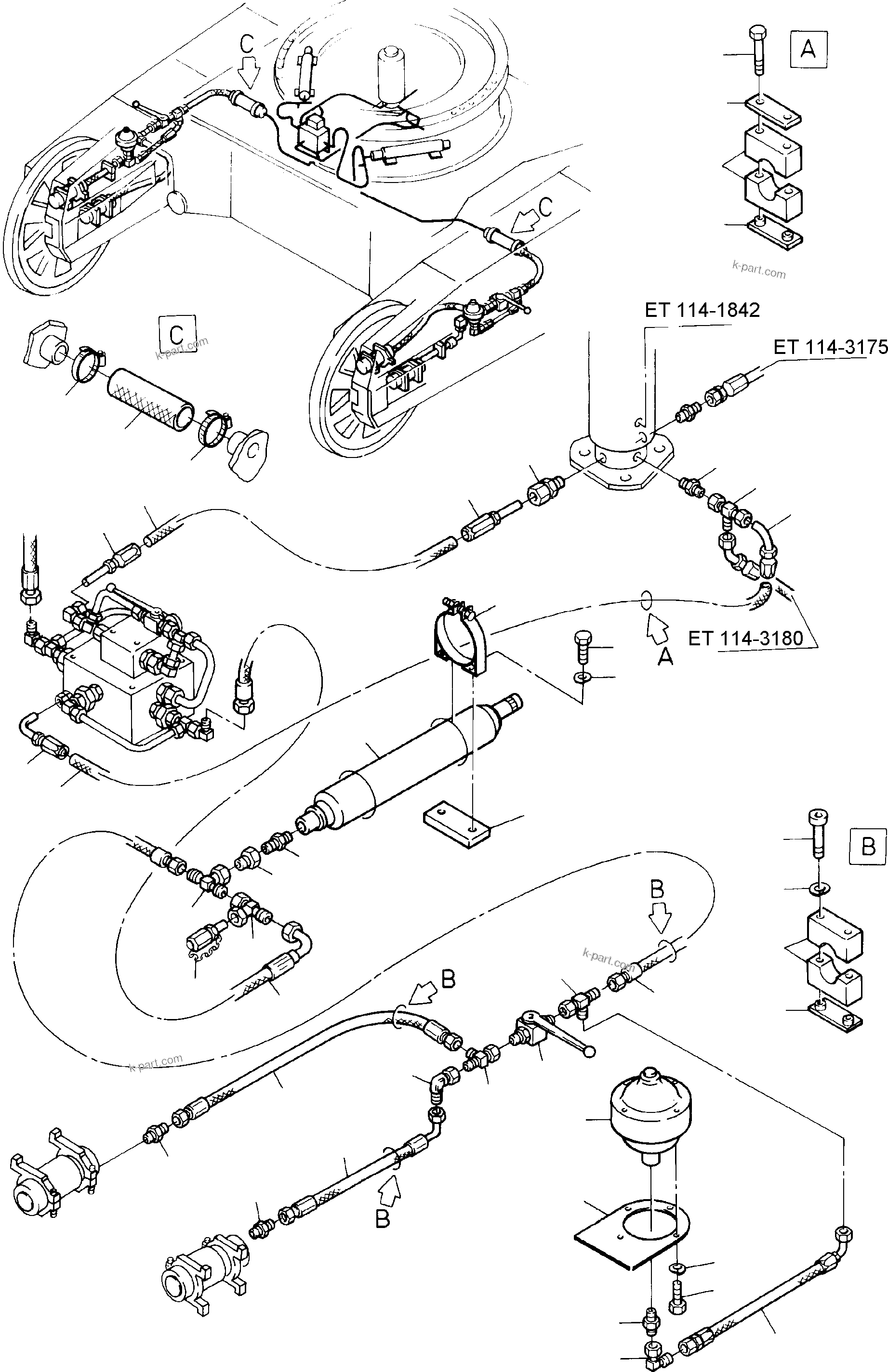

Diagram image 1 of 2

H285 S/N 78099

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H285 S/N 78099

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?		Graphic 1	-1
?	551 735 40	Accumulator	2	InternBDB: Hydac TL 551 734 40
?	551 736 40	Accumulator	2	InternBDB: Hydac TL 551 734 40
?		Accumulator	2	InternBDB: Hydac TL 551 734 40
?		Accumulator	2	InternBDB: Hydac TL 551 734 40
?	551 738 40	Accumulator	2	InternBDB: Hydac TL 551 737 40
?	551 739 40	Accumulator (Brasilia / South Africa)	2	InternBDB: Hydac TL 551 737 40
?	551 740 40	Accumulator (Spain)	2	InternBDB: Hydac TL 551 737 40
?	551 741 40	Accumulator (Germany)	2	InternBDB: Hydac TL 551 737 40
?	551 742 40	Accumulator (U K)	2	InternBDB: Hydac TL 551 737 40
?	551 743 40	Accumulator (Australia)	2	InternBDB: Hydac TL 551 737 40
?		Accumulator	2	InternBDB: Hydac TL 551 737 40
?		Accumulator	2	InternBDB: Hydac TL 551 737 40
?	551 747 40	Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 746 40
?		Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 746 40
?		Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 746 40
?		Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 746 40
?	551 710 40	Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 708 40
?	551 751 40	Diaphragm-type accumulator (Brasilia / South Africa)	2	InternBDB: Hydac TL 551 708 40
?		Diaphragm-type accumulator (Spain)	2	InternBDB: Hydac TL 551 708 40
?	551 754 40	Diaphragm-type accumulator (Germany)	2	InternBDB: Hydac TL 551 708 40
?	551 709 40	Diaphragm-type accumulator (U K)	2	InternBDB: Hydac TL 551 708 40
?	551 753 40	Diaphragm-type accumulator (Australia)	2	InternBDB: Hydac TL 551 708 40
?	551 752 40	Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 708 40
?		Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 708 40
?		Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 708 40
?	489 251 40	Retainer	4	InternKon: 489 250 40 / 43
?	323 992 40	Clamp	4	InternBDB: Hydac HS 114 \| InternKon: 489 250 40 / 3
?	307 750 99	Bolt	8	InternBDB: M8x15 /933 \| InternKon: 489 250 40 / 19
?	343 094 99	Lock washer	8	InternBDB: 8 /127 \| InternKon: 489 250 40 / 20
?	374 419 99	Socket	2	InternBDB: S 25 A - G1/ 3901 \| InternKon: 489 250 40 / 4
?	372 981 99	Union	2	InternBDB: KOR 25/20-PS 010 919 99 \| InternKon: 489 250 40 / 2
?	372 133 99	Union	2	InternBDB: EES 20 /2353 \| InternKon: 489 250 40 / 8
?	490 487 40	Hose assy. DN 16x1000	2	InternBDB: Typ 2755 DKO-S/DKO-S- 90 ? \| InternKon: 489 250 40 / 6
?	371 977 99	Union	6	InternBDB: FFS 20 /2353 \| InternKon: 489 250 40 / 44
?	004 132 98	Test socket	2	InternBDB: B 20-S / 010 972 99 \| InternKon: 489 250 40 / 7
?	372 185 99	Union	4	InternBDB: DDS 20 /2353 \| InternKon: 448 870 40 / 53
?	461 133 40	Ball cock DN 16	2	InternBDB: Argus BK 3021-0016- 594 250 \| InternKon: 448 870 40 / 52
?	462 807 40	Hose assy. DN 16x3840	2	InternBDB: TL \| InternKon: 489 250 40 / 5
?	462 805 40	Hose assy. DN 16x1260	2	InternBDB: TL \| InternKon: 448 870 40 / 55
?	462 806 40	Hose assy. DN 16x1540	2	InternBDB: TL \| InternKon: 448 870 40 / 54
?	374 413 99	Socket	4	InternBDB: S 20 M /3901 \| InternKon: 448 870 40 / 56
?	414 222 40	Hose fittings	2	InternBDB: Aeroquip 07.388-15-10
?	255 007 40	Hose DN 12 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-10 \| InternKon: 404 952 40 / 14
?	371 954 99	Union	1	InternBDB: FFL 15 /2353
?	374 407 99	Socket	1	InternBDB: L 15 M /3901
?	323 634 40	Hose DN 16 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-12 \| InternKon: 489 250 40 / 25
?	461 929 40	Hose fittings	2	InternBDB: Aeroquip 07.032-20-12
?	370 506 99	Union	1	InternBDB: CS 20 /2353
?	506 372 98	Clamp	4	InternBDB: 1S 73x25 010 422 99 \| InternKon: 489 250 40 / 10
?	256 179 40	Hose DN 60x400 lg. Bulk ware, state length required	2	InternBDB: Aeroquip 2651-40 \| InternKon: 489 250 40 / 9
?	534 002 99	Weld on plate	1	InternBDB: ES 4 \| InternKon: 489 250 40 / 12
?	502 655 98	Half clamp	2	InternBDB: H-CS 4/23 \| InternKon: 489 250 40 / 29
?	534 001 99	Cover plate	1	InternBDB: DS 4 \| InternKon: 489 250 40 / 13
?	308 579 99	Bolt	2	InternBDB: M10x60 /931 \| InternKon: 489 250 40 / 14
?	502 633 98	Weld on plate	6	InternBDB: E 4
?	504 900 98	Half clamp	12	InternBDB: H-C 4/28
?	340 405 99	Washer	12	InternBDB: 6,4 /433
?	319 417 99	Screw	12	InternBDB: M6x35 /912
?	566 513 40	Retainer	2	InternKon: 566 515 40 / 1
?	307 752 99	Bolt	8	InternBDB: M8x20 /933 \| InternKon: 566 515 40 / 7
?	374 418 99	Socket	2	InternBDB: S20A-G 3/4 /3901 \| InternKon: 566 515 40 / 4
?	551 715 40	Hose assy. DN 16x390 lg.	2	InternBDB: 2755- DKO-S/DKO-S- 90 \| InternKon: 566 515 40 / 3

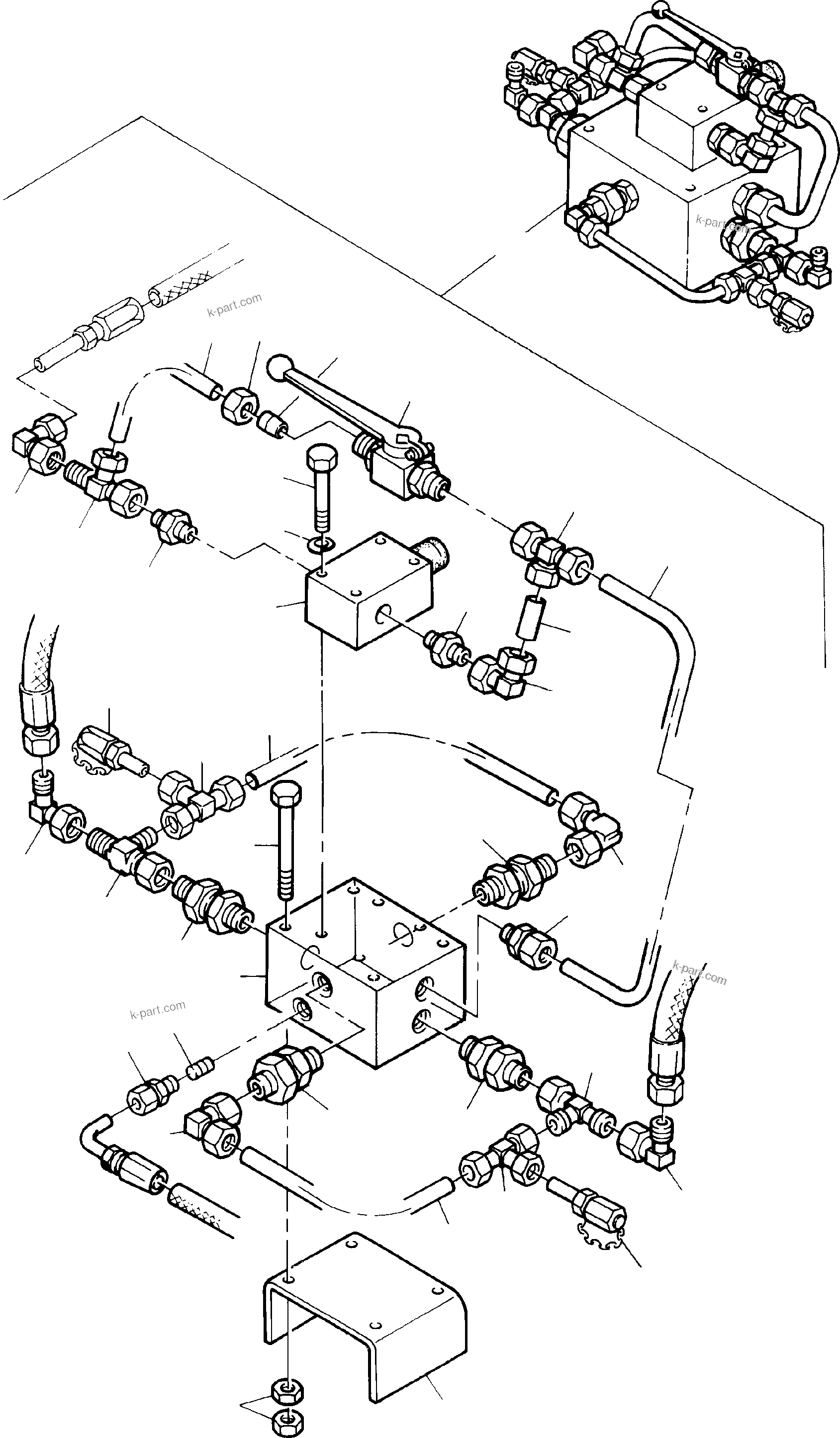

?		Graphic 2	-1
?	462 811 40	Retainer	1	InternKon: 489 250 40 / 15
?	332 200 99	Nut	8	InternBDB: M 12 /934 \| InternKon: 489 250 40 / 17
?	308 433 99	Bolt	4	InternBDB: M12x150 /931 \| InternKon: 489 250 40 / 16
?		Valve block assy.	1	InternBDB: DBM \| InternKon: 489 250 40 / 1
?	457 297 40	Valve block	1	InternKon: 488 025 40 / 1
?	180 372 40	Pressure relief valve	1	InternBDB: Rexroth DBDS 15 G 10/400 \| InternKon: 488 025 40 / 4
?	346 510 99	Lock washer	4	InternBDB: 8 /128 \| InternKon: 488 025 40 / 13
?	308 442 99	Bolt	4	InternBDB: M8x85 /931 \| InternKon: 488 025 40 / 12
?	461 133 40	Ball cock DN 16	1	InternBDB: Argus BK 3021-0016- 59 42 50 \| InternKon: 488 025 40 / 20
?	371 233 99	Olive	2	InternBDB: S 20 /3861 \| InternKon: 488 025 40 / 19
?	371 260 99	Union nut	2	InternBDB: AS 20 /3870 \| InternKon: 488 025 40 / 18
?	462 812 40	Pipe assy. Ш 20	1	InternKon: 488 025 40 / 17
?	457 299 40	Pipe assy. Ш 20	1	InternKon: 488 025 40 / 15
?	371 977 99	Union	6	InternBDB: FFS 20 /2353 \| InternKon: 488 025 40 / 7
?	374 418 99	Socket	2	InternBDB: S 20 R /3901 \| InternKon: 488 025 40 / 9
?	370 506 99	Union	1	InternBDB: CS 20 /2353 \| InternKon: 488 025 40 / 11
?	215 539 99	Pipe Ш 20x60 Bulk ware, state length required	1	InternBDB: 20x3 /2391 \| InternKon: 488 025 40 / 21
?	488 026 40	Pipe assy. Ш 20	1	InternKon: 488 025 40 / 14
?	488 027 40	Pipe assy. Ш 20	1	InternKon: 488 025 40 / 16
?	372 185 99	Union	6	InternBDB: DDS 20 /2353 \| InternKon: 488 025 40 / 8
?	504 420 98	Non-return valve	2	InternBDB: Ermeto RHZ 20-PSM-ed \| InternKon: 488 025 40 / 6
?	371 394 99	Non-return valve	2	InternBDB: RHV 20-PSM-ed \| InternKon: 488 025 40 / 5
?	004 132 98	Test socket	2	InternBDB: B 20-S 010 972 99
?	566 512 40	Visor	1	InternBDB: Ш 2 \| InternKon: 488 025 40 / 2
?	374 407 99	Socket	1	InternBDB: L 15 M /3901 \| InternKon: 488 025 40 / 10
