S6D170-1G-W S/N 14674-UP (For Canada / China / Chile / Russia)

#	Part Number	Partname	Quantity	Options
8	6162-K8-2003	GASKET KIT,AIR COMPRESSOR	1	SN: 15707-UP
\|8	07005-01412	GASKET	11	SN: 15707-UP
\|8	DK487061-4300	O-RING	1	SN: 15707-UP
\|8	DK487061-4500	O-RING	1	SN: 15707-UP
\|8	DK487061-3700	O-RING	1	SN: 15707-UP
\|8	DK487020-2200	GASKET	1	SN: 15707-UP
\|8	DK016530-1040	O-RING	2	SN: 15707-UP
\|8	DK487020-3100	GASKET	1	SN: 15707-UP
\|8	DK487020-2900	GASKET	1	SN: 15707-UP
\|8	DK026506-1040	GASKET	1	SN: 15707-UP
\|8	DK026512-1540	GASKET	2	SN: 15707-UP
\|8	6164-91-6220	GASKET	4	SN: 15707-UP
\|8	08034-00519	BAND	2	SN: 15707-UP
\|$$14		THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL.	-1
\|8	07000-02015	O-RING	1	SN: 15707-UP
\|8	07000-02085	O-RING	1	SN: 15707-UP
\|8	07000-03028	O-RING	1	SN: 15707-UP
\|8	07003-11217	GASKET	1	SN: 15707-UP
\|8	08034-00414	BAND	2	SN: 15707-UP
\|$$20		THE FOLLOWING PARTS ARE THE PARTS NOT INCLUDED IN THE GASKET KIT.	-1
\|8	07000-62085	O-RING	1	SN: 15707-UP
\|8	07000-63028	O-RING	1	SN: 15707-UP
\|8	07000-62015	O-RING	1	SN: 15707-UP
\|8	07005-01412	GASKET	5	SN: 15707-UP
\|8	6128-11-6812	GASKET	1	SN: 15707-UP

Komatsu S6D170-1G-W S/N 14674-UP (For Canada / China / Chile / Russia) parts catalog PDF

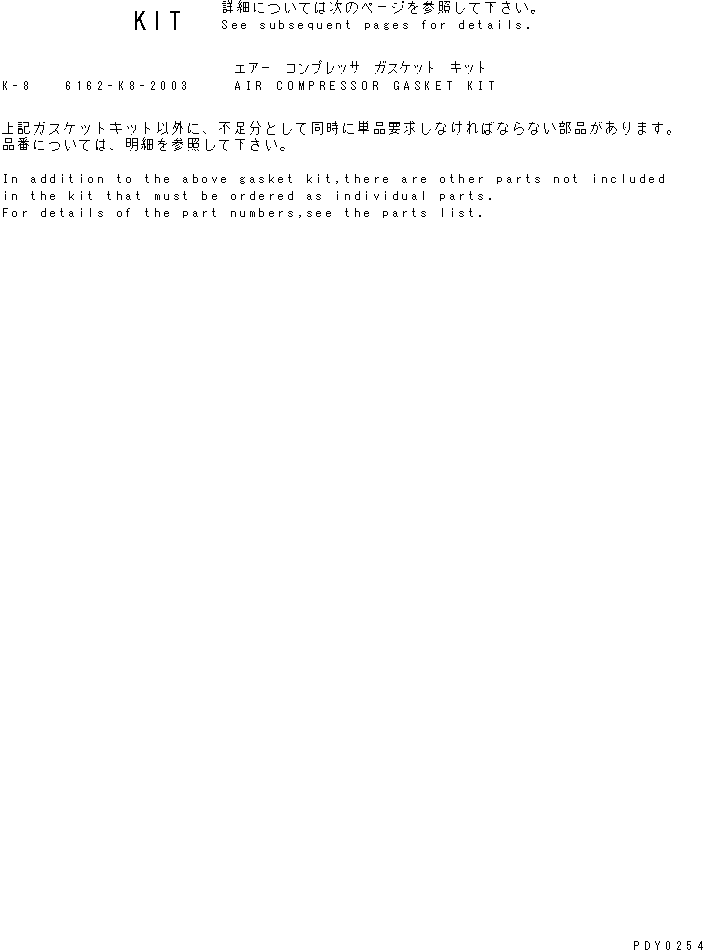

AIR COMPRESSOR GASKET KIT(#15707-) (A8114-H6A1) in S6D170-1G-W S/N 14674-UP (For Canada / China / Chile / Russia). Diagram image and parts list.
