SAA6D170E-2A S/N 17389-UP

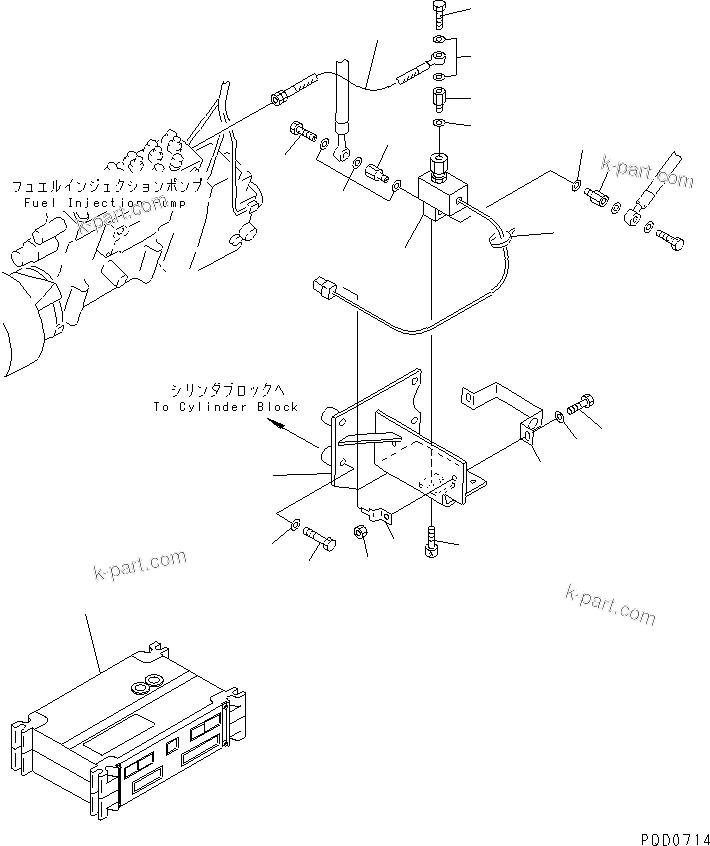

Komatsu parts book diagram for SAA6D170E-2A S/N 17389-UP: FUEL CONTROL LINKAGE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6162-75-4640	BRACKET	1	SN: 17389-UP
	?	01010-81250	BOLT	4	SN: 17389-UP
	?	01643-31232	WASHER	4	SN: 17389-UP
	?	600-815-7581	VALVE	1	SN: 17389-UP
	?	6215-71-9120	CLAMP	1	SN: 17389-UP
	?	01010-81030	BOLT	2	SN: 17389-UP
	?	01580-01008	NUT	2	SN: 17389-UP
	?	01643-31032	WASHER	2	SN: 17389-UP
	?	01252-30520	BOLT	2	SN: 17389-UP
	?	08034-00519	BAND	1	SN: 17389-UP
	?	6162-73-4670	NIPPLE	3	SN: 17389-UP
	?	07206-31014	BOLT,JOINT	2	SN: 17389-UP
	?	07005-01412	GASKET (K2)	7	SN: 17389-UP
	?	08053-01510	CLIP	1	SN: 17389-UP
	?	6162-75-4620	HOSE	1	SN: 17389-UP
	?	7818-52-1004	CONTROLLER,(CHASSIS MOUNT)	1	SN: 20990-UP
	?	7818-52-1003	CONTROLLER,(CHASSIS MOUNT)	1	SN: .-20989
	?	7818-52-1001	CONTROLLER,(CHASSIS MOUNT)	1	SN: 18537-.
	?	7818-52-1000	CONTROLLER,(CHASSIS MOUNT)	1	SN: 17389-18536

Komatsu SAA6D170E-2A S/N 17389-UP parts catalog PDF

FUEL CONTROL LINKAGE (A4710-A6B5) in SAA6D170E-2A S/N 17389-UP. Diagram image and parts list.
