SAA6D170E-2A S/N 17389-UP

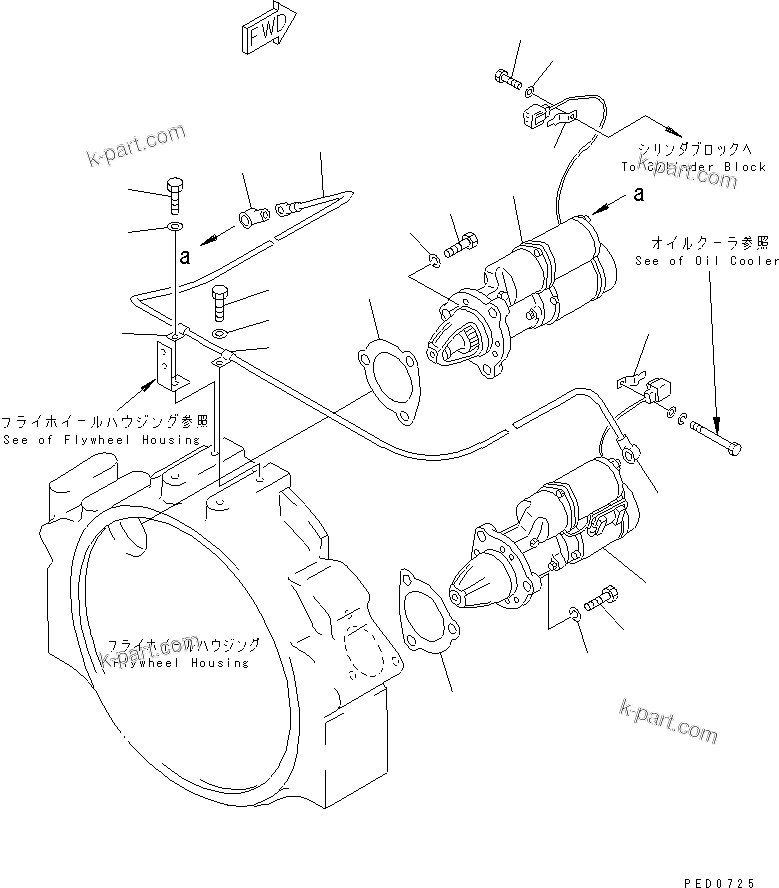

Komatsu parts book diagram for SAA6D170E-2A S/N 17389-UP: STARTING MOTOR MOUNTING (7.5KW)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	600-813-4932	STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-D6A1)	1	SN: 17389-UP
	?	600-813-4931	STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-B6A1)	1	SN: (17389-20657)
	?	600-813-7112	STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-E6A1)	1	SN: 17389-UP
	?	600-813-7111	STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-C6A1)	1	SN: (17389-20534)
	?	6221-81-6810	GASKET (K2)	2	SN: 17389-UP
	?	01010-61645	BOLT	6	SN: 20814-UP
	?	01010-31645	BOLT	6	SN: 17389-20813
	?	01602-01648	WASHER,SPRING	6	SN: 17389-UP
	?	08038-00035	CAP	2	SN: 17389-UP
	?	08036-01814	CLIP	2	SN: 17389-UP
	?	01010-81225	BOLT	1	SN: 17389-UP
	?	01010-81220	BOLT	1	SN: 17389-UP
	?	01643-31232	WASHER	2	SN: 17389-UP
	?	08053-01512	CLIP	2	SN: 17389-UP
	?	01010-81220	BOLT	1	SN: 17389-UP
	?	01641-01223	WASHER	1	SN: 17389-UP
	?	6162-83-4610	WIRE	1	SN: 17389-UP

Komatsu SAA6D170E-2A S/N 17389-UP parts catalog PDF

STARTING MOTOR MOUNTING (7.5KW) (A6210-A6A1) in SAA6D170E-2A S/N 17389-UP. Diagram image and parts list.
