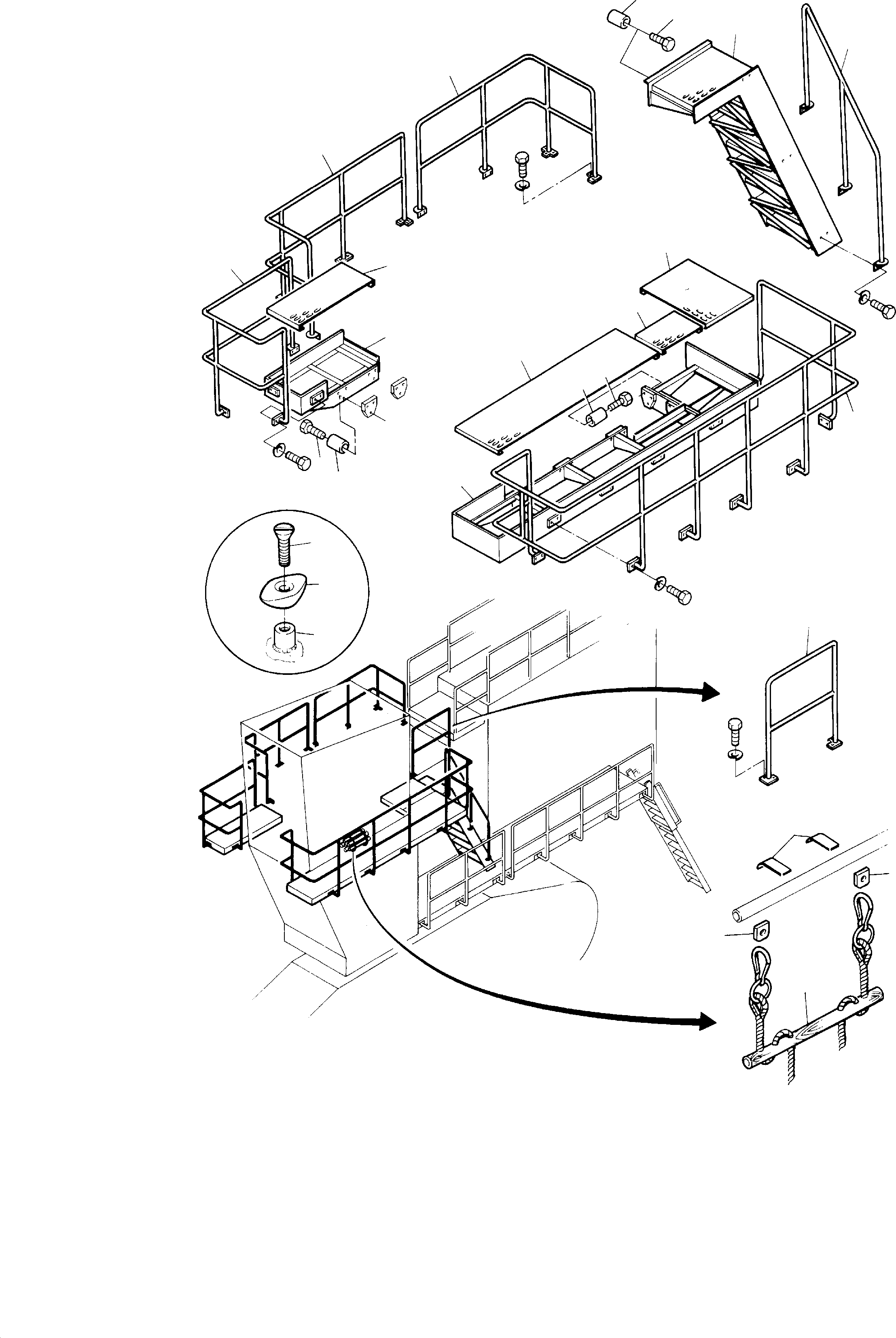

Diagram image 1 of 2

H285S S/N 78129

01 02 03 04 04 04 05 06 07 08 09 10 11 11 12 12 13 14 15 15 21 22 23

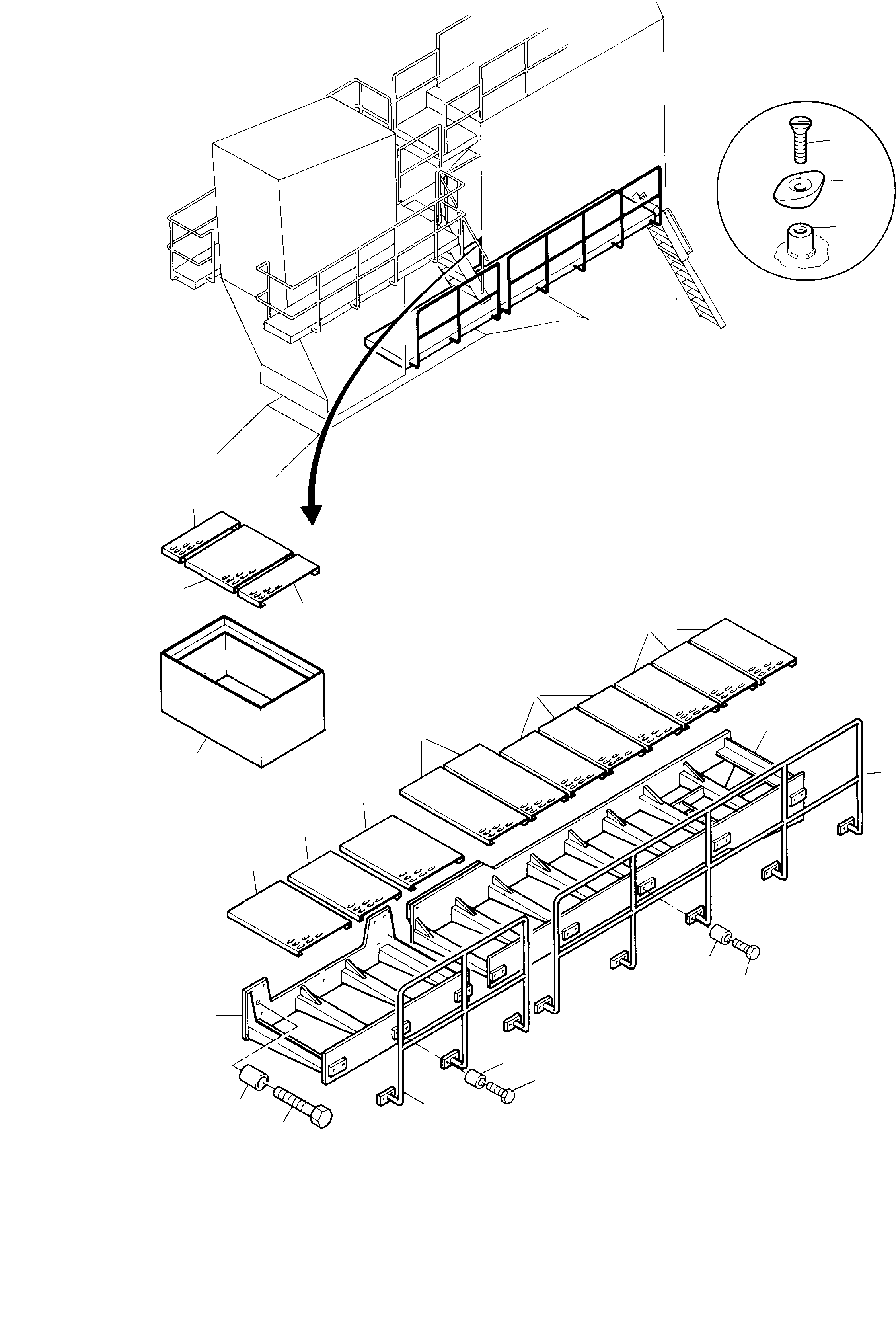

H285S S/N 78129

07 07 08 11 21 22 23 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 49 50 50 51

#	Part Number	Partname	Quantity	Options
01	324 396 40	Grating 420x660	3	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 117
02	414 327 40	Grating 360x660	2	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 39
03	317 309 40	Grating 300x750	2	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 40
04	270 195 40	Grating 480x750	4	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 44
05	608 315 40	Platform	1	InternKon: 608 190 40 / 1
06	509 650 40	Platform	1	InternKon: 608 190 40 / 2
07	510 730 98	Resilient sleeve	36	InternKon: 608 190 40 / 115
08	308 637 99	Bolt	16	InternBDB: M16x90 \| InternKon: 608 190 40 / 116
09	575 071 40	Rail	1	InternKon: 608 190 40 / 5
10	390 452 40	Rail	1	InternKon: 608 190 40 / 6
11	510 744 98	Resilient sleeve	60	InternKon: 608 190 40 / 109
12	308 605 99	Bolt	55	InternBDB: M12x55 \| InternKon: 608 190 40 / 110
13	390 485 40	Platform	1	InternKon: 608 190 40 / 9
14	440 998 40	Grating 480x630	1	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 45
15	324 394 40	Grating 240x630	2	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 41
21	502 354 98	Bolt	40	InternBDB: M8x40 /963 \| InternKon: 608 190 40 / 60
22	317 318 40	Wing nut	40	InternBDB: Grдpel 366.001 \| InternKon: 608 190 40 / 59
23	317 319 40	Threaded block	40	InternKon: 608 190 40 / 58
33	334 042 40	Rail	1	InternKon: 608 190 40 / 19
34	334 033 40	Rail	1	InternKon: 608 190 40 / 20
35	334 034 40	Rail	1	InternKon: 608 190 40 / 21
36	509 653 40	Catwalk	1	InternKon: 608 190 40 / 17
37	324 541 40	Grating 360x840	1	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 48
38	509 652 40	Stairway	1	InternKon: 608 190 40 / 4
39	390 495 40	Rail	1	InternKon: 608 190 40 / 8
40	509 651 40	Catwalk	1	InternKon: 608 190 40 / 3
41	324 379 40	Grating 480x1950	1	InternKon: 608 190 40 / 42
42	323 267 40	Grating 300x540	1	InternKon: 608 190 40 / 43
43	270 195 40	Grating 480x750	1	InternKon: 608 190 40 / 44
44	449 145 40	Rail	1	InternKon: 608 190 40 / 7
45	334 037 40	Rail	1	InternKon: 608 190 40 / 27
46	307 810 99	Bolt	8	InternBDB: M12x60 \| InternKon: 608 190 40 / 67
47	308 657 99	Bolt	20	InternBDB: M16x85 \| InternKon: 608 190 40 / 112
49	429 793 40	Shackle	2
50	429 792 40	Eye	2
51	440 026 40	Emergency jack	1	InternBDB: Kersting E-ST \| InternKon: 322 668 40 / 26
