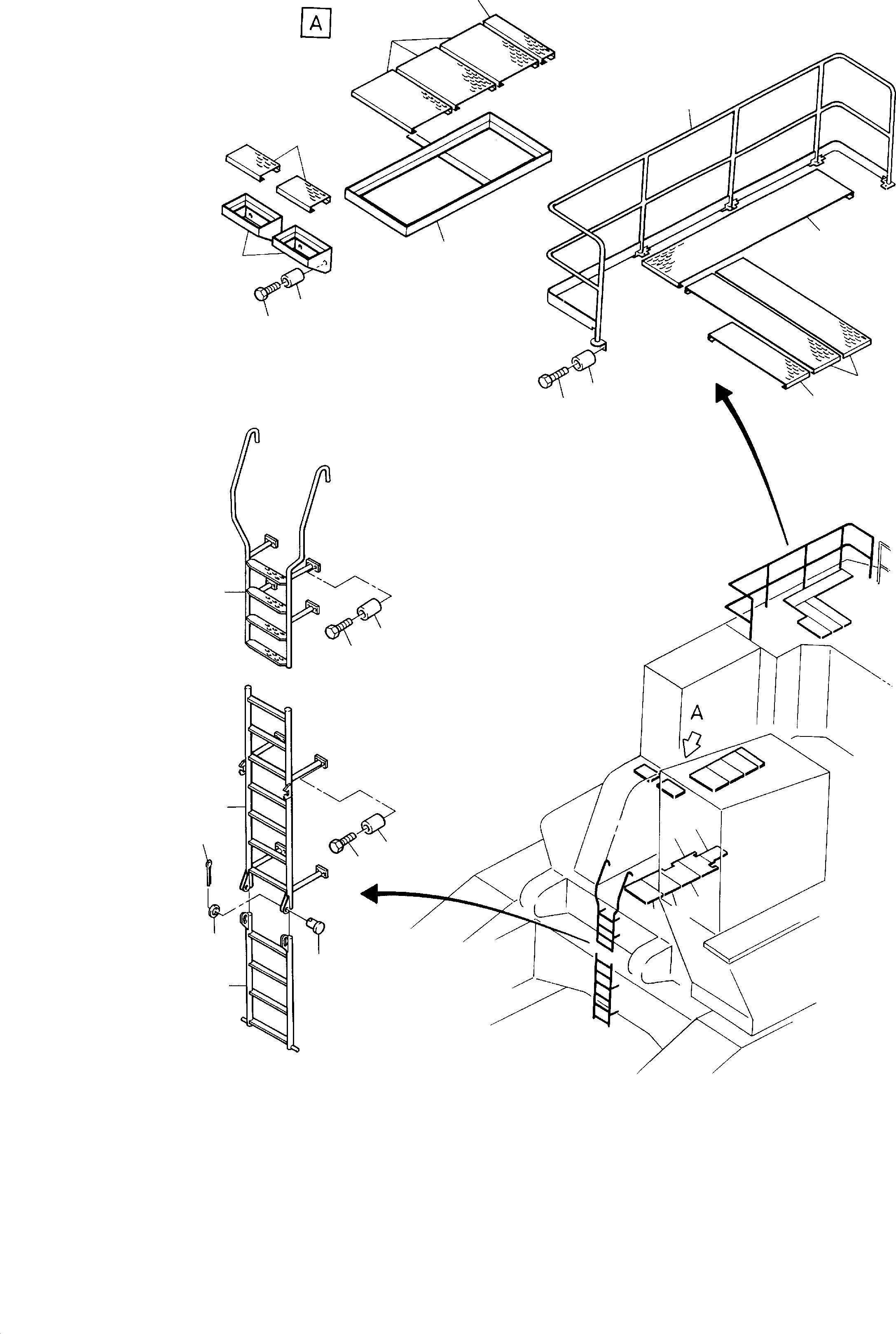

Diagram image 1 of 2

H285S S/N 78129

01 02 03 04 05 06 07 08 12 13 14 14 14 14 15 15 15 15 16 17 18 19 22 41 42 43 44 45

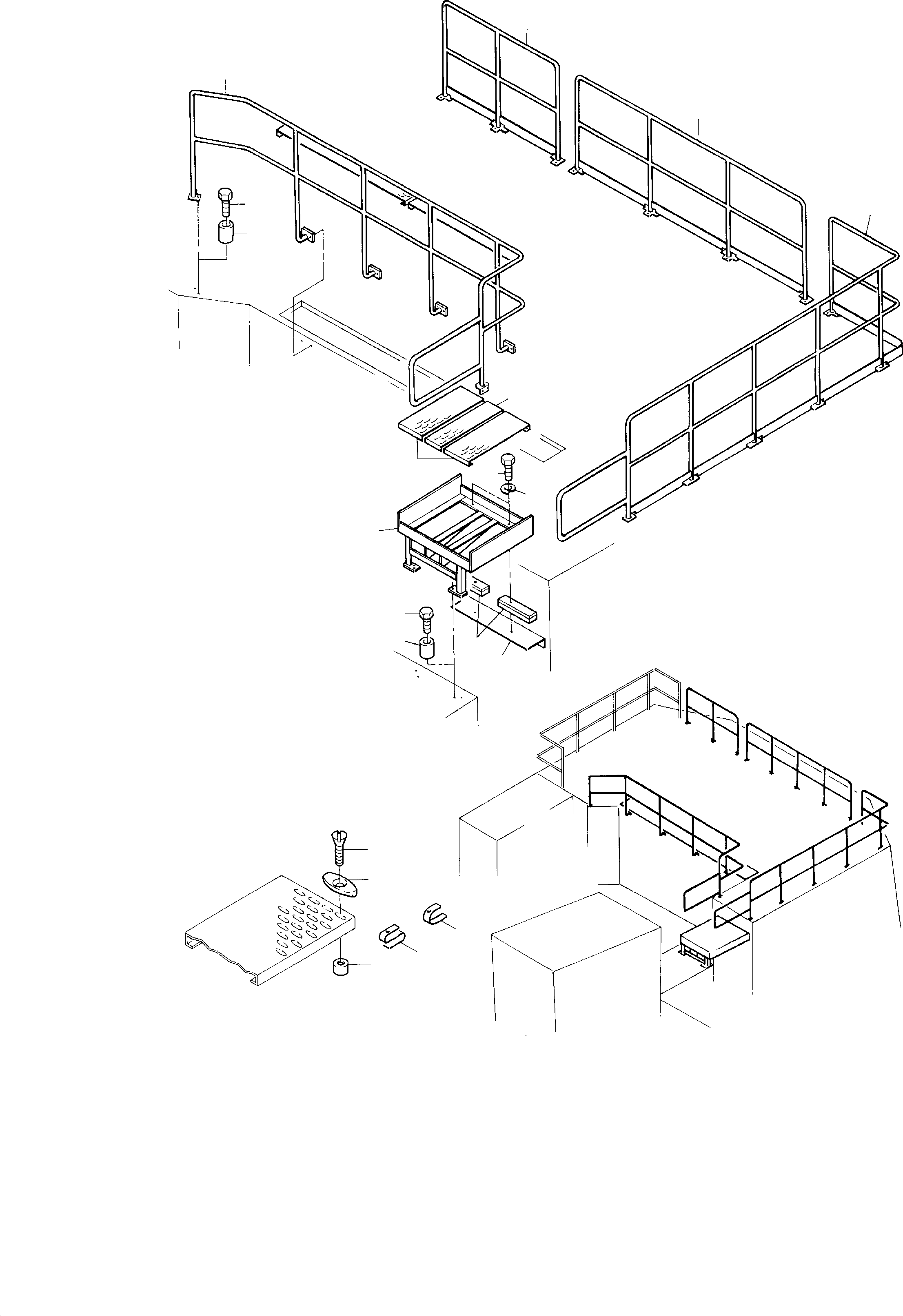

H285S S/N 78129

09 10 11 14 15 20 21 24 25 26 27 30 31 32 35 36 37 38 39 40

#	Part Number	Partname	Quantity	Options
01	519 363 40	Grating 180x330	2	InternBDB: Grдpel 40x2 \| InternKon: 608 190 40 / 69
02	390 429 40	Platform	1	InternKon: 608 190 40 / 16
03	323 315 40	Grating 480x720	3	InternKon: 608 190 40 / 46
04	324 416 40	Grating 120x720	1	InternKon: 608 190 40 / 47
05	334 036 40	Rail	1	InternKon: 608 190 40 / 24
06	324 543 40	Grating 420x1920	1	InternKon: 608 190 40 / 56
07	324 540 40	Grating 300x1500	2	InternKon: 608 190 40 / 55
08	324 539 40	Grating 240x900	1	InternKon: 608 190 40 / 54
09	502 354 98	Bolt	40	InternBDB: M8x40 /963 \| InternKon: 608 190 40 / 60
10	317 318 40	Wing nut	40	InternBDB: Grдpel 366.001 \| InternKon: 608 190 40 / 59
11	317 319 40	Threaded block	-2	InternKon: 608 190 40 / 58
12	519 360 40	Ladder	1	InternKon: 608 190 40 / 29
13	399 896 40	Ladder	1	InternKon: 608 190 40 / 30
14	510 744 98	Resilient sleeve	10	InternKon: 608 190 40 / 109
15	308 605 99	Bolt	10	InternBDB: M12x55 /933 \| InternKon: 608 190 40 / 110
16	482 720 40	Grating 300x900	1	InternKon: 608 190 40 / 81
17	641 374 40	Grating 420x900	1	InternKon: 608 190 40 / 82
18	426 751 40	Grating 420x900	1	InternKon: 608 190 40 / 83
19	426 752 40	Grating 480x510	1	InternKon: 608 190 40 / 84
20	414 516 40	Clip	-2	InternBDB: Grдpel 3000575001 \| InternKon: 608 190 40 / 80
21	403 275 40	Clip	-2	InternBDB: 3003234001 \| InternKon: 608 190 40 / 58
22	389 830 40	Platform	2	InternKon: 608 190 40 / 11
24	334 038 40	Rail	1	InternKon: 608 190 40 / 23
25	399 880 40	Rail	1	InternKon: 608 190 40 / 14
26	399 881 40	Rail	1	InternKon: 608 190 40 / 13
27	608 320 40	Rail	1	InternKon: 608 190 40 / 25
30	317 312 40	Grating 300x660	2	InternKon: 608 190 40 / 49
31	323 455 40	Grating 180x660	1	InternKon: 608 190 40 / 50
32	509 654 40	Platform	1	InternKon: 608 190 40 / 18
35	608 191 40	Angle	1	InternKon: 608 190 40 / 35
36	399 885 40	Rubber-metal block	2	InternKon: 608 190 40 / 64
37	307 774 99	Bolt	4	InternBDB: M10x18 /933 \| InternKon: 608 190 40 / 65
38	343 095 99	Lock washer	4	InternBDB: 10 /128 \| InternKon: 608 190 40 / 66
39	308 577 99	Bolt	4	InternBDB: M10x50 \| InternKon: 608 190 40 / 114
40	510 746 98	Resilient sleeve	4	InternKon: 608 190 40 / 113
41	641 371 40	Grating	1	InternKon: 608 190 40 / 95
42	641 331 40	Ladder	1
43	621 112 40	Pin	2
44	342 121 99	Cotter pin	2
45	340 472 99	Washer	2
