H285S S/N 78129

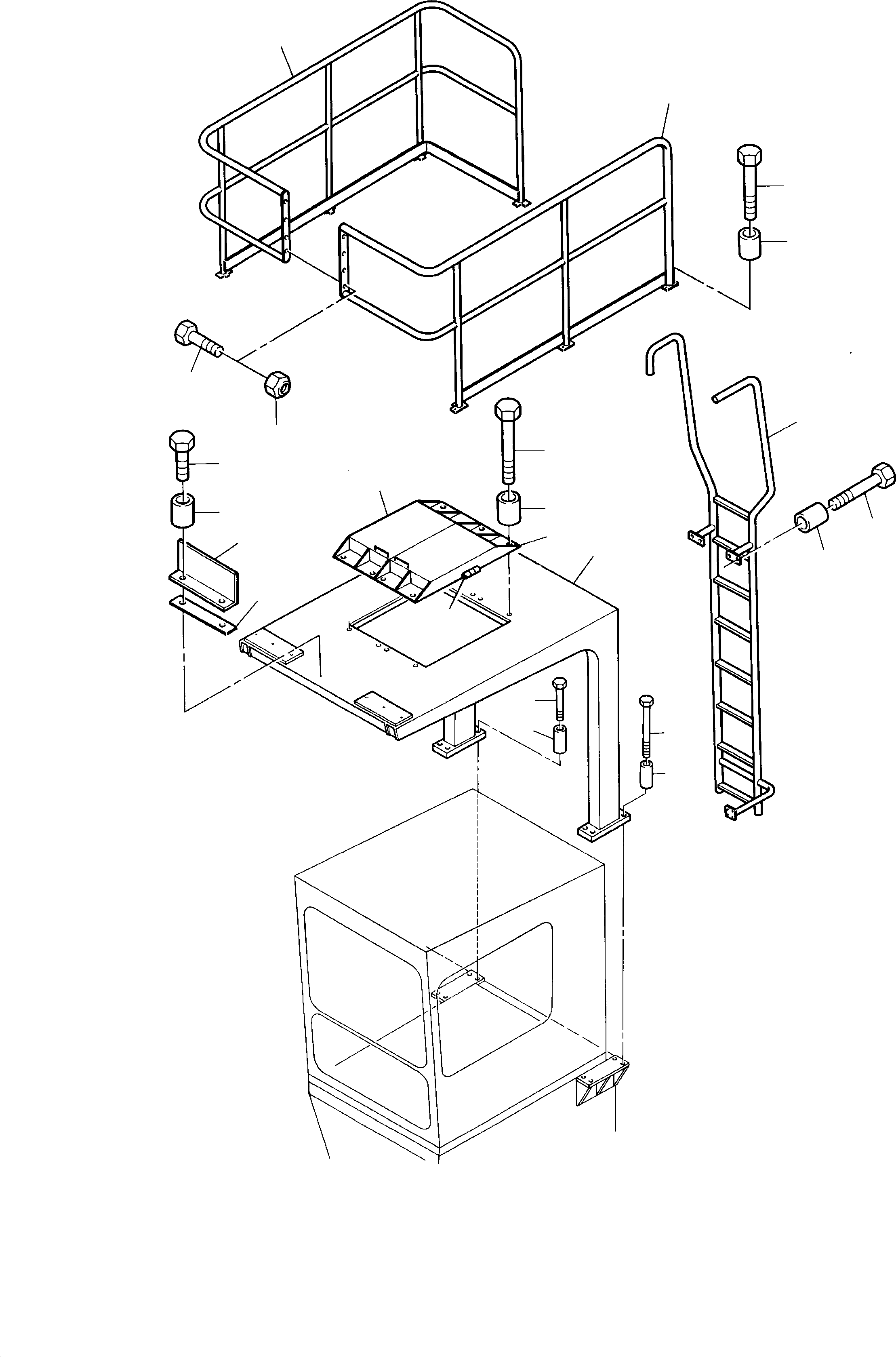

Komatsu parts book diagram for H285S S/N 78129: PROTECTION ROOF

01 02 02 03 03 04 05 06 07 08 09 09 09 09 10 10 10 10 11 12 13 14 15

	#	Part Number	Partname	Quantity	Options	Reference
	01	650 206 40	Protection roof	1	InternKon: 650 205 40 / 1
	02	511 975 98	Bolt	8	InternBDB: M30 x 210 /931 10.9 Kaltzдh \| InternKon: 650 205 40 / 5
	03	510 739 98	Resilient sleeve	8	InternBDB: 31/60x55 WN 341 948 40 \| InternKon: 650 205 40 / 3
	04	641 222 40	Flap	1	InternKon: 641 221 40 / 1
	05	641 227 40	Flap	1	InternKon: 641 221 40 / 2
	06	390 199 40	Hinge	2	InternKon: 641 221 40 / 3
	07	623 943 40	Rail	1	InternKon: 623 950 40 / 2
	08	650 215 40	Ladder	1	InternKon: 623 950 40 / 1
	09	308 605 99	Bolt	3	InternBDB: M12 x 55 /931 \| InternKon: 623 950 40 / 6
	10	510 744 98	Resilient sleeve	3	InternBDB: 13/25 x 32 WN 341 948 40 \| InternKon: 623 950 40 / 7
	11	516 415 40	Angle	1	InternKon: 623 950 40 / 4
	12	516 416 40	Threaded rail	1	InternKon: 623 950 40 / 5
	13	623 949 40	Rail	1	InternKon: 623 950 40 / 3
	14	510 518 98	Bolt	4	InternBDB: M16 x 50 /931 10.9 Kaltzдh \| InternKon: 623 949 40 / 11
	15	334 601 99	Nut	4	InternBDB: M 16 /985 \| InternKon: 623 949 40 / 12

Komatsu H285S S/N 78129 parts catalog PDF

PROTECTION ROOF (314-1960-4) in H285S S/N 78129. Diagram image and parts list.
