H285S S/N 78129

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Valve block	1	InternKon: 489 250 40 / 1	114-3190a
?	462 811 40	Retainer	1	InternKon: 489 250 40 / 15
?	308 433 99	Bolt	4	InternBDB: M12x150 /931 10.9 \| InternKon: 489 250 40 / 16
?	332 200 99	Nut	8	InternBDB: M 12 /934 \| InternKon: 489 250 40 / 17
?	511 140 98	Hose assy.DN 12x1845	-2	InternKon: 489 250 40 / 21
?	372 915 99	Union	1	InternBDB: KOR 28/15-L \| InternKon: 489 250 40 / 46
?	370 506 99	Union	5	InternBDB: CS 20 /2353 \| InternKon: 489 250 40 / 35
?	511 141 98	Hose assy.DN 16x1100	-2	InternKon: 489 250 40 / 25
?	372 185 99	Union	1	InternBDB: DDS 20 /2353
?	511 139 98	Hose assy.DN 12x975	1	InternKon: 489 250 40 / 23
?	490 487 40	Hose assy. DN 16x1000	2	InternKon: 489 250 40 / 6
?	004 132 98	Test socket	2	InternBDB: B 20 S 010 972 99 \| InternKon: 489 250 40 / 7
?	374 419 99	Socket	2	InternBDB: S 25 A /1" \| InternKon: 489 250 40 / 4
?	372 981 99	Union	2	InternBDB: KOR 25/20-S \| InternKon: 489 250 40 / 2
?	372 133 99	Union	2	InternBDB: EES 20 /2353 \| InternKon: 489 250 40 / 8
?	371 977 99	Union	6	InternBDB: FFS 20 /2353 \| InternKon: 489 250 40 / 44
?	462 807 40	Hose assy. DN 16x3840	2	InternKon: 489 250 40 / 5
?	506 372 98	Clamp	4	InternBDB: 1S 73x25 \| InternKon: 489 250 40 / 10
?	256 179 40	Hose DN 60 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-40 \| InternKon: 489 250 40 / 9
?	534 002 99	Weld on plate	4	InternBDB: ES 4 \| InternKon: 489 250 40 / 12
?	502 655 98	Half clamp	4	InternBDB: H-CS 4/23 \| InternKon: 489 250 40 / 29
?	534 001 99	Cover plate	4	InternBDB: DS 4 \| InternKon: 489 250 40 / 13
?	308 579 99	Bolt	8	InternBDB: M10x60 /931 \| InternKon: 489 250 40 / 14
?	502 682 98	Half clamp	4	InternBDB: H-CS 4/28 \| InternKon: 489 250 40 / 11
?	489 251 40	Thread plate	4	InternKon: 489 250 40 / 43
?	323 992 40	Clamp	4	InternBDB: Hydac HS 114 \| InternKon: 489 250 40 / 3
?	307 750 99	Bolt	8	InternBDB: M8x15 /933 \| InternKon: 489 250 40 / 19
?	343 094 99	Lock washer	16	InternBDB: 8 /127 \| InternKon: 489 250 40 / 20
?	566 513 40	Retainer	2	InternKon: 575 400 40 / 87
?	307 752 99	Bolt	8	InternBDB: M8x20 /933 \| InternKon: 448 870 40 / 68
?	374 418 99	Socket	2	InternBDB: S 20 A /3/4" \| InternKon: 448 870 40 / 66
?	551 715 40	Hose assy. DN 16x390	2	InternKon: 448 870 40 / 65
?	461 133 40	Ball cock	2	InternBDB: Argus BK 3021-0016 -594 250 \| InternKon: 448 870 40 / 52
?	462 806 40	Hose assy. DN 16x1540	2	InternKon: 448 870 40 / 54
?	462 805 40	Hose assy. DN 16x1260	2	InternKon: 448 870 40 / 55
?		Accumulator	2	InternBDB: Hydac TL 551 734 40
?	767 412 73	Bolt	-2	InternBDB: Hydac 236 042
?	767 413 73	Seal	-2	InternBDB: Hydac 601 225
?		Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 746 40

Komatsu H285S S/N 78129 parts catalog PDF

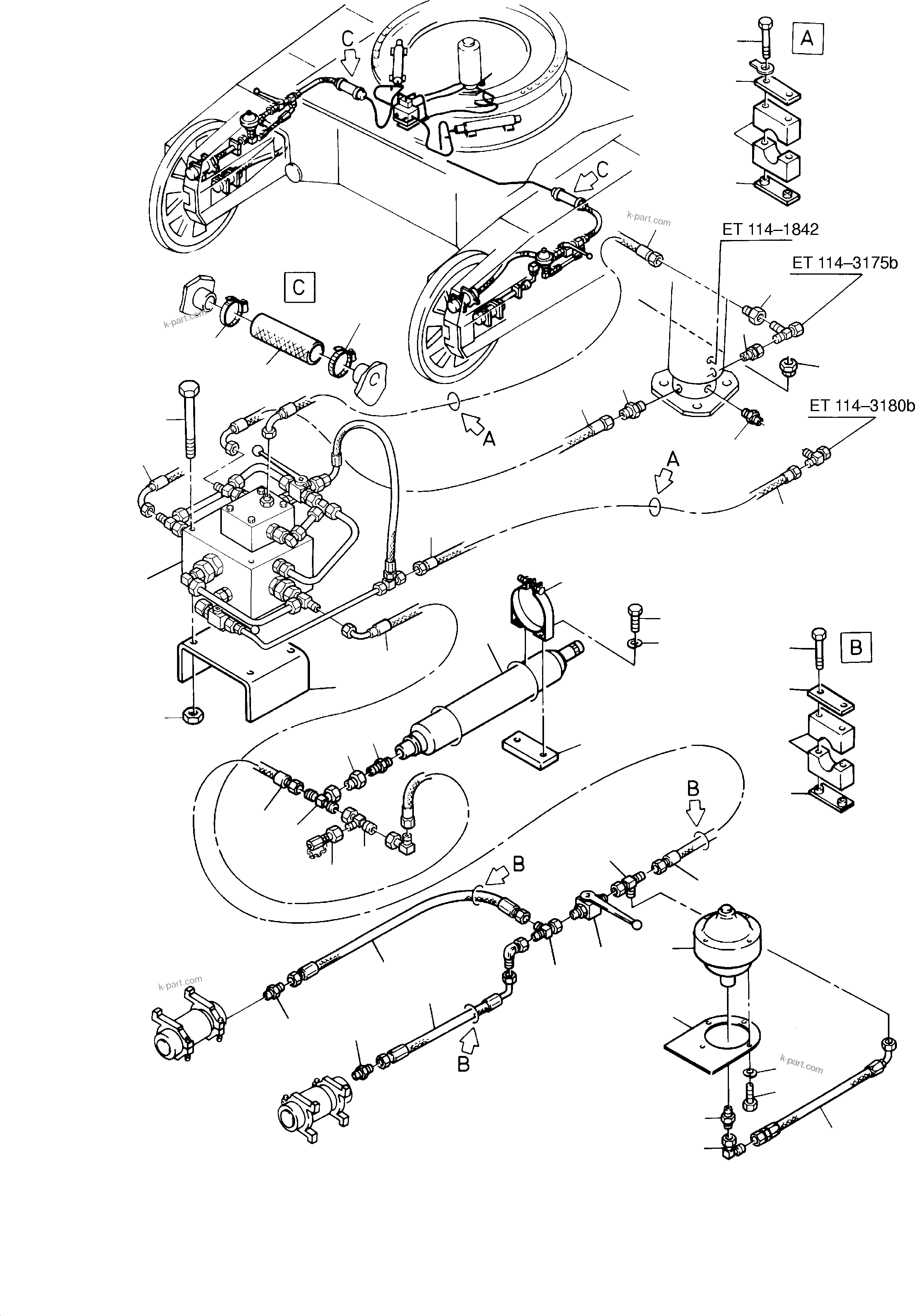

HYDRAULIC TRACK ADJUSTER (114-3185d) in H285S S/N 78129. Diagram image and parts list.
