H285S S/N 78129

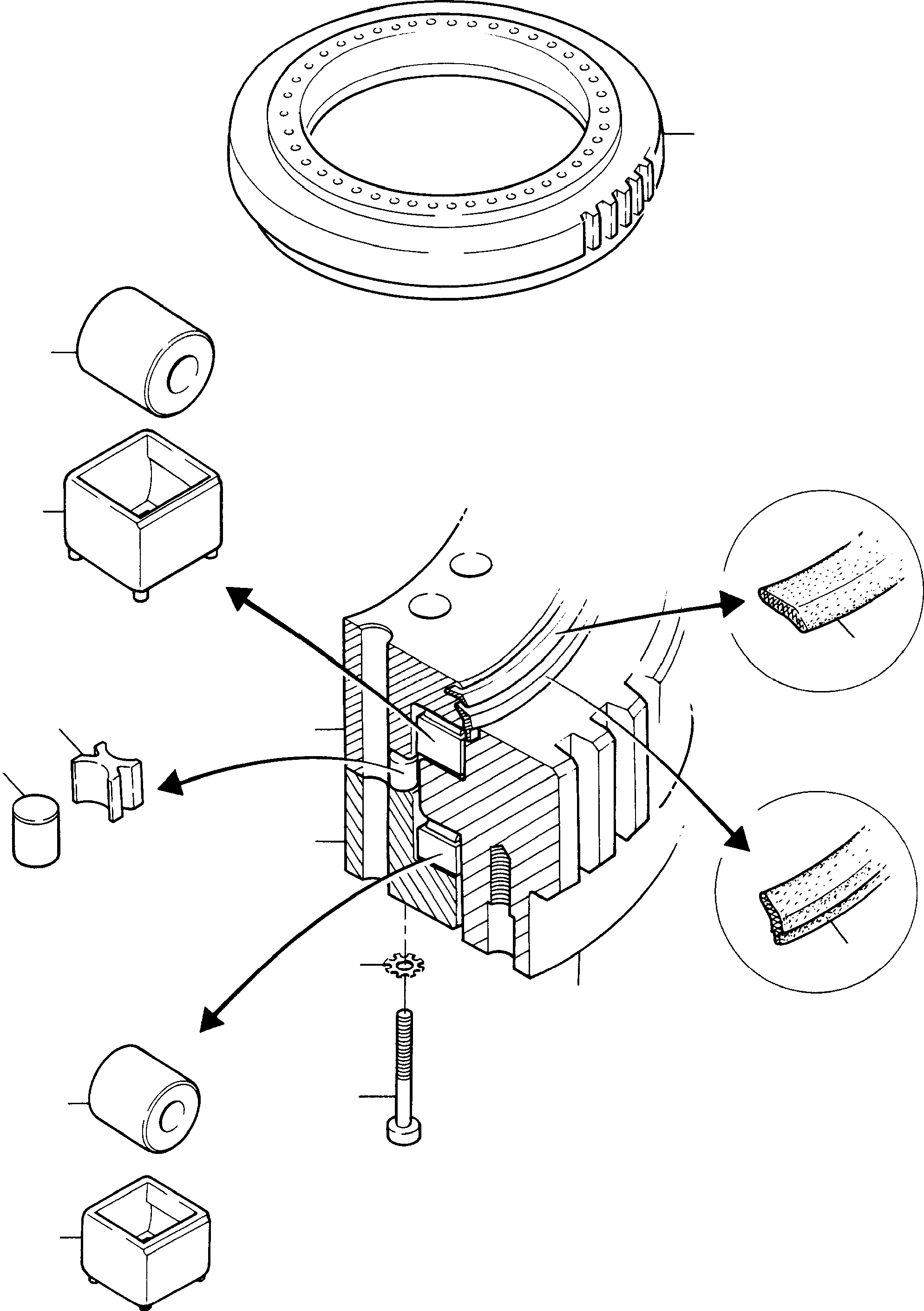

Komatsu parts book diagram for H285S S/N 78129: SLEW RING

01 02 03 04 05 06 07 08 09 10 11 12 13 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	642 510 40	Slew ring, assy.	1	InternBDB: DBM AT-Nr.
	02	642 511 40	Nip ring No field repair item	1	InternKon: 642 510 40 / 1
	03	642 513 40	Ring No field repair item	1	InternKon: 642 510 40 / 2
	04	642 515 40	Retaining ring No field repair item	1	InternKon: 642 510 40 / 3
	05	500 515 98	Tooth lock washer	18	InternBDB: A 16,5 /6797 \| InternKon: 642 510 40 / 11
	06	319 303 99	Screw	18	InternBDB: M16x140 /912 10.9 \| InternKon: 642 510 40 / 10
	07	487 197 40	Roller set No field repair item	1	InternBDB: TL 487 109 40 Ш 60-146 St. \| InternKon: 642 510 40 / 4
	08	505 399 40	Plastic cage No field repair item	146	InternKon: 642 510 40 / 7
	09	593 473 40	Roller set No field repair item	1	InternBDB: TL 487 109 40 Ш 40-201 St. \| InternKon: 642 510 40 / 6
	10	487 196 40	Roller set No field repair item	1	InternBDB: TL 487 109 40 Ш 50-173 St. \| InternKon: 642 510 40 / 5
	11	487 170 40	Plastic cage No field repair item	173	InternKon: 642 510 40 / 8
	12	224 639 40	Lip type seal NG 25x10 300 mm Bulk ware, state length required	1	InternBDB: TL \| InternKon: 642 510 40 / 14
	13	224 640 40	Lip type seal NG 40x10 300 mm Bulk ware, state length required	1	InternKon: 642 510 40 / 13
	14	368 550 40	Extension	201	InternKon: 642 510 40 / 9
	\|$$15	989 965	Adhesive	-2	InternBDB: Sicomet 85
	\|$$16	004 860 98	Grease nipple	36	InternBDB: AR 1/4 \| InternKon: 642 510 40 / 15
	\|$$17	504 916 98	Grease 20 kg	-2	InternBDB: KTC 1/2 G \| InternKon: 642 510 40 / 12

Komatsu H285S S/N 78129 parts catalog PDF

SLEW RING (114-1115d) in H285S S/N 78129. Diagram image and parts list.
