H285S S/N 78129

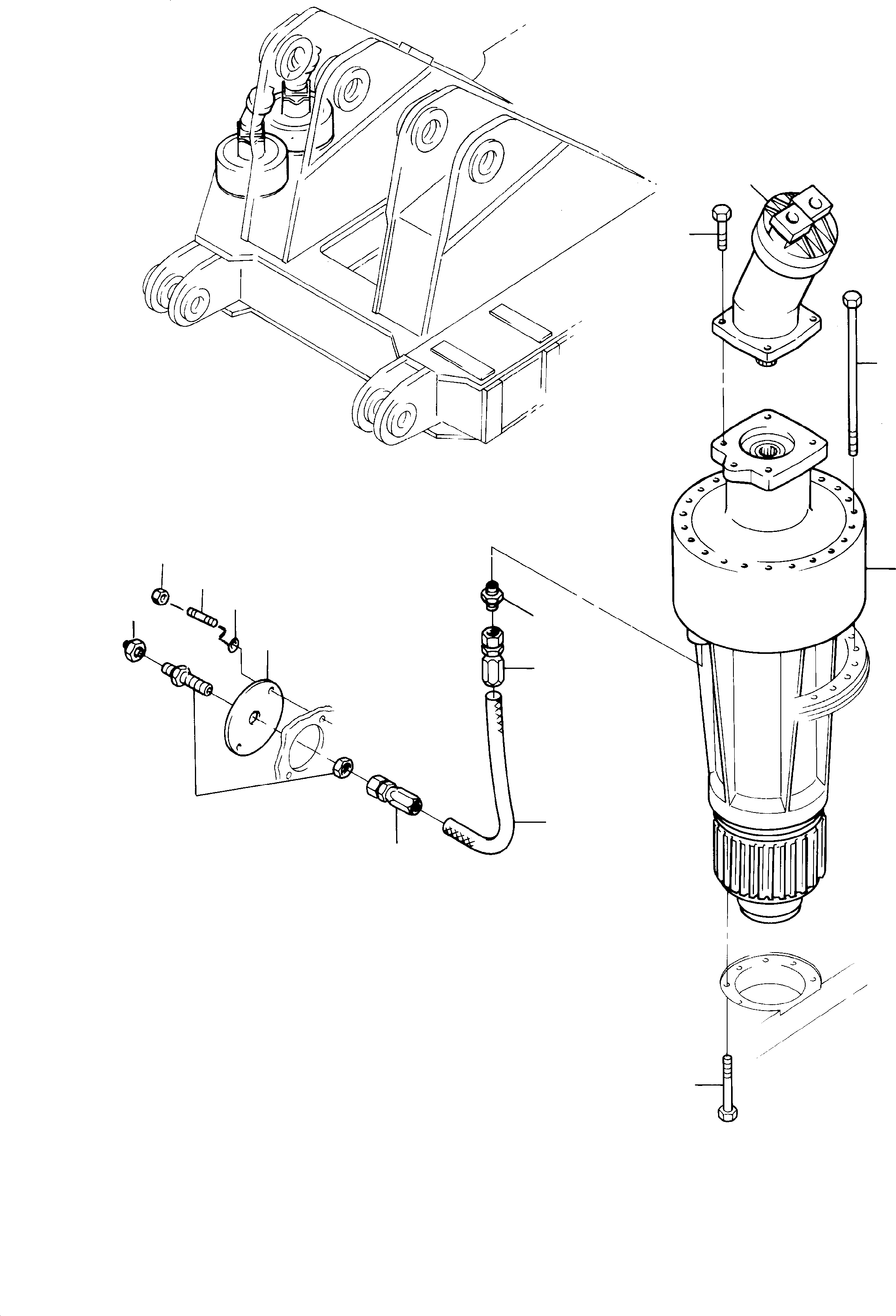

Komatsu parts book diagram for H285S S/N 78129: INSTALLATION - SWING GEAR,- AND MOTOR

01 02 03 04 05 06 07 07 08 09 10 11 12 13 14

	#	Part Number	Partname	Quantity	Options	Reference
	01		Swing gear	2	InternKon: 374 399 40 / 3	090-1978d
	02	304 327 99	Bolt	48	InternBDB: M24x330 /931 10.9 \| InternKon: 374 399 40 / 5
	03	308 640 99	Bolt	14	InternBDB: M16x120 /931 \| InternKon: 374 399 40 / 4
	04		Swing gear motor	2	InternKon: 374 399 40 / 4	090-1370b
	05	307 846 99	Bolt	8	InternBDB: M20x55 /933 \| InternKon: 374 399 40 / 7
	06	374 431 99	Scoket	2	InternBDB: L 28 M /3901 \| InternKon: 374 399 40 / 15
	07	269 392 40	Hose fittings	4	InternBDB: Aeroquip 07.002-28-20 \| InternKon: 374 399 40 / 17
	08	323 901 40	Hose DN 25x1200 lg. Bulk ware, state length required	2	InternBDB: Aeroquip 2651-20 \| InternKon: 374 399 40 / 18
	09	519 324 40	Cover	2	InternKon: 374 399 40 / 16
	10	340 467 99	Washer	4	InternBDB: 13 /125 \| InternKon: 374 399 40 / 22
	11	507 121 98	Threaded pin	4	InternBDB: M12x25 /3250 \| InternKon: 374 399 40 / 29
	12	372 593 99	Union	2	InternBDB: RL 28 /2353 \| InternKon: 374 399 40 / 19
	13	371 858 99	Plug	2	InternBDB: 28-L 011 638 99 \| InternKon: 374 399 40 / 20
	14	334 600 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 374 399 40 / 21

Komatsu H285S S/N 78129 parts catalog PDF

INSTALLATION - SWING GEAR,- AND MOTOR (114-1500e) in H285S S/N 78129. Diagram image and parts list.
