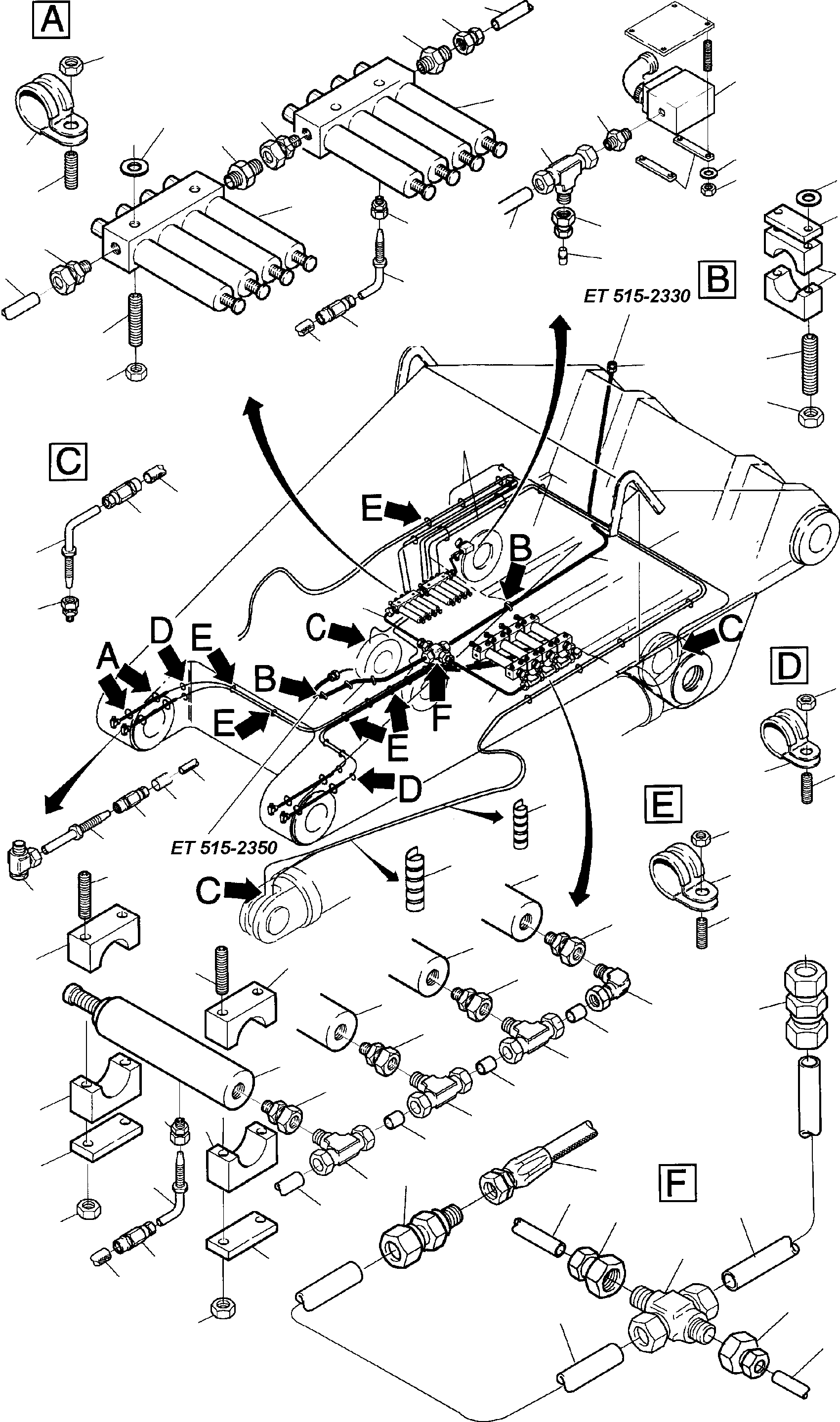

STICK 5.40 M - CENTRAL LUBRICATION | H455S S/N 15005

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve	4	InternBDB: 269 881 40 \| InternKon: 653 150 40 / 8	090-2927
02		Metering valve	2	InternBDB: 269 880 40 \| InternKon: 653 150 40 / 9	090-2926
03	372 415 99	Union	2	InternBDB: ES 25 /2353 \| InternKon: 653 150 40 / 21
04	635 896 40	Tube protection 12x9x1.5 Bulk ware, state length required	-2	InternBDB: 100 121 005 Baier u. Kцppel \| InternKon: 653 150 40 / 55
05	372 625 99	Union	3	InternBDB: QS 16 /2353 \| InternKon: 653 150 40 / 20
06	372 980 99	Union	1	InternBDB: KOR 25/16-S \| InternKon: 653 150 40 / 48
07	502 303 98	Socket	4	InternBDB: EVGE 16-S/ 1/2 NPT \| InternKon: 653 150 40 / 10
08	576 270 40	Union	8	InternBDB: GE6-L1/4 NPT \| InternKon: 653 150 40 / 11
09	576 271 40	Union	4	InternBDB: SWVE6-SG1/4 \| InternKon: 653 150 40 / 15
10	634 775 40	Clamp	8	InternBDB: DM 50,8 M 12 Stauffenberg \| InternKon: 653 150 40 / 1
11	511 885 98	Thread pin	16	InternBDB: PM 12x90 /32500 \| InternKon: 653 150 40 / 3
12	341 754 40	Ultimate pressure control	1	InternBDB: Delaval Typ X1T-5145 \| InternKon: 653 150 40 / 27
13	511 565 98	Thread pin	4	InternBDB: PM 8x50 /32500 \| InternKon: 653 150 40 / 6
14	343 004 99	Washer	4	InternBDB: 8,4 /93 \| InternKon: 653 150 40 / 29
15	652 383 40	Shackle	2	InternKon: 653 150 40 / 28
16	340 112 99	Washer	16	InternBDB: A 18 /7989 \| InternKon: 653 150 40 / 5
17	510 130 98	Thread pin	16	InternBDB: PM10x30/32500 \| InternKon: 653 150 40 / 24
18	372 483 99	Union	3	InternBDB: GE12PS/3/8NPT \| InternKon: 653 150 40 / 19
19	502 000 98	Socket	1	InternBDB: EVGE 10-PLR- ED \| InternKon: 653 150 40 / 38
20	372 891 99	Union	1	InternBDB: KOR 10/6-L \| InternKon: 653 150 40 / 40
21	371 861 99	Breech block	1	InternBDB: 6-L \| InternKon: 653 150 40 / 18
22	653 121 40	Pipe assy. Ш 25	1	InternKon: 653 150 40 / 41
23	653 122 40	Pipe assy. Ш 25	1	InternKon: 653 150 40 / 42
24	653 123 40	Pipe assy. Ш 16	1	InternKon: 653 150 40 / 43
25	170 427 40	Cable strap	40	InternBDB: TY 27 M \| InternKon: 653 150 40 / 53
26	372 978 99	Union	1	InternBDB: KOR25 /12-S \| InternKon: 653 150 40 / 49
27	428 861 40	Pipe assy. Ш 16	3	InternKon: 653 150 40 / 25
28	215 424 99	Pipe Ш 12 Bulk ware, state length required	-2	InternBDB: 12x1,5 /2391 \| InternKon: 653 150 40 / 44
29	576 160 40	Hose Bulk ware, state length required	-2	InternBDB: 504-36033-3 \| InternKon: 653 150 40 / 52
30	512 705 98	Hose assy. DN 20x3800	1	InternBDB: DOS 25 /DOS 25 WN 341 951 40 \| InternKon: 653 150 40 / 46
31	372 722 99	Union	1	InternBDB: KS 16 /2353 \| InternKon: 653 150 40 / 23
32	378 252 99	Clamp	8	InternBDB: 39 /1593 \| InternKon: 653 150 40 / 26
33	651 255 40	Half clamp	6	InternBDB: TL / S-2-R-25/3015 \| InternKon: 653 150 40 / 31
34	634 978 40	Cover plate	6	InternBDB: DPAL 4S Stauffenberg \| InternKon: 653 150 40 / 32
35	323 945 40	Thread pin	45	InternBDB: M6x15 /32501 \| InternKon: 653 150 40 / 35
36	512 055 98	Thread pin	12	InternBDB: PM 12x80 /32500 \| InternKon: 653 150 40 / 33
37	332 334 99	Nut	28	InternBDB: M 12 /934 \| InternKon: 653 150 40 / 4
38	635 121 40	Hose connection 90 ?	20	InternBDB: 532-31819-1 \| InternKon: 653 150 40 / 12
39	635 120 40	Hose connection	4	InternBDB: 432-23675-1 \| InternKon: 653 150 40 / 16
40	174 411 40	Cable strap	10	InternBDB: TY 25 M \| InternKon: 653 150 40 / 54
41	634 774 40	Cover plate	8	InternBDB: DP III /Stauffenberg \| InternKon: 653 150 40 / 2
42	373 588 99	Union	8	InternBDB: GE 6 PL /1/8 NPT \| InternKon: 653 150 40 / 14
43	372 895 99	Union	1	InternBDB: KOR 12/10-PL \| InternKon: 653 150 40 / 50
44	512 273 98	Socket	1	InternBDB: EVGE 12-S /3/8 NPT \| InternKon: 653 150 40 / 51
45	635 122 40	Collet	24	InternBDB: 432-23676-1 \| InternKon: 653 150 40 / 13
46	635 123 40	Union	8	InternBDB: GE6-SR1/4 \| InternKon: 653 150 40 / 17
47	006 302 98	Clamp	35	InternBDB: RSGU 1100/15/15 \| InternKon: 653 150 40 / 37
48	534 092 98	Clamp	10	InternBDB: 8/15 \| InternKon: 653 150 40 / 36
49	372 511 99	Union	1	InternBDB: ZS 25 /2353 \| InternKon: 653 150 40 / 47
50	215 627 99	Pipe Ш 10 Bulk ware, state length required	-2	InternBDB: 10x2 /2391 \| InternKon: 653 150 40 / 45
51	507 025 98	Nut	45	InternBDB: 6 /985 \| InternKon: 653 150 40 / 34
52	332 114 99	Nut	20	InternBDB: M10 /934 \| InternKon: 653 150 40 / 30
53	653 129 40	Hose protection	4	InternKon: 653 150 40 / 22
54	371 952 99	Union	1	InternBDB: FFL 10/2353 \| InternKon: 653 150 40 / 39
55	334 599 99	Nut	4	InternBDB: M 8 /985 \| InternKon: 653 150 40 / 7
