H455S S/N 15005

01 02 03 04 04 04 04 05 06 07 08 09 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74

#	Part Number	Partname	Quantity	Options	Reference
01	634 600 40	Lube pump station consist. of fig-nos: 02-74	1	InternBDB: Lincoln 984962-14E Typ HL-A07.007 BL.24
02		Lube pump	1	InternBDB: 984962	090-0781
03	765 206 73	Cover	1	InternBDB: 981523-15E
04	214 768 99	Pipe Ш 10 Bulk ware, state length required	-2	InternBDB: 10x1,5 105-35025-5
05	697 141 73	Union	1	InternBDB: 66846-E GE10-L 1/4 NPT
06	515 088 40	2/2-Directional solenoid valve	1	InternBDB: 235-13141-1 (BVG 2-S)
07	765 207 73	Junction box with plug	1	InternBDB: 980 060-E
08	697 592 73	Reduction nipple	1	InternBDB: 12989
09	698 303 73	Lube filter consist. of fig-nos: 28-33	1	InternBDB: 84004
10	698 304 73	Union	1	InternBDB: 223-13028-4
11	269 898 40	Sleeve	1	InternBDB: 67179
12	765 208 73	Union	1	InternBDB: 966 024-E
13	215 629 99	Pipe Ш 16 Bulk ware, state length required	1	InternBDB: 16x2 /105-35183-3
14	215 811 99	Pipe Ш 15 Bulk ware, state length required	1	InternBDB: 15x1,5 /105-35134-9
15	765 209 73	Grease coupling	1	InternBDB: 980 059-E /Typ 60 6511 413 023
16	765 210 73	Union	1	InternBDB: 223-13620-5
17	765 211 73	Union	1	InternBDB: 223-13048-9
18	372 472 99	Union	1	InternBDB: 223-13621-4 GE10PL/1/4 NPT
19	371 976 99	Union	1	InternBDB: 966 039-E /FFS 16
20	372 051 99	Union	1	InternBDB: 966 040-E /EVL-16
21	765 212 73	Union	1	InternBDB: 223-13749-5 /GE 16-SG 3/8
22	372 473 99	Union	1	InternBDB: 223-13016-4 /GE 10-S 3/8
23	372 966 99	Union	1	InternBDB: 223-13699-1 /KOR 16-10-S
24	371 263 99	Nut	1	InternBDB: 223-13032-9 /AS-16
25	371 231 99	Thrust collar	1	InternBDB: 223-12296-8 /S-16
26	371 275 99	Nut	1	InternBDB: 223-12374-8 /AL-15
27	371 242 99	Thrust collar	1	InternBDB: 223-12296-9 /L-15
28	698 313 73	Plug	1	InternBDB: 14769
29	693 513	Seal	1	InternBDB: 31002
30	698 314 73	Spring	1	InternBDB: 55362
31	698 315 73	Filter plug	1	InternBDB: 14770
32	698 316 73	Filter element	1	InternBDB: 69524
33	698 317 73	Filter barrel	1	InternBDB: 91839
34	371 273 99	Nut	1	InternBDB: 223-13032-6 /AL-10
35	371 240 99	Thrust collar	1	InternBDB: 223-12295-8 /L-10
36	698 320 73	Union	1	InternBDB: 223-13028-2
37	698 321 73	Pressure gauge	1	InternBDB: 234-13132-7 D63, 0-400bar G 1/4
38	697 571 73	Barrel consist. of fig-nos: 40-69	1	InternBDB: 243-13019-4
39	007 179 98	Union	1	InternBDB: Voss 10-SR
40	698 151 73	Flange	1	InternBDB: 90x90 1/4-20 UNC x 1/2 \| InternKon: 243-13019-4 / 1.1
41	506 316 98	Bolt	4	InternBDB: 6,35x15 / 1/4 \| InternKon: 243-13019-4 / 1.2
42	698 152 73	Case	1	InternBDB: 81111-2271 \| InternKon: 243-13019-4 / 3
43	698 153 73	Piston	1	InternBDB: 92312-1223 \| InternKon: 243-13019-4 / 4
44	698 154 73	Cap	1	InternBDB: 94613-1311 \| InternKon: 243-13019-4 / 5
45	502 804 98	O-ring	2	InternBDB: 37x3 NB 70 \| InternKon: 243-13019-4 / 7
46	698 155 73	Scraper	1	InternBDB: P 7-35 / P 1694 \| InternKon: 243-13019-4 / 6
47	698 156 73	V-seal	2	InternBDB: 35x45x6 /3 \| InternKon: 243-13019-4 / 8
48	698 157 73	Guide consist. of fig-nos: 49-51	1	InternBDB: 85111-1211 \| InternKon: 243-13019-4 / 9
49	698 158 73	Guide tube	1	InternBDB: 92214-1122 \| InternKon: 243-13019-4 / 9.1
50	698 160 73	O-ring	2	InternBDB: 223-8307 \| InternKon: 243-13019-4 / 9.2
51	198 159 73	Union nut	1	InternBDB: 94613-1312 \| InternKon: 243-13019-4 / 9.3
52	698 161 73	Indicator consist. of fig-nos: 53-58	1	InternBDB: 84114-1210 \| InternKon: 243-13019-4 / 10
53	698 162 73	Weight	1	InternBDB: 96816-1121 \| InternKon: 243-13019-4 / 10.1
54	698 163 73	Magnet	1	InternBDB: M 2 - rot \| InternKon: 243-13019-4 / 10.2
55	340 465 99	Washer	1	InternBDB: A 10,5 /125 \| InternKon: 243-13019-4 / 10.3
56	318 374 99	Bolt	1	InternBDB: M4x20 /963 \| InternKon: 243-13019-4 / 10.4
57	504 466 98	Grummet	1	InternBDB: 5 R-W \| InternKon: 243-13019-4 / 10.5
58	300 024 99	Rope clamp	1	InternBDB: VZ 741 /N 3 \| InternKon: 243-13019-4 / 10.6
59	698 164 73	Guide	1	InternBDB: 96211-1132 \| InternKon: 243-13019-4 / 11
60	698 165 73	Seal	1	InternBDB: 95811-1111 \| InternKon: 243-13019-4 / 12
61	698 166 73	Sleeve	3	InternBDB: 95211-1111 \| InternKon: 243-13019-4 / 13
62	334 599 99	Nut	3	InternBDB: M 8 /985 \| InternKon: 243-13019-4 / 14
63	509 305 98	Bolt	3	InternBDB: M8x70 /963 \| InternKon: 243-13019-4 / 15
64	307 773 99	Bolt	4	InternBDB: M10x15 /933 \| InternKon: 243-13019-4 / 16
65	698 167 73	Valve	1	InternBDB: 602 1705 \| InternKon: 243-13019-4 / 17
66	693 935	Ball cock	1	InternBDB: 3403 R 3/4xAG 3/4 \| InternKon: 243-13019-4 / 18
67	321 805 99	Nut	2	InternBDB: M 8 /986 \| InternKon: 243-13019-4 / 19
68	698 168 73	Level indicator (refilling)	1	InternBDB: 84113-1141 \| InternKon: 243-13019-4 / 20
69	698 169 73	Livel indicator (evacuating)	1	InternBDB: 84113-1142 \| InternKon: 243-13019-4 / 21
70	208 895 40	Coupling sleeve	1	InternBDB: 980 058-E /Typ 61 6511 413 022
71	490 155 40	Coupling sleeve	1	InternBDB: 980 057-E /Typ 61 6511 308 022
72	368 235 40	Protection cap	1	InternBDB: 968 036-E /63 6591 310 051
73	208 896 40	Protection cap	1	InternBDB: 968 035-E /63 6591 413 051
74	698 418 73	Plug	1	InternBDB: 67007
\|$$75	766 306 73	Conversion kit to fig-no. 06	1	InternBDB: E-ST

Komatsu H455S S/N 15005 parts catalog PDF

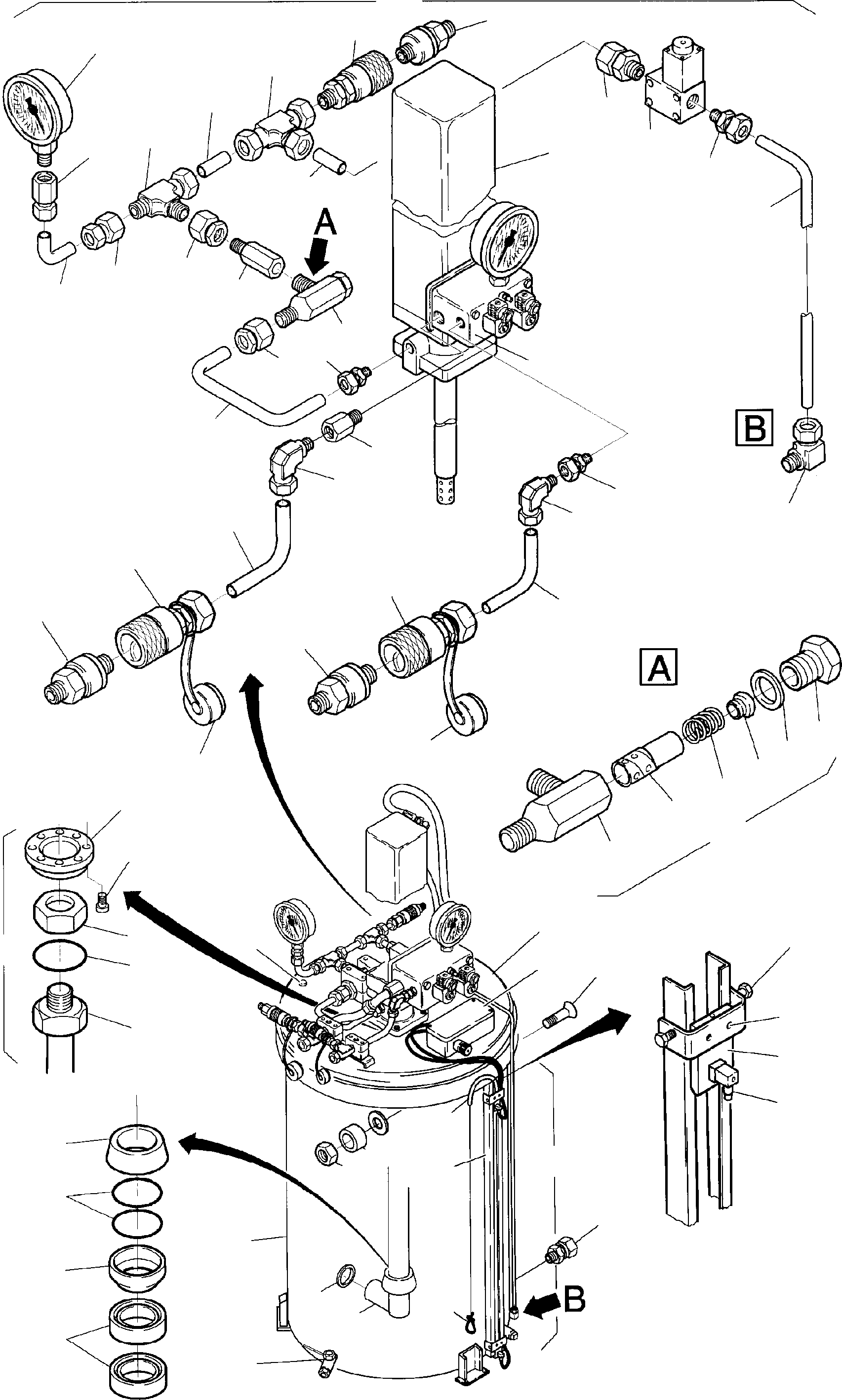

LUBE PUMP STATION (090-0872a) in H455S S/N 15005. Diagram image and parts list.
