#	Part Number	Partname	Quantity	Options	Reference
\|$$1		Graphic 1	-1
01	661 000 40	Bullclam bucket 4410 wide	1	InternBDB: DBM \| InternKon: KO-643 010 40 / 1
02	659 766 40	Wing shroud	2	InternKon: 659 753 40 / 03
05	640 802 40	Shroud	2	InternBDB: Esco PDE 49746-R \| InternKon: KO-643 010 40 / 06
06	640 801 40	Shroud	2	InternBDB: Esco PDE 49746-L \| InternKon: KO-643 010 40 / 05
\|$$6		Tooth system Kwiktip	-1
07	440 232 40	Tooth adapter	5	InternBDB: Esco 130-120 K \| InternKon: 674 417 40 / 1
08	440 231 40	Tooth tip	5	InternBDB: Esco 120-K \| InternKon: 674 417 40 / 2
09	297 826 40	Circlip	10	InternBDB: Esco 120 KLKSR \| InternKon: 674 417 40 / 4
10	440 236 40	Lock pin	10	InternBDB: Esco 120 KPN \| InternKon: 674 417 40 / 3
11	440 233 40	Spool	5	InternBDB: Esco SP 130 \| InternKon: 674 417 40 / 5
12	440 234 40	Wedge	5	InternBDB: Esco 130 W \| InternKon: 674 417 40 / 6
\|$$13		Tooth system Posilok	-1
13	604 690 40	Tooth adapter	5	InternBDB: Esco 130 H 112 K
14	604 691 40	Tooth tip	5	InternBDB: Esco 112 KH
15	604 692 40	Wedge	5	InternBDB: Esco PN 112 KA
16	604 693 40	Lock	5	InternBDB: Esco PL 112 K
17	440 233 40	Spool	5	InternBDB: Esco SP 130 A
18	440 234 40	Wedge	5	InternBDB: Esco 130 W 1
20	647 265 40	Pin	2	InternBDB: Ш 230 \| InternKon: 661 000 40 / 07
21	872 481 40	Freeze-in bushing	4	InternBDB: Ш 230 \| InternKon: 661 000 40 / 11
22	647 274 40	Axle stirrup	4	InternKon: 661 000 40 / 24
23	647 276 40	Catch	4	InternKon: 661 000 40 / 26
24	647 278 40	Cover	2	InternKon: 661 000 40 / 30
25	343 008 99	Locking plate	16	InternBDB: 17 /93 \| InternKon: 661 000 40 / 48
26	500 540 98	Bolt	16	InternBDB: M16x50 /933 Kaltzдh \| InternKon: 661 000 40 / 42
27	647 279 40	Cover	2	InternKon: 661 000 40 / 31
28	647 277 40	Catch	4	InternKon: 661 000 40 / 27
29	647 275 40	Axle stirrup	4	InternKon: 661 000 40 / 25
30	647 266 40	Pin	2	InternBDB: Ш 170 \| InternKon: 661 000 40 / 8
31	872 482 40	Freeze-in bushing	4	InternBDB: Ш 170 \| InternKon: 661 000 40 / 12
\|$$32		Graphic 2	-1
40	763 817 73	Bullclam bucket wall	1	InternBDB: E-ST
41		Bullclam bucket wall These parts are not sold separately	1	InternBDB: 661 001 40 SK \| InternKon: 661 000 40 / 1
42	763 816 73	Bucket clam	1	InternBDB: E-ST
43		Bucket clam These parts are not sold separately	1	InternBDB: 661 002 40 SK \| InternKon: 661 000 40 / 2
44	872 483 40	Freeze-in bushing	4	InternBDB: Ш 180 \| InternKon: 661 000 40 / 13
45	872 484 40	Freeze-in bushing	4	InternBDB: Ш 180 \| InternKon: 661 000 40 / 14
47	872 486 40	Freeze-in bushing	4	InternBDB: Ш 120 \| InternKon: 661 000 40 / 16
48	872 485 40	Freeze-in bushing	4	InternBDB: Ш 120 \| InternKon: 661 000 40 / 15
49	647 264 40	Pin	2	InternBDB: Ш 120 \| InternKon: 661 000 40 / 6
50	637 111 40	Pin	2	InternBDB: Ш 180 \| InternKon: 661 000 40 / 4
51	637 113 40	Pin	2	InternBDB: Ш 120 \| InternKon: 661 000 40 / 5
52	006 894 98	Union	6	InternBDB: Voss 10-LR \| InternKon: 661 000 40 / 51
53	215 635 99	Pipe Ш 10 Bulk ware, state length required	-2	InternBDB: 10x2 /2391 \| InternKon: 661 000 40 / 52
54	370 312 99	Union	2	InternBDB: DL 10 /2353 \| InternKon: 661 000 40 / 50
55	653 253 40	Grease block	2	InternKon: 661 000 40 / 37
56	004 860 98	Grease nipple	2	InternBDB: AR 1/4
57	627 888 40	Seal ring	8	InternKon: 661 000 40 / 54
58	577 142 40	Seal fixing	8	InternKon: 661 000 40 / 10
59	509 170 98	Bolt	-2	InternBDB: M16x90 /912
60	647 281 40	Seal	4	InternKon: 661 000 40 / 33
61	647 280 40	Cover	4	InternKon: 661 000 40 / 32
62	343 006 99	Locking plate	16	InternBDB: 13 /93 \| InternKon: 661 000 40 / 49
63	307 807 99	Bolt	16	InternBDB: M12x45 /933 \| InternKon: 661 000 40 / 43
64	500 094 40	Protective frame	2	InternKon: 661 000 40 / 20
65	577 368 40	Protective frame	2	InternKon: 661 000 40 / 21
66	500 093 40	Catch	2	InternKon: 661 000 40 / 22
67	577 369 40	Catch	2	InternKon: 661 000 40 / 23
68	500 092 40	Catch	4	InternKon: 661 000 40 / 28
69	506 179 40	Catch	4	InternKon: 661 000 40 / 29
70	320 374 99	Bolt	4	InternBDB: M16x20 /6912 \| InternKon: 661 000 40 / 41
71	640 700 40	Seal fixing	4	InternKon: 661 000 40 / 9
72	640 728 40	Seal ring	4	InternKon: 661 000 40 / 53
73	642 240 40	Castlip	1	InternBDB: DBM \| InternKon: 674 425 40 / 1
\|$$66		Graphic 3	-1
80		Cylinder with piping	2	InternBDB: 660 754 40 \| InternKon: 661 000 40 / 3	515-5035
81	637 115 40	Thread plate	2	InternKon: 661 000 40 / 19
82	395 158 40	Manifold	2	InternKon: 661 000 40 / 18
83	343 857 99	Lock washer	8	InternBDB: 16 /7980 \| InternKon: 661 000 40 / 47
84	319 445 99	Bolt	8	InternBDB: M16x160 /912 \| InternKon: 661 000 40 / 39
85	385 243 40	O-ring	2	InternBDB: 2" \| InternKon: 661 000 40 / 45
86	501 109 98	Bolt	8	InternBDB: M20x60 /912 \| InternKon: 661 000 40 / 38
87	356 209 40	O-ring	8	InternBDB: 1 1/2" \| InternKon: 661 000 40 / 46
88	145 751 40	Half flange	16	InternBDB: 40 /420 \| InternKon: 661 000 40 / 44
89	504 558 98	Bolt	32	InternBDB: M16x50 /912 \| InternKon: 661 000 40 / 40
90	637 170 40	Hose assy. DN 40x1450 lg.	2	InternBDB: TL \| InternKon: 661 000 40 / 35
91	637 169 40	Hose assy. DN 40x1590 lg.	2	InternBDB: TL \| InternKon: 661 000 40 / 34
92	319 292 99	Bolt	8	InternBDB: M16x90 /912
93	332 355 99	Nut	8	InternBDB: M 16 /934

Komatsu H455S S/N 15005 parts catalog PDF

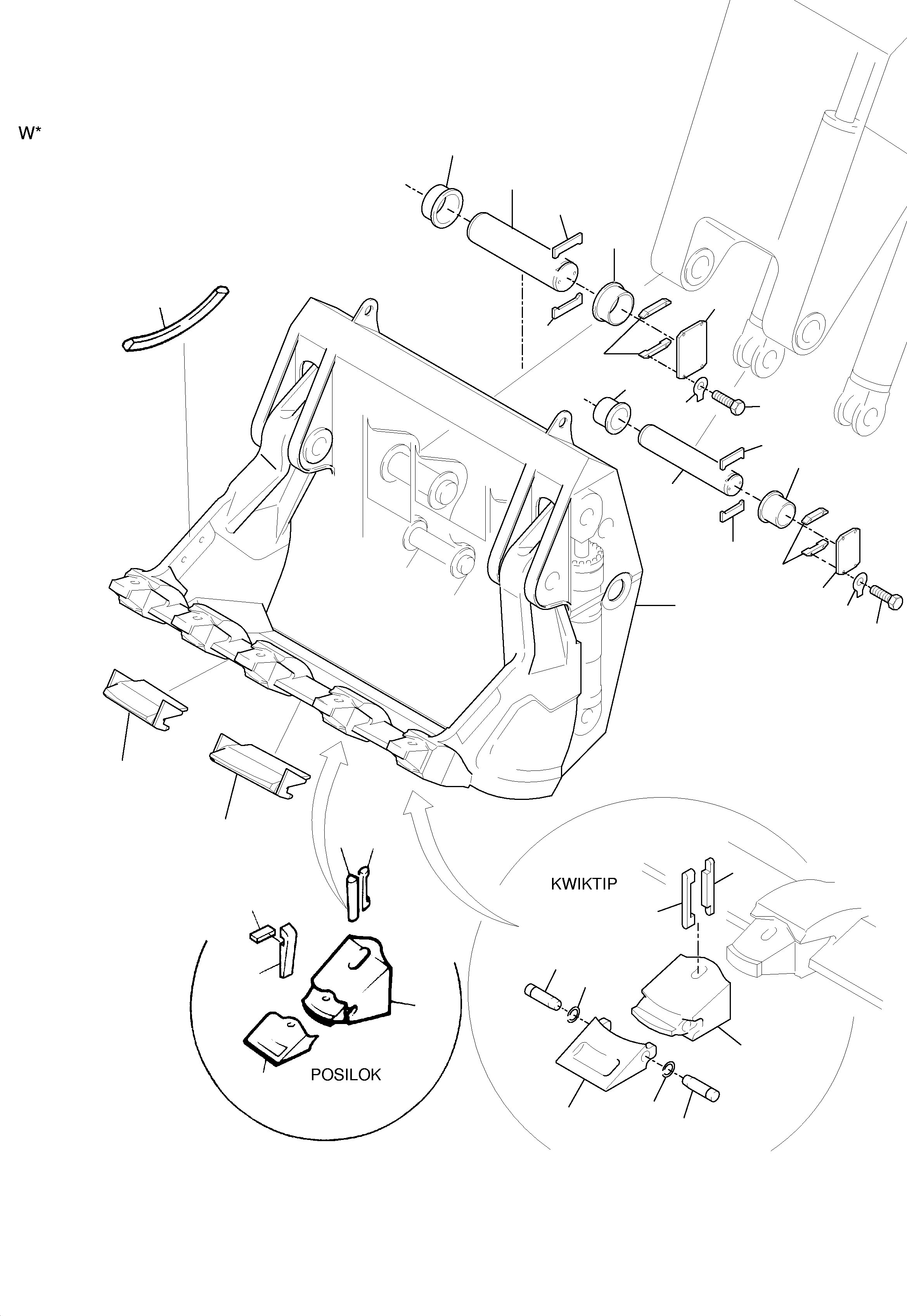

BULLCLAM BUCKET (515-5017) in H455S S/N 15005. Diagram image and parts list.
