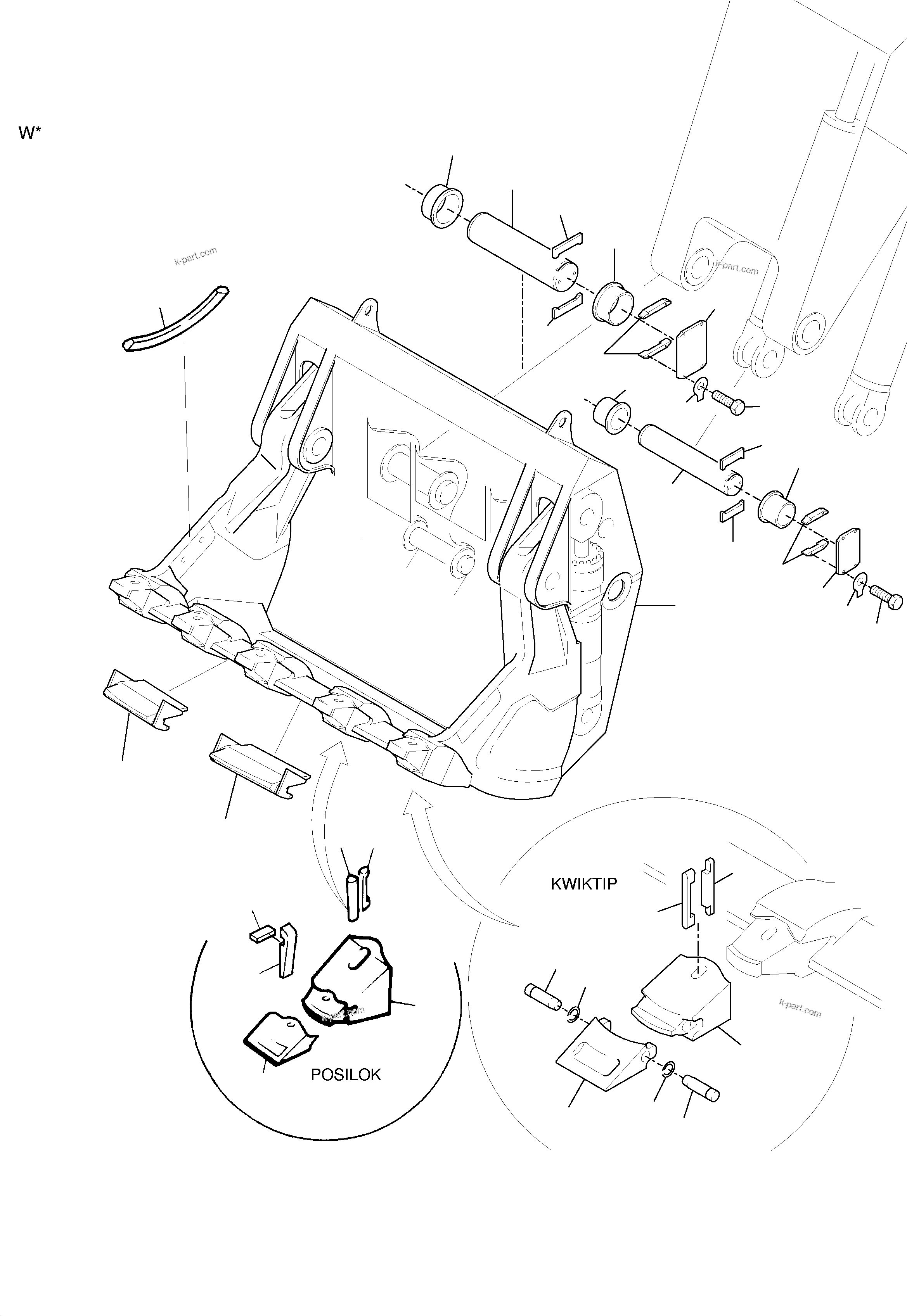

Diagram image 1 of 3

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Graphic 1	-1
?	661 000 40	Bullclam bucket 4410 wide	1	InternBDB: DBM \| InternKon: KO-643 010 40 / 1
?	659 766 40	Wing shroud	2	InternKon: 659 753 40 / 03
?	640 802 40	Shroud	2	InternBDB: Esco PDE 49746-R \| InternKon: KO-643 010 40 / 06
?	640 801 40	Shroud	2	InternBDB: Esco PDE 49746-L \| InternKon: KO-643 010 40 / 05
?		Tooth system Kwiktip	-1
?	440 232 40	Tooth adapter	5	InternBDB: Esco 130-120 K \| InternKon: 674 417 40 / 1
?	440 231 40	Tooth tip	5	InternBDB: Esco 120-K \| InternKon: 674 417 40 / 2
?	297 826 40	Circlip	10	InternBDB: Esco 120 KLKSR \| InternKon: 674 417 40 / 4
?	440 236 40	Lock pin	10	InternBDB: Esco 120 KPN \| InternKon: 674 417 40 / 3
?	440 233 40	Spool	5	InternBDB: Esco SP 130 \| InternKon: 674 417 40 / 5
?	440 234 40	Wedge	5	InternBDB: Esco 130 W \| InternKon: 674 417 40 / 6
?		Tooth system Posilok	-1
?	604 690 40	Tooth adapter	5	InternBDB: Esco 130 H 112 K
?	604 691 40	Tooth tip	5	InternBDB: Esco 112 KH
?	604 692 40	Wedge	5	InternBDB: Esco PN 112 KA
?	604 693 40	Lock	5	InternBDB: Esco PL 112 K
?	440 233 40	Spool	5	InternBDB: Esco SP 130 A
?	440 234 40	Wedge	5	InternBDB: Esco 130 W 1
?	647 265 40	Pin	2	InternBDB: Ш 230 \| InternKon: 661 000 40 / 07
?	872 481 40	Freeze-in bushing	4	InternBDB: Ш 230 \| InternKon: 661 000 40 / 11
?	647 274 40	Axle stirrup	4	InternKon: 661 000 40 / 24
?	647 276 40	Catch	4	InternKon: 661 000 40 / 26
?	647 278 40	Cover	2	InternKon: 661 000 40 / 30
?	343 008 99	Locking plate	16	InternBDB: 17 /93 \| InternKon: 661 000 40 / 48
?	500 540 98	Bolt	16	InternBDB: M16x50 /933 Kaltzдh \| InternKon: 661 000 40 / 42
?	647 279 40	Cover	2	InternKon: 661 000 40 / 31
?	647 277 40	Catch	4	InternKon: 661 000 40 / 27
?	647 275 40	Axle stirrup	4	InternKon: 661 000 40 / 25
?	647 266 40	Pin	2	InternBDB: Ш 170 \| InternKon: 661 000 40 / 8
?	872 482 40	Freeze-in bushing	4	InternBDB: Ш 170 \| InternKon: 661 000 40 / 12
?		Graphic 2	-1
?	763 817 73	Bullclam bucket wall	1	InternBDB: E-ST
?		Bullclam bucket wall These parts are not sold separately	1	InternBDB: 661 001 40 SK \| InternKon: 661 000 40 / 1
?	763 816 73	Bucket clam	1	InternBDB: E-ST
?		Bucket clam These parts are not sold separately	1	InternBDB: 661 002 40 SK \| InternKon: 661 000 40 / 2
?	872 483 40	Freeze-in bushing	4	InternBDB: Ш 180 \| InternKon: 661 000 40 / 13
?	872 484 40	Freeze-in bushing	4	InternBDB: Ш 180 \| InternKon: 661 000 40 / 14
?	872 486 40	Freeze-in bushing	4	InternBDB: Ш 120 \| InternKon: 661 000 40 / 16
?	872 485 40	Freeze-in bushing	4	InternBDB: Ш 120 \| InternKon: 661 000 40 / 15
?	647 264 40	Pin	2	InternBDB: Ш 120 \| InternKon: 661 000 40 / 6
?	637 111 40	Pin	2	InternBDB: Ш 180 \| InternKon: 661 000 40 / 4
?	637 113 40	Pin	2	InternBDB: Ш 120 \| InternKon: 661 000 40 / 5
?	006 894 98	Union	6	InternBDB: Voss 10-LR \| InternKon: 661 000 40 / 51
?	215 635 99	Pipe Ш 10 Bulk ware, state length required	-2	InternBDB: 10x2 /2391 \| InternKon: 661 000 40 / 52
?	370 312 99	Union	2	InternBDB: DL 10 /2353 \| InternKon: 661 000 40 / 50
?	653 253 40	Grease block	2	InternKon: 661 000 40 / 37
?	004 860 98	Grease nipple	2	InternBDB: AR 1/4
?	627 888 40	Seal ring	8	InternKon: 661 000 40 / 54
?	577 142 40	Seal fixing	8	InternKon: 661 000 40 / 10
?	509 170 98	Bolt	-2	InternBDB: M16x90 /912
?	647 281 40	Seal	4	InternKon: 661 000 40 / 33
?	647 280 40	Cover	4	InternKon: 661 000 40 / 32
?	343 006 99	Locking plate	16	InternBDB: 13 /93 \| InternKon: 661 000 40 / 49
?	307 807 99	Bolt	16	InternBDB: M12x45 /933 \| InternKon: 661 000 40 / 43
?	500 094 40	Protective frame	2	InternKon: 661 000 40 / 20
?	577 368 40	Protective frame	2	InternKon: 661 000 40 / 21
?	500 093 40	Catch	2	InternKon: 661 000 40 / 22
?	577 369 40	Catch	2	InternKon: 661 000 40 / 23
?	500 092 40	Catch	4	InternKon: 661 000 40 / 28
?	506 179 40	Catch	4	InternKon: 661 000 40 / 29
?	320 374 99	Bolt	4	InternBDB: M16x20 /6912 \| InternKon: 661 000 40 / 41
?	640 700 40	Seal fixing	4	InternKon: 661 000 40 / 9
?	640 728 40	Seal ring	4	InternKon: 661 000 40 / 53
?	642 240 40	Castlip	1	InternBDB: DBM \| InternKon: 674 425 40 / 1
?		Graphic 3	-1
?		Cylinder with piping	2	InternBDB: 660 754 40 \| InternKon: 661 000 40 / 3	515-5035
?	637 115 40	Thread plate	2	InternKon: 661 000 40 / 19
?	395 158 40	Manifold	2	InternKon: 661 000 40 / 18
?	343 857 99	Lock washer	8	InternBDB: 16 /7980 \| InternKon: 661 000 40 / 47
?	319 445 99	Bolt	8	InternBDB: M16x160 /912 \| InternKon: 661 000 40 / 39
?	385 243 40	O-ring	2	InternBDB: 2" \| InternKon: 661 000 40 / 45
?	501 109 98	Bolt	8	InternBDB: M20x60 /912 \| InternKon: 661 000 40 / 38
?	356 209 40	O-ring	8	InternBDB: 1 1/2" \| InternKon: 661 000 40 / 46
?	145 751 40	Half flange	16	InternBDB: 40 /420 \| InternKon: 661 000 40 / 44
?	504 558 98	Bolt	32	InternBDB: M16x50 /912 \| InternKon: 661 000 40 / 40
?	637 170 40	Hose assy. DN 40x1450 lg.	2	InternBDB: TL \| InternKon: 661 000 40 / 35
?	637 169 40	Hose assy. DN 40x1590 lg.	2	InternBDB: TL \| InternKon: 661 000 40 / 34
?	319 292 99	Bolt	8	InternBDB: M16x90 /912
?	332 355 99	Nut	8	InternBDB: M 16 /934
