|$$1 |
|

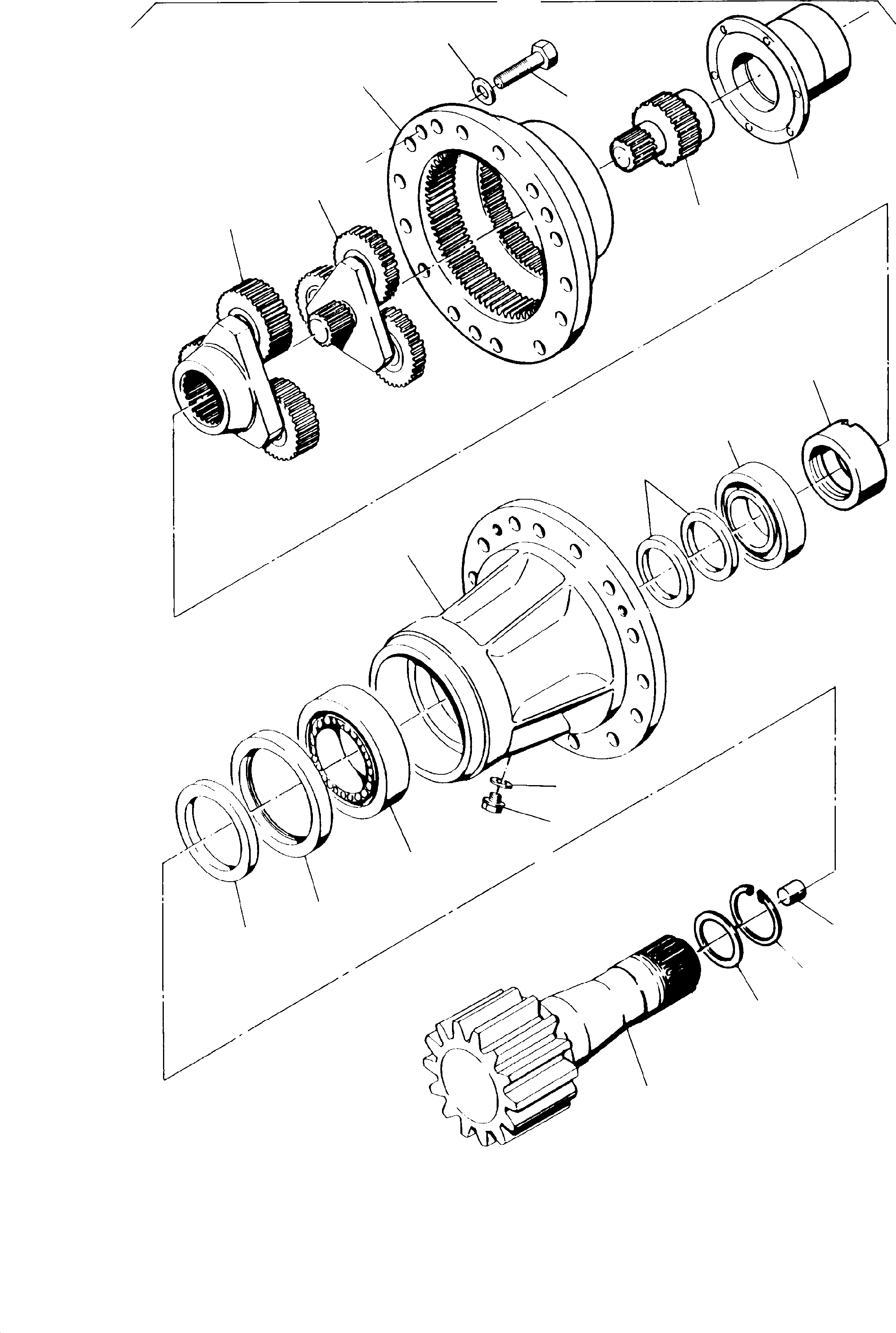

Graphic 1 |
-1 |
|
|
|
|
01 |
324 826 40
|
Slew gear box assy. |
1 |
InternBDB: L+S GFB110E 3053 AT-Nr. 669 113 73
|
|
|
|
02 |
|
Brake |
1 |
InternBDB: GFY100A1062
|
090-4123 |
|
|
03 |
804 345 73
|
Drive shaft |
1 |
InternBDB: 2/0255/9532/1 | InternKon: 4/6013/3053/0 / 14
|
|
|
|
04 |
308 638 99
|
Bolt |
2 |
InternBDB: M16x100 /931 | InternKon: 4/6013/3053/0 / 51
|
|
|
|
05 |
340 469 99
|
Washer |
2 |
InternBDB: B17 /125 | InternKon: 4/6013/3053/0 / 50
|
|
|
|
06 |
804 346 73
|
Internal geared double wheel |
1 |
InternBDB: 0/0334/9032/0 | InternKon: 4/6013/3053/0 / 02
|
|
|
|
07 |
804 347 73
|
Planetary carrier assy. |
1 |
InternBDB: 6/6013/2253/T7 | InternKon: 4/6013/3053/0 / 07
|
|
|
|
08 |
804 348 73
|
Planetary carrier assy. |
1 |
InternBDB: 6/6013/2501/T8 | InternKon: 4/6013/3053/0 / 08
|
|
|
|
09 |
804 349 73
|
Shaft nut |
1 |
InternBDB: 3/0414/9006/2 | InternKon: 4/6013/3053/0 / 12
|
|
|
|
10 |
363 188 99
|
Roller bearing |
1 |
InternBDB: 320/28X/720 | InternKon: 4/6013/3053/0 / 20
|
|
|
|
11 |
505 461 98
|
Shaft seal |
2 |
InternBDB: 140x170x13B2 | InternKon: 4/6013/3053/0 / 25
|
|
|
|
12 |
804 350 73
|
Axle tube |
1 |
InternBDB: 0/0020/9264/0 | InternKon: 4/6013/3053/0 / 03
|
|
|
|
13 |
313 316 99
|
Plug |
2 |
InternBDB: M33x2 /910 | InternKon: 4/6013/3053/0 / 39
|
|
|
|
14 |
340 087 99
|
Seal ring |
2 |
InternBDB: 33x39 /7603 | InternKon: 4/6013/3053/0 / 42
|
|
|
|
15 |
505 462 98
|
Roller bearing |
1 |
InternBDB: 32228A/720 | InternKon: 4/6013/3053/0 / 21
|
|
|
|
16 |
505 463 98
|
Seal |
1 |
InternBDB: 32228AV/720 | InternKon: 4/6013/3053/0 / 28
|
|
|
|
17 |
804 351 73
|
Supporting disk |
1 |
InternBDB: 4/0408/9436/0 | InternKon: 4/6013/3053/0 / 13
|
|
|
|
18 |
968 958
|
Zyl. roller |
1 |
InternBDB: LF932 295 | InternKon: 4/6013/3053/0 / 15
|
|
|
|
19 |
804 352 73
|
Output shaft |
1 |
InternBDB: 2/0255/9531/0 | InternKon: 4/6013/3053/0 / 06
|
|
|
|
20 |
804 754 73
|
Supporting disk |
1 |
InternBDB: LF 932 136 | InternKon: 4/6013/3053/0 / 17
|
|
|
|
21 |
342 575 99
|
Circlip |
1 |
InternBDB: 125x4 /471 | InternKon: 4/6013/3053/0 / 35
|
|
|
|
|$$23 |
|

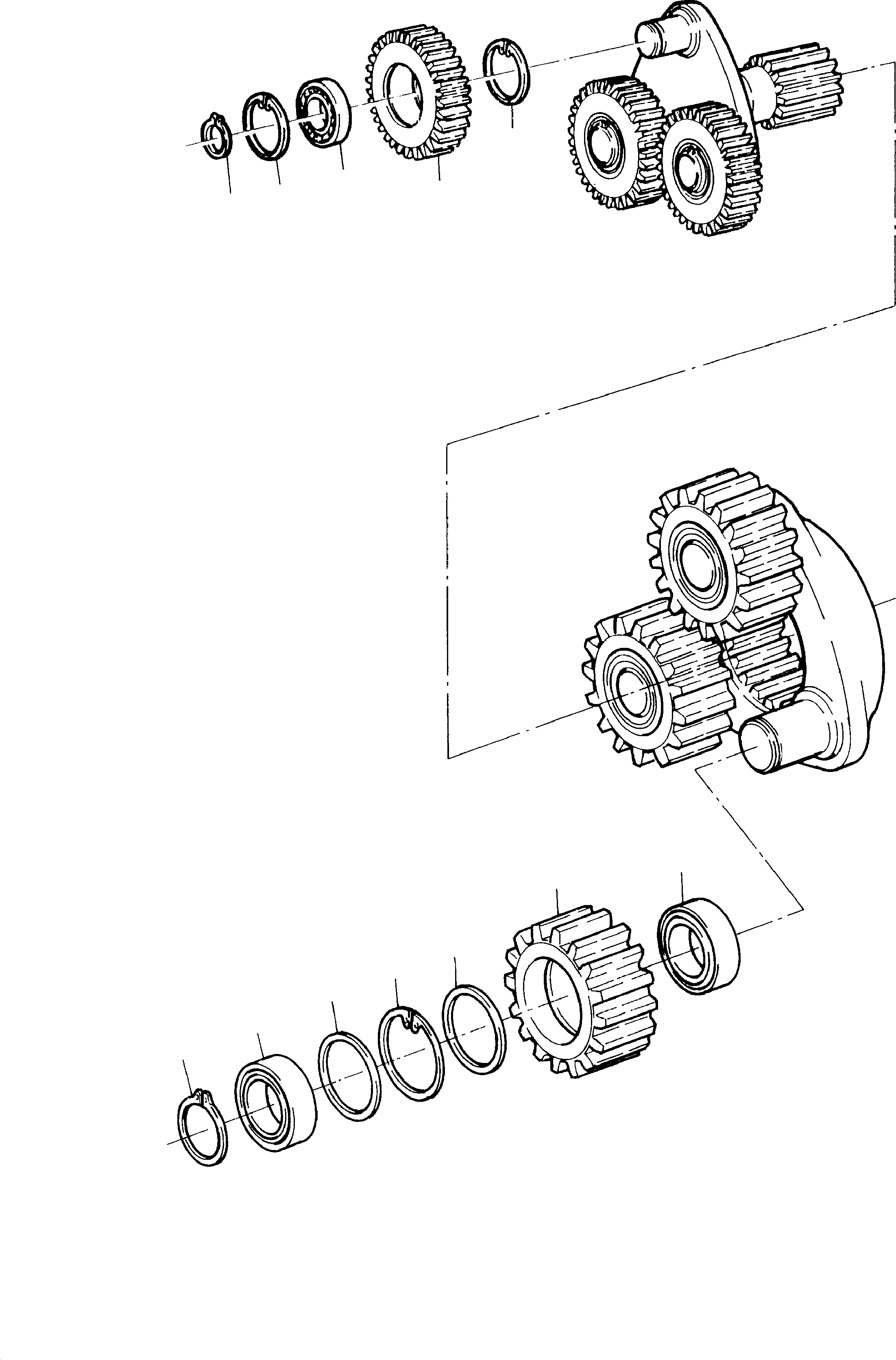

Graphic 2 |
-1 |
|
|
|
|
30 |
804 764 73
|
Planetary |
3 |
InternBDB: 3/0305/9843/0
|
|
|
|
31 |
506 447 98
|
Roller bearing |
3 |
InternBDB: SL 17 2207
|
|
|
|
32 |
342 661 99
|
Circlip |
6 |
InternBDB: 72x2,5 /472
|
|
|
|
33 |
500 415 98
|
Circlip |
3 |
InternBDB: 35x2,5 /471
|
|
|
|
34 |
804 763 73
|
Planetary |
3 |
InternBDB: 1/0305/9359/0
|
|
|
|
35 |
506 448 98
|
Roller bearing |
6 |
InternBDB: RSL 1830142 S
|
|
|
|
36 |
968 185
|
Stop washer |
6 |
InternBDB: F-88 831
|
|
|
|
37 |
342 670 99
|
Circlip |
3 |
InternBDB: 100x3 /472
|
|
|
|
38 |
342 561 99
|
Circlip |
3 |
InternBDB: 70x2,5 /471
|
|
