H65 26051

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	431 163 40	Oil temperature gauge	1	InternBDB: Moto-Meter d=52 641.011.7777 \| InternKon: 445 830 40 / 7
?	440 129 40	Voltmeter	1	InternBDB: 685.002.1012 \| InternKon: 445 830 40 / 8
?	431 148 40	Fuel gauge	1	InternBDB: 609.004.1002 \| InternKon: 445 830 40 / 9
?	431 160 40	Hour meter	1	InternBDB: d=60 643.003.1013 \| InternKon: 445 830 40 / 10
?	360 992 40	Glow-start switch	1	InternBDB: Merit 330 262 \| InternKon: 445 830 40 / 11
?	697 255 73	Key	1	InternBDB: Nr. 14603 SchlieЯ. E30
?	270 441 40	Connector socket	1	InternBDB: 24V,12A,2pol. 0 352 222 012 \| InternKon: 445 830 40 / 12
?	324 602 40	Dummy plug	3	InternBDB: A.R.Lцrrach AK11832/10517 \| InternKon: 445 830 40 / 96
?	324 591 40	Push button (motor stop)	1	InternBDB: Merit 200 320 \| InternKon: 445 830 40 / 20
?	324 400 40	Turn switch (cold-start)	1	InternBDB: 261000 \| InternKon: 445 830 40 / 18
?	324 401 40	Turn switch (panel lighting)	1	InternBDB: 260400 \| InternKon: 445 830 40 / 17
?	324 402 40	Turn switch (heater)	1	InternBDB: 263 400 \| InternKon: 445 830 40 / 19
?	324 401 40	Turn switch (outside lighting)	1	InternBDB: 260400 \| InternKon: 445 830 40 / 17
?	324 400 40	Turn switch (windscreen washing assy.)	1	InternBDB: 261000 \| InternKon: 445 830 40 / 18
?	324 401 40	Turn switch (wiper)	1	InternBDB: 260400 \| InternKon: 445 830 40 / 17
?	324 402 40	Turn switch (wiper)	1	InternBDB: 263 400 \| InternKon: 445 830 40 / 19
?	385 212 40	Dummy plug	8	InternBDB: Lumitas 51-948.0 \| InternKon: 445 830 40 / 27
?	356 156 40	Bulb	16	InternBDB: 31-963-28 28V,1,12W \| InternKon: 445 830 40 / 23
?	421 287 40	Foil with symbols for indicators	1	InternKon: 445 830 40 / 29
?	385 209 40	Signal light	16	InternBDB: 51-050.002 \| InternKon: 445 830 40 / 21
?	385 210 40	Push hood, red	15	InternBDB: 51-955.2 \| InternKon: 445 830 40 / 22
?	356 242 40	Cable protection hose Bulk ware, state length required	-2	InternBDB: PG 21 Sievert 220.101.021 \| InternKon: 445 830 40 / 83
?	507 384 99	Bulb 24V,3W	4	InternBDB: BA7S24V,3W 4.124.143
?	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: 1 mmІ LTG H07V-K1x1 PVC-CU \| InternKon: 445 830 40 / 86
?	410 694 40	Graphical symbol (wiper)	2	InternKon: 445 830 40 / 99
?	410 686 40	Graphical symbol (heater)	1	InternKon: 445 830 40 / 105
?	410 692 40	Graphical symbol (windscreen washing assy.)	1	InternKon: 445 830 40 / 100
?	410 687 40	Graphical symbol (headlamp)	1	InternKon: 445 830 40 / 104
?	410 689 40	Graphical symbol (instrument lighting)	1	InternKon: 445 830 40 / 102
?	410 688 40	Graphical symbol (start-pilot)	1	InternKon: 445 830 40 / 103
?	410 691 40	Graphical symbol (engine-stop)	1	InternKon: 445 830 40 / 101
?	471 729 99	Cable Bulk ware, state length required	-2	InternBDB: 2,5 mmІ LTG H07V-K1x 2,5 PVC-CU \| InternKon: 445 830 40 / 87
?	502 709 98	Assembly rail ca. 500 lg. Bulk ware, state length required	1	InternBDB: TS 35 Weidmьller TS35 3834.0
?	320 975 99	Screw	10	InternBDB: AM4x16 /84 \| InternKon: 445 830 40 / 63
?	332 442 99	Nut	2	InternBDB: M4 /934 \| InternKon: 445 830 40 / 65
?	323 476 40	Protective wire clip	4	InternBDB: Weidmьller 3229.0
?	356 278 40	Cover plate	1	InternBDB: 118618-01
?	356 277 40	Clamp	2	InternBDB: 115129-14
?	356 266 40	Cover plate	1	InternBDB: 118499-23
?	356 264 40	Twin terminal	30	InternBDB: 115271-22
?	431 164 40	Coolant thermometer	1	InternBDB: Moto-Meter 641.011.7778 \| InternKon: 445 830 40 / 31
?	471 731 99	Cable Bulk ware, state length required	-2	InternBDB: 6 mmІ LTG H07V-K1x 6 PVC-CU \| InternKon: 445 830 40 / 88
?	356 250 40	Socket	6	InternBDB: Sievert 520.030.021
?	324 401 40	Turn switch (swing brake)	1	InternBDB: 260 400 \| InternKon: 445 830 40 / 17
?	385 224 40	Socket	2	InternBDB: Contact 10.5830
?	358 264 40	Safety cover	2	InternBDB: 10.4816
?	358 223 40	Mounting box	2	InternBDB: 10.4720
?	358 263 40		2	InternBDB: 10.4815 Safety cover
?	414 668 40	Push hood, green	1	InternBDB: Lumitas 51.955.5
?		Tab to fig-no: 05	-1
?	440 151 99	Cable shoe 1,5	1
?	055 114 40	Cable shoe 1,5 - 2,5	1
?	697 269 73	Cable shoe, yellow 4,0 - 6,0	2	InternBDB: Hella 8 KW 700 142- 001
?	385 225 40	Plug insert	2	InternBDB: 10.5330 H-A 16 BS (1-16)
?	385 226 40	Plug insert	2	InternBDB: 10.5430 H-A 16 Bs (17-32)
?	385 227 40	Insert	2	InternBDB: 10.5320 H-A 16 SS (1-16)
?	385 228 40	Insert	2	InternBDB: 10.5420 H-A 16 SS (17-32)
?	346 508 99	Lock washer	8	InternBDB: 4 /128 \| InternKon: 445 830 40 / 66
?	697 406 73	Reducing 29-21	2	InternBDB: Sievert 246 6452 H-PG 29-21/ 46320
?	323 354 40	Cable union	2	InternBDB: 5010.100.021
?	449 301 40	Instrument panel	1	InternBDB: TL \| InternKon: 445 830 40 / 113
?	449 302 40	Switch board	1	InternBDB: TL \| InternKon: 445 830 40 / 114
?	449 303 40	Switch board	1	InternBDB: TL \| InternKon: 445 830 40 / 115

Komatsu H65 26051 parts catalog PDF

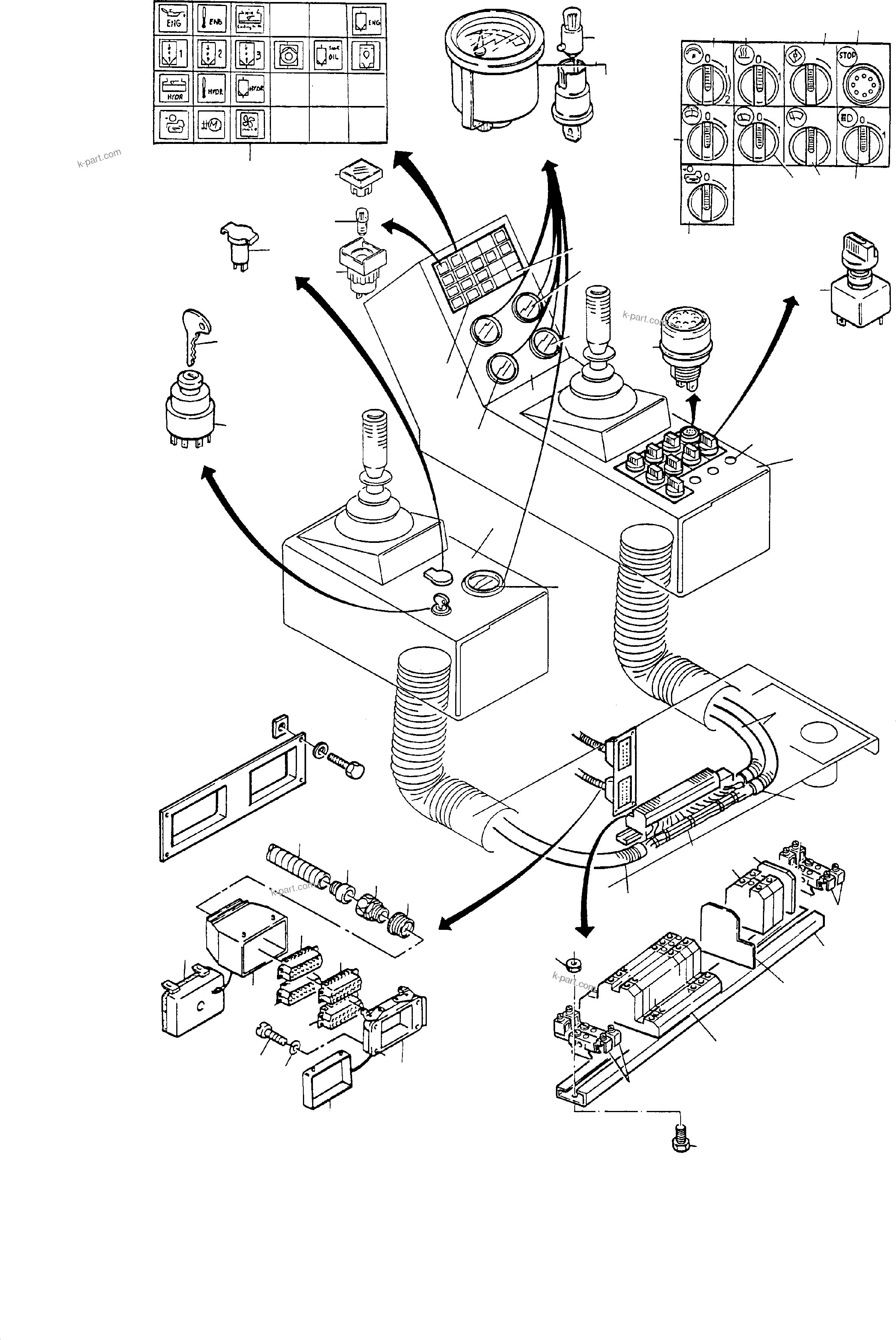

INSTRUMENTS AT CONTROLBOX (111-2130) in H65 26051. Diagram image and parts list.
