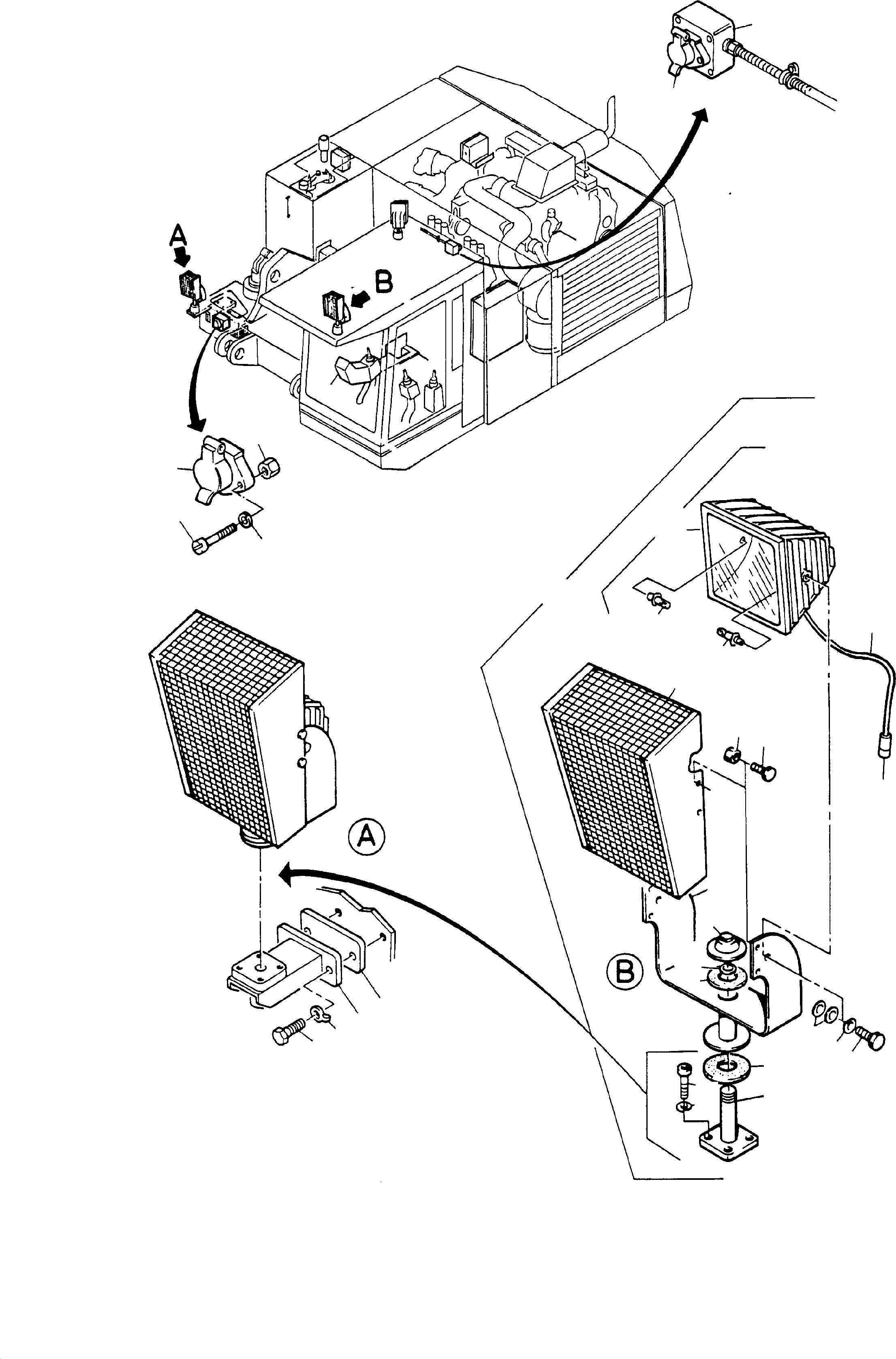

01 |
329 000 40
|
Headlight
fig-nos. 02,03,05-19,24,25 |
-2 |
|
|
|
|
02 |
329 001 40
|
Housing |
1 |
InternKon: 329 000 40 / 2
|
|
|
|
03 |
256 297 40
|
Headlight |
1 |
InternBDB: Schmidt 2x100 W Best.-Nr. PSH 500 24 V E-ST | InternKon: 329 000 40 / 1
|
|
|
|
04 |
269 021 40
|
Halogen light 100 W/24 V |
2 |
InternBDB: Schmidt QJ 100W/24V Osram-64460
|
|
|
|
05 |
329 002 40
|
Headlight retainer |
1 |
InternKon: 329 000 40 / 3
|
|
|
|
06 |
329 003 40
|
Support |
1 |
InternKon: 329 000 40 / 4
|
|
|
|
07 |
329 004 40
|
Spring disk |
1 |
InternBDB: Gummi SBR | InternKon: 329 000 40 / 5
|
|
|
|
08 |
329 005 40
|
Spring disk |
1 |
InternBDB: Gummi SBR | InternKon: 329 000 40 / 6
|
|
|
|
09 |
342 096 40
|
Clamping plate |
1 |
InternKon: 329 000 40 / 7
|
|
|
|
10 |
340 409 99
|
Washer |
3 |
InternBDB: 15 /433 | InternKon: 329 000 40 / 8
|
|
|
|
11 |
340 467 99
|
Washer |
4 |
InternBDB: B 13 /125 | InternKon: 329 000 40 / 9
|
|
|
|
12 |
307 802 99
|
Screw |
2 |
InternBDB: M12x25 /933 | InternKon: 329 000 40 / 10
|
|
|
|
13 |
307 750 99
|
Screw |
4 |
InternBDB: M8x15 /933 | InternKon: 329 000 40 / 11
|
|
|
|
14 |
332 111 99
|
Nut |
4 |
InternBDB: M 8 /934 | InternKon: 329 000 40 / 12
|
|
|
|
15 |
343 112 99
|
Lock washer |
2 |
InternBDB: B 12 /128 | InternKon: 329 000 40 / 13
|
|
|
|
16 |
319 429 99
|
Screw |
4 |
InternBDB: M10x20 /912 | InternKon: 329 000 40 / 14
|
|
|
|
17 |
343 855 99
|
Lock washer |
4 |
InternBDB: 10 /7980 | InternKon: 329 000 40 / 15
|
|
|
|
18 |
964 992
|
Diffusing glass |
1 |
InternBDB: 250x231
|
|
|
|
19 |
964 991
|
Reflector |
1 |
InternBDB: f. 2x100 Q-5
|
|
|
|
20 |
289 409 40
|
Lining |
1 |
InternKon: 308 330 40 / 2
|
|
|
|
21 |
308 305 40
|
Headlight carrier |
1 |
InternKon: 308 330 40 / 1
|
|
|
|
22 |
343 008 99
|
Locking plate |
2 |
InternBDB: 17 /93 | InternKon: 308 330 40 / 4
|
|
|
|
23 |
307 822 99
|
Screw |
2 |
InternBDB: M16x30 /933 | InternKon: 308 330 40 / 3
|
|
|
|
24 |
964 993
|
Gasket |
1 |
InternBDB: 500 Q
|
|
|
|
25 |
964 990
|
Socket |
2 |
InternBDB: GS 6,35
|
|
|
|
26 |
471 915 99
|
Cable
Bulk ware, state length
required |
-2 |
InternBDB: 4x1,5
|
|
|
|
27 |
057 245 40
|
Plug |
2 |
InternBDB: Bosch 0352 130 001
|
|
|
|
28 |
057 295 40
|
Socket |
2 |
InternBDB: 0352 030 002
|
|
|
|
29 |
320 979 99
|
Screw |
2 |
InternBDB: AM 4x35 /84
|
|
|
|
30 |
346 508 99
|
Lock washer |
2 |
InternBDB: 4 /128
|
|
|
|
31 |
332 442 99
|
Nut |
2 |
InternBDB: M4 /934
|
|
|
|
32 |
255 034 40
|
Housing, empty |
1 |
InternBDB: Bopla A105
|
|
