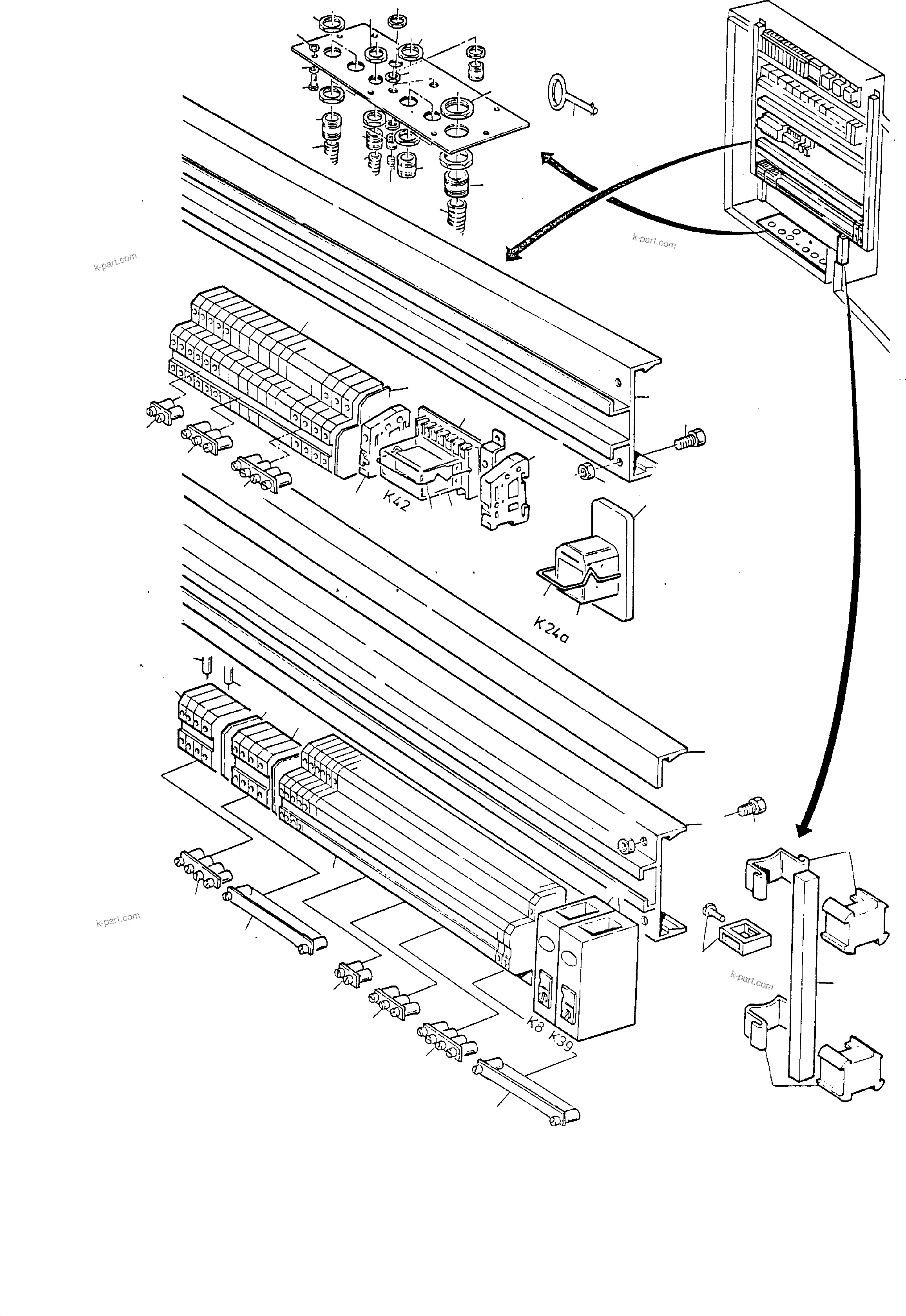

Diagram image 1 of 2

H65 26051

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H65 26051

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	324 393 40	Switch cabinet	1	InternBDB: Lohmeier A 1030 m.Stecktьre \| InternKon: 412 895 40 / 2
?	323 229 40	Assembly rail	2	InternBDB: Luetze CP 550 Best.Nr.33109 \| InternKon: 412 895 40 / 55
?	308 252 99	Screw	18	InternBDB: M8x16 /933
?	334 673 99	Nut	18	InternBDB: M 8 /985
?	270 873 40	Cable channel ca. 600 lg. Bulk ware, state length required	2	InternBDB: Fa. Sievert 131 083 Fa. Sievert 131083 \| InternKon: 412 895 40 / 23
?	323 237 40	Wiring fan	4	InternBDB: Luetze KP 300 Best.Nr.33004 \| InternKon: 412 895 40 / 59
?	323 231 40	Sectional plate	1	InternBDB: SA 100x500 Best.Nr.33301
?	323 766 40	Automatic breaker 50 Amp.	1	InternBDB: Klцckner Mцl. FAZG 50 A \| InternKon: 412 895 40 / 3
?	323 767 40	Automatic breaker 25 Amp.	2	InternBDB: FAZG 25 A \| InternKon: 412 895 40 / 4
?	323 768 40	Automatic breaker 16 Amp.	3	InternBDB: FAZG 16 A \| InternKon: 412 895 40 / 5
?	323 769 40	Automatic breaker 6 Amp.	7	InternBDB: FAZG 6 A \| InternKon: 412 895 40 / 6
?	323 770 40	Automatic breaker 1 Amp.	2	InternBDB: FAZG 1 A \| InternKon: 412 895 40 / 7
?	356 265 40	Clamp	2	InternBDB: Entrelec 103 002-26 \| InternKon: 412 895 40 / 16
?	323 241 40	Time lag relay	2	InternBDB: Weidmьller EGZ 5877-6 \| InternKon: 412 895 40 / 22
?	324 611 40	Retainer	16	InternBDB: Schrack RA 28800 \| InternKon: 412 895 40 / 14
?	323 397 40	Diode plate	1	InternBDB: DGE-22M-1A/ 1000 V Best.Nr.71810 \| InternKon: 412 895 40 / 12
?	323 233 40	Sectional plate ca. 500 lg. Bulk ware, state length required	6	InternBDB: Best.Nr.33002 \| InternKon: 412 895 40 / 60
?	323 234 40	Cover ca. 500 lg. Bulk ware, state length required	3	InternBDB: Best.Nr.30071 \| InternKon: 412 895 40 / 58
?	323 235 40	Marking strips ca. 500 lg. Bulk ware, state length required	3	InternBDB: Best.Nr.30093 \| InternKon: 412 895 40 / 56
?	323 236 40	Covering for fig-no: 19 ca. 500 lg. Bulk ware, state length required	3	InternBDB: Best.Nr.30092 Luetze 30092 \| InternKon: 412 895 40 / 57
?	323 232 40	Sectional plate	1	InternBDB: SA 120x500 Best.Nr.33331
?	346 528 40	Plate	8	InternBDB: Best.Nr.71744 \| InternKon: 412 895 40 / 10
?	346 529 40	Relay	16	InternBDB: Schrack RA 450024 \| InternKon: 412 895 40 / 9
?	323 909 40	Relay	5	InternBDB: Schrack RL 301024 \| InternKon: 412 895 40 / 24
?	323 910 40	Socket	5	InternBDB: RN 787 50 \| InternKon: 412 895 40 / 25
?	323 911 40	Spring	5	InternBDB: RN 288 01 \| InternKon: 412 895 40 / 26
?	317 033 40	Threaded rod	4	InternBDB: M8x70 /974
?	440 600 40	Time lag relay 0,1 s - 10 min.	1	InternBDB: ZR 041 090
?	323 230 40	Sectional plate	1	InternBDB: CA 80x500 Best.Nr.33380 \| InternKon: 412 895 40 / 61
?	356 272 40	Cover plate	1	InternBDB: Entrelec 118368-16 \| InternKon: 412 895 40 / 51
?	356 274 40	Clamp	8	InternBDB: 115120-17 \| InternKon: 412 895 40 / 28
?	323 934 40	Rail collector ca. 200 lg. Bulk ware, state length required	1	InternBDB: Weidmьller 5713.0
?	323 936 40	Yoke	10	InternBDB: 5567.0
?	356 277 40	Clamp	4	InternBDB: Entrelec 115 129-14 \| InternKon: 412 895 40 / 30
?	356 266 40	Cover plate	1	InternBDB: 118 499-23 \| InternKon: 412 895 40 / 17
?	356 264 40	Twin terminal	80	InternBDB: 115 271-22 \| InternKon: 412 895 40 / 15
?	323 935 40	Rail bracket	2	InternBDB: Weidmьller 2998.2
?	223 916 40	Acceleration relay (for installation fuel economising)	1	InternBDB: Kuhnke-Malente FAZP-24V
?	223 917 40	Socket	1	InternBDB: 2382
?	223 918 40	Retainer	1	InternBDB: 2481
?	323 248 40	Switch unit	2	InternBDB: Fa. Noris RH 31 \| InternKon: 412 895 40 / 1
?	356 265 40	Clamp	3	InternBDB: Entrelec 103 002-26 \| InternKon: 412 895 40 / 16
?	323 232 40	Sectional plate	1	InternBDB: SA 120x500 333 31
?	356 267 40	Cross connection OV 2	19	InternBDB: Entrelec 173 515-11 \| InternKon: 412 895 40 / 18
?	356 268 40	Cross connection OV 3	2	InternBDB: 173 516-12 \| InternKon: 412 895 40 / 19
?	356 626 40	Cross connection OV 4	1	InternBDB: 173 517-13 \| InternKon: 412 895 40 / 20
?	356 270 40	Cross connection OV 10	1	InternBDB: 173 520-22 \| InternKon: 412 895 40 / 21
?	356 279 40	Cross connection OV 4	2	InternBDB: 173 618-00 \| InternKon: 412 895 40 / 31
?	356 275 40	Cross connection OV 10	1	InternBDB: 173 615-25 \| InternKon: 412 895 40 / 29
?	323 238 40	Sectional plate	1	InternBDB: AA 23x500 Best.-Nr. 33 391
?	323 355 40	Cable union	1	InternBDB: Sievert 5010.100.029 \| InternKon: 412 895 40 / 49
?	323 949 40	Cable union	2	InternBDB: 5010.100.007
?	323 954 40	Cable union	4	InternBDB: 5010.100.021 \| InternKon: 412 895 40 / 45
?	320 816 99	Screw	8	InternBDB: AM5x10 /84
?	340 462 99	Washer	8	InternBDB: 5,3 /125
?	332 109 99	Nut	8	InternBDB: M 5 /934
?	502 825 98	Cable nut	3	InternBDB: APG 7 /46258
?	501 677 98	Cable nut	4	InternBDB: APG 21 /46258 \| InternKon: 412 895 40 / 46
?	501 654 98	Cable nut	2	InternBDB: APG 29 /46258 \| InternKon: 412 895 40 / 50
?	356 243 40	Conduit Bulk ware, state length required	-2	InternBDB: Sievert 220.101.029
?	356 242 40	Conduit Bulk ware, state length required	-2	InternBDB: 220.101.021
?	056 211 40	Conduit Bulk ware, state length required	-2	InternBDB: x
?	323 951 40	Cable union	-2	InternBDB: Sievert 5010.100.011 \| InternKon: 412 895 40 / 47
?	600 803 99	Cable nut	-2	InternBDB: APG 11/46258
?	471 731 99	Cable Bulk ware, state length required	-2	InternBDB: 6 qmm
?	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: 1 qmm
?	081 267 40	Double-bit key Ш 3,2	-2	InternBDB: EMKA 1004-05
?	356 238 40	Conduit Bulk ware, state length required	-2	InternBDB: Sievert 220.101-010 220.101.010
?	308 252 99	Bolt	12	InternBDB: M8x16 /933
?	334 673 99	Nut	12	InternBDB: M 8 /985
?		Applies to Volvo-drive only:	-1
?	440 602 40	Time lag relay 0,1 S - 10 min	1	InternBDB: Schrack 503 031 ZR 042 07
?	431 102 40	Interference suppressor	2	InternBDB: Gematronic TL
?		Applies to aux. spot light only	-1
?	323 909 40	Relay	1	InternBDB: Schrack RL 301 024
?	323 910 40	Socket	1	InternBDB: RN 78 750
?	323 911 40	Spring retainer	1	InternBDB: RN 28 801
?	168 468 40	Double-bit key Ш 5,2	-2	InternBDB: 1004-06
?	356 282 40	Marking strips 11-20	-2	InternBDB: Entrelec 103085-11 \| InternKon: 412 895 40 / 35
?	356 283 40	Marking strips 21-30	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 36
?	356 284 40	Marking strips 31-40	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 37
?	356 285 40	Marking strips 41-50	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 38
?	356 286 40	Marking strips 51-60	-2	InternBDB: Entrelec 103085-11 \| InternKon: 412 895 40 / 39
?	356 287 40	Marking strips 61-70	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 40
?	356 288 40	Marking strips 71-80	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 41
?	356 289 40	Marking strips 81-90	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 42
?	356 290 40	Marking strips 91-100	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 43
?	356 291 40	Marking strips 101-110	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 44
?	356 281 40	Marking strips 1-10	-2	InternBDB: 103085-11 \| InternKon: 412 895 40 / 34

Komatsu H65 26051 parts catalog PDF

SWITCH CABINET AT FUELTANK (065-2115b) in H65 26051. Diagram image and parts list.
